Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 241

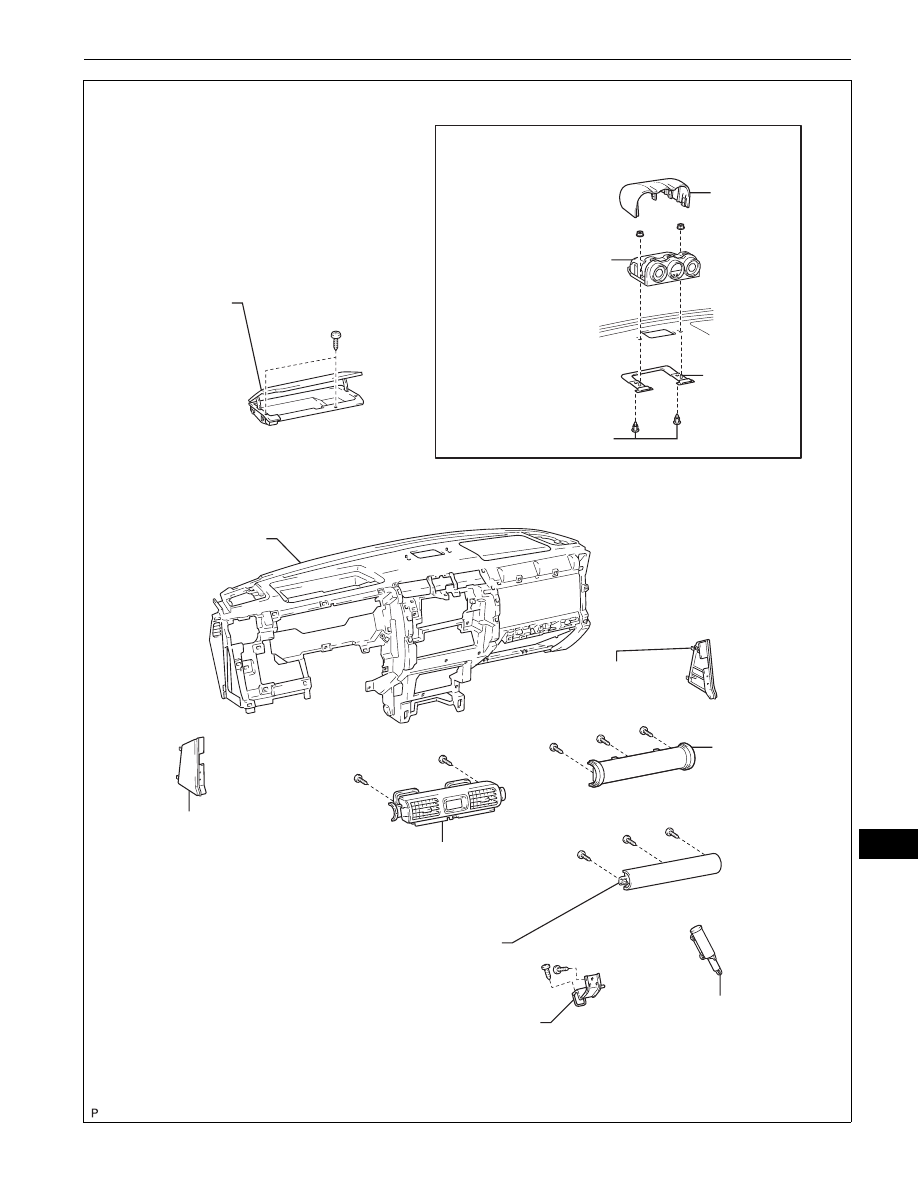

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–7

IP

ACCESSORY
METER ASSEMBLY

ACCESSORY
METER
BRACKET

LOWER INSTRUMENT
PANEL SUB-ASSEMBLY LH

METER
COVER

NO. 2 INSTRUMENT
PANEL BOX DOOR
SUB-ASSEMBLY

INSTRUMENT PANEL CENTER
BRACKET SUB-ASSEMBLY

GLOVE COMPARTMENT DOOR
STOPPER SUB-ASSEMBLY

INSTRUMENT CLUSTER LOWER CENTER
FINISH PANEL SUB-ASSEMBLY

INSTRUMENT CLUSTER CENTER
FINISH PANEL SUB-ASSEMBLY

LOWER INSTRUMENT
PANEL SUB-ASSEMBLY RH

INSTRUMENT PANEL

CLIP

w/ Accessory Meter:

INSTRUMENT
CLUSTER
FINISH PANEL
SUB-ASSEMBLY

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<H>

B133848E01

IP–8

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

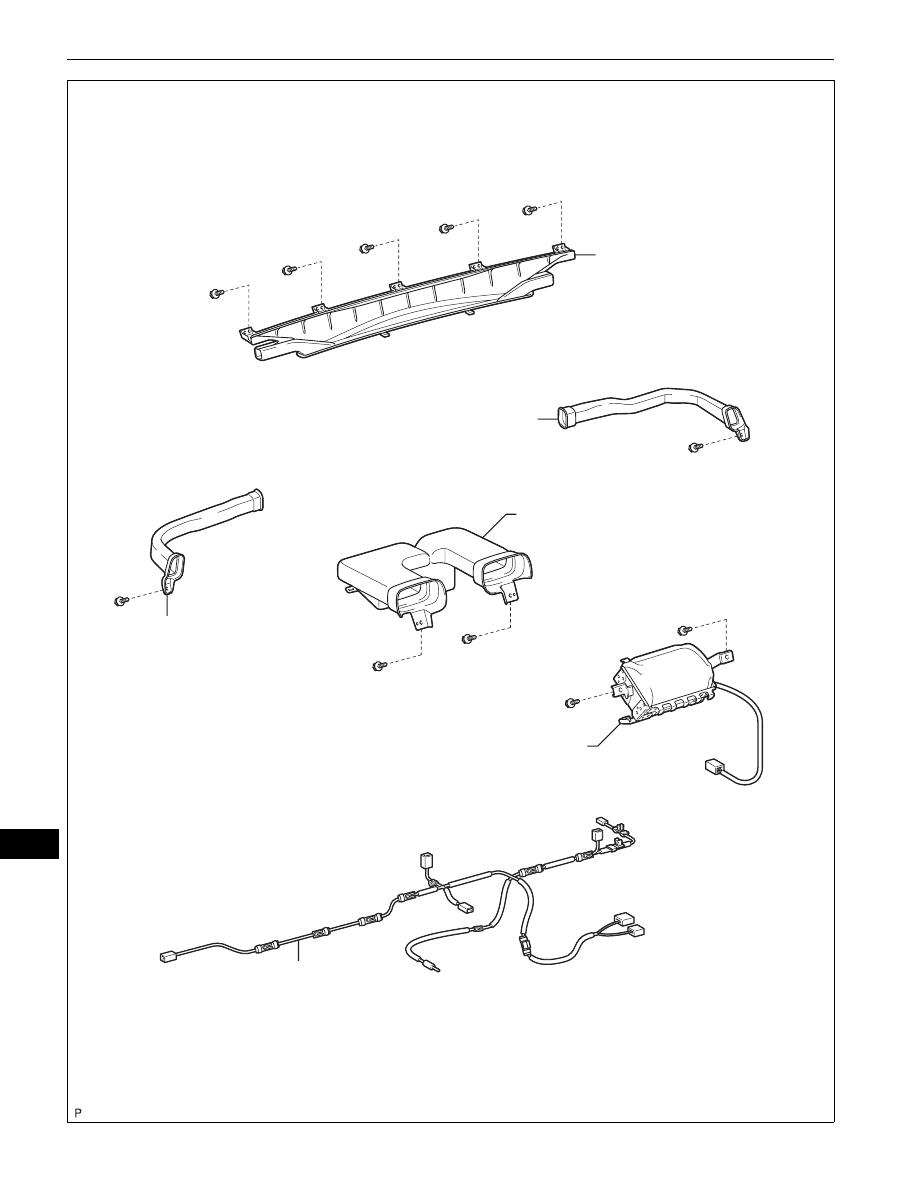

DEFROSTER NOZZLE
ASSEMBLY

FRONT PASSENGER
AIRBAG ASSEMBLY

NO. 1 SIDE DEFROSTER
NOZZLE DUCT

NO. 2 INSTRUMENT
PANEL WIRE

NO. 2 SIDE DEFROSTER
NOZZLE DUCT

NO. 3 HEATER TO REGISTER DUCT

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<B>

<B>

B133849E01

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–9

IP

REMOVAL

HINT:
Use the same procedure for both the RH and LH sides.

1.

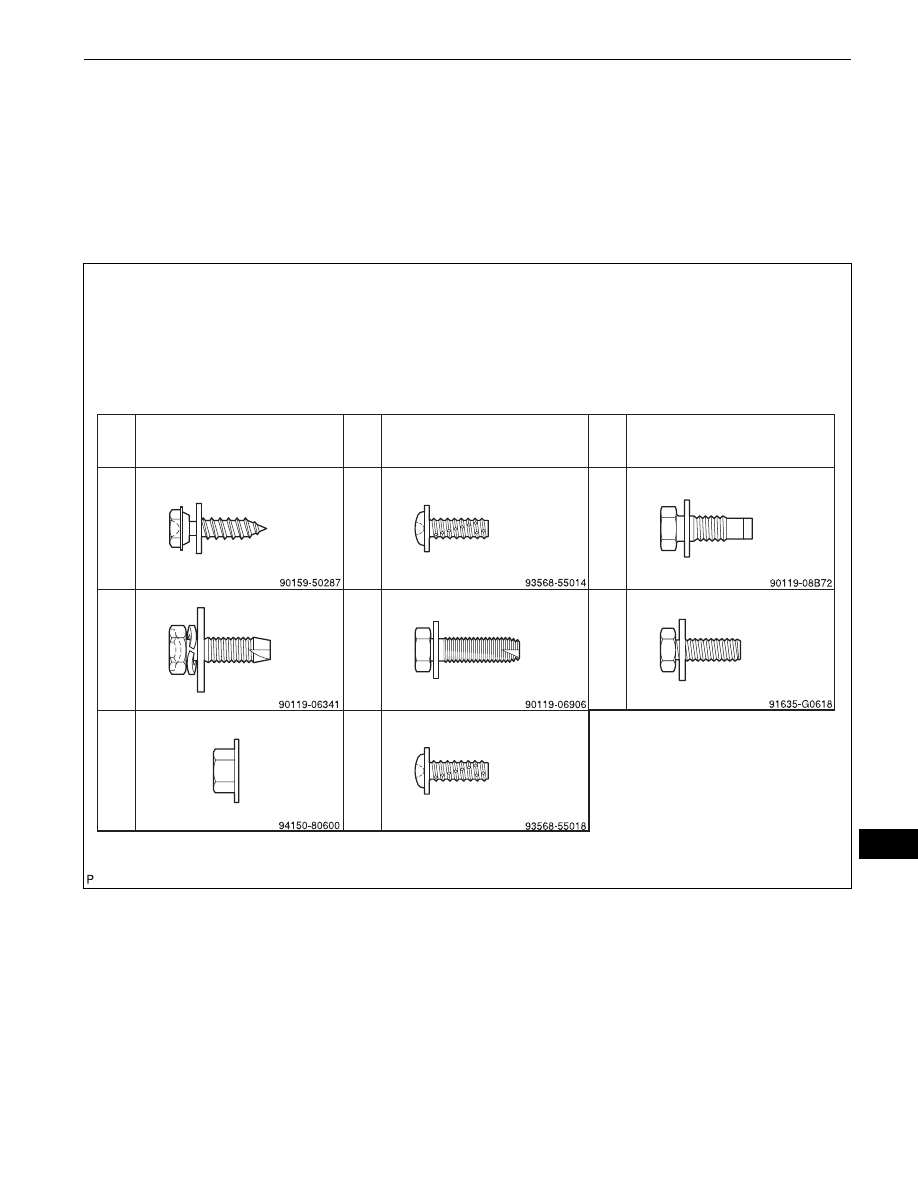

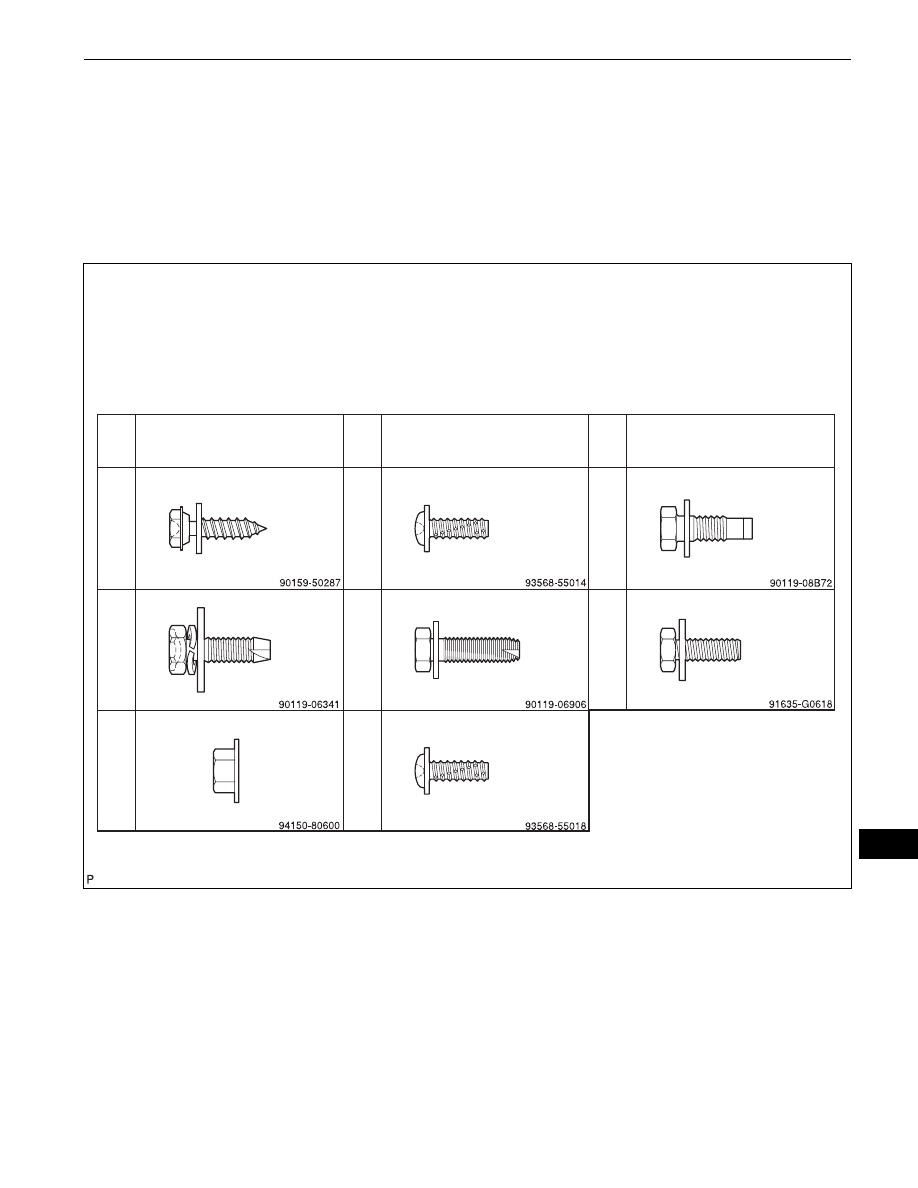

BOLTS, SCREWS AND NUTS TABLE
HINT:
All bolts, screws and nuts relevant to installing and
removing the instrument panel are shown, along with
their alphabetic codes, in the table below.

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
Wait for at least 90 seconds after disconnecting the
cable to prevent the airbag from working.

3.

REMOVE FRONT DOOR SCUFF PLATE RH (See page

IR-15

)

4.

REMOVE FRONT DOOR SCUFF PLATE LH (See page

IR-15

)

5.

REMOVE FRONT FLOOR FOOTREST (See page

IR-2

)

6.

REMOVE FOOTREST CLIP (See page

IR-2

)

φ = 6
(0.24)

L = 14
(0.55)

Code

Shape

φ = 6
(0.24)

L = 20
(0.79)

φ = 6
(0.24)

L = 20
(0.79)

φ = 5
(0.20)

L = 14
(0.55)

φ = 5
(0.20)

L = 14
(0.55)

φ = 6
(0.24)

Code

Shape

Code

Shape

φ = 6
(0.24)

L = 20
(0.79)

<A>

<D>

<G>

<B>

<E>

<C>

<F>

mm (in.) (L = Length)

φ = 5
(0.20)

L = 18
(0.71)

<H>

B133850E01

IP–10

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

7.

REMOVE COWL SIDE TRIM BOARD RH (See page

IR-15

)

8.

REMOVE COWL SIDE TRIM BOARD LH (See page

IR-

15

)

9.

SEPARATE FRONT DOOR OPENING TRIM
WEATHERSTRIP LH
(a) Separate the front door opening trim weatherstrip

LH.

10. SEPARATE FRONT DOOR OPENING TRIM

WEATHERSTRIP RH
(a) Separate the front door opening trim weatherstrip

RH.

11. REMOVE ASSIST GRIP PLUG (See page

IR-17

)

12. REMOVE ASSIST GRIP ASSEMBLY (See page

IR-17

)

13. REMOVE FRONT PILLAR GARNISH RH (See page

IR-

18

)

14. REMOVE FRONT PILLAR GARNISH LH (See page

IR-

18

)

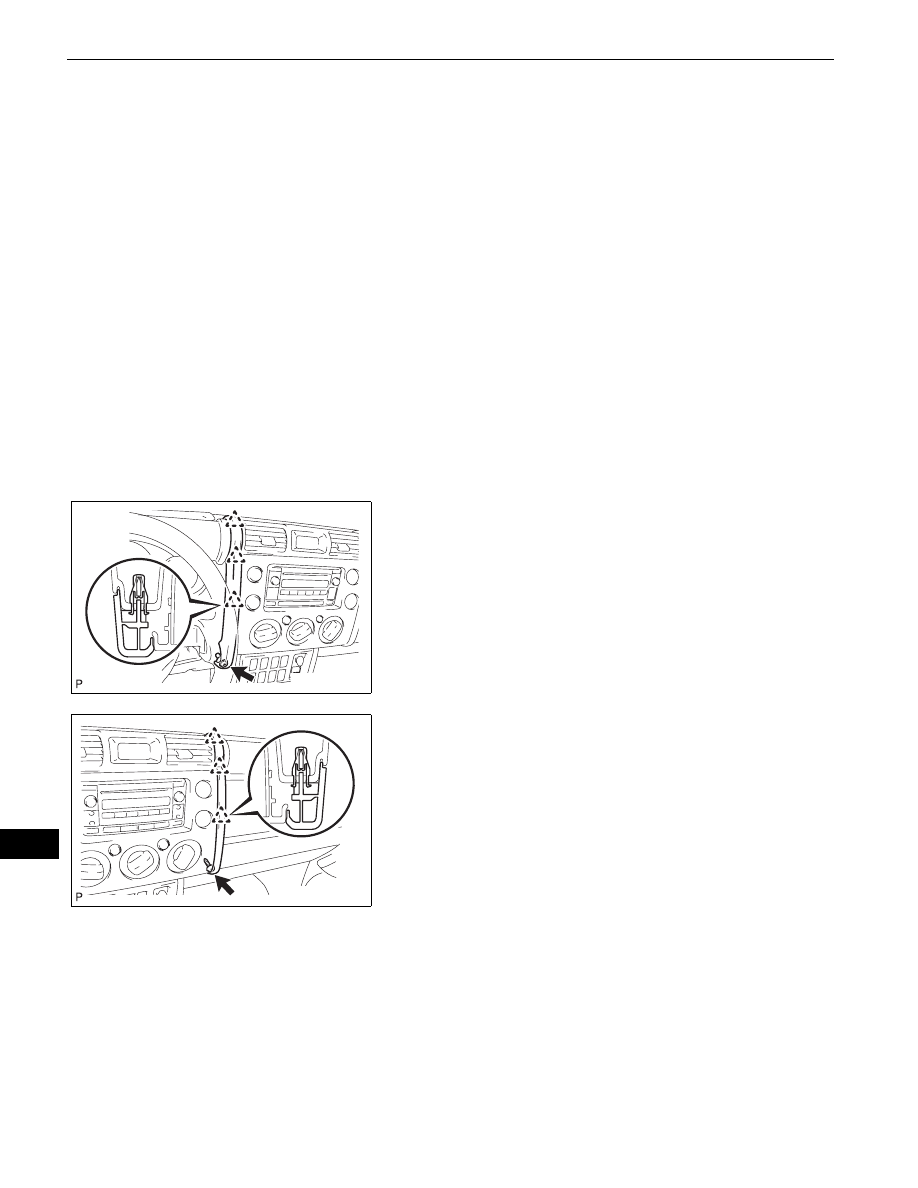

15. REMOVE INSTRUMENT PANEL GARNISH LH

(a) Remove screw <H>.
(b) Disengage the 3 clips and remove the instrument

panel garnish.
NOTICE:
•

Pull the instrument panel garnish up at an
angle of 45

° to remove it.

•

Do not damage the surface of the instrument
panel when removing it.

16. REMOVE INSTRUMENT PANEL GARNISH RH

(a) Remove screw <H>.
(b) Disengage the 3 clips and remove the instrument

panel garnish.
NOTICE:
•

Pull the instrument panel garnish up at an
angle of 45

° to remove it.

•

Do not damage the surface of the instrument
panel when removing it.

B133886

B133887
