HO–2

HORN  –  HORN SYSTEM

HO

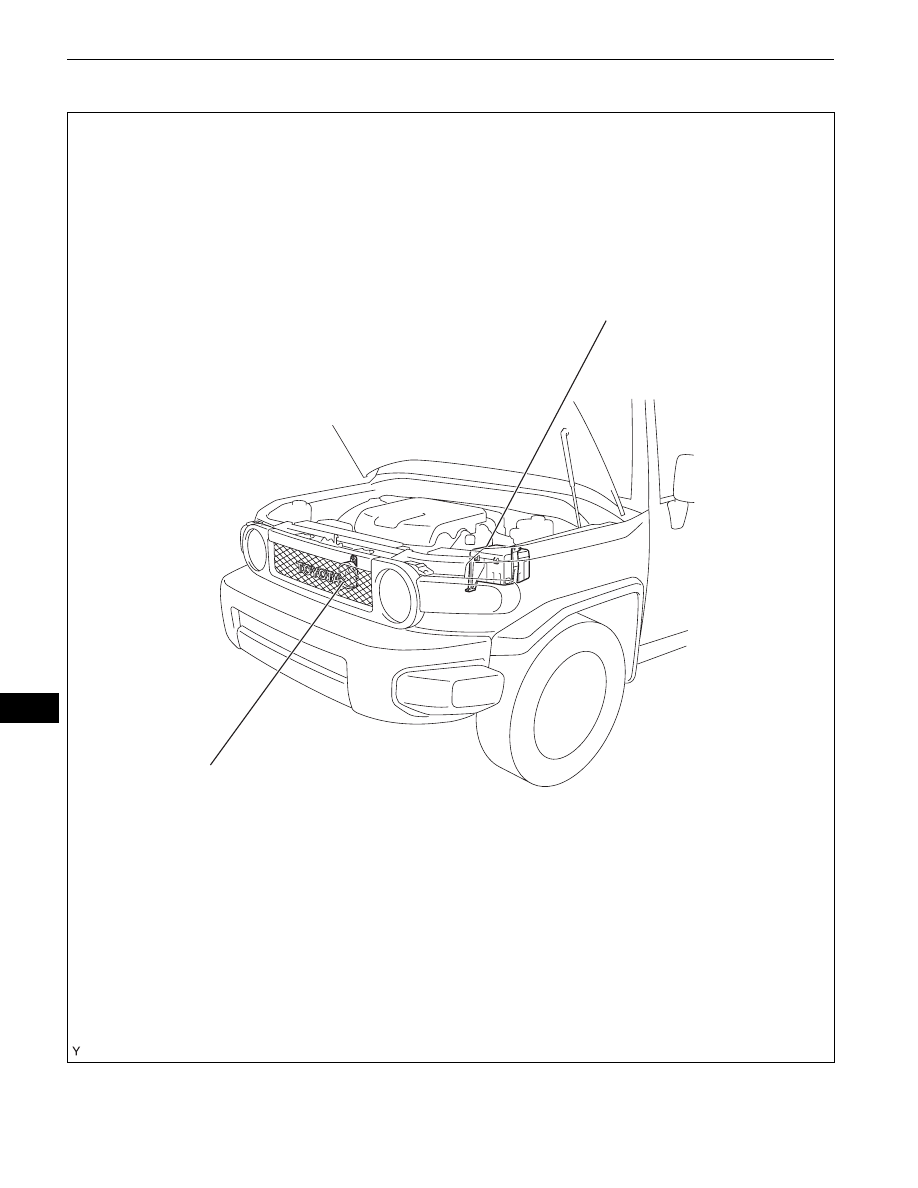

PARTS LOCATION

LOW PITCHED HORN

ENGINE ROOM R/B NO. 2

- HORN FUSE

B136054E01

HORN  –  HORN SYSTEM

HO–3

HO

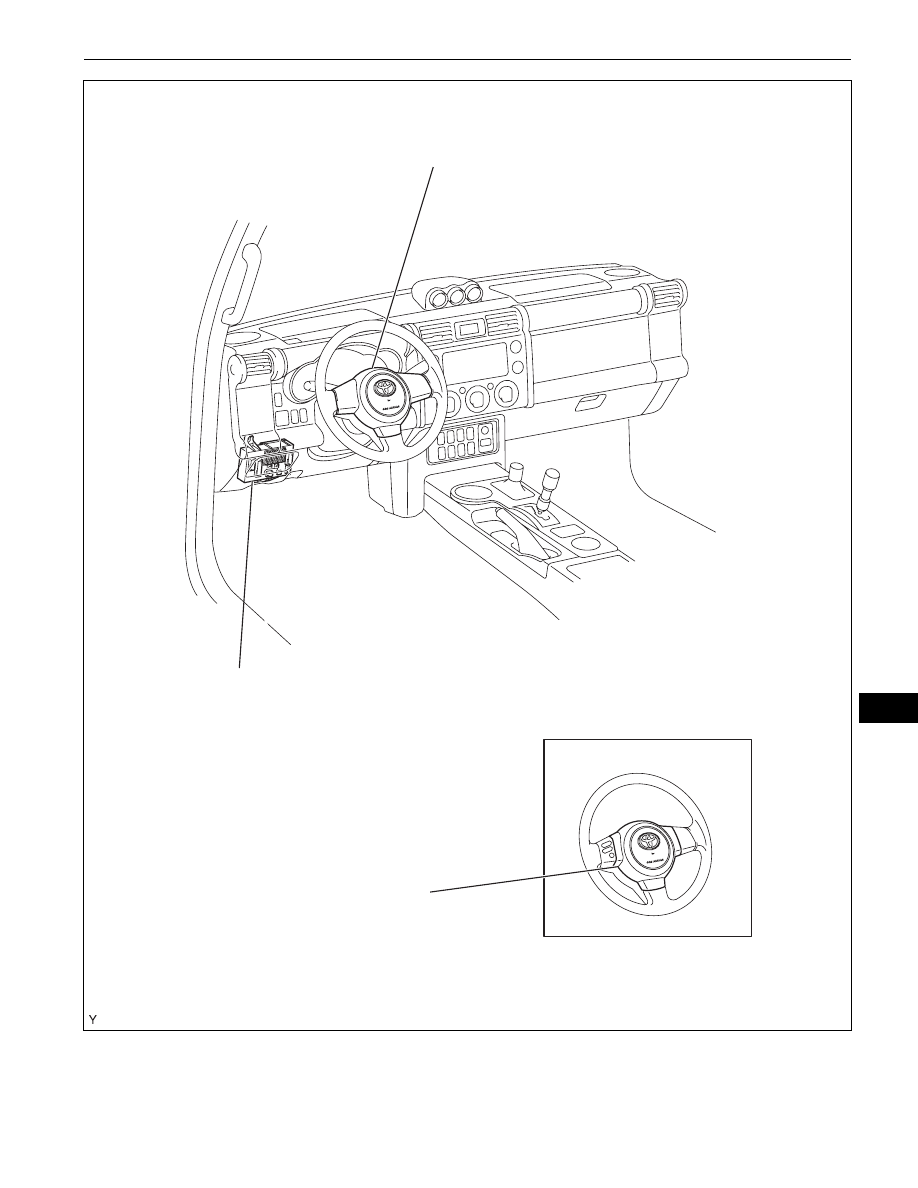

- HORN RELAY

- HORN BUTTON SWITCH

W/O STEERING SWITCH

W/ STEERING SWITCH

STEERING PAD

- HORN BUTTON SWITCH

STEERING PAD

MAIN BODY ECU (DRIVER SIDE J/B)

B136055E01

HO–4

HORN  –  HORN SYSTEM

HO

SYSTEM DIAGRAM

HORN

HORN

Battery

Spiral Cable

Horn Button Switch

Low Pitched
Horn Assembly

B136056E01

HORN  –  HORN SYSTEM

HO–5

HO

PROBLEM SYMPTOMS TABLE

HINT:
Use the table below to help determine the causes of the
problem symptom. The potential causes of the symptoms are
listed in order of probability in the "Suspected Area" column
of the table. Check each symptom by checking the suspected
areas in the order they are listed. Replace parts as
necessary.

Horn system

Symptom

Suspected area

See page

Horn does not sound

HORN fuse

HO-2

HORN relay

HO-7

Low pitched horn assembly

HO-10

Horn pad (Horn switch)

RS-346

Wire harness

-
