EXTERIOR  –  NAME PLATE

ET–27

ET

BODY

EXTERIOR

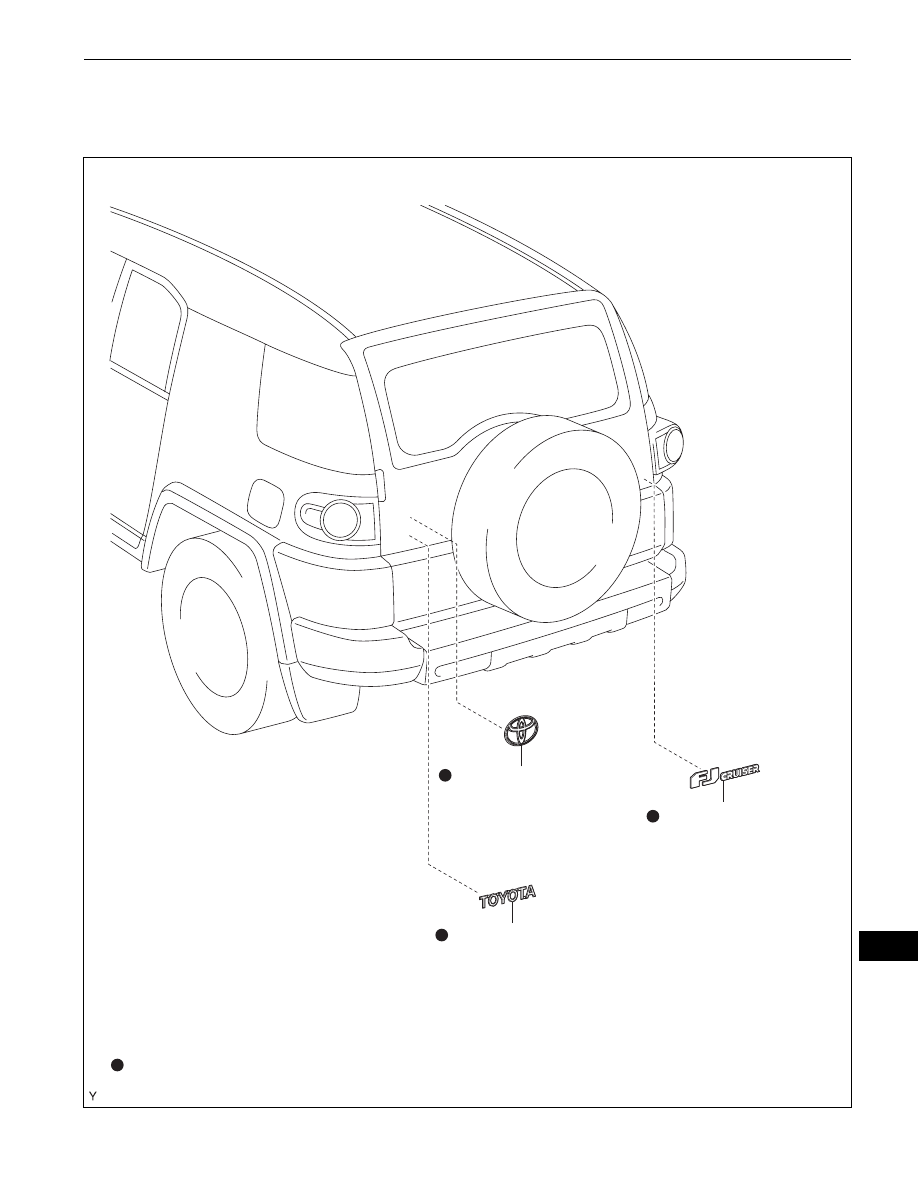

NAME PLATE

COMPONENTS

Non-reusable part

REAR NAME PLATE

NO. 2 BACK DOOR
NAME PLATE

NO. 1 BACK DOOR
NAME PLATE

B134739E01

ET–28

EXTERIOR  –  NAME PLATE

ET

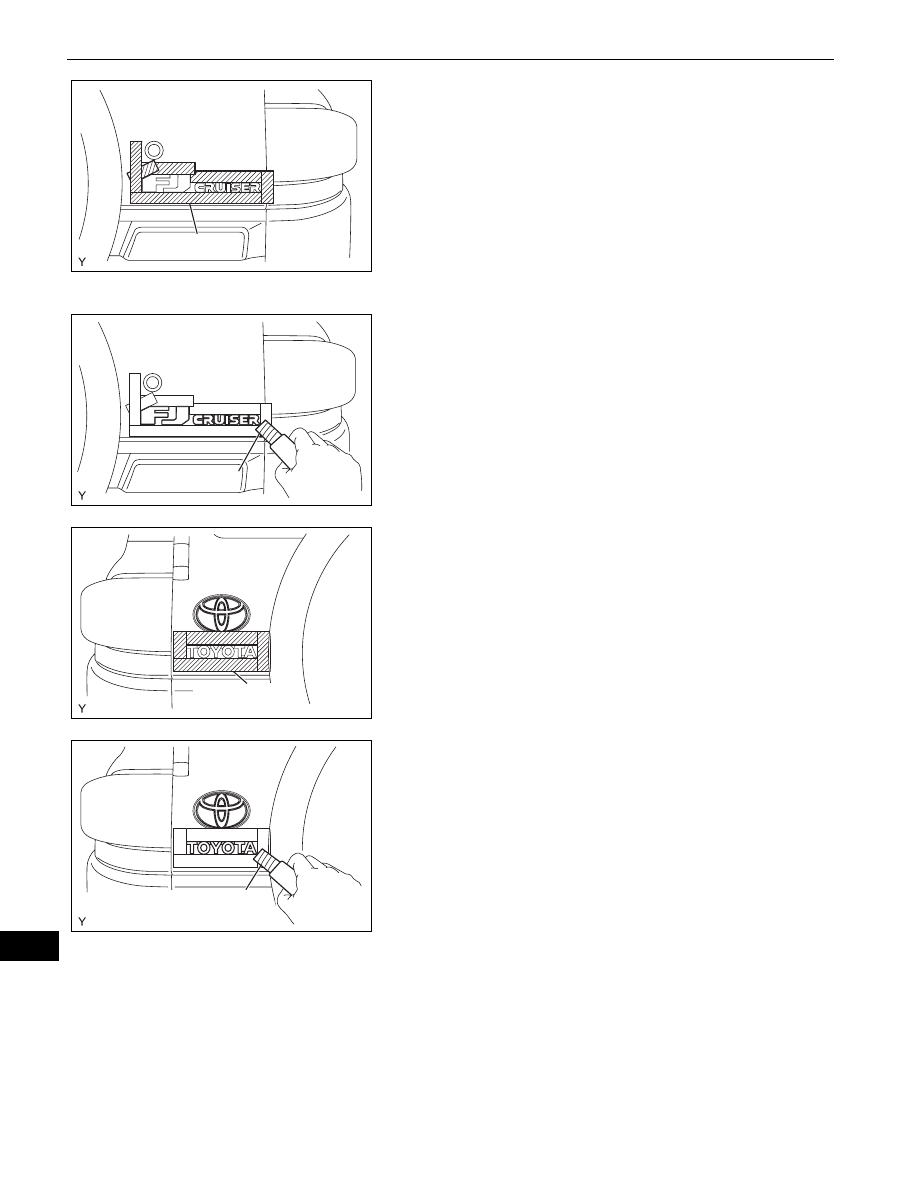

REMOVAL

1.

REMOVE NO. 1 BACK DOOR NAME PLATE
(a) Apply protective tape to the back door panel in the

area around the No. 1 back door name plate.

(b) Using an infrared light, heat the No. 1 back door

name plate.
CAUTION:
Do not burn yourself with the heated back door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 1 to 2 minutes.

(c) Using a gasket scraper with its tip wrapped in

protective tape, gradually peel the adhesive surface
and remove the No. 1 back door name plate.

(d) Remove the protective tape.

2.

REMOVE NO. 2 BACK DOOR NAME PLATE
(a) Apply protective tape to the back door panel in the

area around the No. 2 back door name plate.

(b) Using an infrared light, heat the No. 2 back door

name plate.
CAUTION:
Do not burn yourself with the heated back door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 1 to 2 minutes.

(c) Using a gasket scraper with its tip wrapped in

protective tape, gradually peel the adhesive surface
and remove the No. 2 back door name plate.

(d) Remove the protective tape.

Protective Tape

B134740E01

Protective Tape

B134741E01

Protective Tape

B134743E01

Protective Tape

B134744E01

EXTERIOR  –  NAME PLATE

ET–29

ET

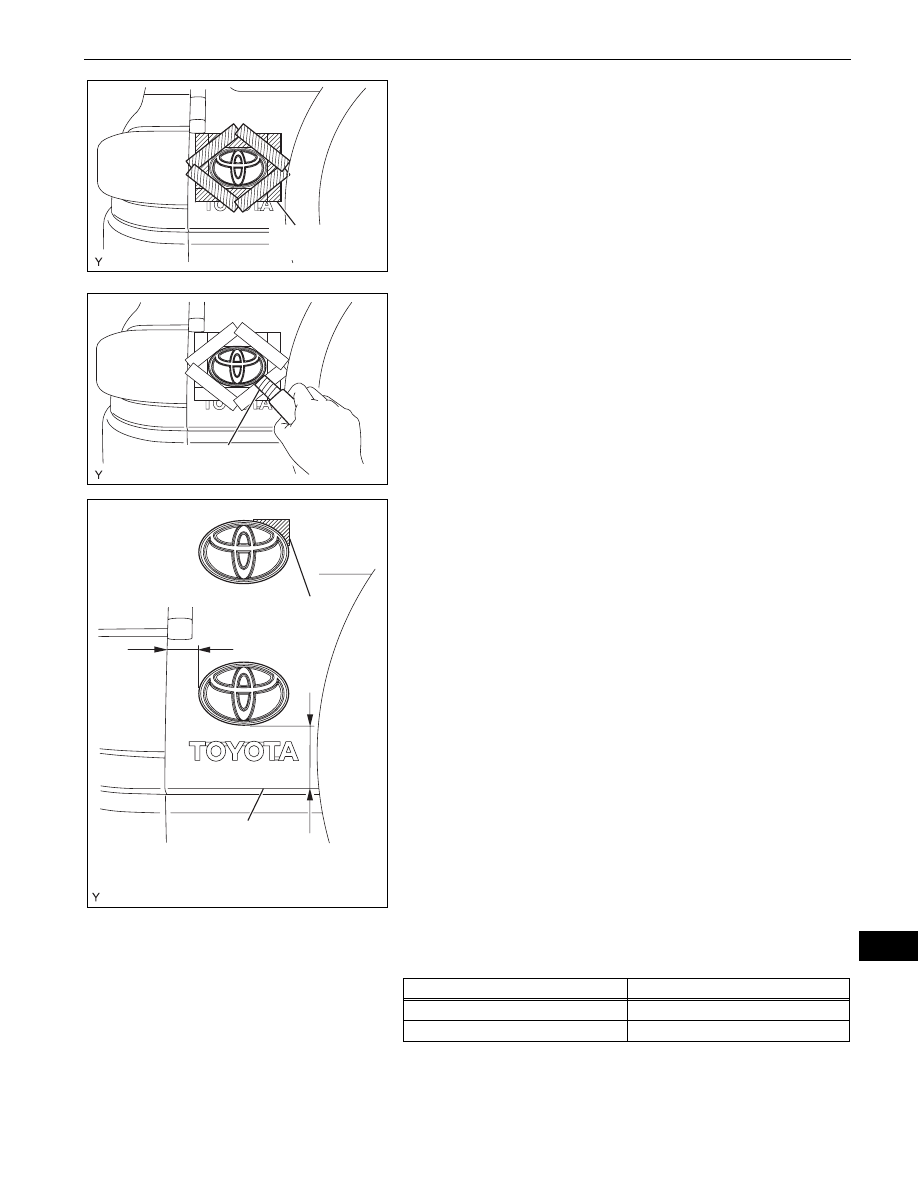

3.

REMOVE REAR NAME PLATE
(a) Apply protective tape to the back door panel in the

area around the rear name plate.

(b) Using an infrared light, heat the rear name plate.

CAUTION:
Do not burn yourself with the heated back door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 1 to 2 minutes.

(c) Using a gasket scraper with its tip wrapped in

protective tape, gradually peel the adhesive surface
and remove the rear name plate.

(d) Remove the protective tape.

INSTALLATION

1.

INSTALL REAR NAME PLATE
(a) Clean the attachment surface.

(1) Using an infrared light, heat the double-sided

adhesive tape remaining on the back door
panel.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 1 to 2

minutes.

(2) Using a shop rag or piece of cloth, rub the

remaining double-sided adhesive tape off the
back door panel while it is hot from the infrared
light.
NOTICE:
Installing the rear name plate while any
double-sided adhesive tape remains on the
back door panel may cause adhesion
failure. Therefore, completely remove the
double-sided adhesive tape.

(3) Using a non-residue solvent, clean the

attachment surface.

(b) Align the 2 pins and install a new rear name plate as

shown in the illustration.
Installation position

Protective Tape

B134746E01

Protective Tape

B134747E01

Peeling Paper

Back Door Panel
Relief R End Line

b

a

B134748E01

Mark

Measurement (along surface)

a

49 mm (1.929 in.)

b

56.7 mm (2.232 in.)

ET–30

EXTERIOR  –  NAME PLATE

ET

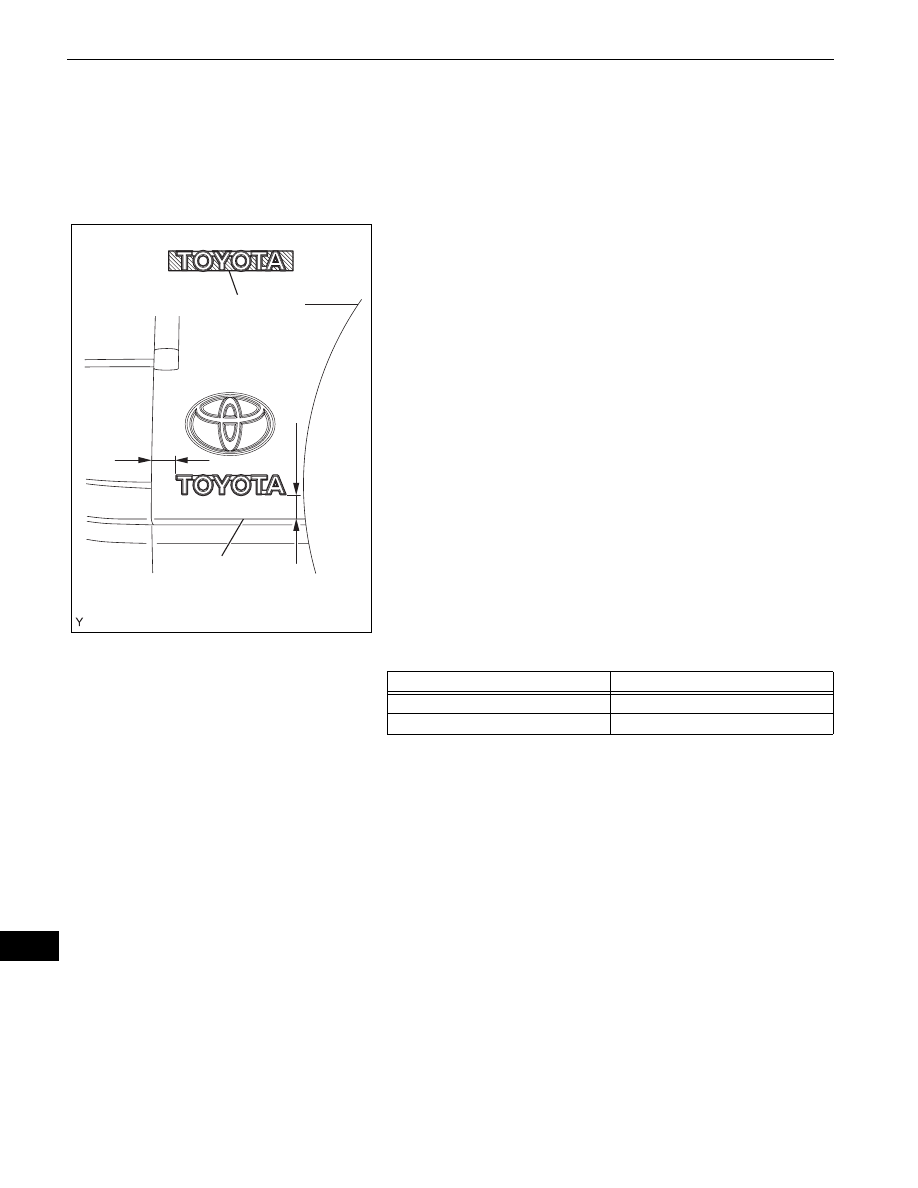

NOTICE:
Install the rear name plate in an environment
where the ambient temperature is over 20

°C

(68

°F). If it is below 20°C (68°F), using an

infrared light, heat the back door panel and the
rear name plate up to 20 to 30

°C (68 to 86°F) and

install the rear name plate.

2.

INSTALL NO. 2 BACK DOOR NAME PLATE
(a) Clean the attachment surface.

(1) Using an infrared light, heat the double-sided

adhesive tape remaining on the back door
panel.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 1 to 2

minutes.

(2) Using a shop rag or piece of cloth, rub the

remaining double-sided adhesive tape off the
back door panel while it is hot from the infrared
light.
NOTICE:
Installing the No. 2 back door name plate
while any double-sided adhesive tape
remains on the back door panel may cause
adhesion failure. Therefore, completely
remove the double-sided adhesive tape.

(3) Using a non-residue solvent, clean the

attachment surface.

(b) Install a new No. 2 back door name plate as shown

in the illustration.
Installation position

NOTICE:
Install the back door name plate in an
environment where the ambient temperature is
over 20

°C (68°F). If it is below 20°C (68°F), using

an infrared light, heat the back door panel and
the No. 2 back door name plate up to 20 to 30

°C

(68 to 86

°F) and install the No. 2 back door name

plate.

Peeling Paper

Back Door Panel
Relief R End Line

b

a

B134745E01

Mark

Measurement (along surface)

a

37 mm (1.457 in.)

b

14.5 mm (0.571 in.)
