Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 137

ENGINE HOOD / DOOR  –  BACK DOOR

ED–45

ED

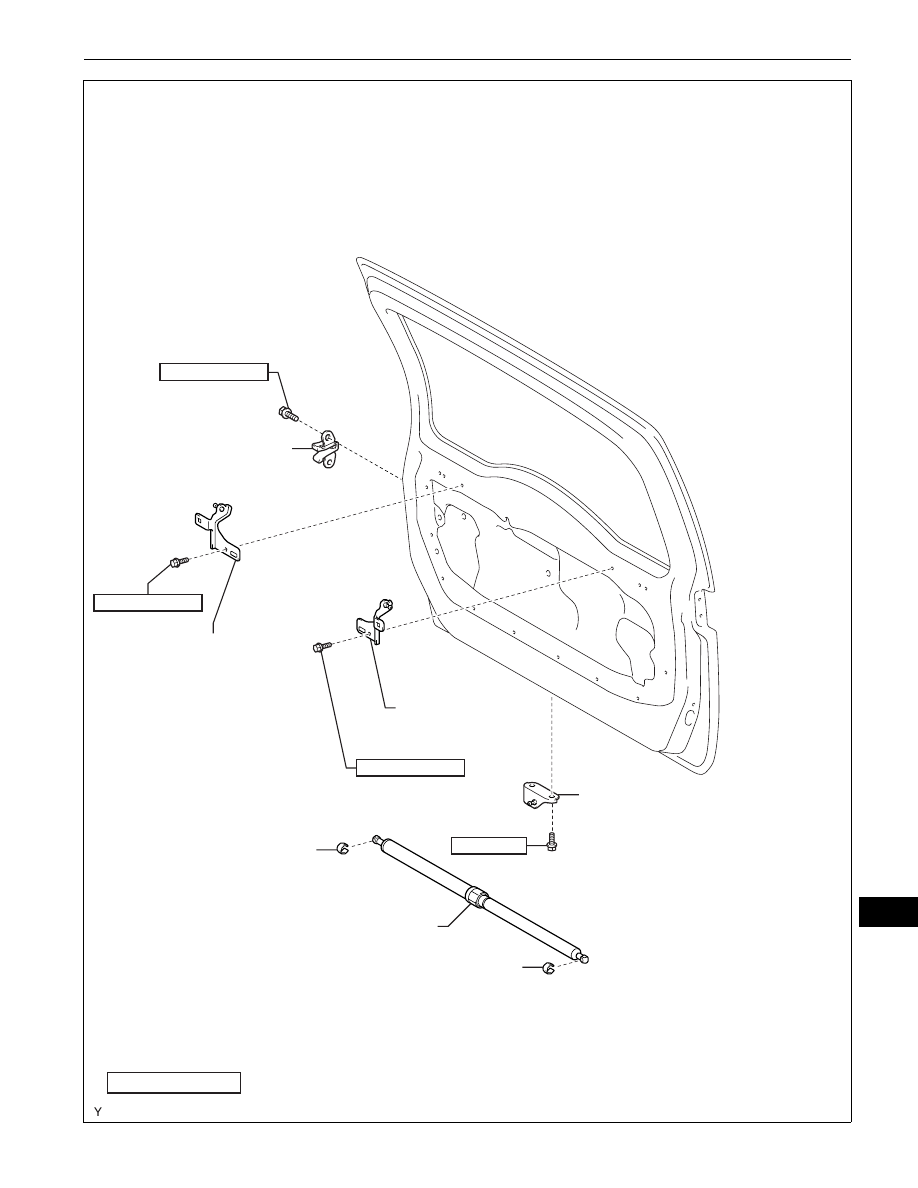

BACK DOOR DAMPER
STAY LOWER BRACKET

BACK DOOR SIDE FEMALE
STOPPER SUB-ASSEMBLY

BACK DOOR STAY
UPPER BRACKET LH

BACK DOOR STAY
UPPER BRACKET RH

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (199, 14)

7.0 (71, 62 in.*lbf)

CLIP

CLIP

x2

x2

BACK DOOR
SUPPORT

7.0 (71, 62 in.*lbf)

7.0 (71, 62 in.*lbf)

B129027E01

ED–46

ENGINE HOOD / DOOR  –  BACK DOOR

ED

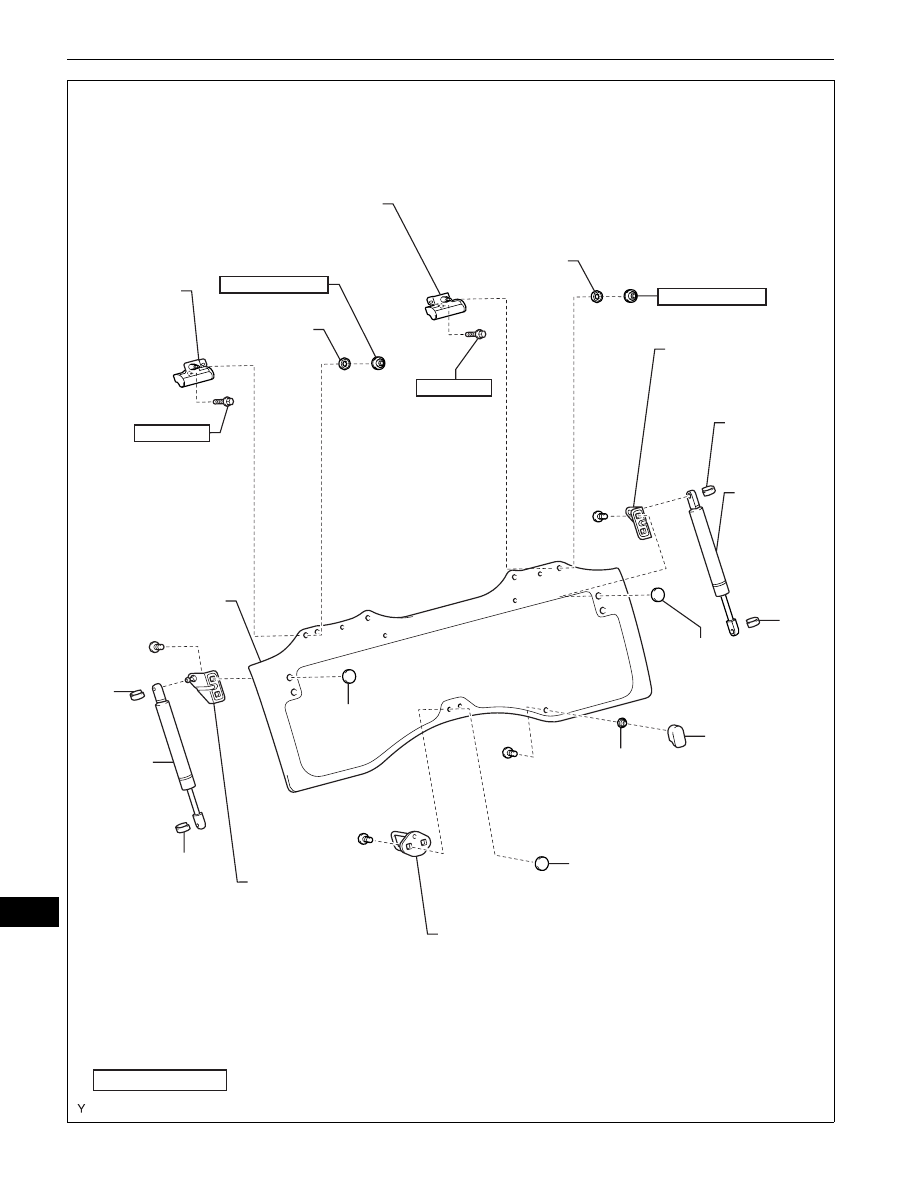

BACK DOOR GLASS

BACK DOOR
HINGE
ASSEMBLY LH

BACK DOOR HINGE
ASSEMBLY RH

BACK DOOR
OUTSIDE
HANDLE

BACK WINDOW LOCK
STRIKER ASSEMBLY

BACK WINDOW STAY
UPPER BRACKET LH

BACK WINDOW STAY
UPPER BRACKET RH

N*m (kgf*cm, ft*lbf)  : Specified torque

x2

RETAINER

BUSH

RETAINER

RETAINER

CLIP

CLIP

x2

BUSH

20 (199, 14)

BUSH

20 (199, 14)

x2

CLIP

CLIP

BACK
WINDOW
SUPPORT
LH

BACK
WINDOW
SUPPORT
RH

5.5 (56, 49 in.*lbf)

5.5 (56, 49 in.*lbf)

B129028E01

ENGINE HOOD / DOOR  –  BACK DOOR

ED–47

ED

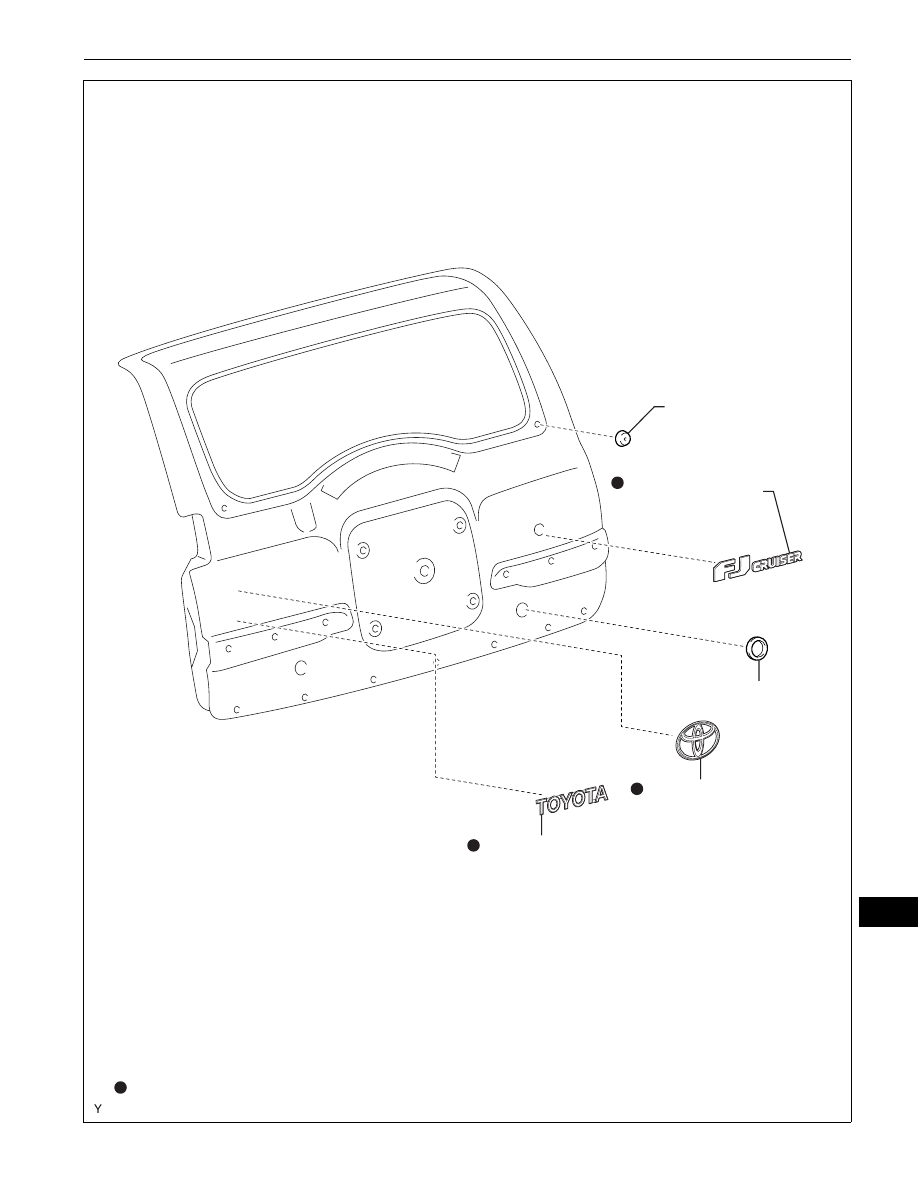

CUSHION

HOLE PLUG

Non-reusable part

NO. 2 BACK DOOR
NAME PLATE

NO. 1 BACK DOOR
NAME PLATE

REAR NAME PLATE

x2

x2

B129029E01

ED–48

ENGINE HOOD / DOOR  –  BACK DOOR

ED

DISASSEMBLY

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE SPARE DISC WHEEL

3.

REMOVE BACK DOOR OUTSIDE MOULDING LH
(See page

ET-70

)

4.

REMOVE BACK DOOR OUTSIDE MOULDING RH
(See page

ET-71

)

5.

REMOVE SPARE WHEEL CARRIER BRACKET SUB-
ASSEMBLY

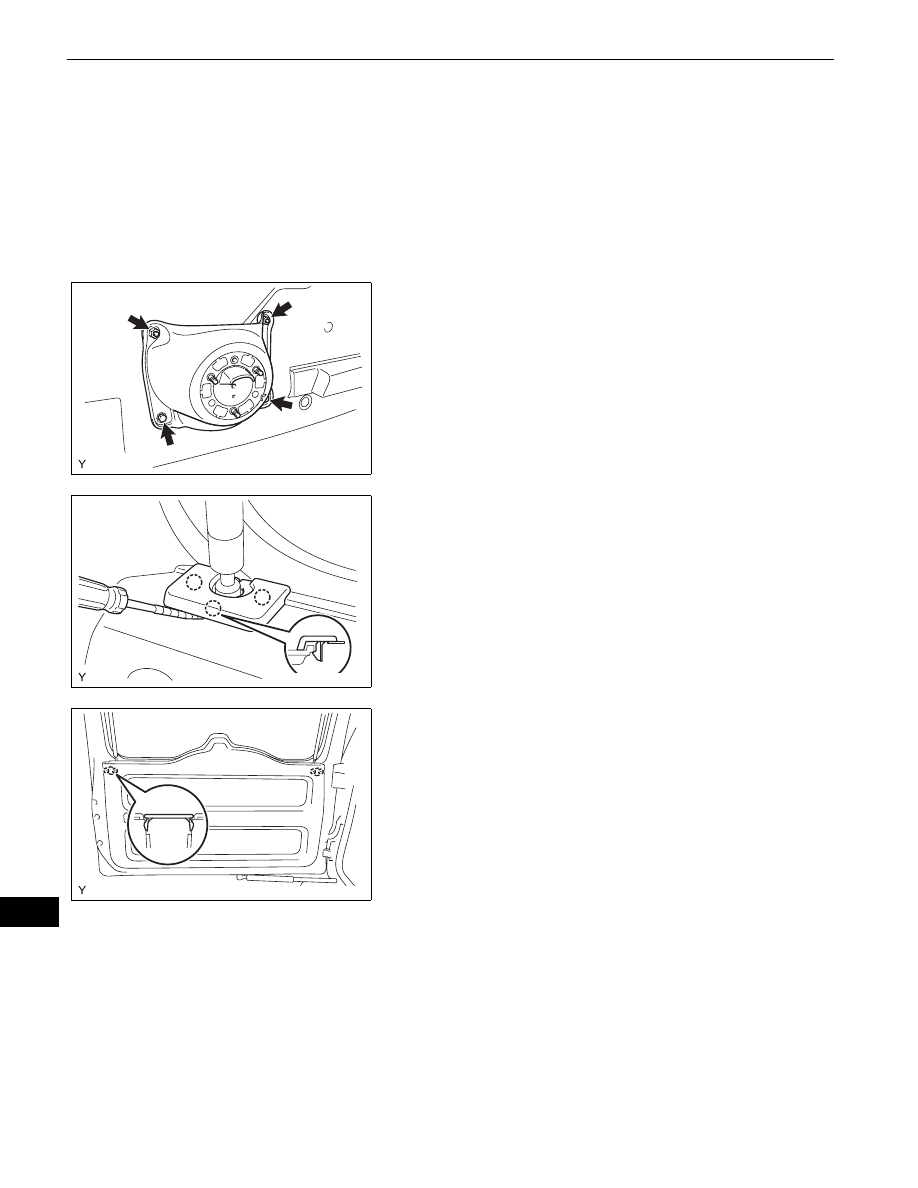

(a) Remove the 2 bolts, 2 nuts and the spare wheel

carrier bracket.

6.

REMOVE BACK DOOR TRIM COVER RH
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 3 claws and remove
the back door trim cover.

7.

REMOVE BACK DOOR TRIM COVER LH
HINT:
Use the same procedure as described for the RH side.

8.

REMOVE DOOR TRIM RETAINER CAP
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and remove
the door trim retainer cap.

B135543

B139381

B135553
