(d) for LH side:

Close the 2 covers.

(e) for RH side:

Close the 2 covers.

25. INSTALL POWER WINDOW REGULATOR MASTER

SWITCH ASSEMBLY (for Driver Side) (See page

WS-

26

)

26. INSTALL POWER WINDOW REGULATOR SWITCH

ASSEMBLY (for Front Passenger Side) (See page

WS-29

)

27. INSTALL DOOR CONTROL SWITCH (for Front

Passenger Side) (See page

DL-93

)

28. INSTALL FRONT ARMREST BASE UPPER PANEL

(a) Connect the connector.

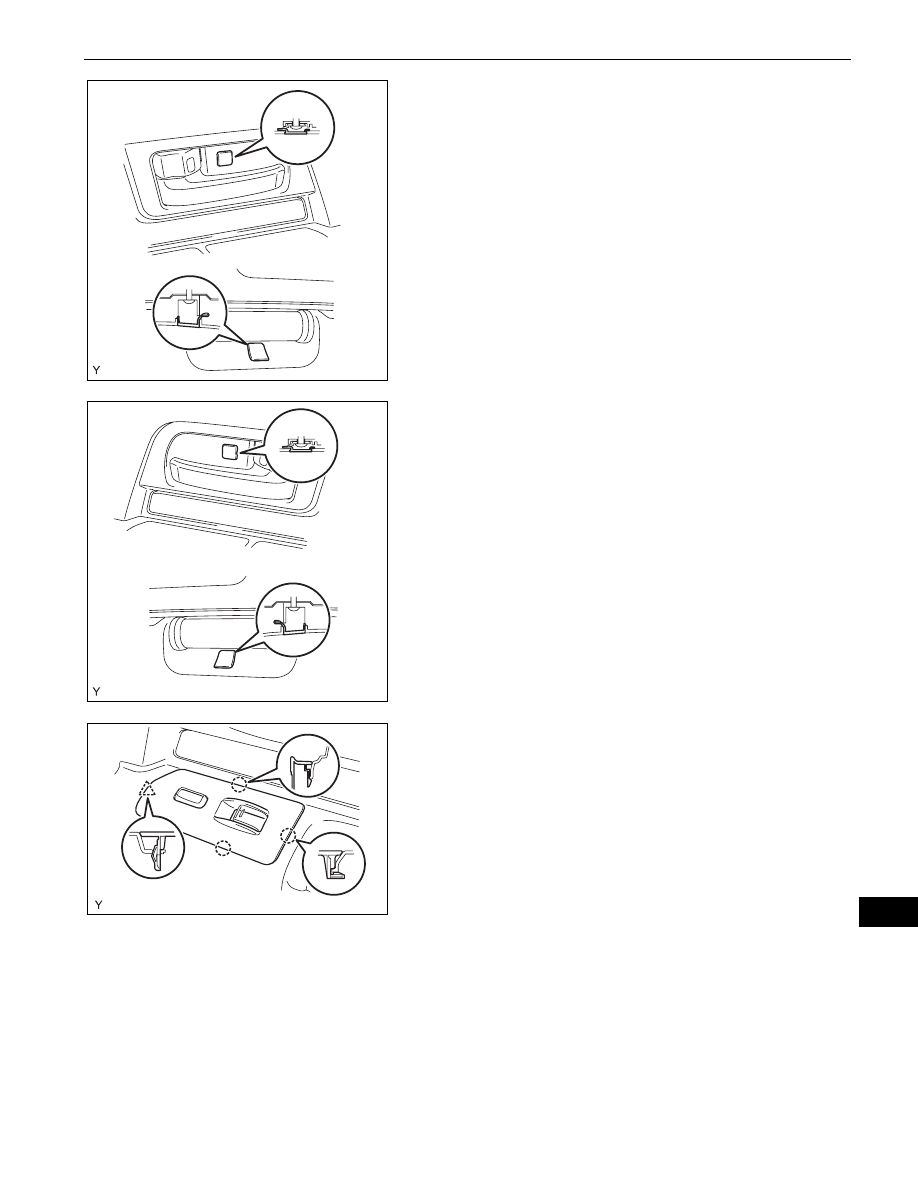

(b) Engage the 3 claws and clip and install the front

armrest base upper panel.

29. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B140031

B135569

B135557

ED–26

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED

BODY

ENGINE HOOD / DOOR

ACCESS DOOR

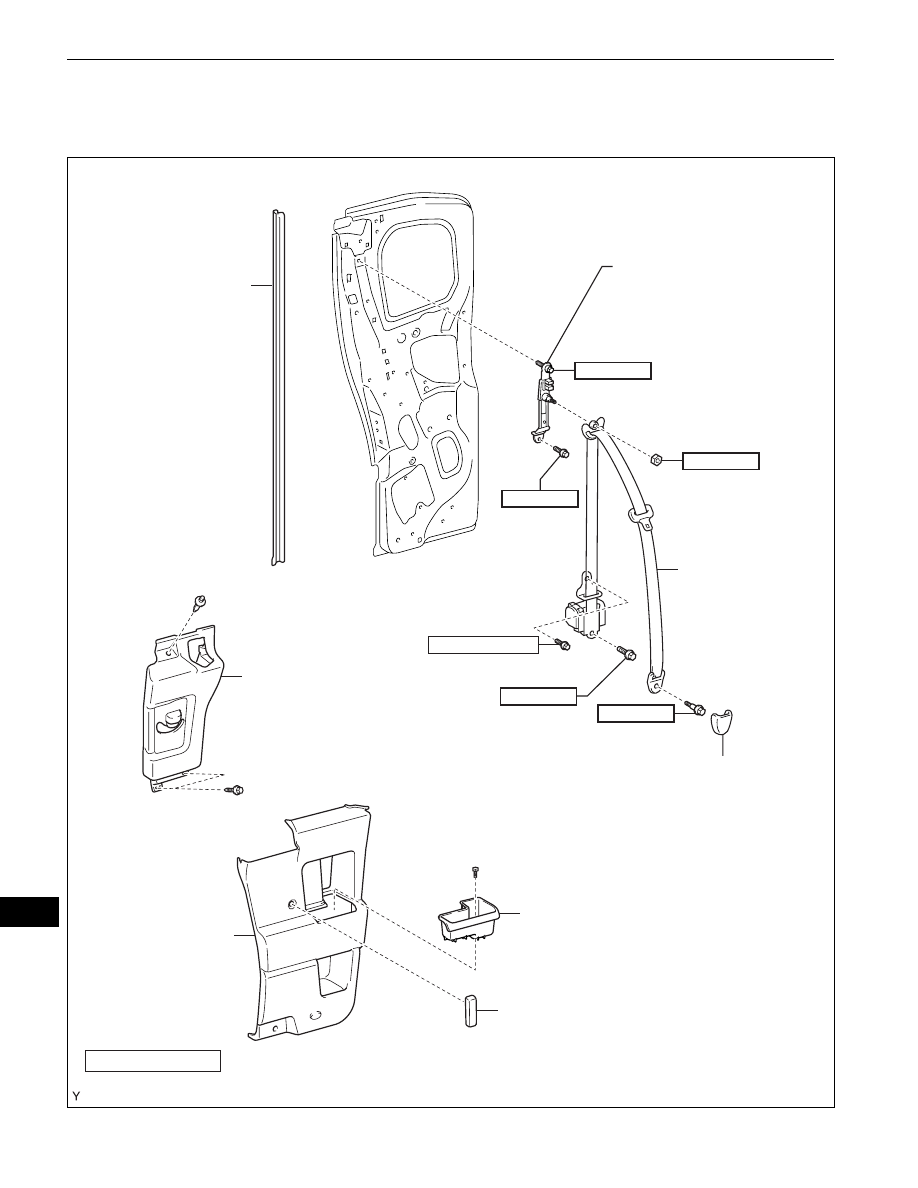

COMPONENTS

ACCESS PANEL REAR
WEATHERSTRIP

CENTER PILLAR
UPPER GARNISH

LAP BELT OUTER
ANCHOR COVER

NO. 1 CUP HOLDER

REAR DOOR INSIDE HANDLE
SUB-ASSEMBLY

REAR DOOR
TRIM BOARD
SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (428, 31)

8.5 (87, 75 in.*lbf)

42 (428, 31)

42 (428, 31)

FRONT SEAT
OUTER BELT
ASSEMBLY

FRONT SHOULDER
BELT ANCHOR
ADJUSTER ASSEMBLY

42 (428, 31)

42 (428, 31)

B135604E01

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED–27

ED

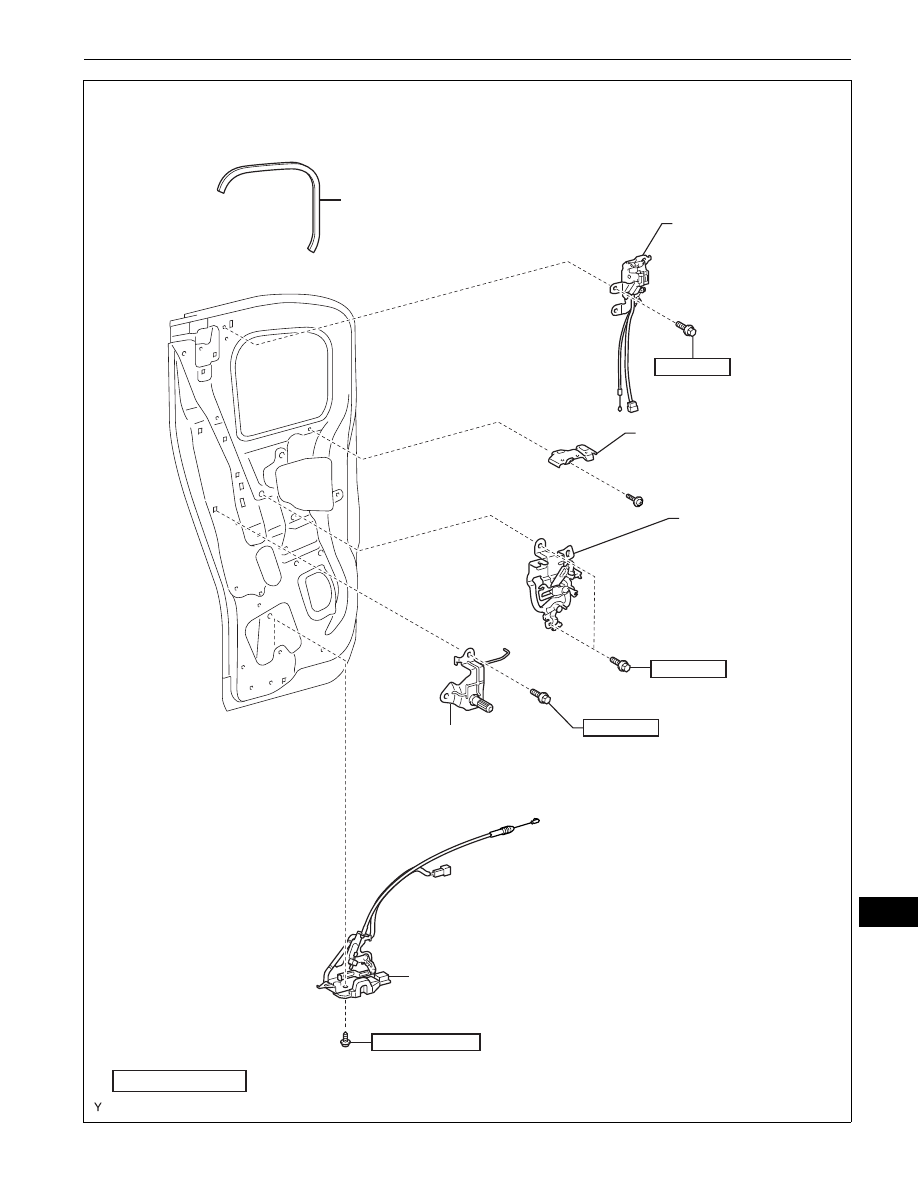

ACCESS PANEL
INSIDE HANDLE
SUB-ASSEMBLY

ACCESS PANEL
LOCK REMOTE
CONTROL
ASSEMBLY

ACCESS PANEL LOWER
LOCK ASSEMBLY

ACCESS PANEL
UPPER LOCK
ASSEMBLY

NO. 1 DOOR TRIM
BRACKET

REAR DOOR
OPENING TRIM

N*m (kgf*cm, ft*lbf)  : Specified torque

12 (122, 9)

5.0 (51, 44 in.*lbf)

x3

x3

12 (122, 9)

x2

x3

12 (122, 9)

B129023E01

ED–28

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED

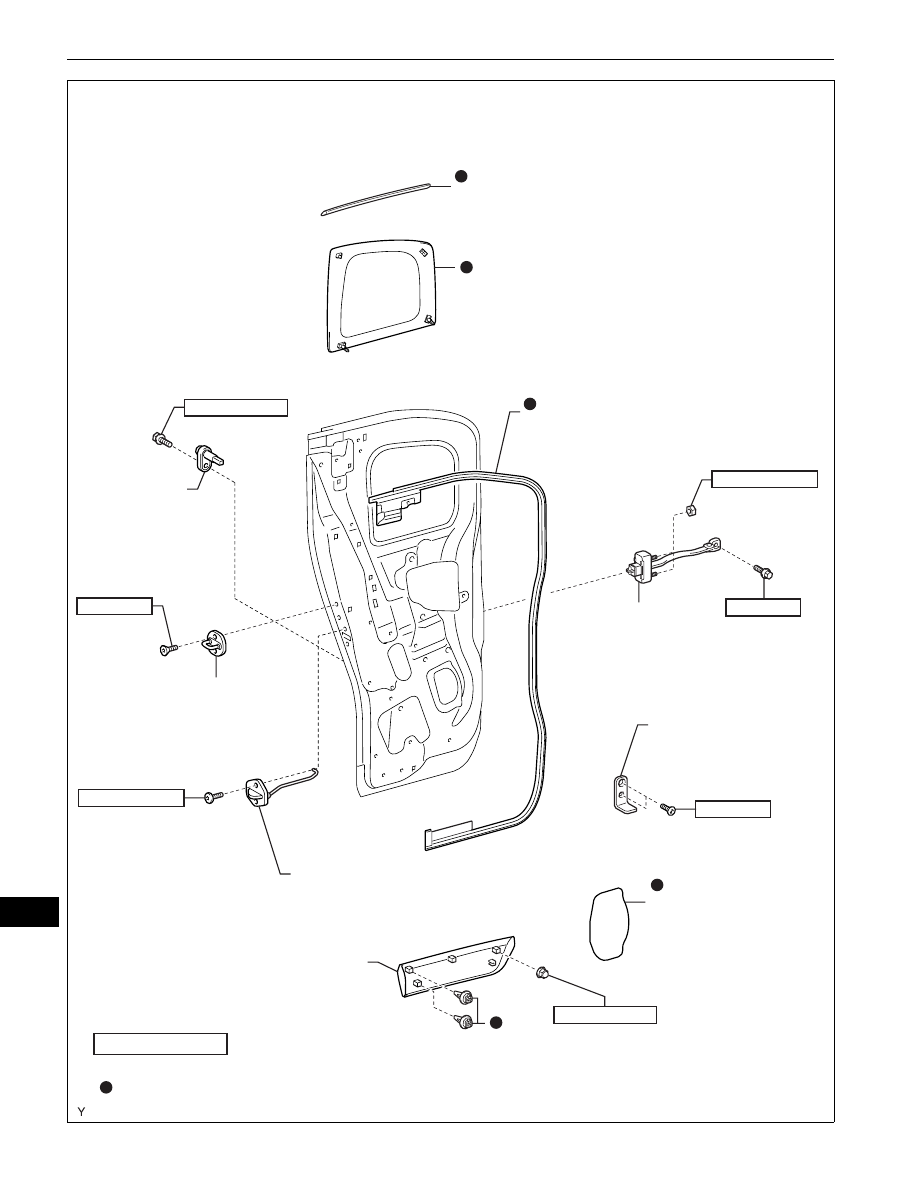

ACCESS PANEL
CHECK ASSEMBLY

ACCESS PANEL LOCK
CANCEL LEVER ASSEMBLY

ACCESS PANEL LOCK
STRIKER PLATE ASSEMBLY

ACCESS PANEL
LOWER LOCK STOP

FRONT DOOR
COURTESY
SWITCH

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

23 (235, 17)

REAR DOOR
SERVICE HOLE
COVER

5.5 (56, 49 in.*lbf)

ACCESS PANEL
WEATHERSTRIP

30 (306, 22)

9.0 (92, 80 in.*lbf)

23 (235, 17)

x2

x2

5.0 (51, 44 in.*lbf)

CLIP

5.0 (50, 44 in.*lbf)

x2

x2

ACCESS DOOR GLASS
OUTER WEATHERSTRIP

ACCESS DOOR OUTSIDE
MOULDING SUB-ASSEMBLY

REAR DOOR GLASS

B129024E01
