ES–444

1GR-FE ENGINE CONTROL SYSTEM  –  FUEL PUMP RELAY

ES

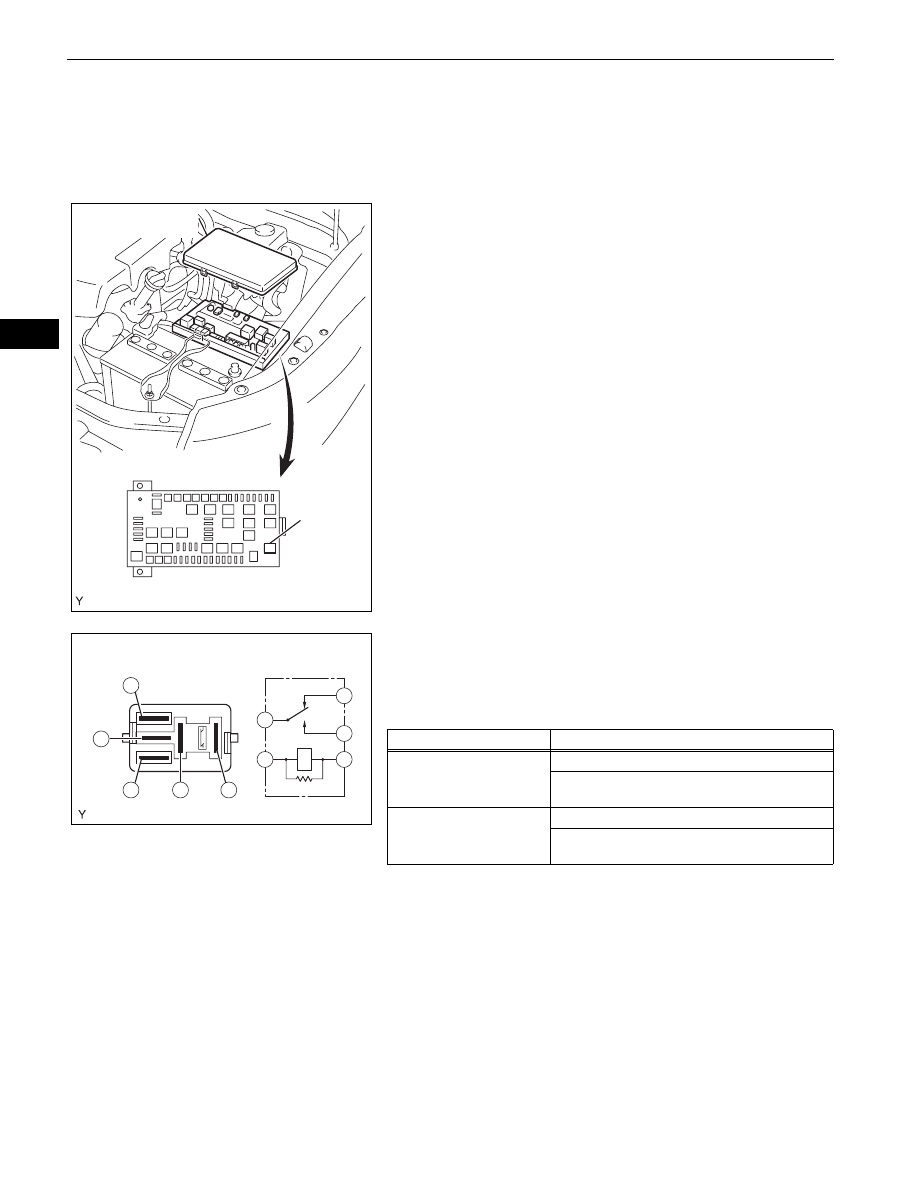

FUEL PUMP RELAY

ON-VEHICLE INSPECTION

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE FUEL PUMP RELAY
(a) Remove the relay block cover upper.
(b) Remove the fuel pump relay.

3.

INSPECT FUEL PUMP RELAY
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the fuel
pump relay.

4.

INSTALL FUEL PUMP RELAY
(a) Install the fuel pump relay.
(b) Install the relay block cover upper.

5.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Relay Block Cover

Fuel
Pump
Relay

A126393E01

5

4

1

3

2

1

3

5

2

4

A126371

Tester Connection

Specified Condition

3 - 4

Below 1

Ω

10 k

Ω or higher

(Battery voltage applied to terminals 1 and 2)

3 - 5

10 k

Ω or higher

Below 1

Ω

(Battery voltage applied to terminals 1 and 2)

1GR-FE ENGINE CONTROL SYSTEM  –  ECM

ES–445

ES

ENGINE

1GR-FE ENGINE CONTROL SYSTEM

ECM

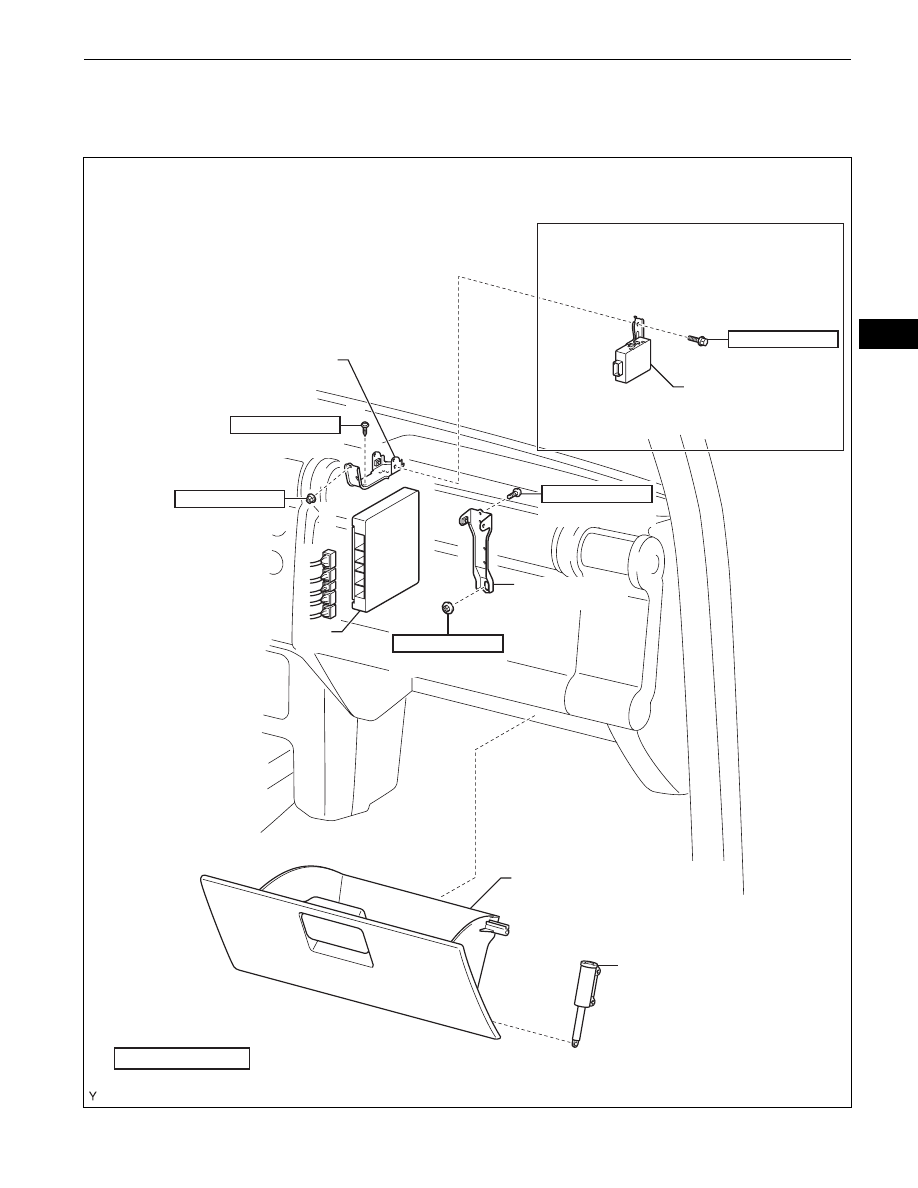

COMPONENTS

ECM

ECM BRACKET

FOUR WHEEL DRIVE
CONTROL ECU

GLOVE COMPARTMENT DOOR
ASSEMBLY

NO. 2 ECM BRACKET

3.0 (32, 28 in.*lbf)

8.0 (82, 71 in.*lbf)

8.0 (82, 71 in.*lbf)

3.0 (32, 28 in.*lbf)

GLOVE COMPATMENT
DOOR STOPPER

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (82, 71 in.*lbf)

FOR AUTOMATIC TRANSMISSION, 4WD

x2

x2

x2

A126400E01

ES–446

1GR-FE ENGINE CONTROL SYSTEM  –  ECM

ES

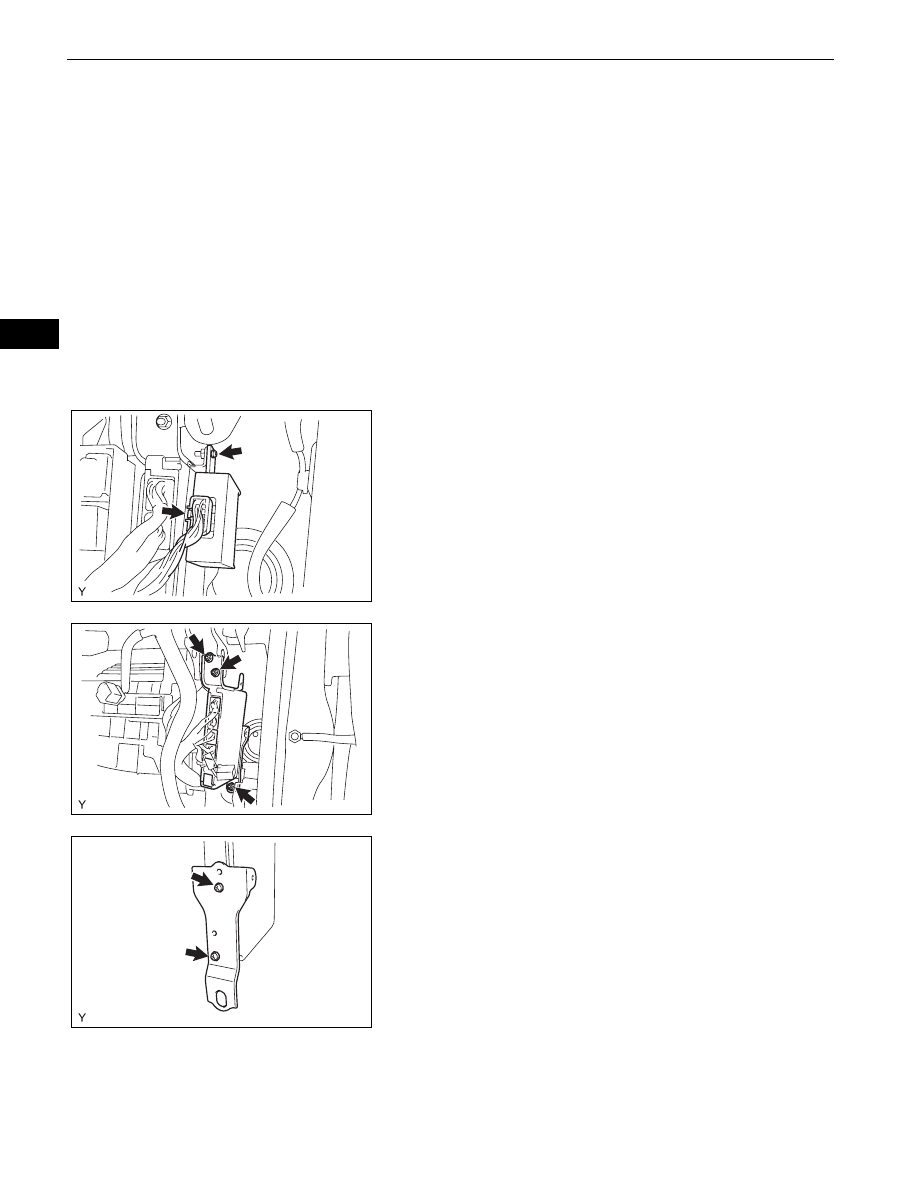

REMOVAL

NOTICE:
•

Perform the RESET MEMORY (AT initialization) when
replacing the automatic transmission assembly,
engine assembly or ECM (See page

AT-19

 or

AT-19

).

•

Perform the REGISTRATION (VIN registration) when
replacing the ECM (See page

ES-15

).

•

If the ECM has been replaced or RESET MEMORY (AT
initialization) has been performed, set up the function
of the ATF (Automatic Transmission Fluid)
temperature warning lamp (See page

AT-19

 or

AT-19

).

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE GLOVE COMPARTMENT DOOR
ASSEMBLY (See page

IP-15

)

3.

REMOVE FOUR WHEEL DRIVE CONTROL ECU (for
Automatic Transmission 4WD)
(a) Disconnect the connector.
(b) Remove the screw and four wheel drive control

ECU.

4.

REMOVE ECM
(a) Disconnect the 5 connectors.
(b) Remove the 3 nuts, then remove the ECM.

5.

REMOVE ECM BRACKET
(a) Remove the 2 screws, then remove the ECM

bracket.

A126396

A126397

A126398

1GR-FE ENGINE CONTROL SYSTEM  –  ECM

ES–447

ES

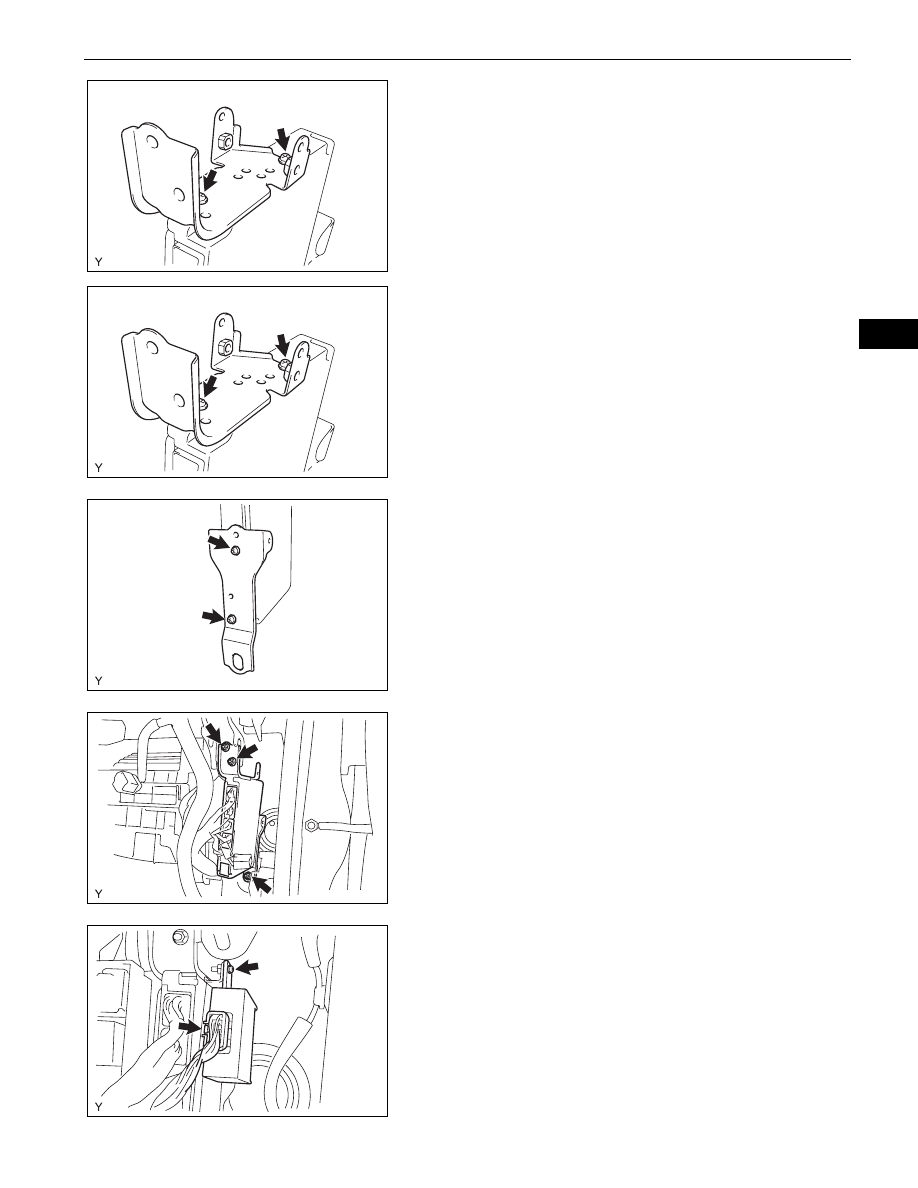

6.

REMOVE NO. 2 ECM BRACKET
(a) Remove the 2 screws, then remove the No. 2 ECM

bracket.

INSTALLATION

1.

INSTALL NO. 2 ECM BRACKET
(a) Install the No. 2 ECM bracket with the 2 screws.

Torque: 3.0 N*m (32 kgf*cm, 28 in.*lbf)

2.

INSTALL ECM BRACKET
(a) Install the ECM bracket with the 2 screws.

Torque: 3.0 N*m (32 kgf*cm, 28 in.*lbf)

3.

INSTALL ECM
(a) Install the ECM with the 3 nuts.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

(b) Connect the 5 connectors.

4.

INSTALL FOUR WHEEL DRIVE CONTROL ECU (for
Automatic Transmission 4WD)
(a) Install the four wheel drive control ECU with the bolt.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

(b) Connect the connector.

5.

INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
(See page

IP-28

)

6.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

A126399

A126399

A126398

A126397

A126396
