ES–410

1GR-FE ENGINE CONTROL SYSTEM  –  MASS AIR FLOW METER

ES

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE V-BANK COVER (See page

ES-428

)

3.

REMOVE MASS AIR FLOW METER
(a) Disconnect the connector.
(b) Remove the 2 screws, then remove the mass air

flow meter.

INSTALLATION

1.

INSTALL MASS AIR FLOW METER
(a) Install the mass air flow meter with 2 screws.
(b) Connect the connector.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

3.

INSTALL V-BANK COVER (See page

ES-431

)

G036119E01

G036119E01

1GR-FE ENGINE CONTROL SYSTEM  –  CAMSHAFT TIMING OIL CONTROL VALVE

ASSEMBLY

ES–411

ES

ENGINE

1GR-FE ENGINE CONTROL SYSTEM

CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

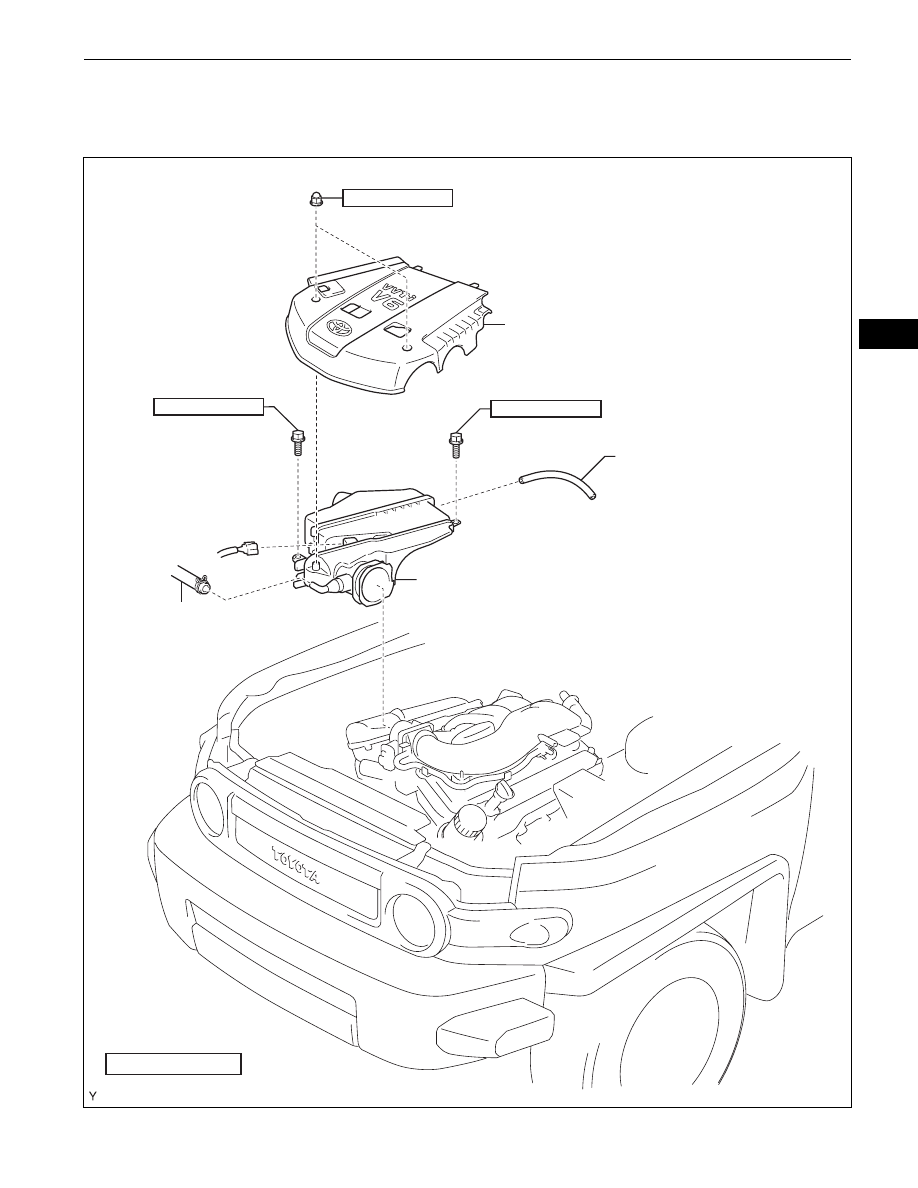

COMPONENTS

AIR CLEANER ASSEMBLY

V-BANK COVER

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (82, 71 in.*lbf)

7.5 (76, 66 in.*lbf)

VACUUM HOSE

8.0 (82, 71 in.*lbf)

VENTILATION HOSE

A126407E01

ES–412

1GR-FE ENGINE CONTROL SYSTEM  –  CAMSHAFT TIMING OIL CONTROL VALVE

ASSEMBLY

ES

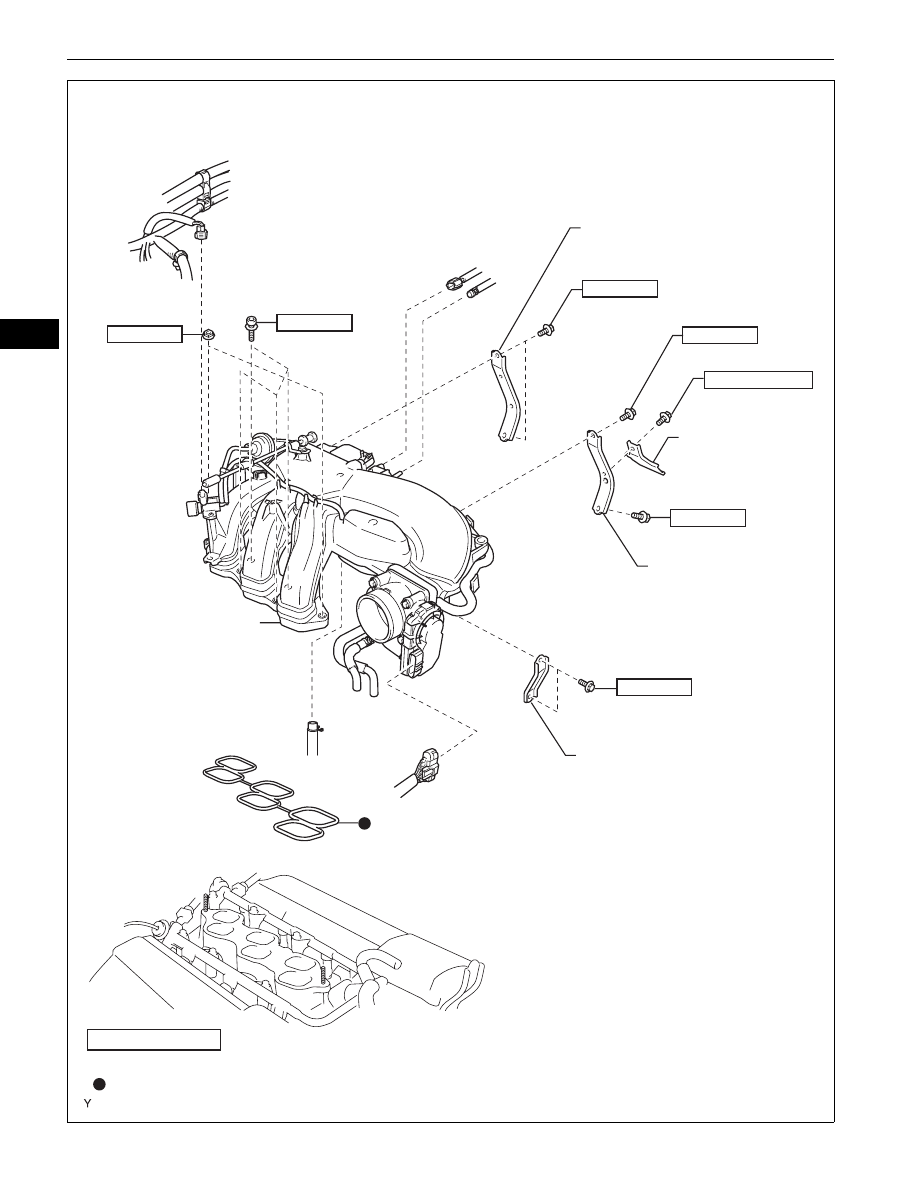

INTAKE AIR SURGE TANK

NO. 1 SURGE TANK
STAY

NO. 2 SURGE TANK
STAY

THROTTLE BODY
BRACKET

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

28 (286, 21)

GASKET

9.0 (92, 80 in.*lbf)

28 (286, 21)

21 (214, 15)

OIL BAFFLE PLATE

21 (214, 15)

21 (214, 15)

21 (214, 15)

A126476E01

1GR-FE ENGINE CONTROL SYSTEM  –  CAMSHAFT TIMING OIL CONTROL VALVE

ASSEMBLY

ES–413

ES

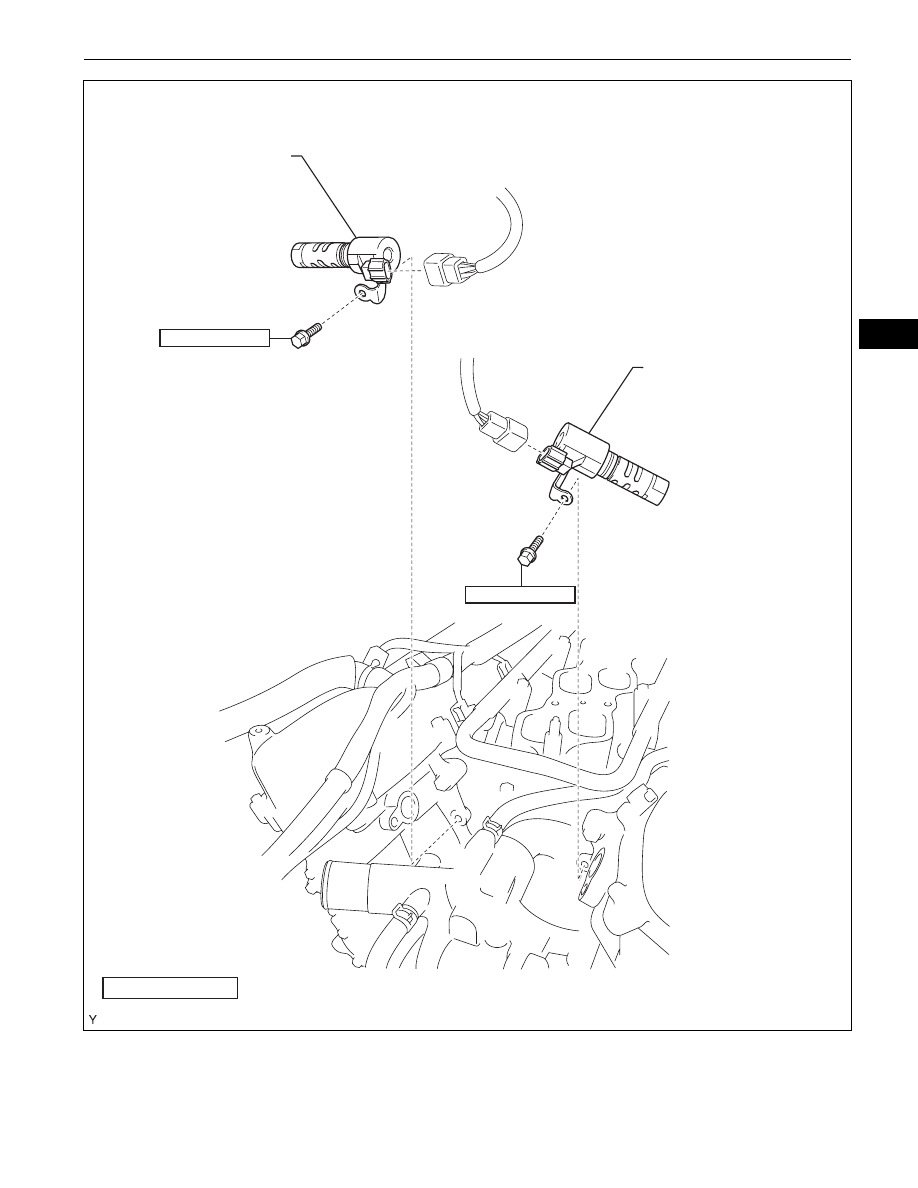

CAMSHAFT TIMING
OIL CONTROL VALVE
ASSEMBLY

CAMSHAFT TIMING
OIL CONTROL VALVE
ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

9.0 (92, 80 in.*lbf)

9.0 (92, 80 in.*lbf)

A126418E01
