Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 106





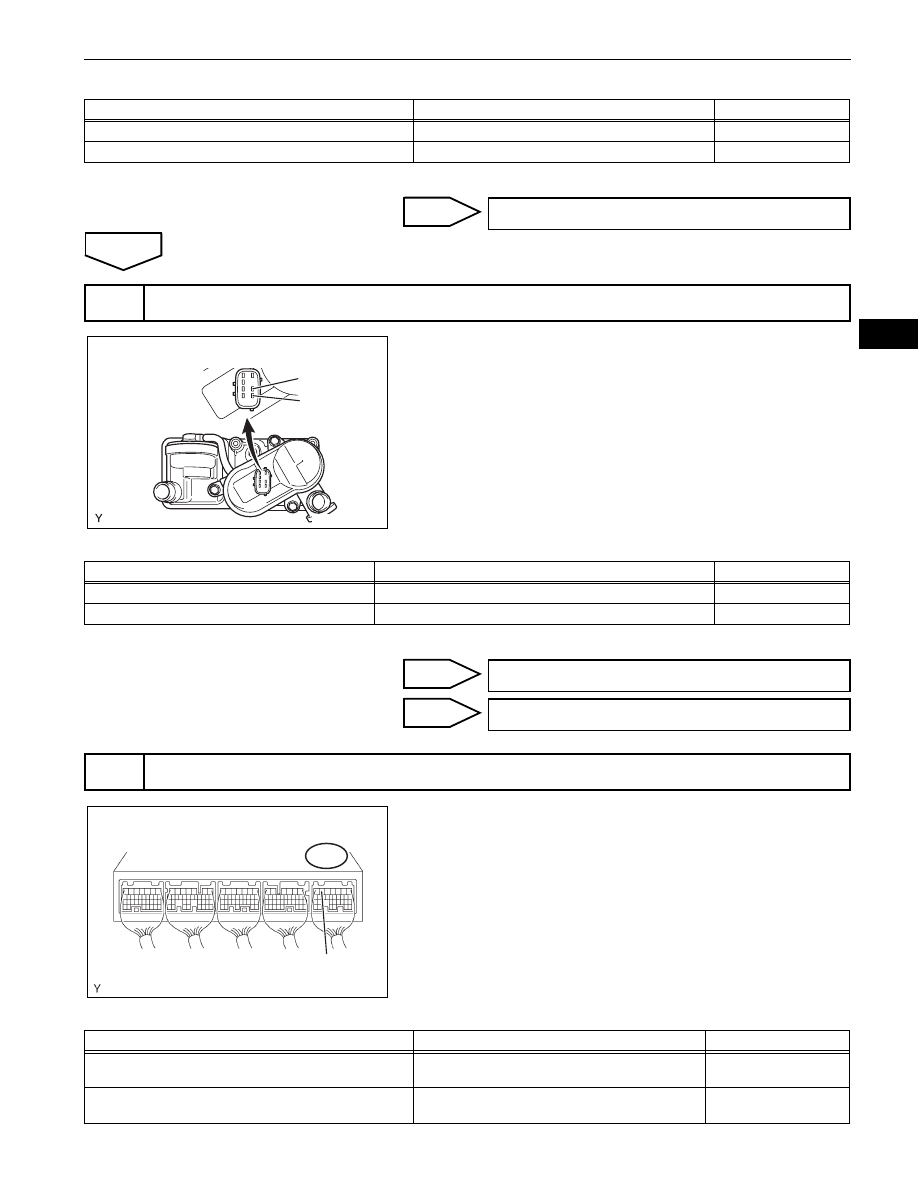

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–379

ES

Result

(e) Reconnect the canister pump module connector.

B

A

(a) Turn the ignition switch OFF.
(b) Disconnect the L10 canister pump module connector.
(c) Apply the battery voltage to VLVB and VGND terminals

of the canister pump module.

(d) Touch the canister pump module to confirm the vent

valve operation.

Result

(e) Reconnect the canister pump module connector.

A

B

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / ACTIVE TEST / VACUUM PUMP.

(d) Measure the voltage between terminal MPMP of the

ECM connector and the body ground when the leak
detection pump is turned ON and OFF using the tester.

Result

Test Results

Suspected Trouble Areas

Proceed To

11 to 14 V

Normal

A

Below 3 V

Power source wire harness of vent valve

B

              Go to step 32

22

INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)

Charcoal Canister Assembly:

VGND (-)
VLVB (+)

A112598E01

Test Results

Suspected Trouble Areas

Proceed To

Operating

Wire harness between vent valve and ECM

A

Not operating

Vent valve

B

              Go to step 32

              Go to step 30

23

PERFORM ACTIVE TEST USING INTELLIGENT TESTER (FOR LEAK DETECTION PUMP)

E47

MPMP

ECM Connector

G100798E15

Test Results

Suspected Trouble Areas

Proceed To

Below 3 V when OFF
11 to 14 V when ON

ECM normal

A

11 to 14 V when OFF
Below 3 V when ON

ECM

B

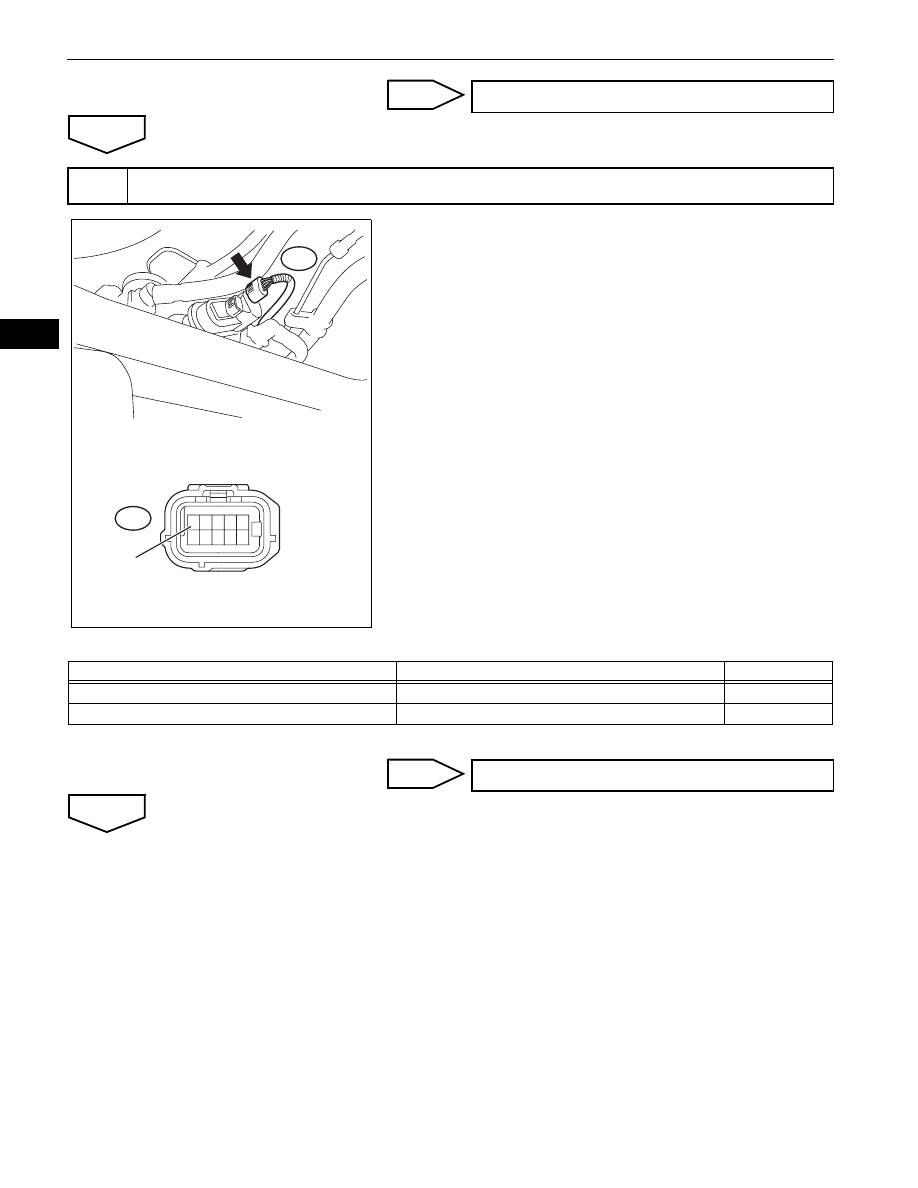

ES–380

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

B

A

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch OFF.
(c) Disconnect the L10 canister pump module connector.
(d) Turn the ignition switch ON and turn the tester ON.
(e) On the intelligent tester, select the following menu items:

DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST /
VACUUM PUMP.

(f)

Turn the leak detection pump ON.

(g) Measure the voltage between MTRB terminal of the

canister pump module connector and the body ground.

Result

(h) Reconnect the canister pump module connector.

B

A

              Go to step 35

24

CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

1 2 3 4 5
6 7 8 9 10

Canister Pump Module Connector

Front View

Wire Harness Side:

MTRB

L10

L10

A133462E03

Test Results

Suspected Trouble Areas

Proceed To

11 to 14 V

Normal

A

Below 3 V

Wire harness between ECM and leak detection pump

B

              Go to step 32

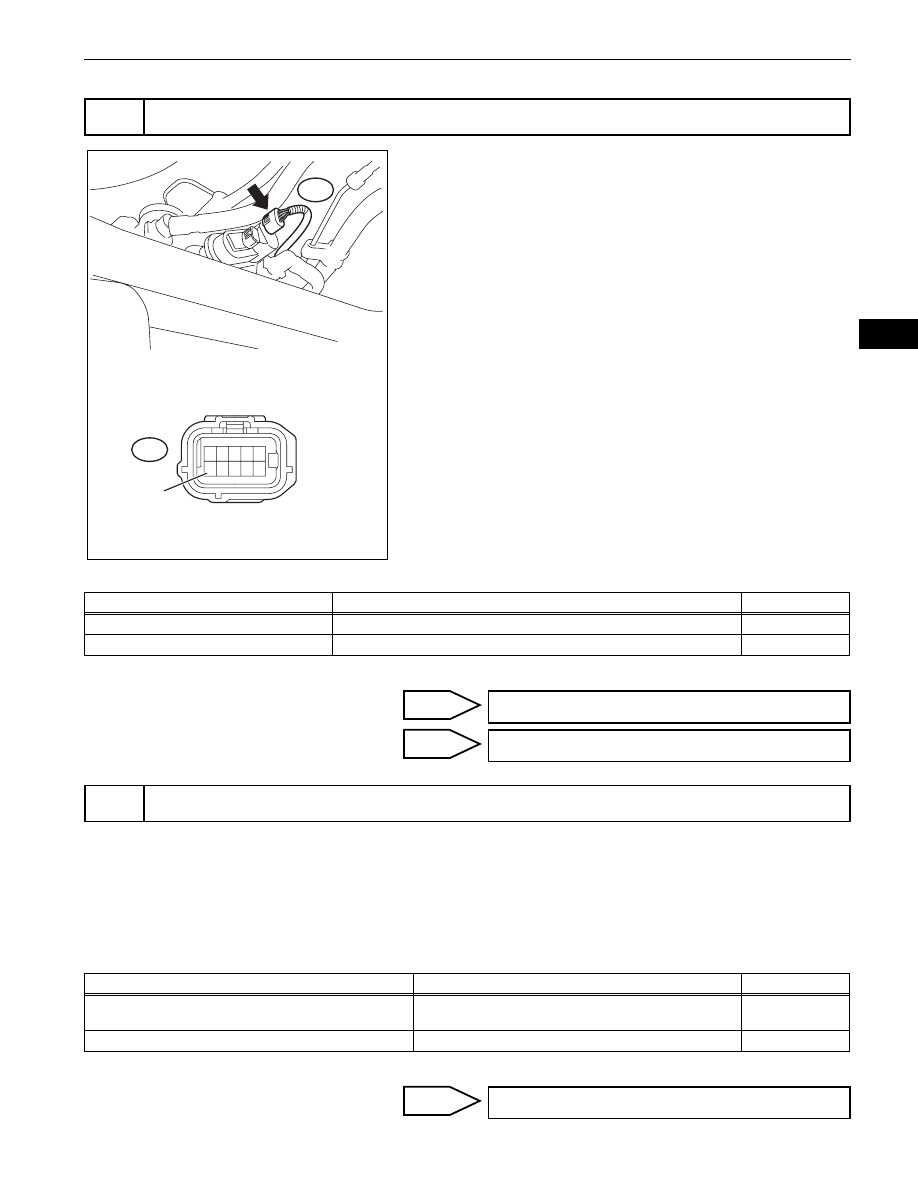

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES–381

ES

(a) Disconnect the L10 canister pump module connector.
(b) Turn the ignition switch OFF.
(c) Check the resistance between MGND terminal of the

canister pump module connector and the body ground.

Result

(d) Reconnect the canister pump module connector.

A

B

(a) Stop the engine.
(b) Disconnect the EVAP hose from the intake air surge

tank.

(c) Start the engine.
(d) Use your finger to confirm that the port of the intake air

surge tank has suction.

Result

(e) Reconnect the EVAP hose.

A

25

CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - GROUND)

1 2 3 4 5
6 7 8 9 10

Canister Pump Module Connector

Front View

Wire Harness Side:

MGND

L10

L10

A133462E04

Test Results

Suspected Trouble Areas

Proceed To

Below 1

Leak detection pump

A

10 k

 or more

Wire harness between leak detection pump and body ground

B

              Go to step 30

              Go to step 32

26

INSPECT INTAKE AIR SURGE TANK (EVAP PURGE PORT)

Test Results

Suspected Trouble Areas

Proceed To

Suction applied

EVAP hose between intake air surge tank and purge
VSV

A

No suction

Intake air surge tank

B

              Go to step 33

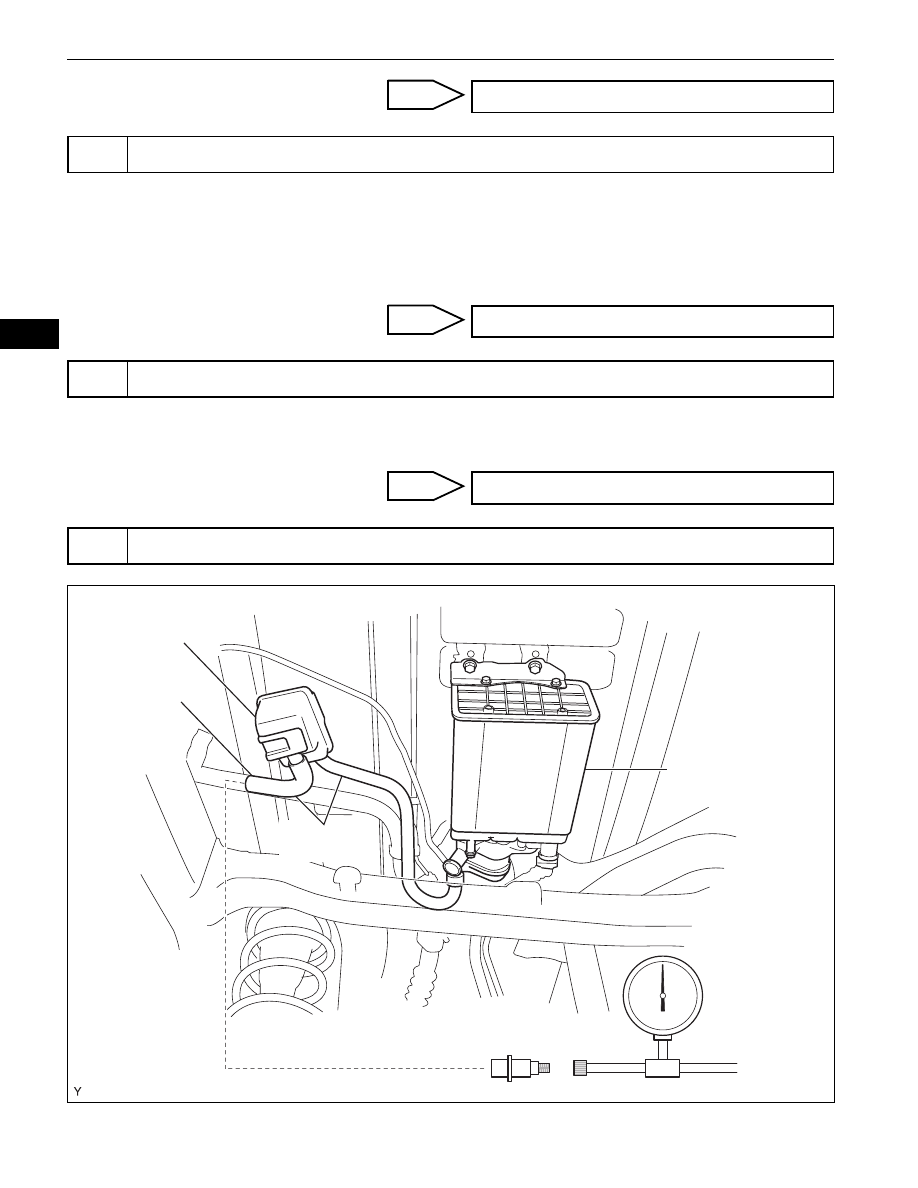

ES–382

1GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM

ES

B

HINT:

When reinstalling the fuel cap, tighten it until a few click
sounds are heard.

When replacing the fuel cap, use a fuel cap that meets
OEM specifications, and install it until a few click sounds
are heard.

NEXT

HINT:
When installing the fuel cap, tighten it until a few click sounds
are heard.

NEXT

(a) Disconnect the vent hose.

              Go to step 34

27

CORRECTLY REINSTALL OR REPLACE FUEL CAP ASSEMBLY

              Go to step 37

28

REPLACE FUEL CAP ASSEMBLY

              Go to step 37

29

LOCATE EVAP LEAK PART

Canister Filter

Canister

Vent Hose

Disconnected
Vent Hose

Adapter

EVAP Pressure
Tester Tool

A133410E01
