Toyota Sequoia (2005). Manual - part 951

AC1L6–06

I21368

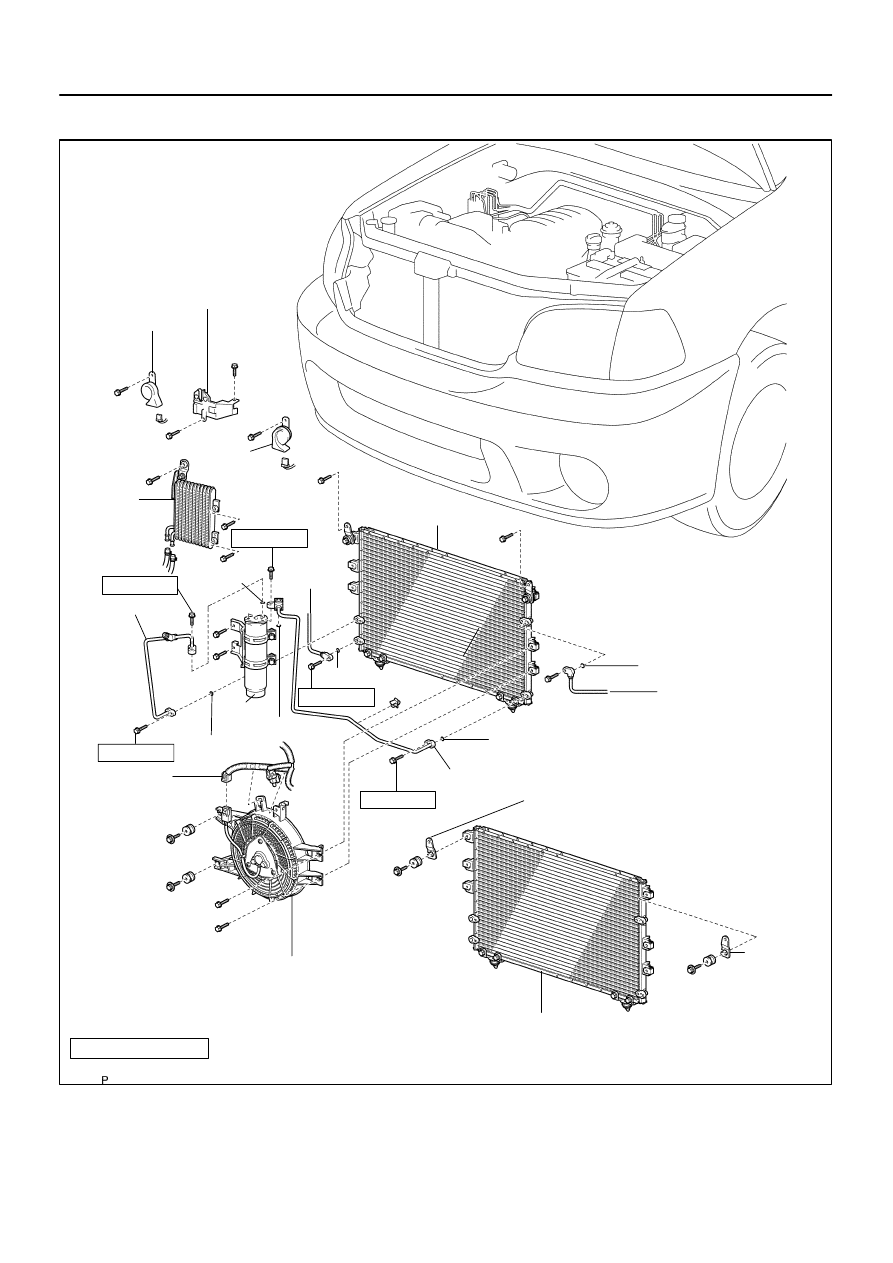

Discharge Hose

Condenser

Liquid Tube

 O–Ring

Condenser Fan

N·m (kgf·cm, in·lbf) : Specified torque

 Non–reusable part

 O–Ring

Bracket

Wire Harness

Bracket

Receiver

Liquid Tube

 O–Ring

Liquid
 Tube

 O–Ring

 O–Ring

Condenser

Horn

Hood Lock

Horn

A/T
Oil Cooler

5.4 (55, 48)

 O–Ring

5.4 (55, 48)

5.4 (55, 48)

5.4 (55, 48)

5.4 (55, 48)

AC–66

–

AIR CONDITIONING

CONDENSER

3793

COMPONENTS

AC3HJ–02

I21365

I21366

–

AIR CONDITIONING

CONDENSER

AC–67

3794

REMOVAL

1.

DISCHARGE REFRIGERANT FROM REFRIGERATION
SYSTEM

HINT:
At the time of installation, refer to the following:

Evacuate air from the refrigeration system.

Charge the system with refrigerant and inspect for leak-
age of refrigerant.
Specified amount:
Single A/C: 750

±

50 g (26.45

±

1.76 oz.)

Dual A/C: 1050

±

50 g (37.03

±

1.76 oz.)

2.

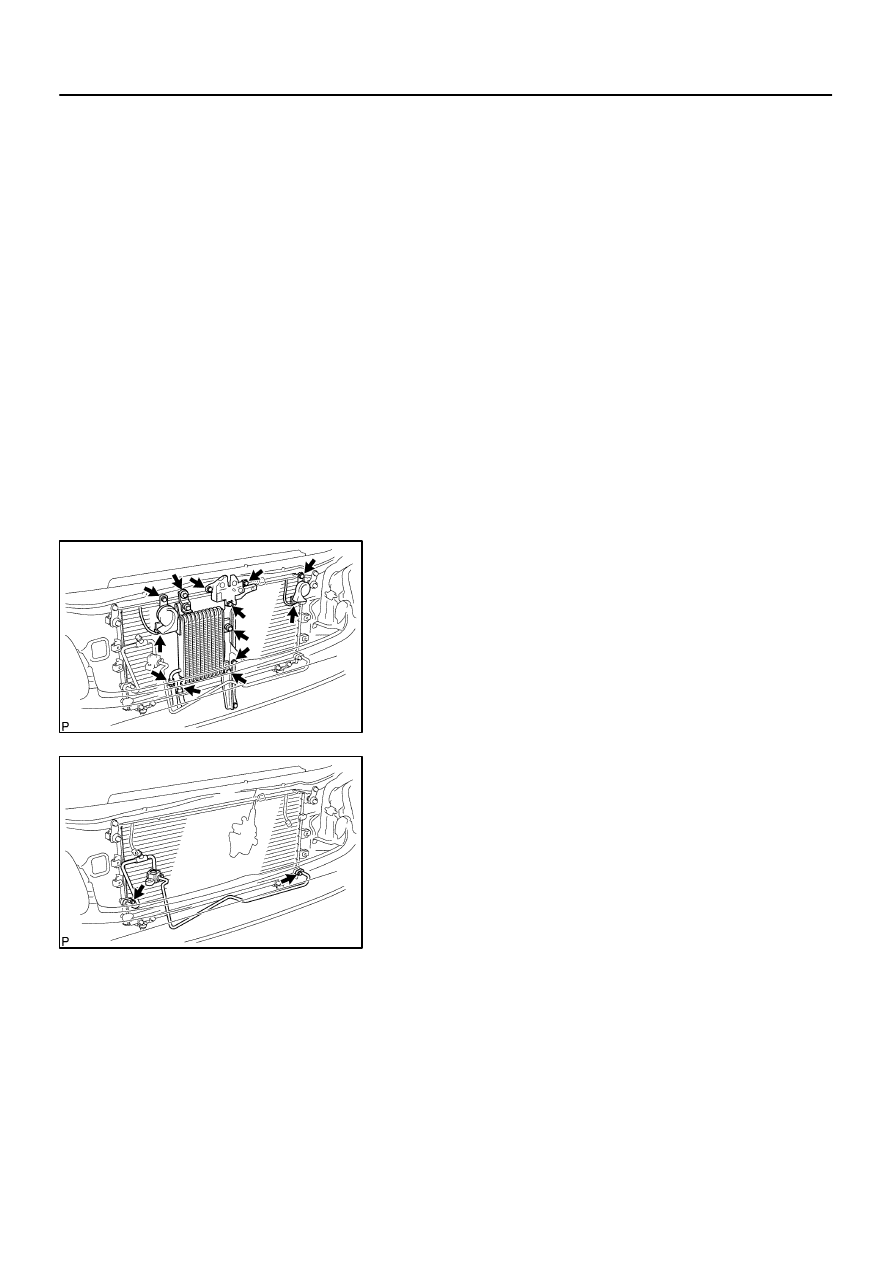

REMOVE CONDENSER FAN (See page

AC–98

)

3.

REMOVE A/T OIL COOLER

4.

REMOVE HORN

5.

REMOVE HOOD LOCK

6.

REMOVE CENTER BRACE

7.

REMOVE RECEIVER AND HOLDER
(See page

AC–63

)

8.

DISCONNECT LIQUID TUBE AND DISCHARGE HOSE

Remove the 2 bolts and disconnect both tube and hose.

Torque: 5.4 N·m (5.5 kgf·cm, 48 in·lbf)

NOTICE:
Cap the openings immediately to keep moisture or dirt out
of the system.
HINT:
At the time of installation, refer to the following:
Lubricate 2 new O–rings with compressor oil and install them
to the tubes.

I21367

AC–68

–

AIR CONDITIONING

CONDENSER

3795

9.

REMOVE CONDENSER

(a)

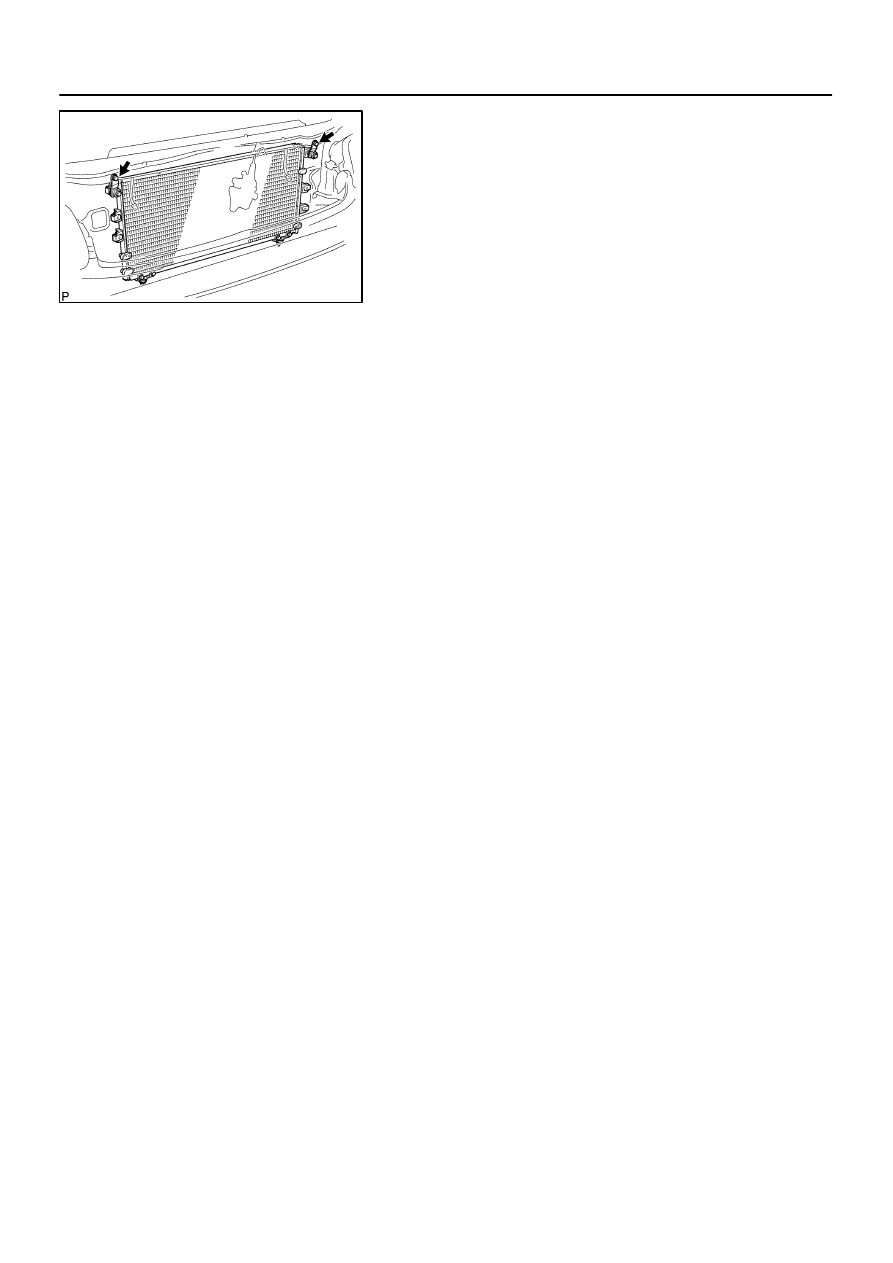

Remove the 2 bolts.

(b)

Pull the condenser forward and then upward.

HINT:
At the time of installation, refer to the following:
If the condenser is replaced, add compressor oil to the com-
pressor.

Add 40 to 50 cc (1.4 to 1.7 fl.oz.)
Compressor oil: ND–OIL 8 or equivalent

AC1L8–02

–

AIR CONDITIONING

CONDENSER

AC–69

3796

INSTALLATION

Installation is in the reverse order of removal (See page

AC–67

).
