AIR CONDITIONING

BLOWER UNIT

3777

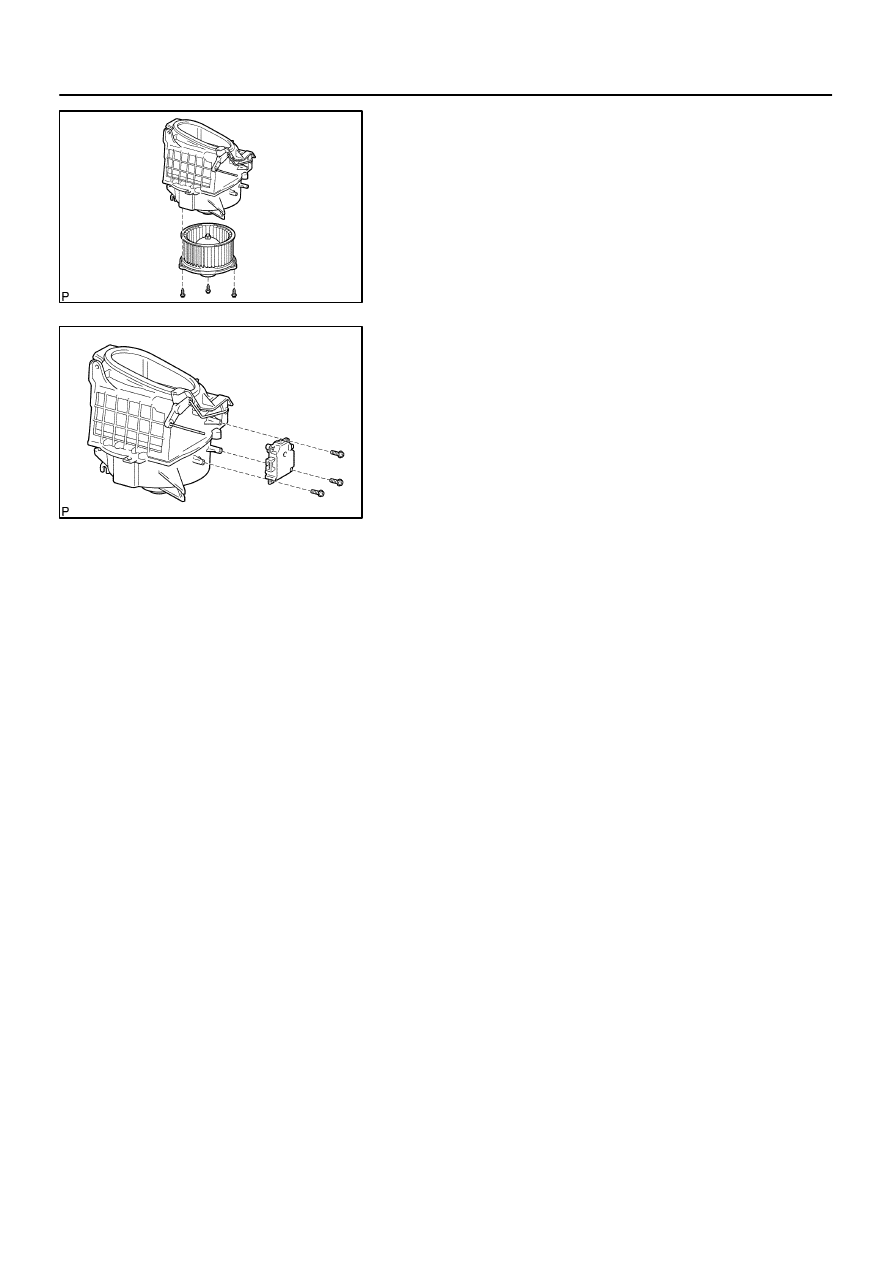

DISASSEMBLY

1.

REMOVE BLOWER MOTOR

Remove the 3 screws and blower motor.

2.

REMOVE AIR INLET SERVOMOTOR

Remove the 3 screws and servomotor.

AC1KW–04

–

AIR CONDITIONING

BLOWER UNIT

AC–51

3778

INSPECTION

INSPECT AIR INLET SERVOMOTOR OPERATION (See page

DI–2358

)

AC1KX–01

AC–52

–

AIR CONDITIONING

BLOWER UNIT

3779

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

AC–50

).

AC1KY–01

–

AIR CONDITIONING

BLOWER UNIT

AC–53

3780

INSTALLATION

Installation is in the reverse order of removal (See page

AC–49

).
