Toyota Sequoia (2005). Manual - part 917

H16724

9 Clips

H16725

H16726

H16727

BO–104

–

BODY

ROOF HEADLINING

3657

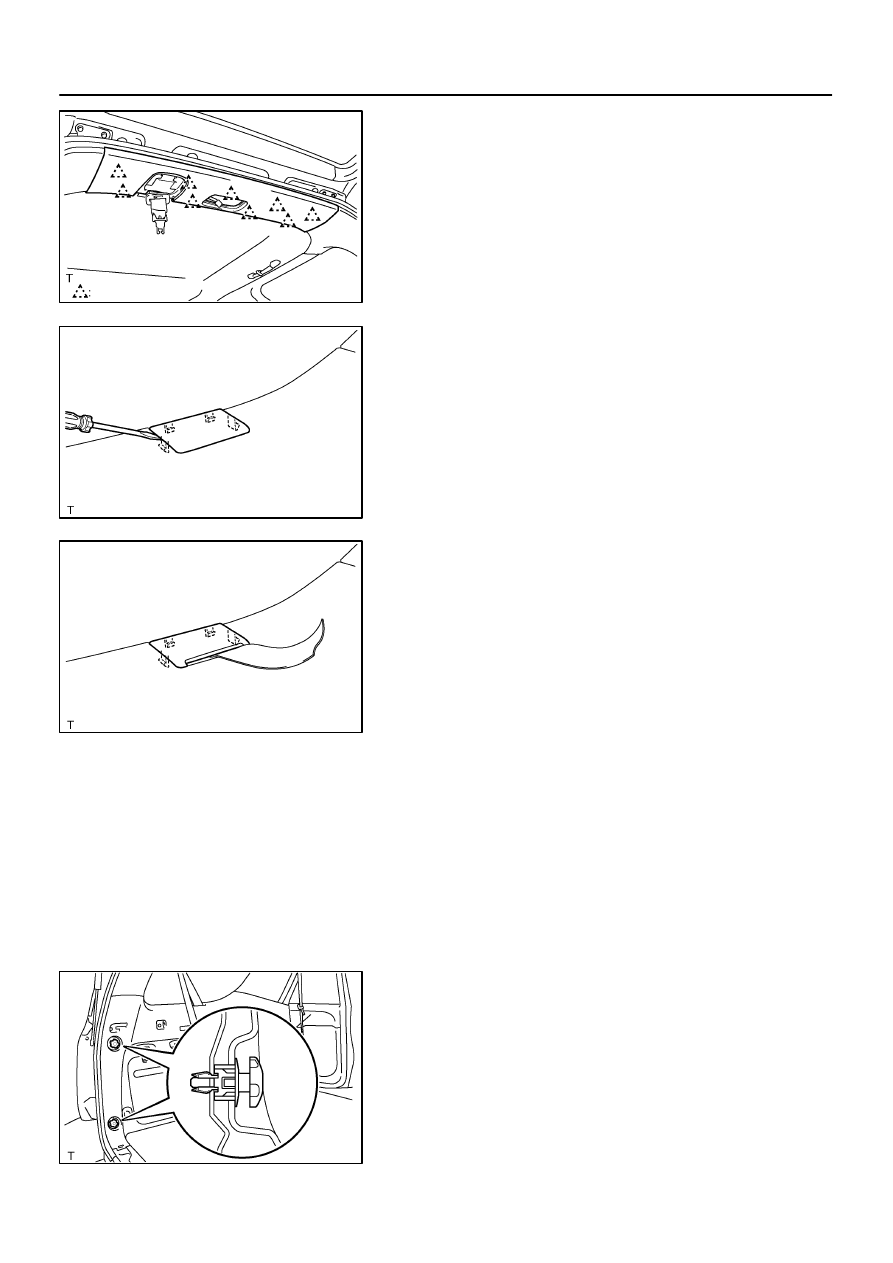

15.

REMOVE REAR TRIM

Using a screwdriver, remove the rear trim.
HINT:
Tape the screwdriver tip before use.
16.

REMOVE REAR FLOOR MAT SUPPORT PLATE

17.

w/o Rear No. 2 seat:
REMOVE QUARTER TRIM HOLE COVER

(a)

Using a screwdriver, remove the quarter trim hole cover.

HINT:
Tape the screwdriver tip before use.
(b)

Use the same manner described above to the other side.

18.

w/ Rear No. 2 seat:
REMOVE QUARTER TRIM UPPER BELT HOLE COV-
ER

(a)

Using a screwdriver, remove the quarter trim upper belt
hole cover.

HINT:
Tape the screwdriver tip before use.
(b)

Use the same manner described above to the other side.

19.

REMOVE QUARTER TRIM PANEL LH

(a)

w/o Rear A/C:
Using a screwdriver, remove the deck side trim cover.

HINT:
Tape the screwdriver tip before use.
(b)

w/o Tonneau cover:
Using a screwdriver, remove the 2 No. 1 tonneau cover
holder caps.

HINT:
Tape the screwdriver tip before use.

(c)

Remove the 2 package holder net hooks.

(d)

Remove the rear No. 1 seat outer belt floor anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

H16728

6 Clips

4 Clips

H16729

H16730

6 Clips

4 Clips

H16731

2 Clips

Clip

–

BODY

ROOF HEADLINING

BO–105

3658

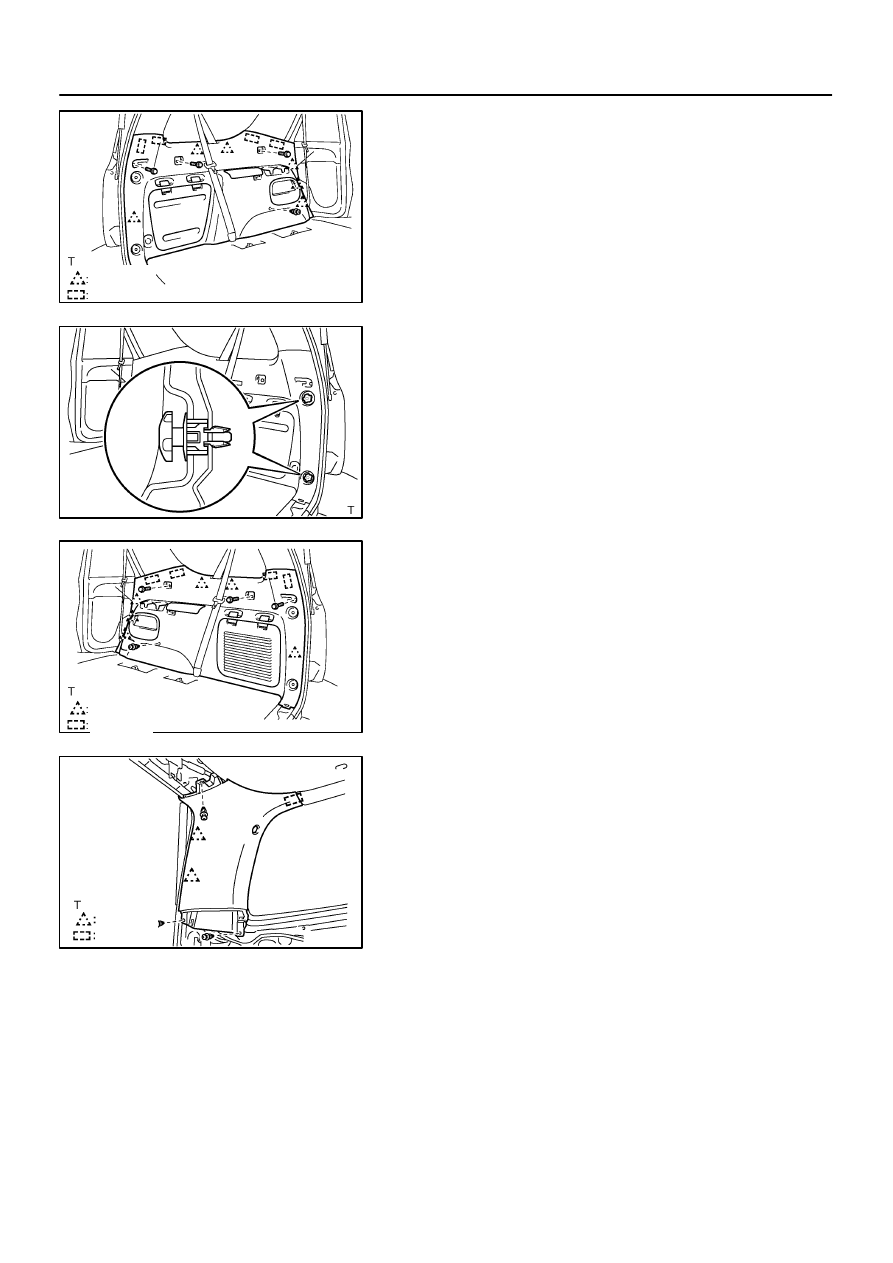

(e)

Remove the 3 bolts, clip and quarter trim panel LH, then
disconnect the connector.

20.

REMOVE QUARTER TRIM PANEL RH

(a)

w/o Tonneau cover:
Using a screwdriver, remove the 2 No. 1 tonneau cover
holder caps.

HINT:
Tape the screwdriver tip before use.

(b)

Remove the 2 package holder net hooks.

(c)

Remove the rear No. 1 seat outer belt floor anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(d)

Remove the 3 bolts, clip and quarter trim panel RH.

21.

w/ Rear No. 2 seat:
REMOVE REAR NO. 2 SEAT OUTER BELT SHOUL-
DER ANCHORS
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

22.

REMOVE NO. 2 REAR WINDOW SIDE GARNISH

(a)

Remove the 3 clips and No. 2 rear window side garnish.

(b)

Use the same manner described above to the other side.

23.

REMOVE REAR NO. 1 SEAT OUTER BELT SHOUL-
DER ANCHOR

(a)

Using a screwdriver, remove the anchor cap.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the rear No. 1 seat outer belt shoulder anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(c)

Use the same manner described above to the other side.

H16732

7 Clips

2 Clips

H16733

H18895

2 Clips

H16734

2 Clips

H16735

4 Clips

BO–106

–

BODY

ROOF HEADLINING

3659

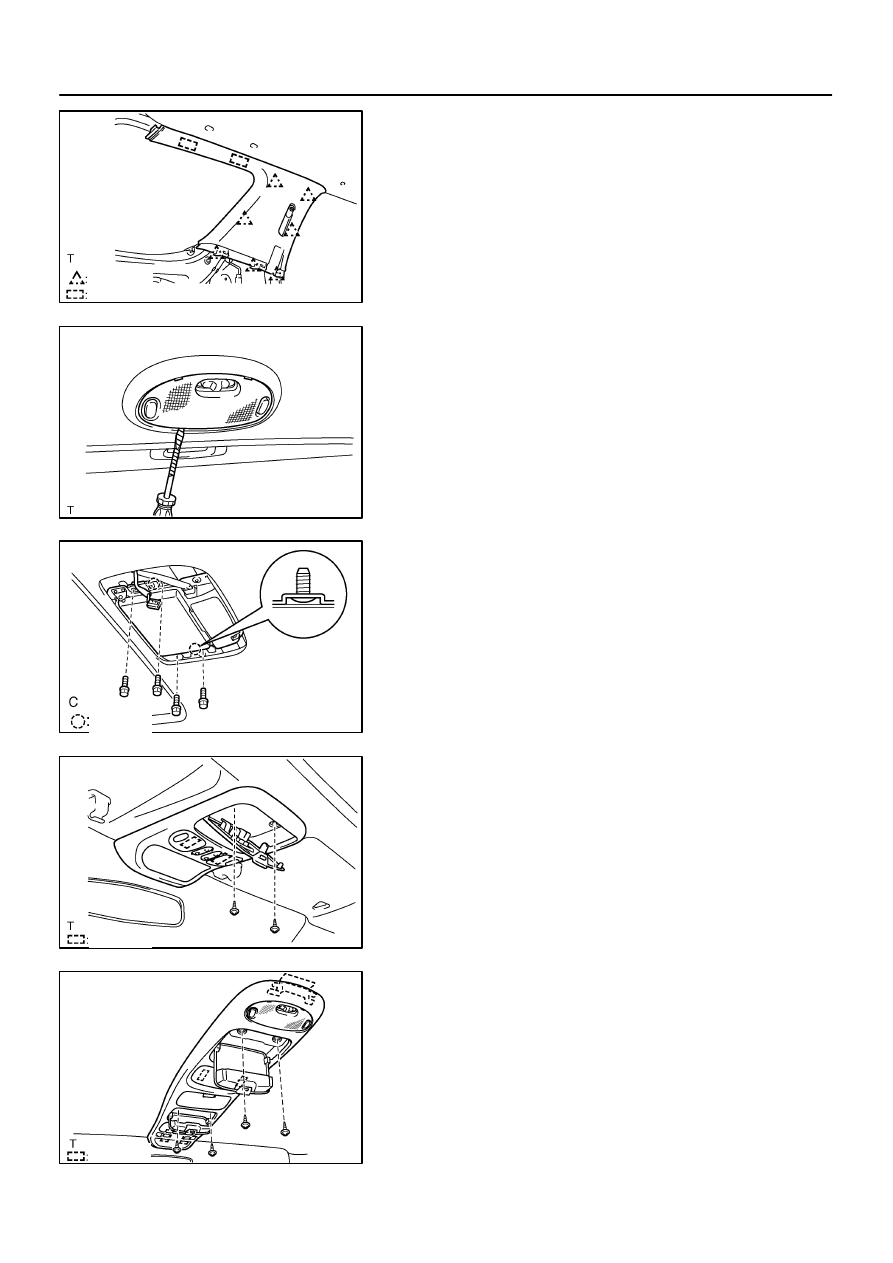

24.

REMOVE REAR WINDOW SIDE GARNISH

(a)

Remove the rear window side garnish.

(b)

Use the same manner described above to the other side.

25.

w/ Sliding roof:
REMOVE MAP LIGHT

(a)

Using a screwdriver, remove the lens.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 screws and map light, then disconnect the
connector.

26.

w/ Rear seat entertainment:
REMOVE INFORATION DISPLAY

(a)

Remove the 2 lenses.

(b)

Remove the 2 screws and display panel, then disconnect
the connector.

(c)

Remove the 4 dolts and multi information display, then
disconnect the connector.

27.

w/ Electro chrmic inner rear view mirror:
REMOVE MIRROR COVER

28.

w/ Sliding roof:
REMOVE ROOF CONSOLE BOX

(a)

Remove the 2 screws.

(b)

Using a screwdriver, remove the roof console box.

HINT:
Tape the screwdriver tip before use.
(c)

Disconnect the connector.

29.

w/o Sliding roof:
REMOVE ROOF CONSOLE BOX

(a)

Remove the 4 screws.

(b)

Using a screwdriver, remove the roof console box.

HINT:
Tape the screwdriver tip before use.
(c)

Disconnect the connectors.

30.

REMOVE ASSIST GRIPS

31.

w/ Sliding roof:
REMOVE SLIDING ROOF OPENING TRIM

H16736

–

BODY

ROOF HEADLINING

BO–107

3660

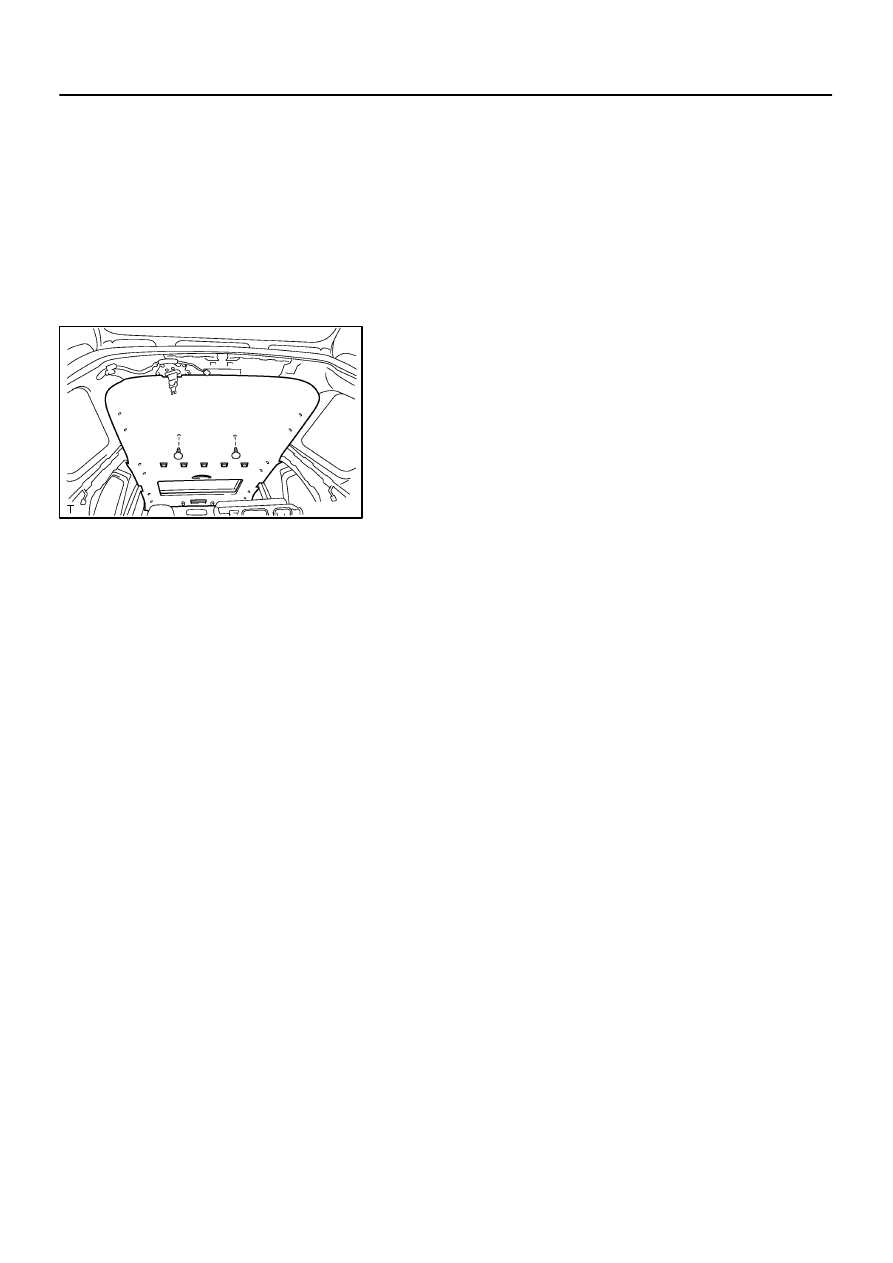

32.

REMOVE SUN VISORS AND HOLDERS

33.

REMOVE ROOF HEADLINING

(a)

Using a clip remover, remove the 2 clips.

(b)

Remove the roof headlining.

34.

w/ Rear A/C:
REMOVE REAR AIR DUCTS

35.

w/ Rear A/C:
REMOVE FRONT SIDE RAIL SPACERS

36.

w/o Rear A/C:
REMOVE REAR NO. 2 SIDE RAIL SPACERS

37.

w/o Curtain shield airbag assembly:
REMOVE FRONT PILLAR SPACERS

38.

REMOVE FRONT ROOF HEADLINING TRIM RETAIN-
ERS

39.

REMOVE REAR ROOF HEADLINING TRIM RETAIN-
ERS

40.

REMOVE NO. 1 ROOF HEADLINING TRIM SIDE RE-
TAINERS
