Toyota Sequoia (2005). Manual - part 716

-

LUBRICATION

OIL PUMP

LU-19

2853

10.

INSTALL NO.1 IDLER PULLEY (See page

EM-23

)

11.

INSTALL NO.2 IDLER PULLEY (See page

EM-23

)

12.

INSTALL TIMING BELT (See page

EM-23

)

13.

DISCONNECT ENGINE FROM ENGINE STAND

14.

INSTALL ENGINE TO VEHICLE
(2WD: See page

EM-83

)

(4WD: See page

EM-95

)

LU08W-1 1

B07331

Oil Cooler Hose

 O-Ring

Oil Cooler

Plate Washer

Union Bolt

Oil Filter

N·m (kgf·cm, ft·lbf) : Specified torque

 Non-reusable part

68.6 (700, 51)

LU-20

-

LUBRICATION

OIL COOLER

2854

OIL COOLER

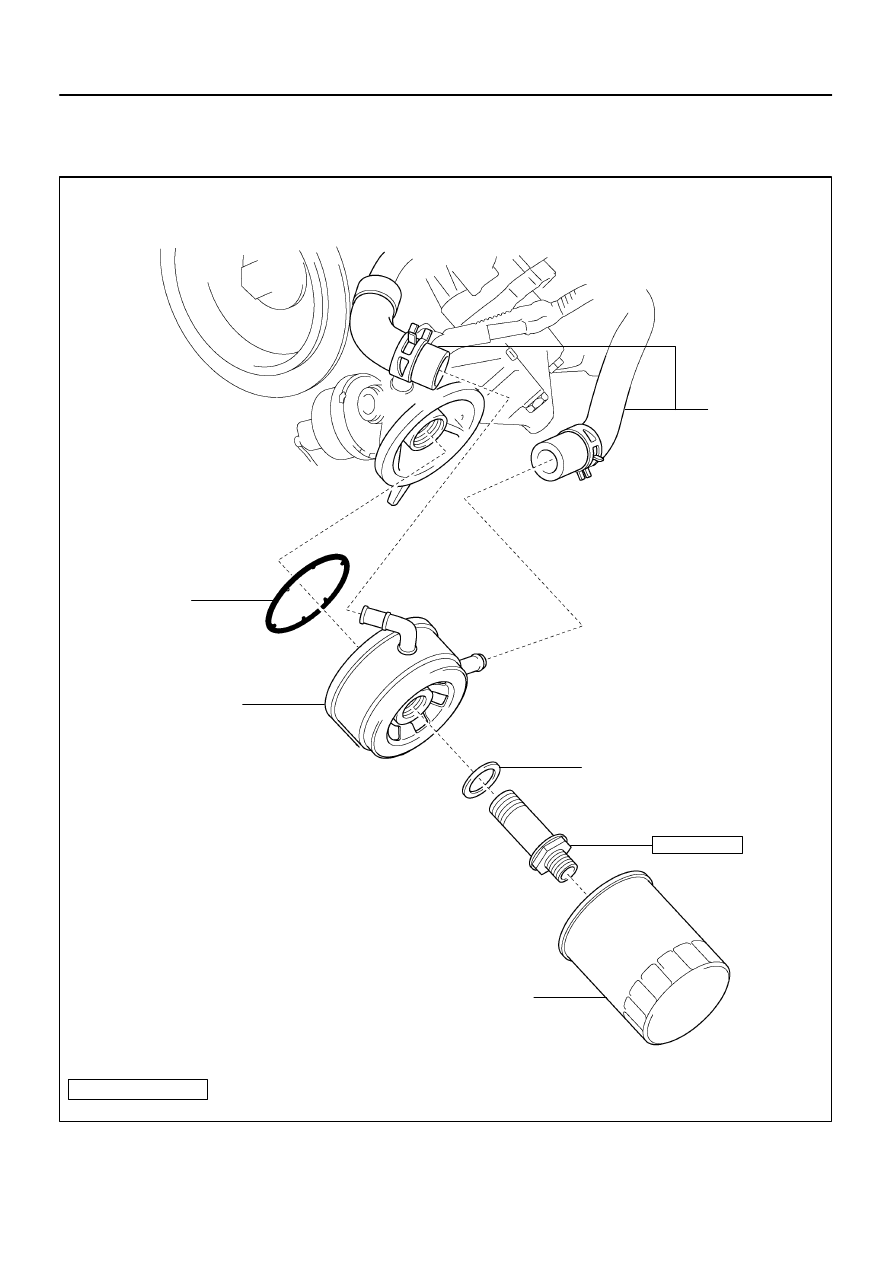

COMPONENTS

LU08X-08

B07333

-

LUBRICATION

OIL COOLER

LU-21

2855

REMOVAL

1.

DRAIN ENGINE COOLANT

2.

REMOVE OIL FILTER (See page

LU-2

)

3.

REMOVE OIL COOLER

(a)

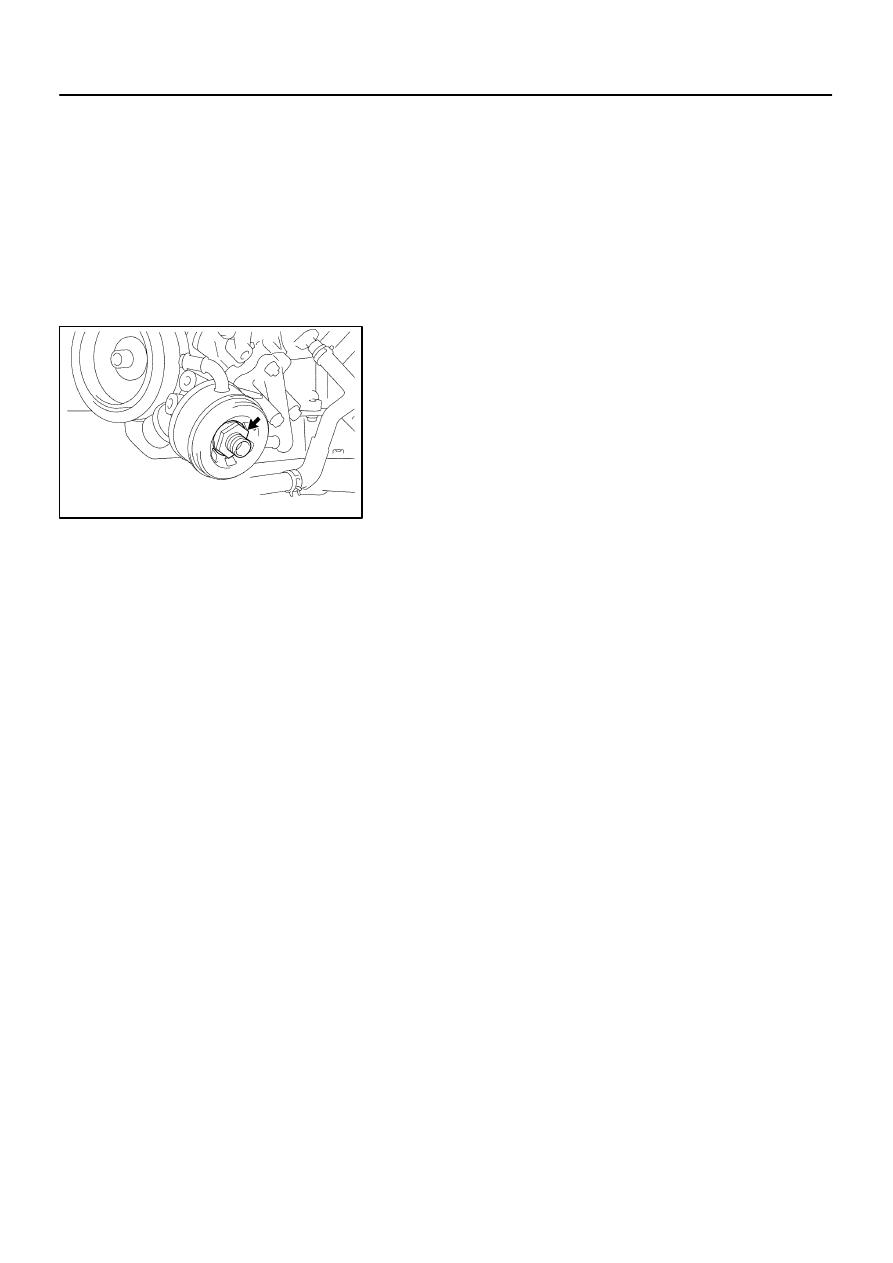

Disconnect the 2 oil cooler hoses from the oil cooler.

(b)

Remove the union bolt, plate washer and oil cooler.

(c)

Remove the O-ring from the oil cooler.

LU08Y–08

B07334

LU–22

–

LUBRICATION

OIL COOLER

2856

INSPECTION

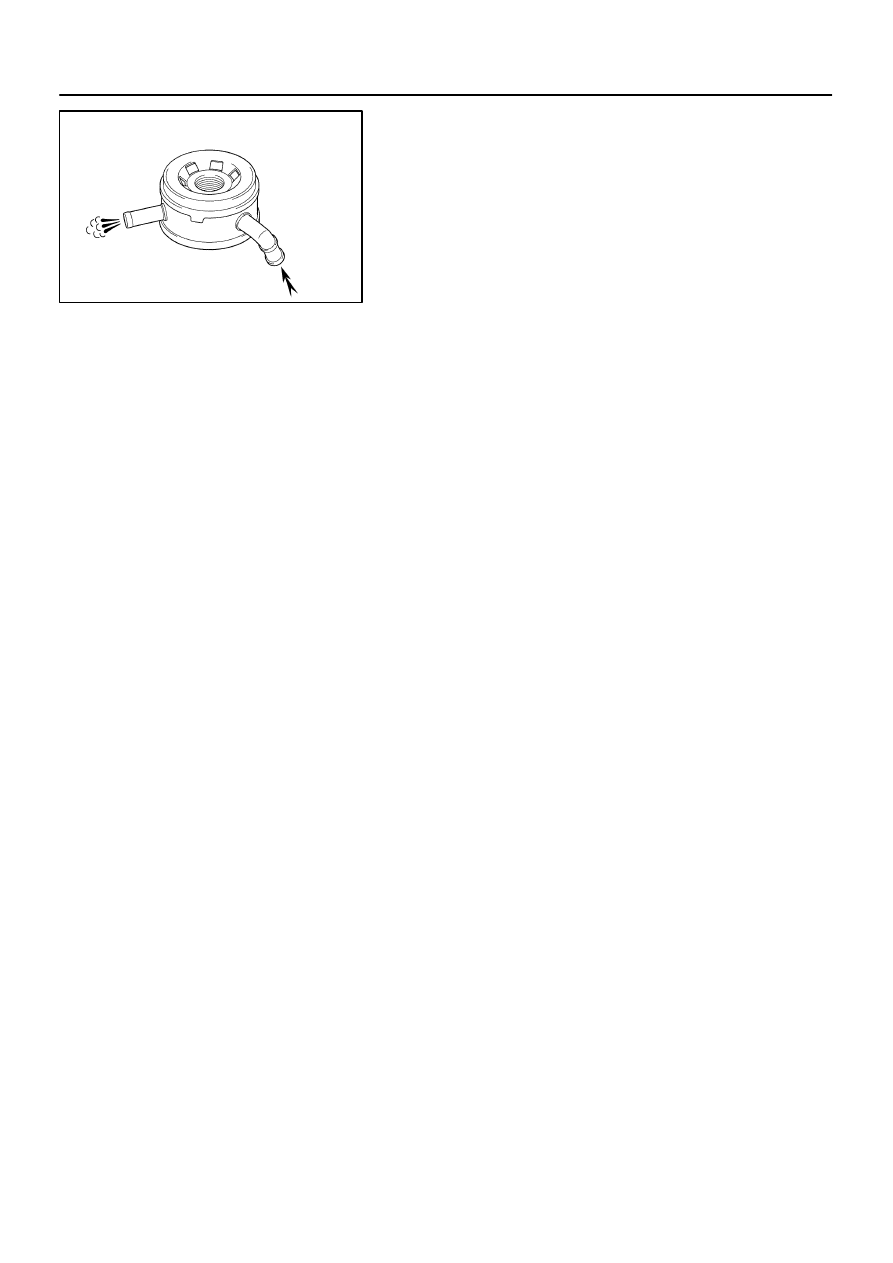

INSPECT OIL COOLER
Check the oil cooler for damage or clogging.
If necessary, replace the oil cooler.
