OK

2.

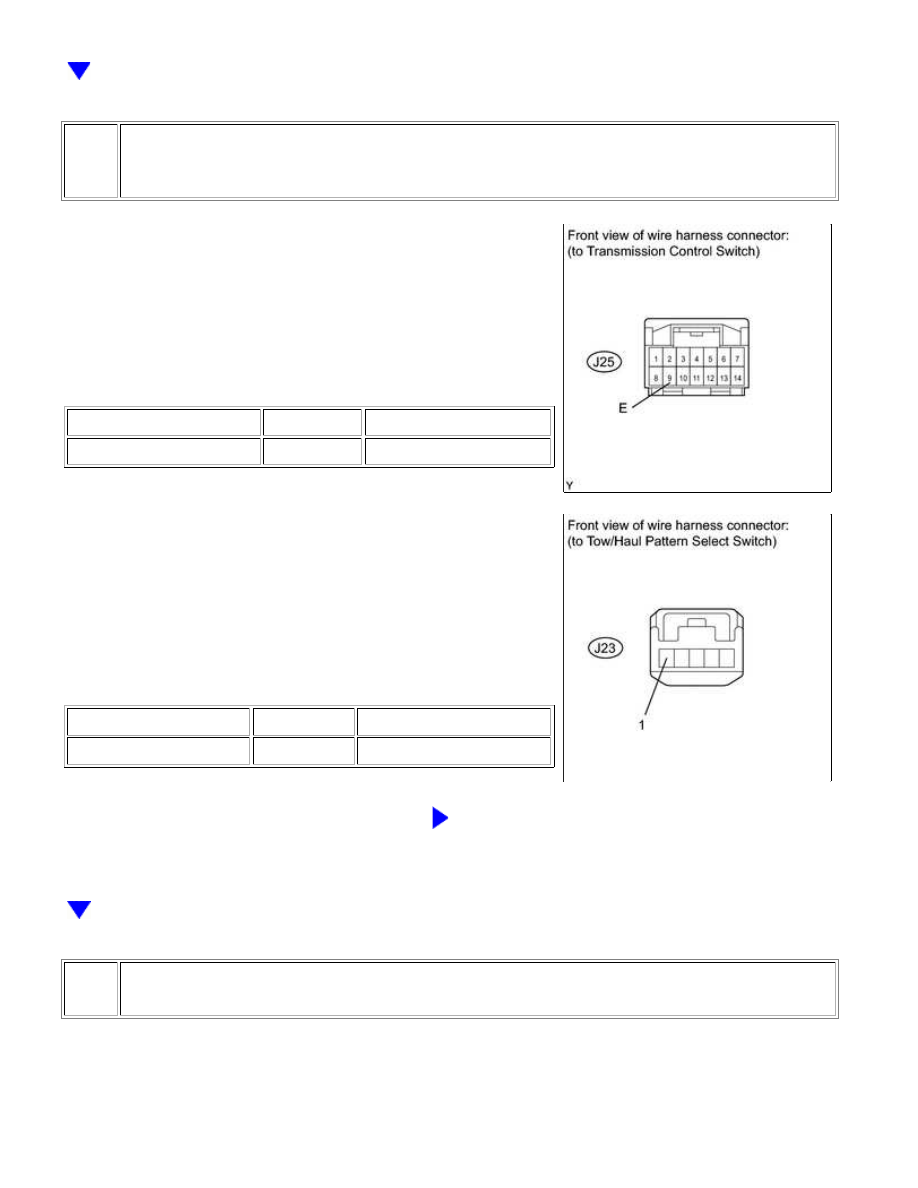

CHECK HARNESS AND CONNECTOR (TOW/HAUL PATTERN SELECT SWITCH - BODY
GROUND)

(a) for Column Shift Type:

(1) Disconnect the J25 transmission control switch connector.

(2) Measure the resistance according to the value(s) in the

table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J25-9 (E) - Body ground

Always

Below 1 Ω

(b) for Floor Shift Type:

(1) Disconnect the J23 tow/haul pattern select switch

connector.

(2) Measure the resistance according to the value(s) in the

table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J23-1 - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.

CHECK HARNESS AND CONNECTOR (TOW/HAUL PATTERN SELECT SWITCH - ECM)

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

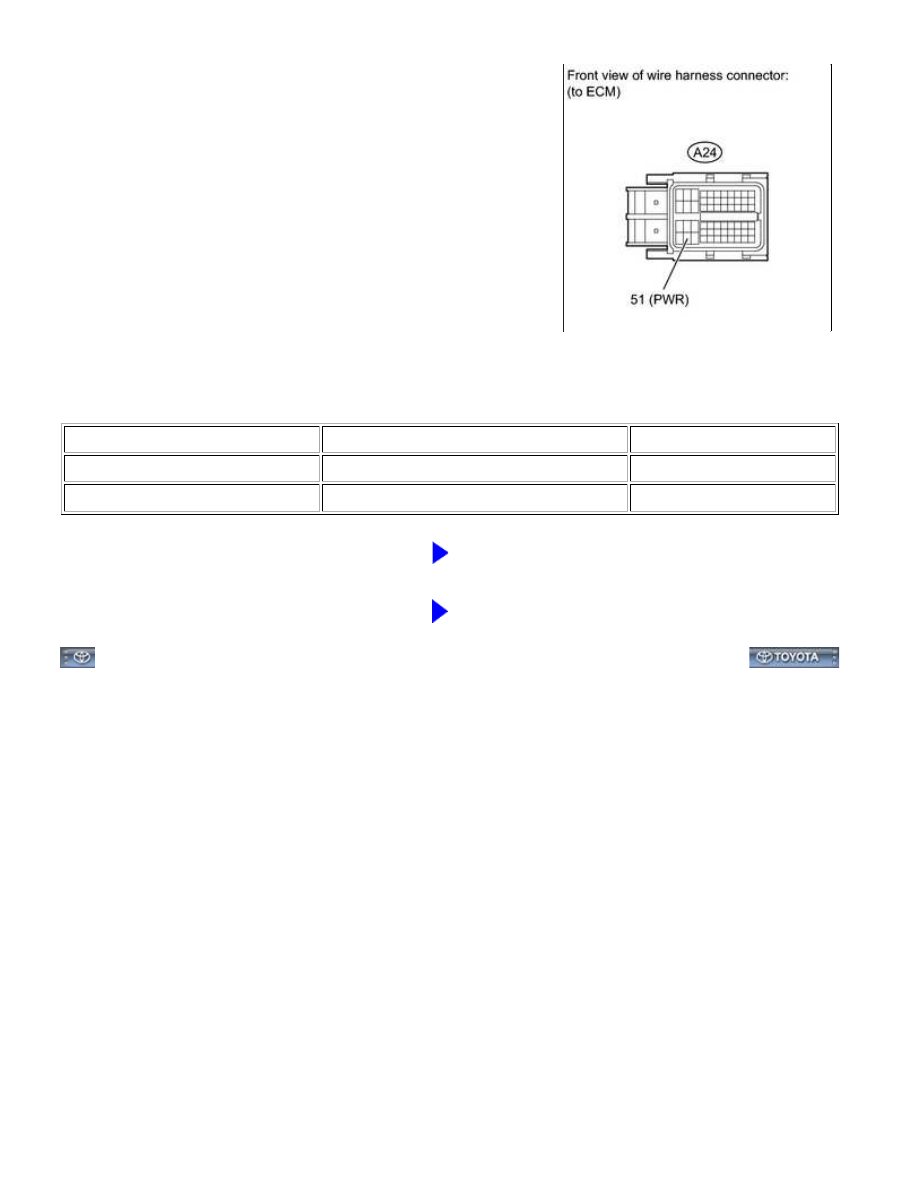

(a) Disconnect the A24 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

A24-51 (PWR) - Body ground

Tow/haul pattern select switch ON

Below 1 Ω

A24-51 (PWR) - Body ground

Tow/haul pattern select switch OFF

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN

IN PROBLEM SYMPTOMS TABLE

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM0000013EY06IX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION UNIT: COMPONENTS; 2015 MY Tundra

[08/2014 -        ]

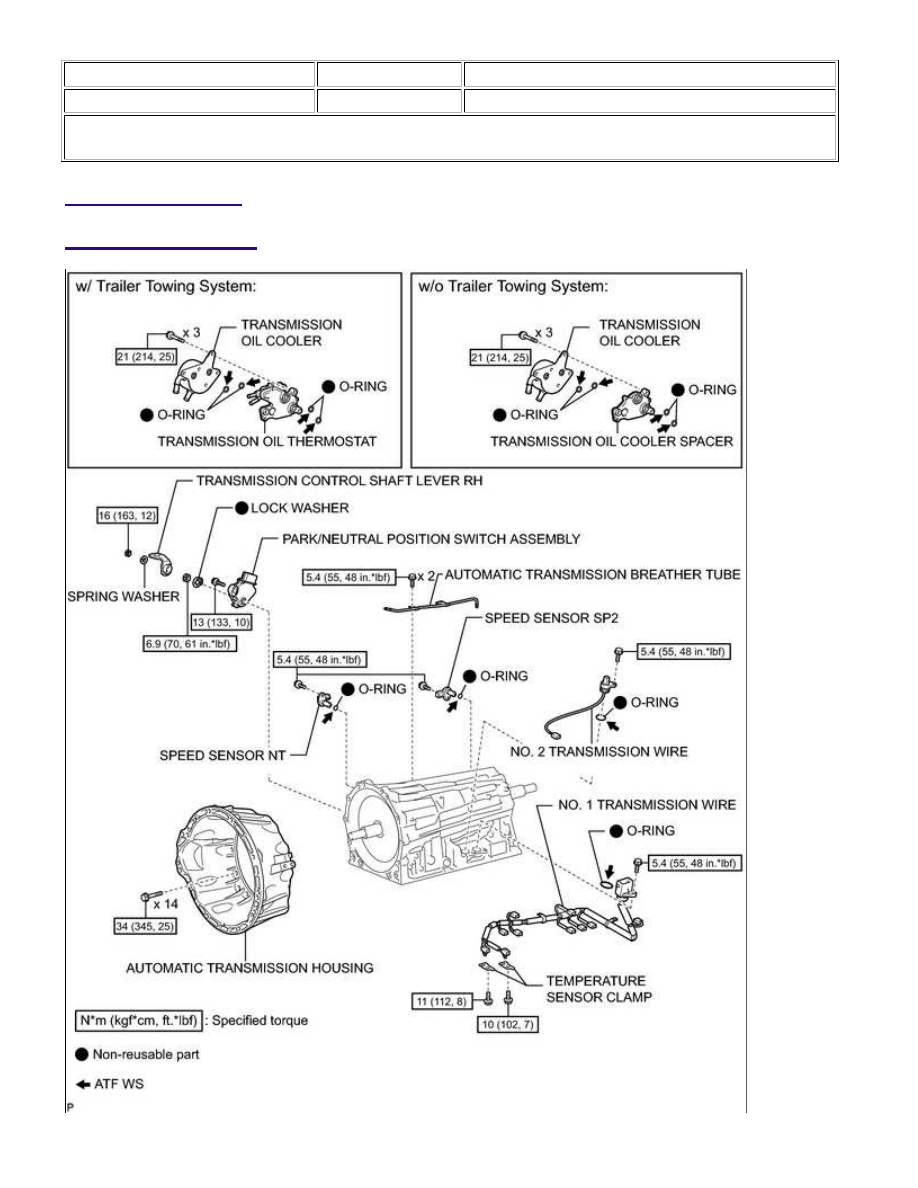

COMPONENTS

ILLUSTRATION

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

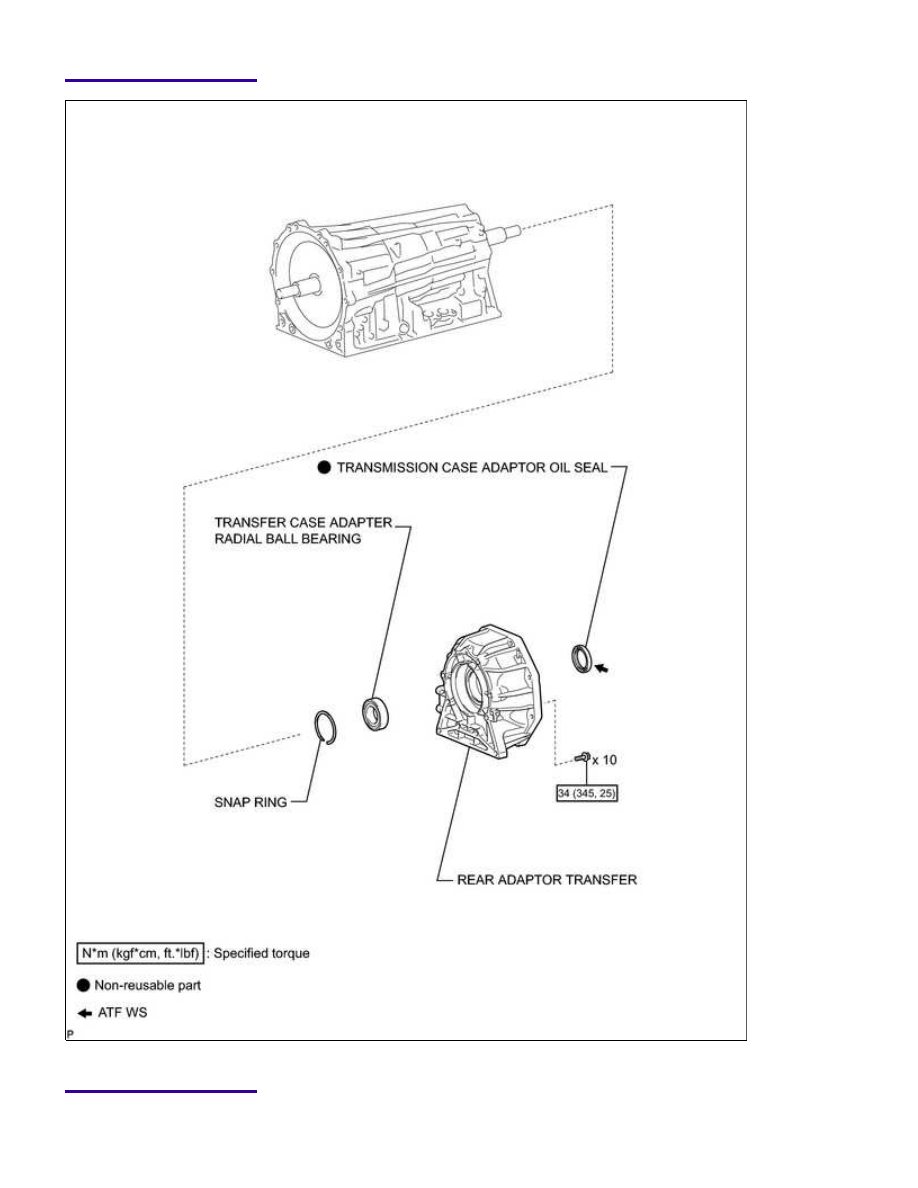

ILLUSTRATION

ILLUSTRATION
