Toyota Tundra (2015 year). Manual - part 326

OFF

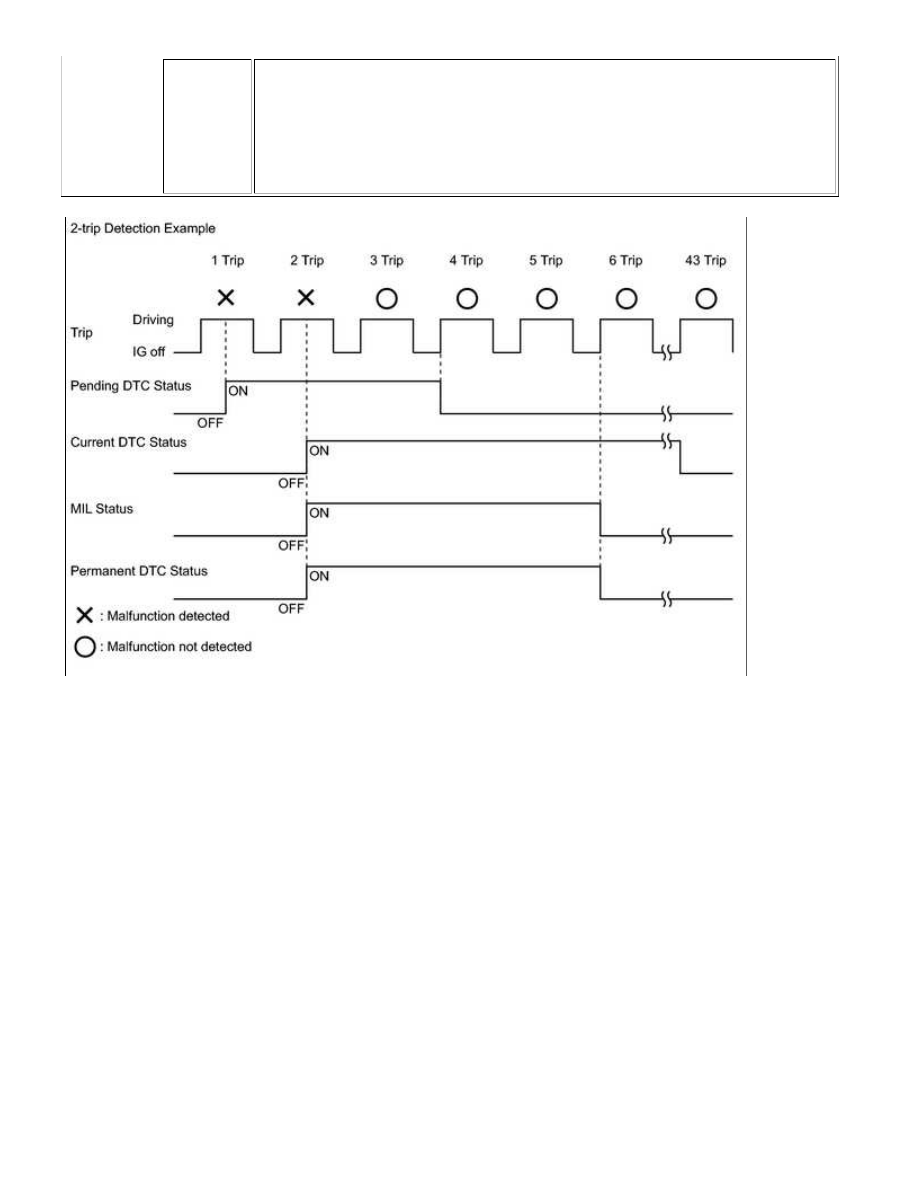

Ignition switch turned to ON after no malfunction is detected in 3 consecutive

driving cycles

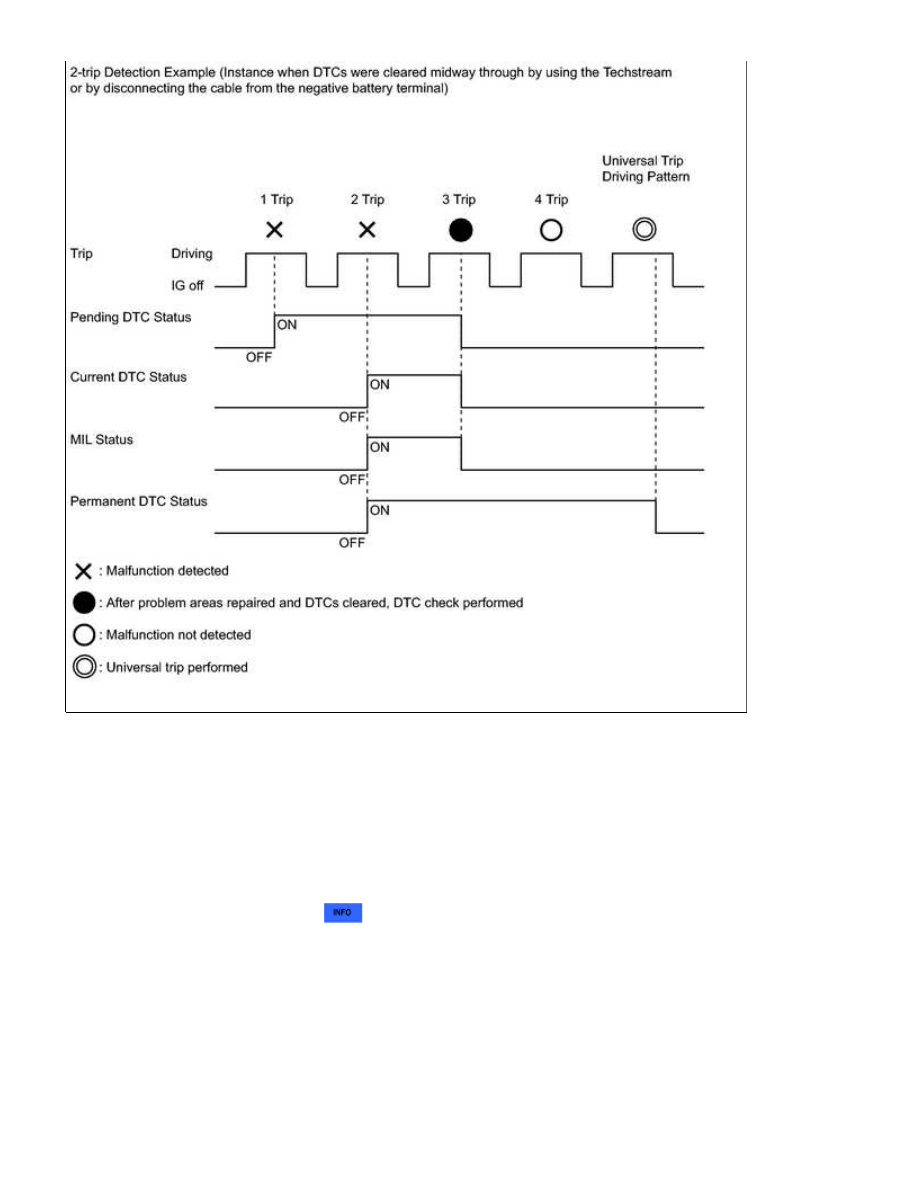

DTCs cleared using Techstream

Cable disconnected from negative battery terminal

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

1. CHECK DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Check the DTC(s) and freeze frame data, and then write them down.

2. CLEAR DTC (Pending and Current DTC)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Clear the DTCs.

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

3. CLEAR DTC (Pending and Current DTC without using Techstream)

(2) Remove the EFI NO. 1 and ETCS fuses from the engine room relay block located inside the engine

compartment for more than 1 minute.

4. CLEAR PERMANENT DTC

HINT:

Even if the following procedure is not performed, permanent DTCs are cleared if no malfunction is detected

during 3 consecutive driving cycles.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Check if permanent DTCs are stored.

HINT:

If permanent DTCs are not output, it is not necessary to continue this procedure.

(f) Clear DTCs.

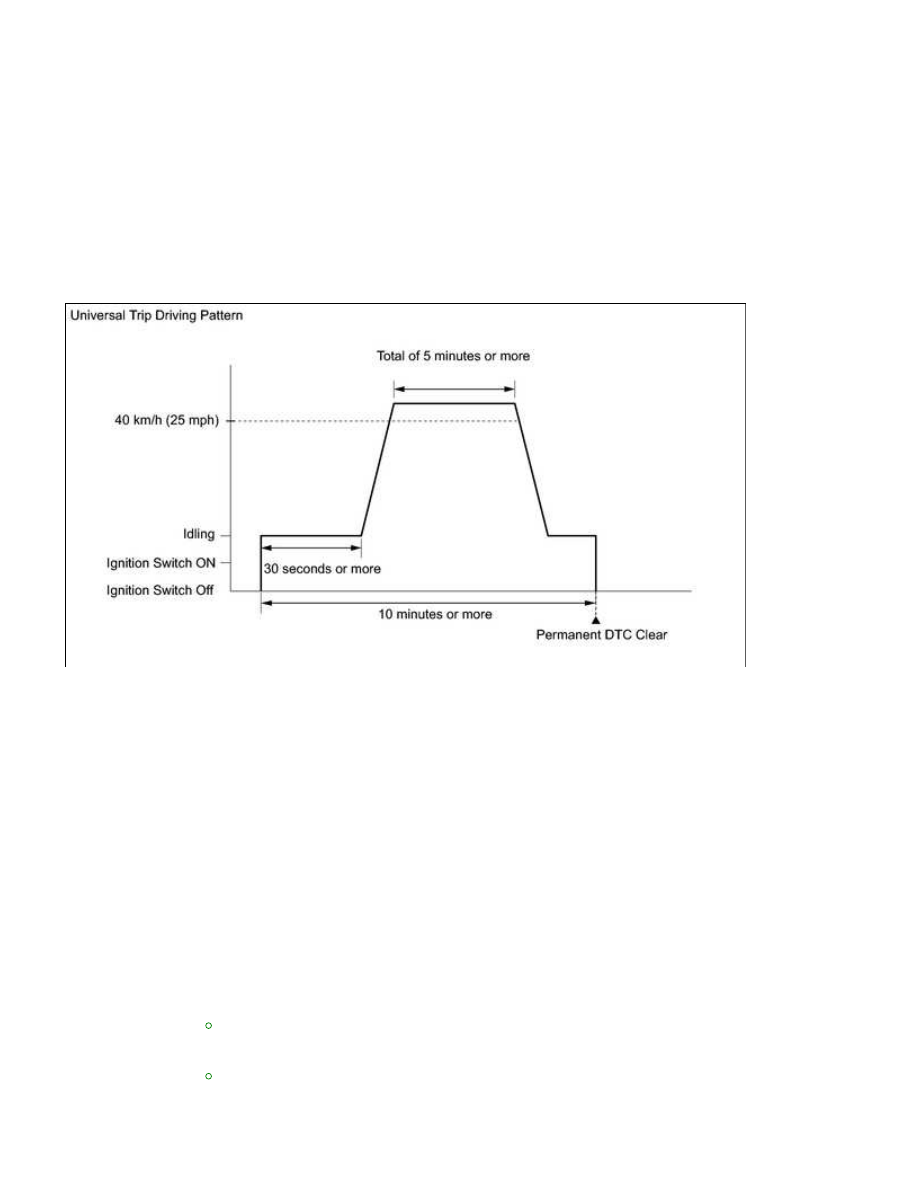

(g) Perform the universal trip.

Idle the engine for 30 seconds or more.

It is possible to complete the drive pattern even if the vehicle decelerates to less than 40

used in order and no gears are skipped.

Allow 10 minutes or more to elapse from the time the engine is started.

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

(h) Turn the ignition switch off.

(i) Wait 15 seconds.

(j) Turn the ignition switch to ON.

(k) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(l) Check that the permanent DTCs have been cleared.

HINT:

If the permanent DTCs have not been cleared, perform the universal trip again.
The permanent DTCs are cleared when the universal trip is completed.

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...
