21. INSTALL FRONT NO. 1 DOOR TRIM BRACKET

(a) Install the bracket with the 2 screws.

22. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

23. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

24. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Power Mirror Control System)

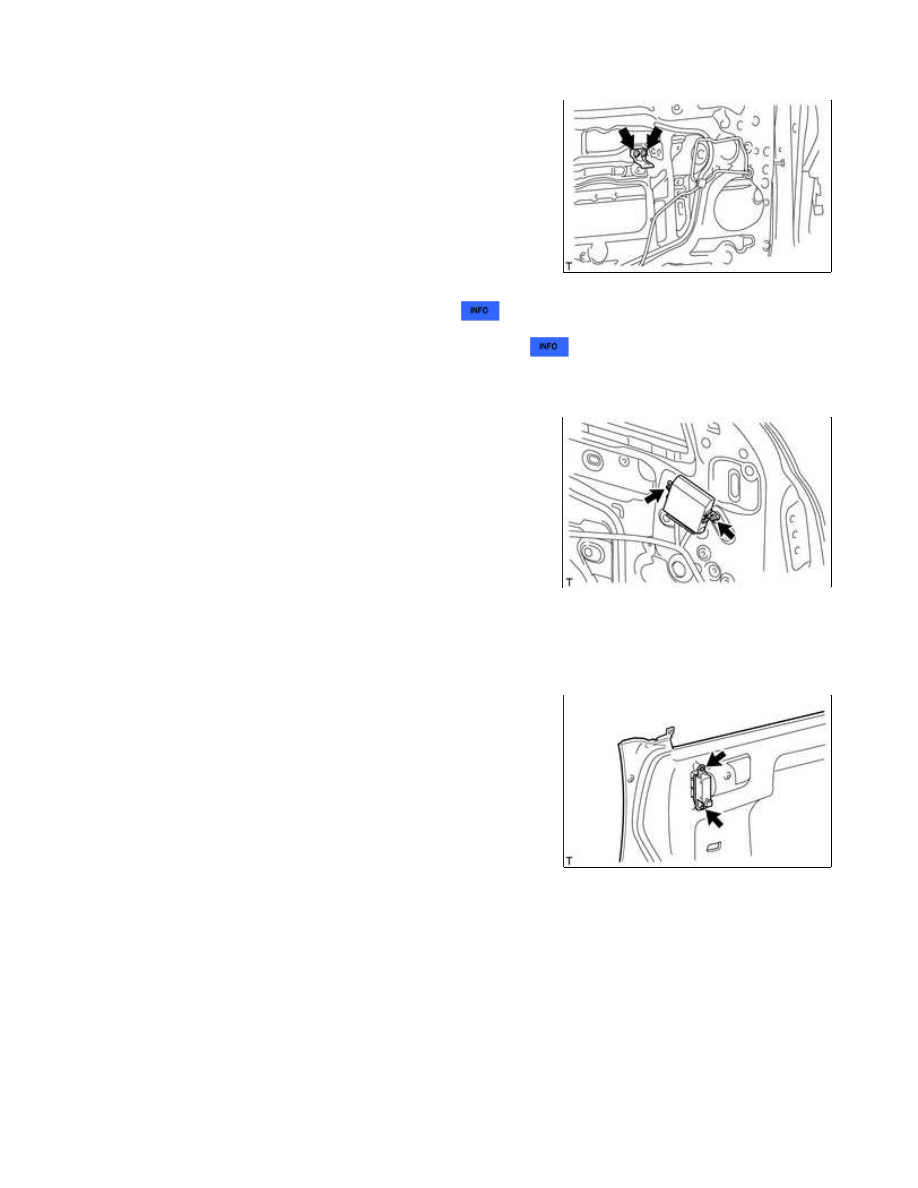

(a) Install the ECU with the 2 screws.

(b) Connect the 2 ECU connectors.

25. INSTALL SEAT MEMORY SWITCH (w/ Seat Memory Switch)

(a) Install the seat memory with the 2 screws.

26. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP LH

27. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

ENGINE HOOD / DOOR: FRONT DOOR (for Double Cab): REASS...

(a) Connect the 2 cables to the inside handle.

(b) Connect the connector.

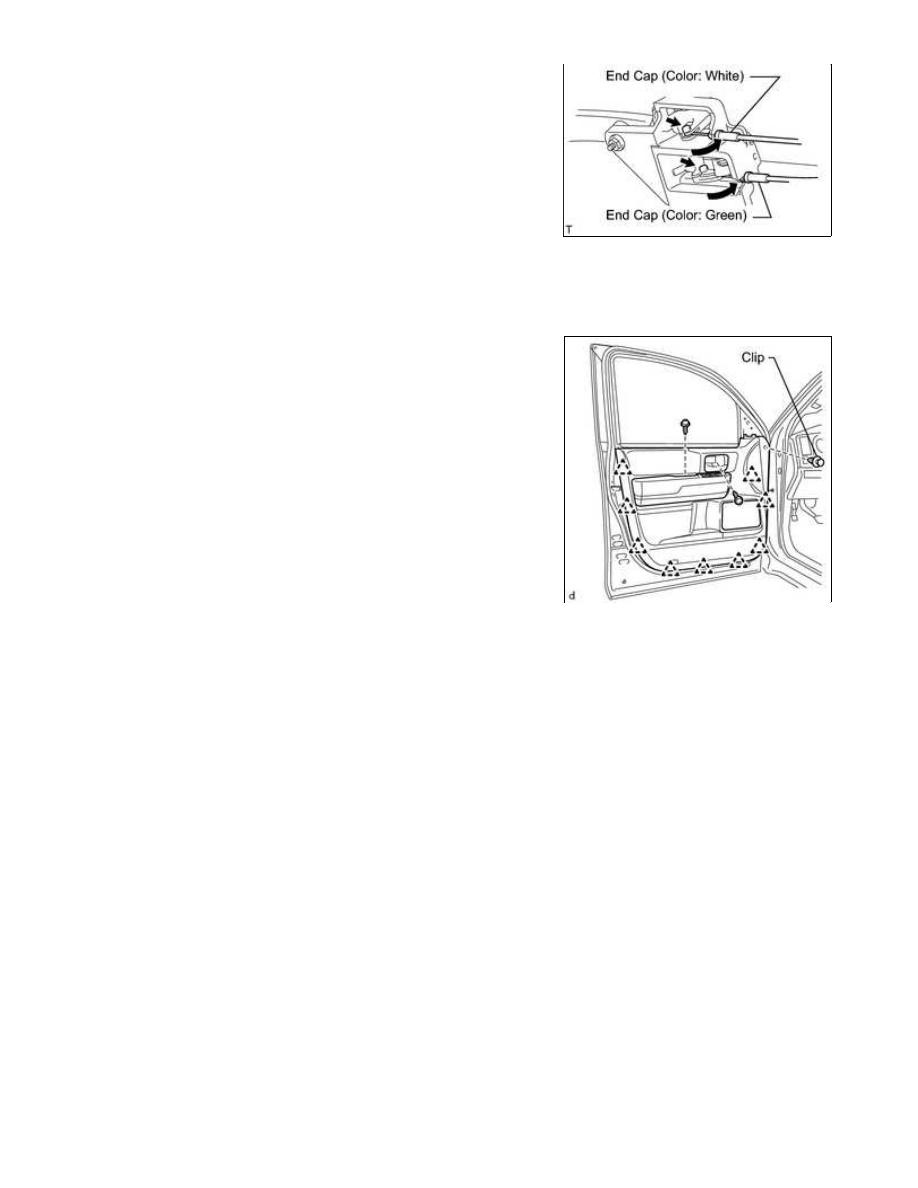

(d) Attach the 9 clips to install the door trim board.

(e) Install the inside handle and door trim board to the door trim panel with the screw.

(f) Install the door trim board to the door panel with the screw.

(g) Install the clip.

28. INSTALL FRONT DOOR ARMREST COVER LH

29. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH

ENGINE HOOD / DOOR: FRONT DOOR (for Double Cab): REASS...

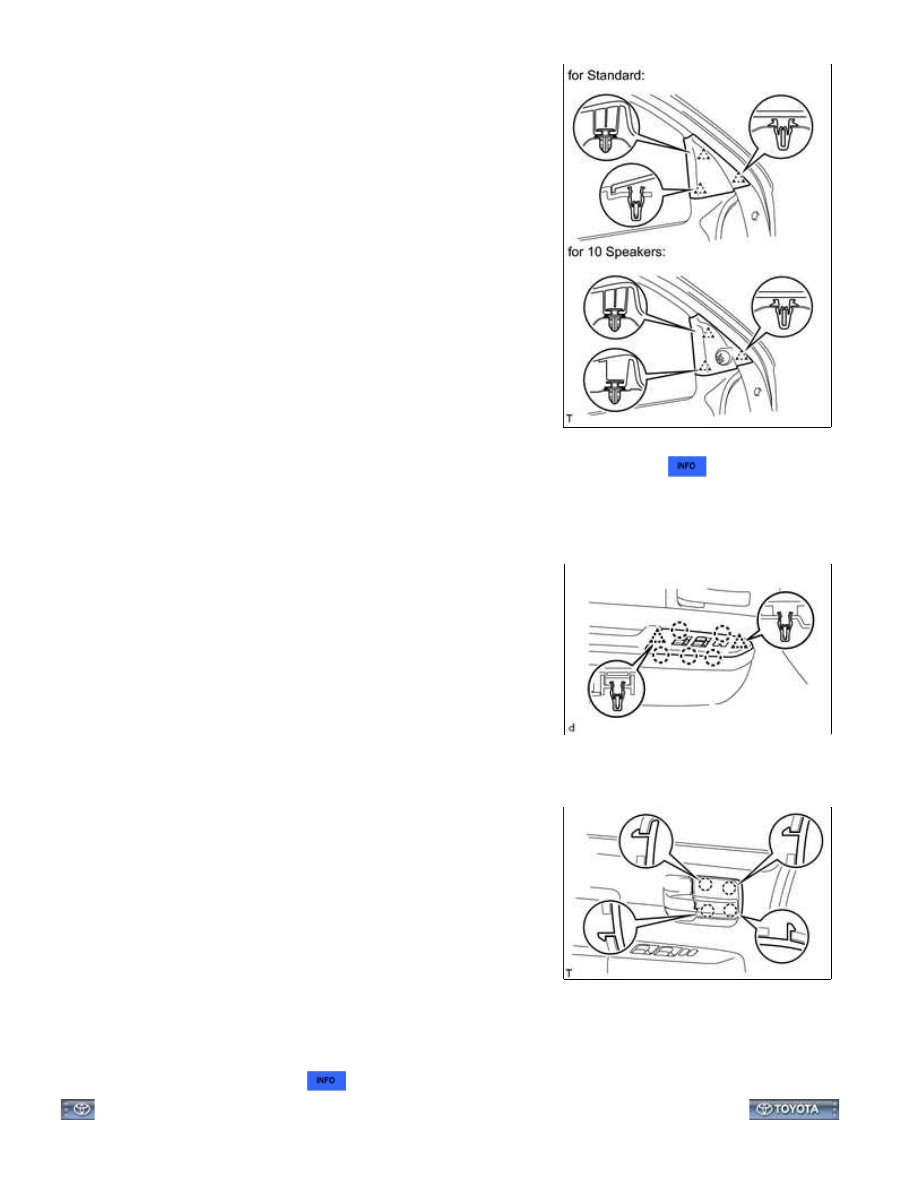

(a) Attach the 3 clips to install the front door lower frame bracket

garnish.

30. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

31. INSTALL FRONT UPPER ARMREST BASE PANEL LH

(a) Connect the master switch connector.

(b) Attach the 2 clips and 5 claws to install the front upper armrest

base panel LH.

32. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

(a) Attach the 4 claws to install the bezel plug.

33. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

34. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light

ENGINE HOOD / DOOR: FRONT DOOR (for Double Cab): REASS...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002ZO6009X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: ENGINE HOOD / DOOR: FRONT DOOR (for Regular Cab): COMPONENTS; 2015 MY Tundra [08/2014 -

]

COMPONENTS

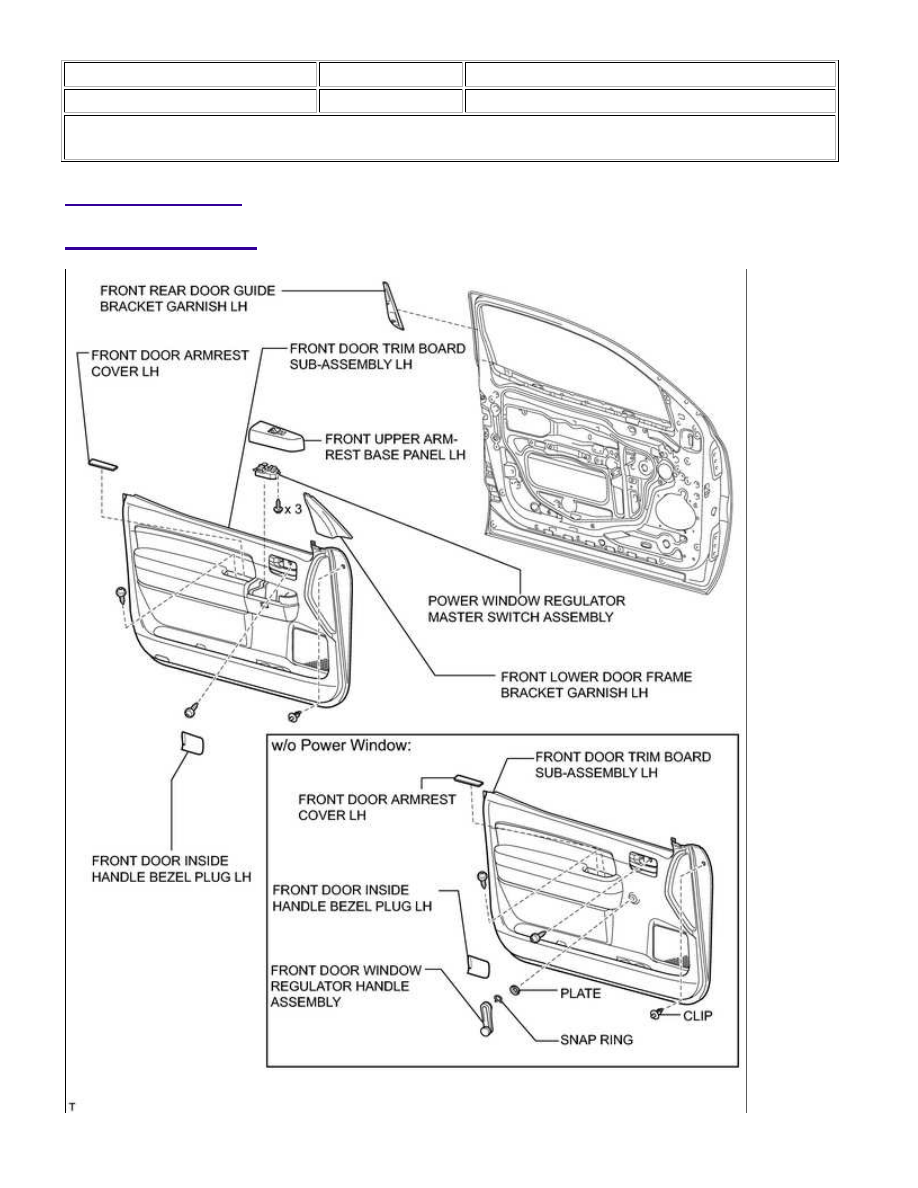

ILLUSTRATION

ENGINE HOOD / DOOR: FRONT DOOR (for Regular Cab): COMP...
