4. ADJUST TOE-IN
(a) Release the rack boot set clips.
(b) Loosen the tie rod end lock nuts.
(c) Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.

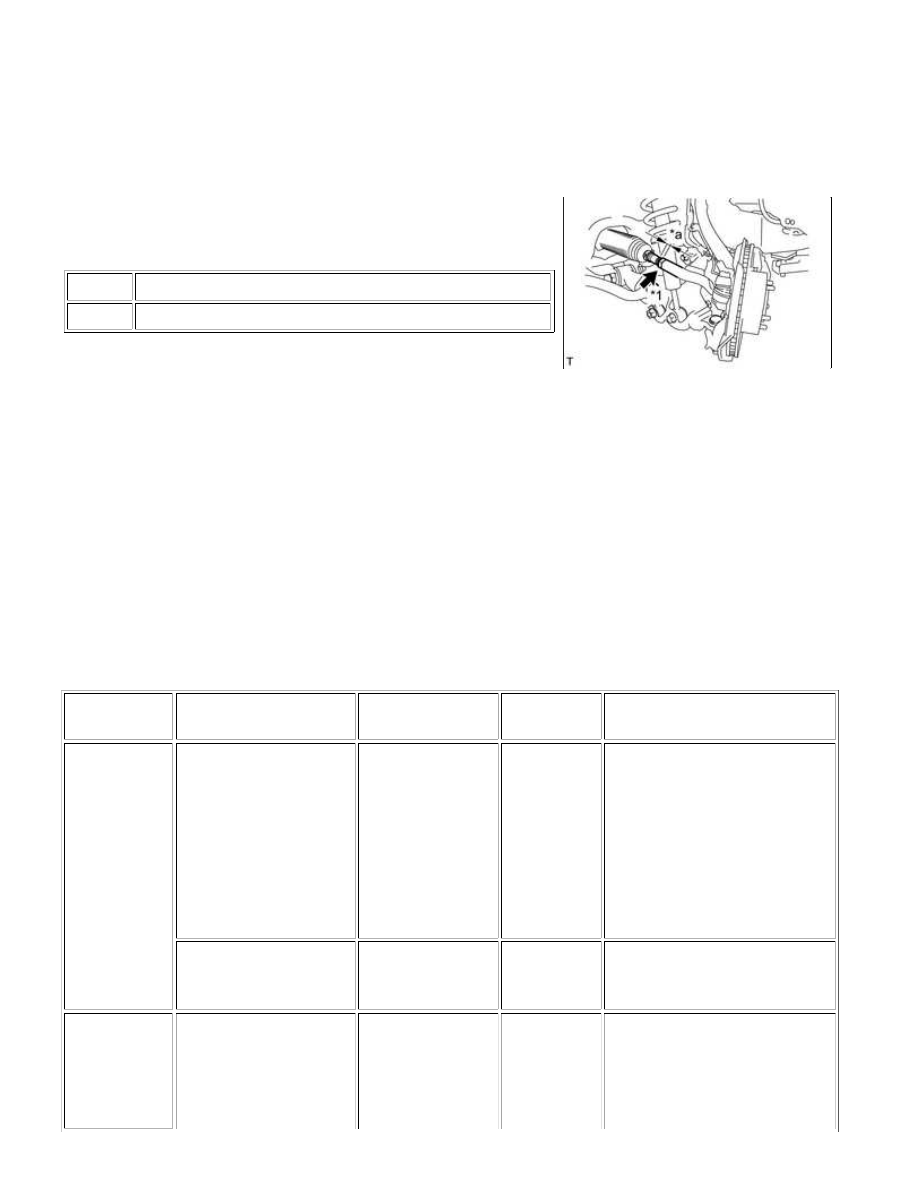

Text in Illustration
*1
Tie Rod End Lock Nut
*a
Length
Standard difference:
0 +/-1 mm (0 +/-0.0394 in.) or less
(e) Tighten the tie rod end lock nuts.
Torque:
82 N·m {836 kgf·cm, 60ft·lbf}
(f) Place the boots on the seats and install the clips.
HINT:
Make sure that the boots are not twisted.
5. INSPECT WHEEL ANGLE
(a) Turn the steering wheel to the left and right full lock positions, and measure the turning angle.
Standard wheel angle (unloaded vehicle):
MODEL
TIRE SIZE
INSIDE WHEEL
ANGLE
(TOLERANCE)
OUTSIDE WHEEL ANGLE
(REFERENCE)
USK51L-
THTSKA
P255/70R18 8J (STD)
P255/70R18 8J (STD w/
LFT)
P275/65R18 8J (OPT)
P275/65R18 8J (OPT w/
LFT)
P275/55R20 8J (OPT)
P275/55R20 8J (OPT w/
LFT)
-41°00'
(-41.00°)
(+1°/ -2°)
36°23' (36.38°)
P275/65R18 8J (ORP)
P275/65R18 8J (ORP w/
LFT)
-40°59'
(-40.99°)
(+1°/ -2°)
36°21' (36.35°)
USK56L-
THTSKA
USK56L-
THTSGA
P255/70R18 8J (STD)
P255/70R18 8J (STD w/
LFT)
P275/65R18 8J (OPT)
P275/65R18 8J (OPT w/
-41°24'
(-41.40°)
(+1°/ -2°)
36°41' (36.68°)
