6. TEMPORARILY INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING LH

7. STABILIZE SUSPENSION

8. TIGHTEN FRONT SUSPENSION UPPER ARM ASSEMBLY LH

(a) Tighten the nut.

Torque:

235 N·m {2396 kgf·cm, 173ft·lbf}

9. TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING

10. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

(a) Inspect and adjust the front wheel alignment



.

11. INSTALL FRONT WHEEL

Torque:

for Aluminum Wheel -

131 N·m {1336 kgf·cm, 97ft·lbf}

for Steel Wheel -

209 N·m {2131 kgf·cm, 154ft·lbf}

SUSPENSION: FRONT UPPER SUSPENSION ARM: INSTALLATIO...

Last Modified: 9-16-2014

6.6 N

Doc ID: RM000001V4302FX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: SUSPENSION: FRONT WHEEL ALIGNMENT: ADJUSTMENT; 2015 MY Tundra [08/2014 -        ]

ADJUSTMENT

NOTICE:

For vehicles equipped with VSC, if wheel alignment has been adjusted, and if suspension or underbody

components have been removed/installed or replaced, be sure to perform the following initialization
procedure in order for the system to function normally:

Check that the steering wheel is in the centered position.

1.

Disconnect the negative battery terminal for more than 2 seconds.

2.

Reconnect the negative battery terminal.

3.

.

4.

1. INSPECT TIRE

(a) Inspect the tires



.

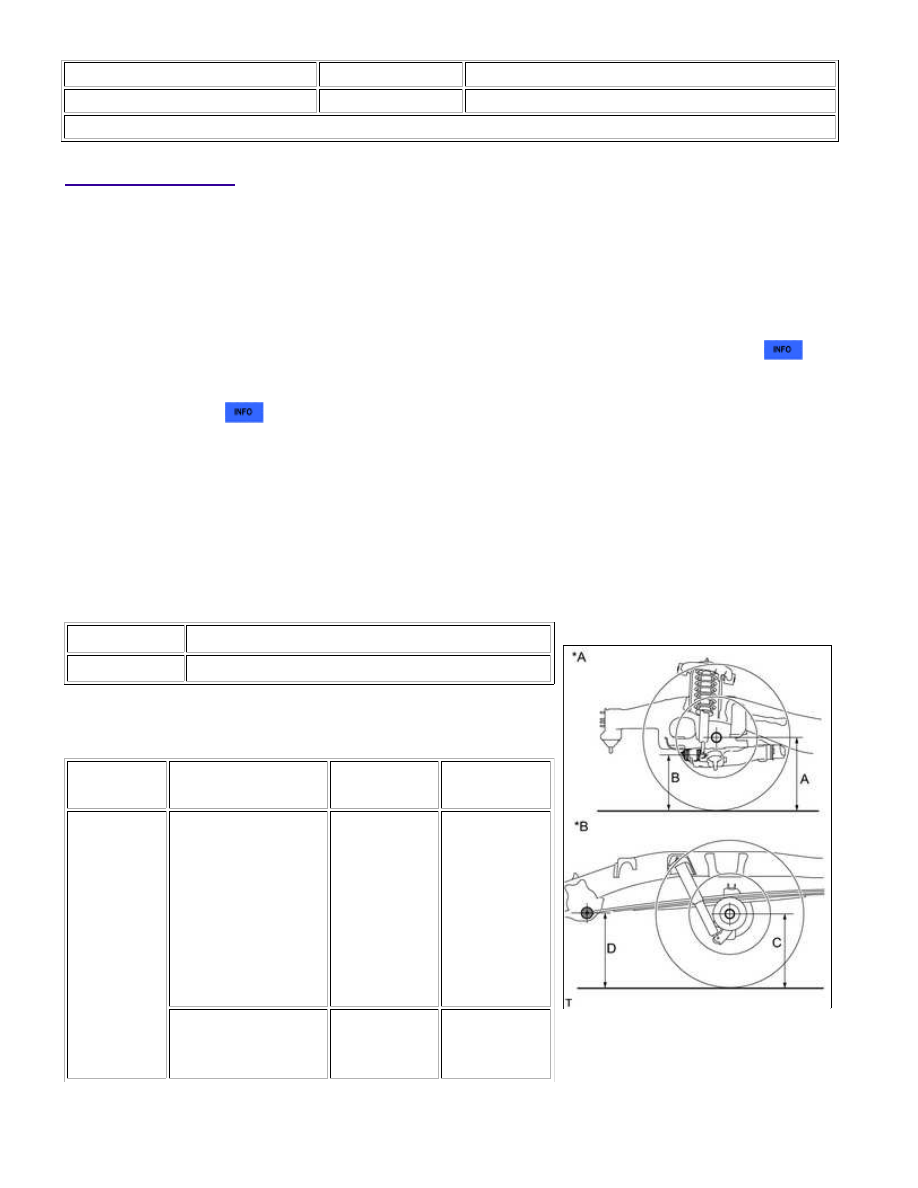

2. MEASURE VEHICLE HEIGHT

NOTICE:

Before inspecting the wheel alignment, adjust the vehicle height to the specification.

(a) Press down on the vehicle several times to stabilize the

suspension, and then measure the vehicle height.

Text in Illustration

*A

Front Side

*B

Rear Side

Standard vehicle height (unloaded vehicle):

MODEL

TIRE SIZE

FRONT A - B

REAR C - D

USK51L-

THTSKA

P255/70R18 8J (STD)

P255/70R18 8J (STD

w/ LFT)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT

w/ LFT)

P275/55R20 8J (OPT)

P275/55R20 8J (OPT

w/ LFT)

111.1 mm

(4.37 in.)

-64.3 mm

(-2.53 in.)

P275/65R18 8J (ORP)

P275/65R18 8J (ORP

w/ LFT)

112.1 mm

(4.41 in.)

-64.8 mm

(-2.55 in.)

SUSPENSION: FRONT WHEEL ALIGNMENT: ADJUSTMENT; 201...

VEHICLE

MODEL

TIRE SIZE

FRONT A - B

REAR C - D

USK56L-

THTSKA

USK56L-

THTSGA

P255/70R18 8J (STD)

P255/70R18 8J (STD

w/ LFT)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT

w/ LFT)

96.0 mm

(3.78 in.)

-73.3 mm

(-2.89 in.)

P275/65R18 8J (ORP)

P275/65R18 8J (ORP

w/ LFT)

95.5 mm

(3.76 in.)

-56.3 mm

(-2.22 in.)

P275/55R20 8J (OPT)

P275/55R20 8J (OPT

w/ LFT)

96.0 mm

(3.78 in.)

-73.2 mm

(-2.88 in.)

Standard vehicle height (unloaded vehicle):

MODEL

TIRE SIZE

FRONT A - B

REAR C - D

UPK51L-

CRTSKA

P255/70R18 8J (STD)

99.2 mm

(3.91 in.)

-56.3 mm

(-2.22 in.)

P275/65R18 8J (OPT)

P275/55R20 8J (OPT)

99.2 mm

(3.91 in.)

-56.2 mm

(-2.21 in.)

P275/65R18 8J (ORP)

101.1 mm

(3.98 in.)

-51.9 mm

(-2.04 in.)

USK51L-

CRTSKA

P255/70R18 8J (STD)

P255/70R18 8J (STD w/

LFT)

104.0 mm

(4.09 in.)

-53.7 mm

(-2.11 in.)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT

w/LFT)

P275/55R20 8J (OPT)

P275/55R20 8J (OPT w/

LFT)

104.1 mm

(4.10 in.)

-53.7 mm

(-2.11 in.)

P275/65R18 8J (ORP &

PRO)

P275/65R18 8J (ORP &

PRO w/ LFT)

105.5 mm

(4.15 in.)

-48.3 mm

(-1.90 in.)

USK51L-

CRTLKA

P255/70R18 8J (OPT)

P255/70R18 8J (OPT w/

LFT)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT w/

LFT)

P275/55R20 8J (STD)

105.1 mm

(4.14 in.)

-52.3 mm

(-2.06 in.)

SUSPENSION: FRONT WHEEL ALIGNMENT: ADJUSTMENT; 201...

VEHICLE

MODEL

TIRE SIZE

FRONT A - B

REAR C - D

P275/55R20 8J (STD w/

LFT)

P275/65R18 8J (ORP)

P275/65R18 8J (ORP w/

LFT)

106.4 mm

(4.19 in.)

-46.9 mm

(-1.85 in.)

UPK56L-

CRTSKA

P255/70R18 8J (STD)

86.4 mm

(3.40 in.)

-65.8 mm

(-2.59 in.)

P275/65R18 8J (OPT)

P275/55R20 8J (OPT)

86.5 mm

(3.41 in.)

-65.8 mm

(-2.59 in.)

P275/65R18 8J (ORP)

87.9 mm

(3.46 in.)

-61.3 mm

(-2.41 in.)

USK56L-

CRTSKA

USK56L-

CRTSGA

P255/70R18 8J (STD)

P255/70R18 8J (STD w/

LFT)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT w/

LFT)

89.7 mm

(3.53 in.)

-57.0 mm

(-2.24 in.)

P275/65R18 8J (ORP &

PRO)

P275/65R18 8J (ORP &

PRO w/ LFT)

91.1 mm

(3.59 in.)

-56.6 mm

(-2.23 in.)

P275/55R20 8J (OPT)

P275/55R20 8J (OPT w/

LFT)

89.7 mm

(3.53 in.)

-56.9 mm

(-2.24 in.)

USK56L-

CRTLKA

USK56L-

CRTLGA

P255/70R18 8J (OPT)

P255/70R18 8J (OPT w/

LFT)

90.7 mm

(3.57 in.)

-55.7 mm

(-2.19 in.)

P275/65R18 8J (OPT)

P275/65R18 8J (OPT w/

LFT)

P275/55R20 8J (STD)

P275/55R20 8J (STD w/

LFT)

90.7 mm

(3.57 in.)

-55.6 mm

(-2.19 in.)

P275/65R18 8J (ORP)

P275/65R18 8J (ORP w/

LFT)

92.0 mm

(3.62 in.)

-55.2 mm

(-2.17 in.)

Standard vehicle height (unloaded vehicle):

MODEL

TIRE SIZE

FRONT A - B

REAR C - D

USK52L-

P255/70R18 8J (STD) 103.6 mm

-54.0 mm
