Toyota Tundra (2015 year). Manual - part 2077
Last Modified: 9-16-2014
6.6 G
Doc ID: RM000003SAG00TX
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: LIGHTING: HEADLIGHT LEVELING SWITCH: INSPECTION; 2015 MY Tundra [08/2014 - ]
INSPECTION
1. INSPECT HEADLIGHT LEVELING SWITCH
(a) Check the voltage.
(1) Connect the battery positive (+) lead to terminal 1 (B) and the negative (-) lead to terminal 5 (E).
(2) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
TESTER CONNECTION
SWITCH CONDITION
SPECIFIED CONDITION
1 (B) - 2 (T)
0
10.4 to 11.2 V
1
8.52 to 9.24 V
2
6.6 to 7.32 V
3
4.68 to 5.40 V
4
2.76 to 3.48 V
5
0.84 to 1.56 V
If the result is not as specified, replace the headlight leveling switch.

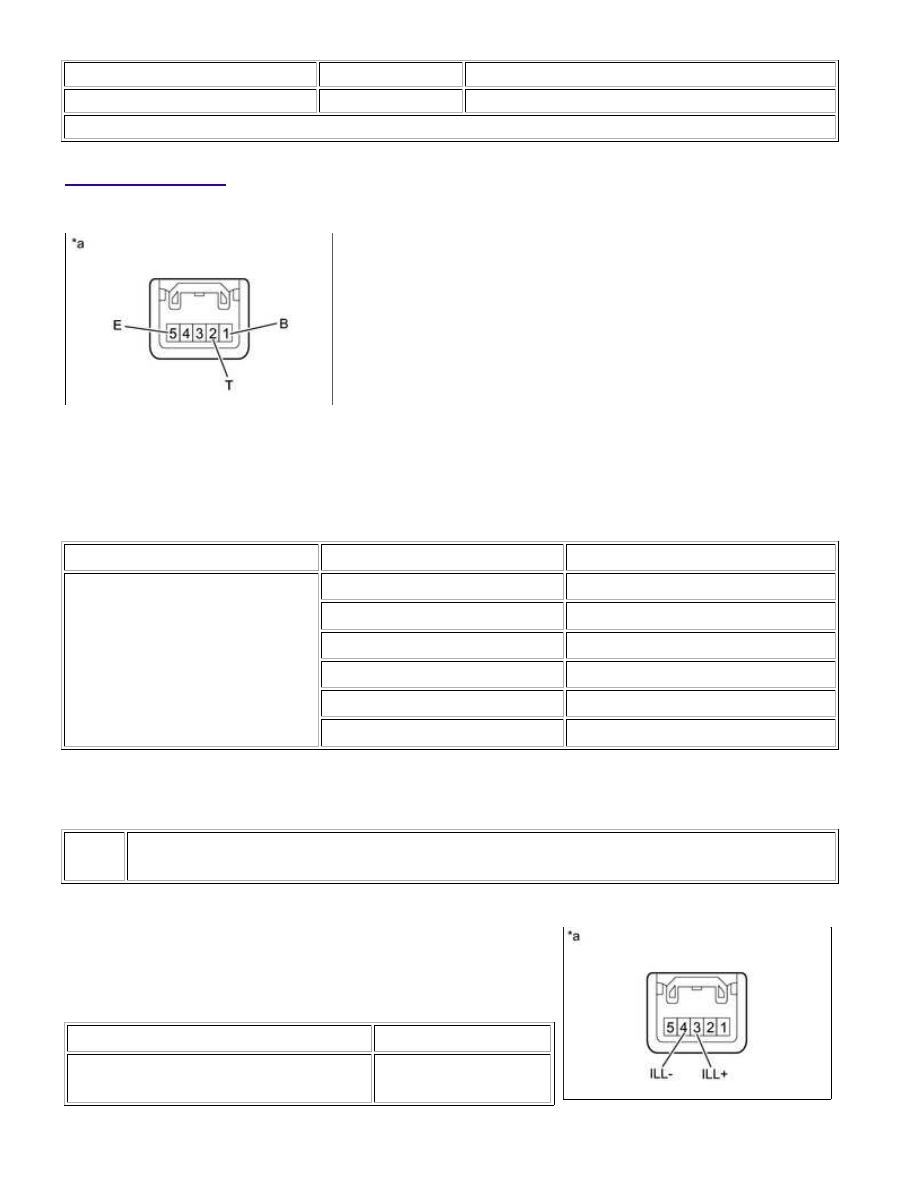

Text in Illustration
*a
Component without harness connected
(Headlight Leveling Switch)
(b) Check the illumination.
(1) Apply battery voltage to the connector and check the
illumination condition.
OK:
MEASUREMENT CONDITION
SPECIFIED CONDITION
Battery positive (+) → Terminal 3 (ILL+)
Battery negative (-) → Terminal 4 (ILL-)
Illuminates
