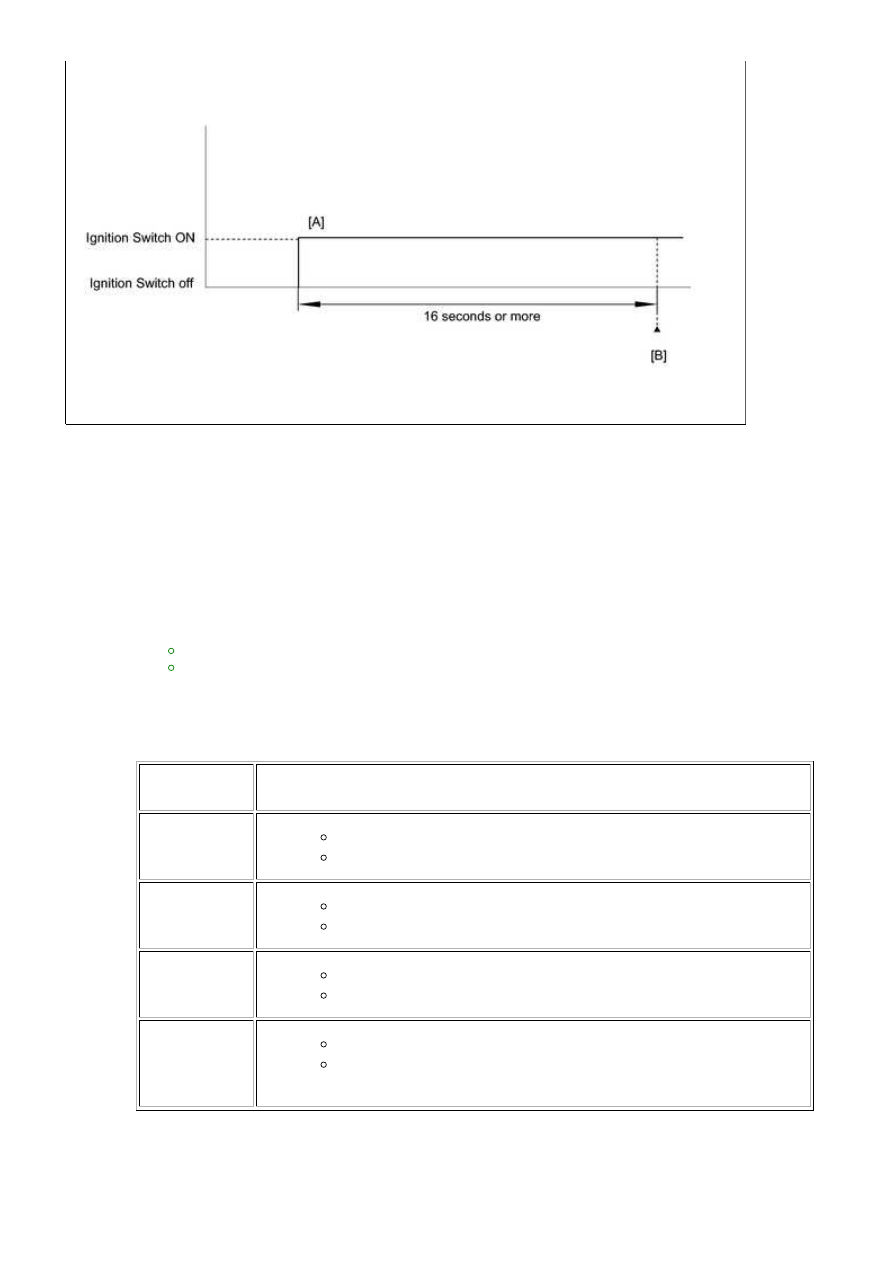

OK OK NG CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE 2. CHECK HARNESS AND CONNECTOR (EFI NO. 1 FUSE - ECM, BATTERY) (a) Check the harness and the connector between the EFI NO. 1 fuse and ECM. (1) Remove the EFI NO. 1 fuse from the engine room relay block. (2) Disconnect the A24 ECM connector. (3) Measure the resistance according to the value(s) in the table below. Standard resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION EFI NO. 1 fuse terminal 2 - A24-1 (BATT) Always Below 1 Ω EFI NO. 1 fuse terminal 2 or A24-1 (BATT) - Body ground Always 10 kΩ or higher (b) Check the harness and the connector between the EFI NO. 1 fuse and battery. (1) Remove the EFI NO. 1 fuse from the engine room relay block. (2) Disconnect the positive battery terminal. (3) Measure the resistance according to the value(s) in the table below. Standard resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION Battery positive (+) terminal - EFI NO. 1 fuse terminal 1 Always Below 1 Ω Battery positive (+) terminal or EFI NO. 1 fuse terminal 1- Body ground Always 10 kΩ or higher NG REPAIR OR REPLACE HARNESS OR CONNECTOR 3. INSPECT BATTERY (a) Check that the battery is not depleted
. 3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0560; Syste... |
