Toyota Tundra (2015 year). Manual

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000001K6601VX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: BRAKE: BRAKE MASTER CYLINDER: COMPONENTS; 2015 MY Tundra [08/2014 - ]

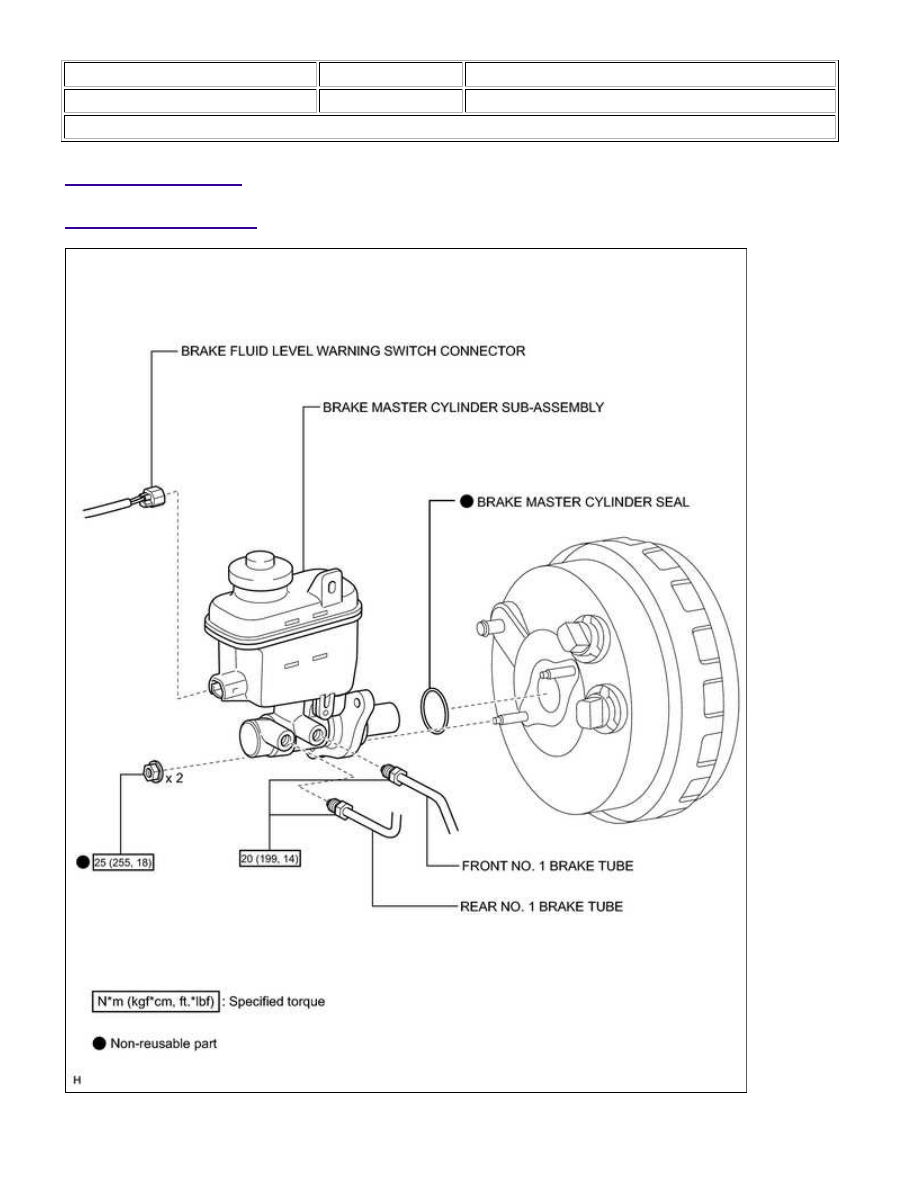

COMPONENTS

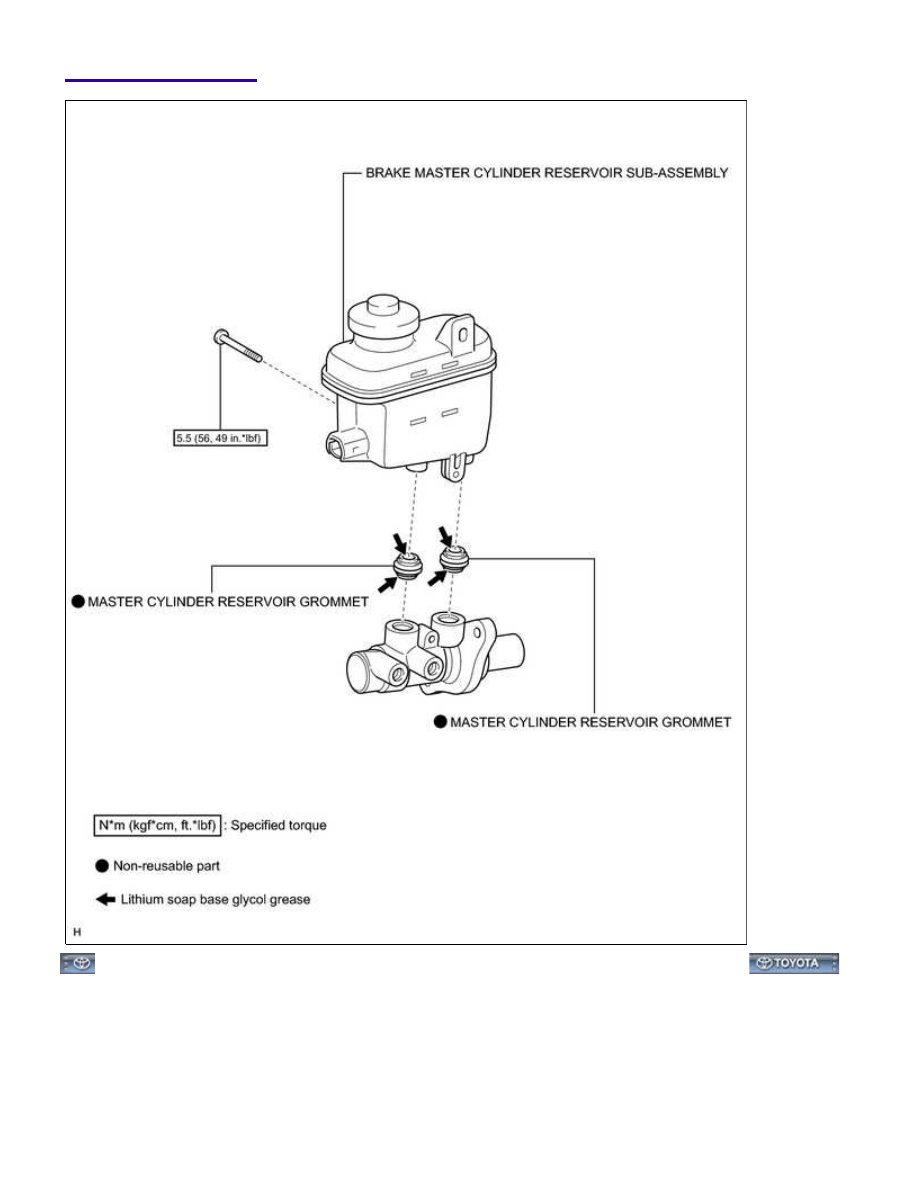

ILLUSTRATION

BRAKE: BRAKE MASTER CYLINDER: COMPONENTS; 2015 MY ...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000001K6701WX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: BRAKE: BRAKE MASTER CYLINDER: REMOVAL; 2015 MY Tundra [08/2014 - ]

REMOVAL

NOTICE:

Release the vacuum from the booster by depressing the brake pedal several times. Then remove the brake

master cylinder sub-assembly from the brake booster assembly.

1. DRAIN BRAKE FLUID

NOTICE:

Immediately wash off any brake fluid that comes into contact with any painted surfaces.

2. DISCONNECT BRAKE FLUID LEVEL WARNING SWITCH

CONNECTOR

(a) Disconnect the brake fluid level warning switch connector.

3. DISCONNECT FRONT NO. 1 BRAKE TUBE

(a) Using a union nut wrench, disconnect the brake tube (labeled A)

from the brake master cylinder.

4. DISCONNECT REAR NO. 1 BRAKE TUBE

(a) Using a union nut wrench, disconnect the brake tube (labeled B) from the brake master cylinder.

5. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

(a) Remove the 2 nuts and brake master cylinder from the brake

booster.

NOTICE:

The master cylinder requires careful handling. Do not allow the
master cylinder to receive any impact, such as from being
dropped. Do not reuse a master cylinder that has been dropped.
Do not strike or pinch the master cylinder piston, and do not
cause any damage to the master cylinder piston by any other
means.
When installing the master cylinder to the brake booster, or

BRAKE: BRAKE MASTER CYLINDER: REMOVAL; 2015 MY Tundr...
