Maximum warpage:

0.10 mm (0.00394 in.)

If the warpage is more than the maximum, replace the cylinder head.

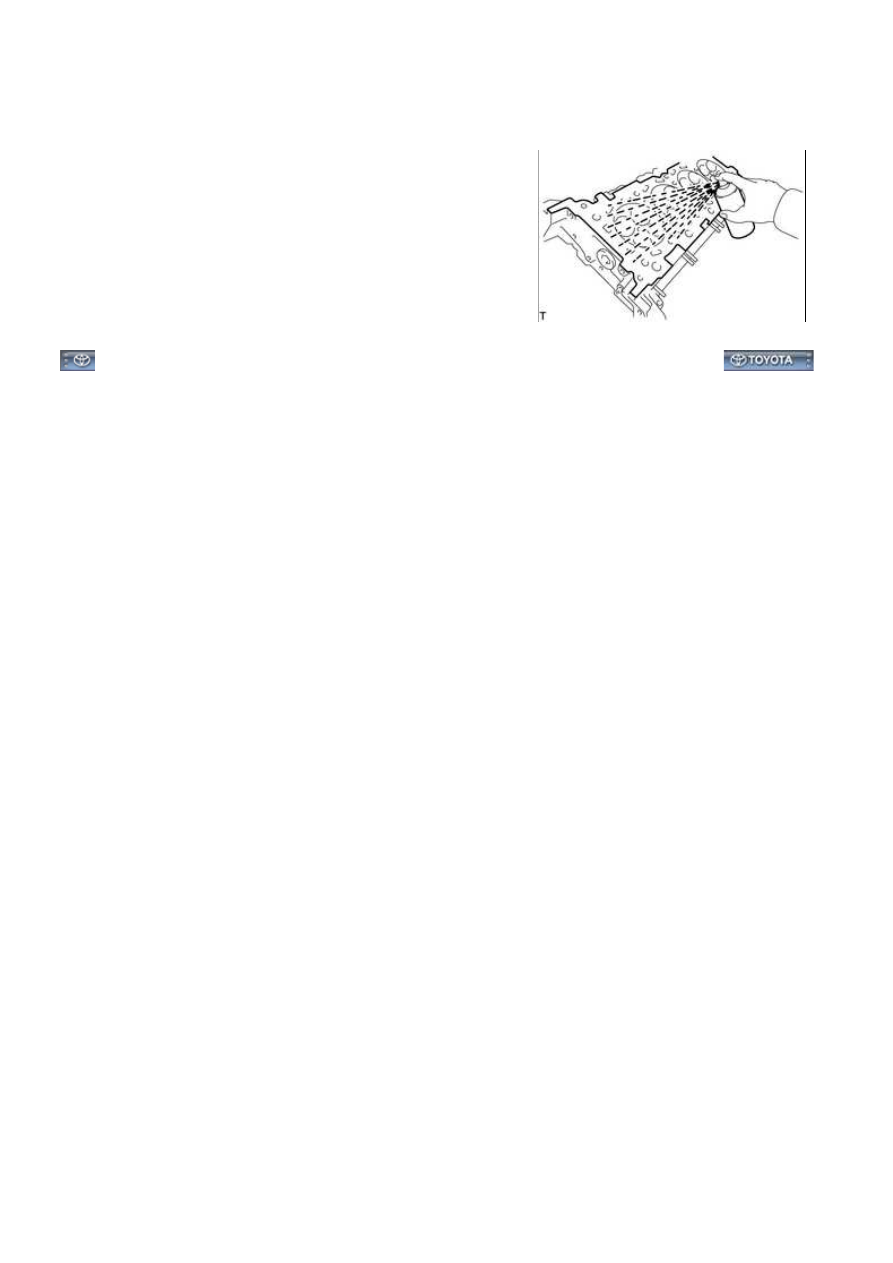

(b) Using a dye penetrant, check the intake ports, exhaust ports

and cylinder surface for cracks.

If cracked, replace the cylinder head.

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD: INSPECTIO...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002OP503EX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD: REPLACEMENT; 2015 MY Tundra [08/2014 -        ]

REPLACEMENT

1. REPLACE INTAKE VALVE GUIDE BUSH

(a) Heat the cylinder head to approximately 80 to 100°C (176 to 212°F).

(b) Place the cylinder head on wooden blocks.

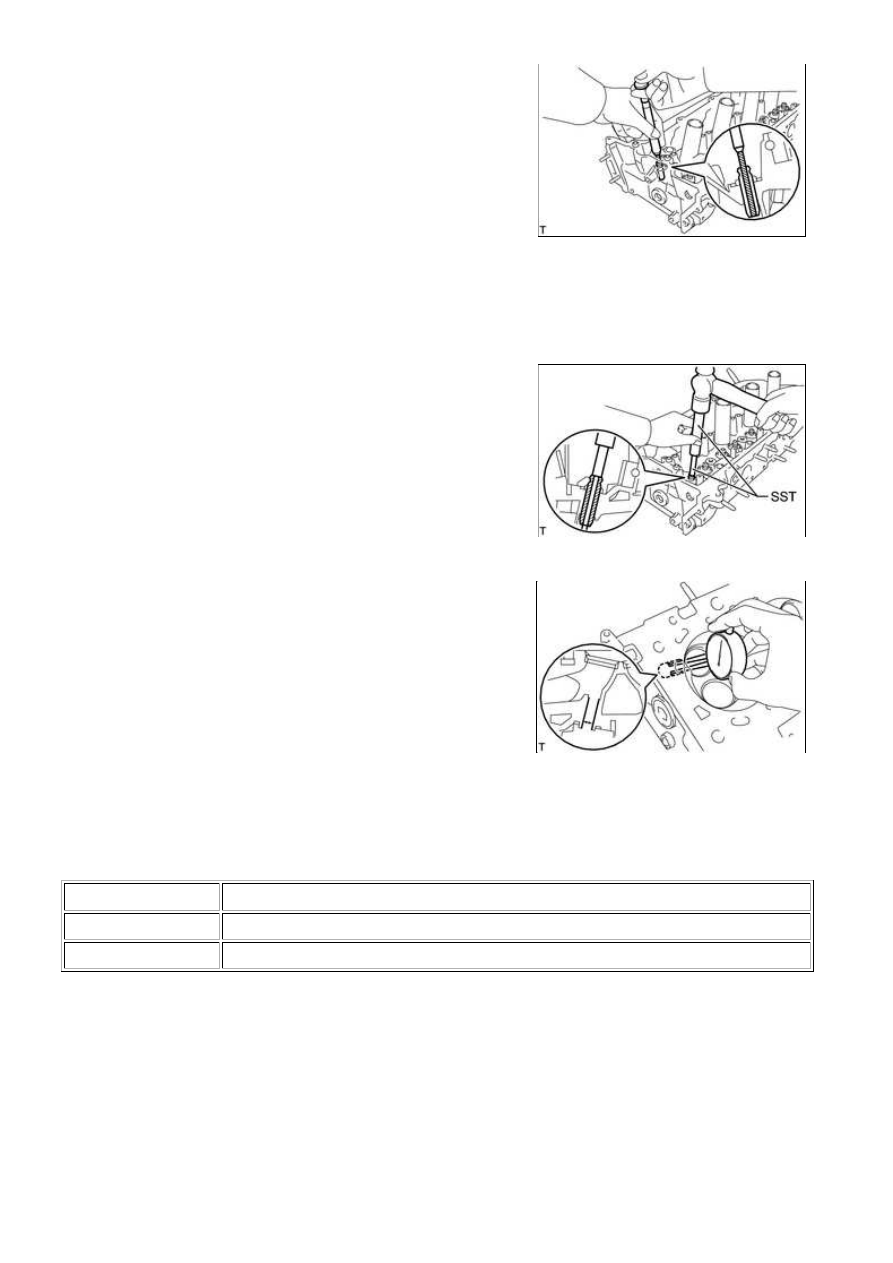

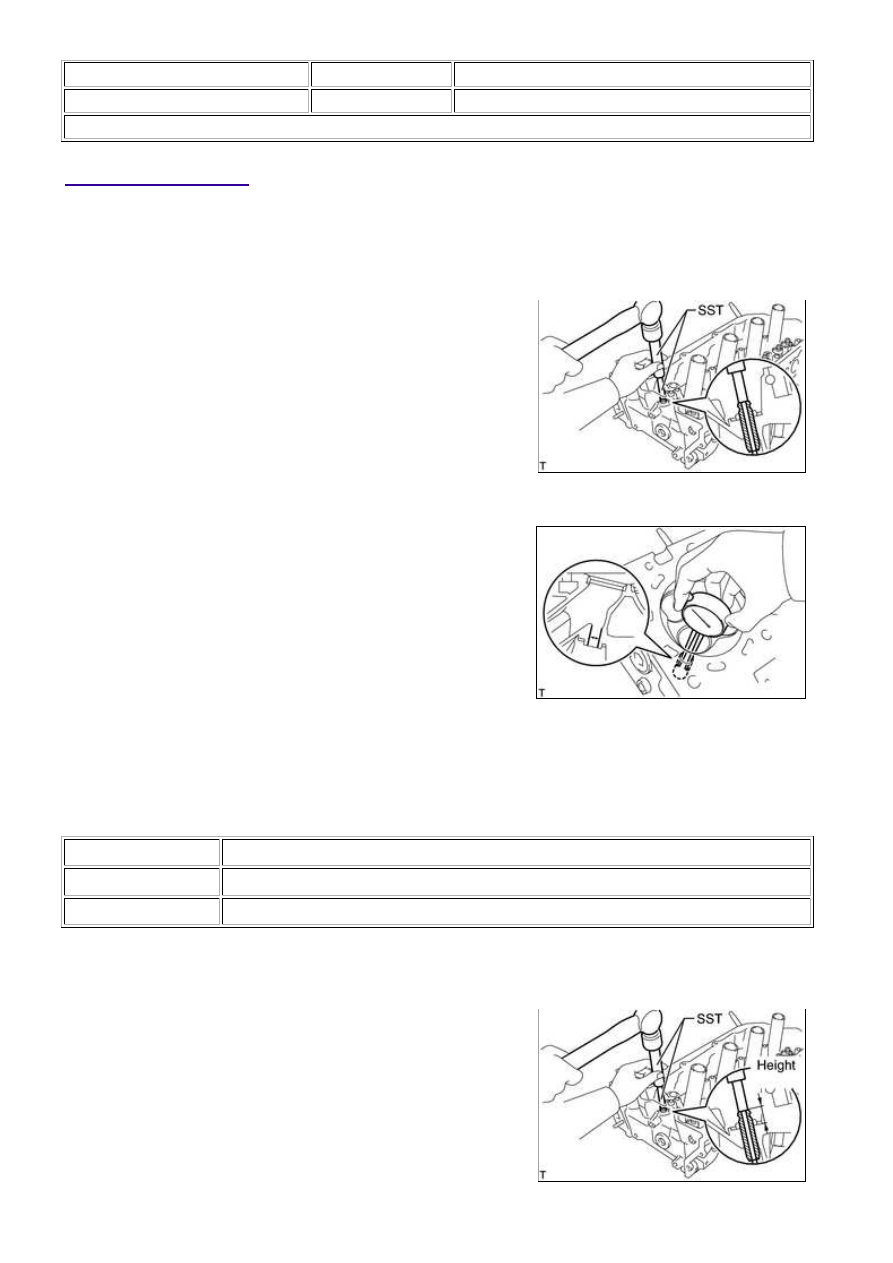

(c) Using SST and a hammer, tap out the valve guide bush.

SST: 09201-10000

09201-01050

SST: 09950-70010

09951-07100

(d) Using a caliper gauge, measure the bush bore diameter of

the cylinder head side.

Standard cylinder bore diameter:

10.285 to 10.306 mm (0.405 to 0.406 in.)

next step.

(e) Select a new guide bush (STD or O/S 0.05), and measure its diameter.

BUSH SIZE

SPECIFIED CONDITION

STD

10.333 to 10.344 mm (0.4068 to 0.4072 in.)

O/S 0.05

10.383 to 10.394 mm (0.4088 to 0.4092 in.)

Standard bush length:

41.3 to 41.7 mm (1.63 to 1.64 in.)

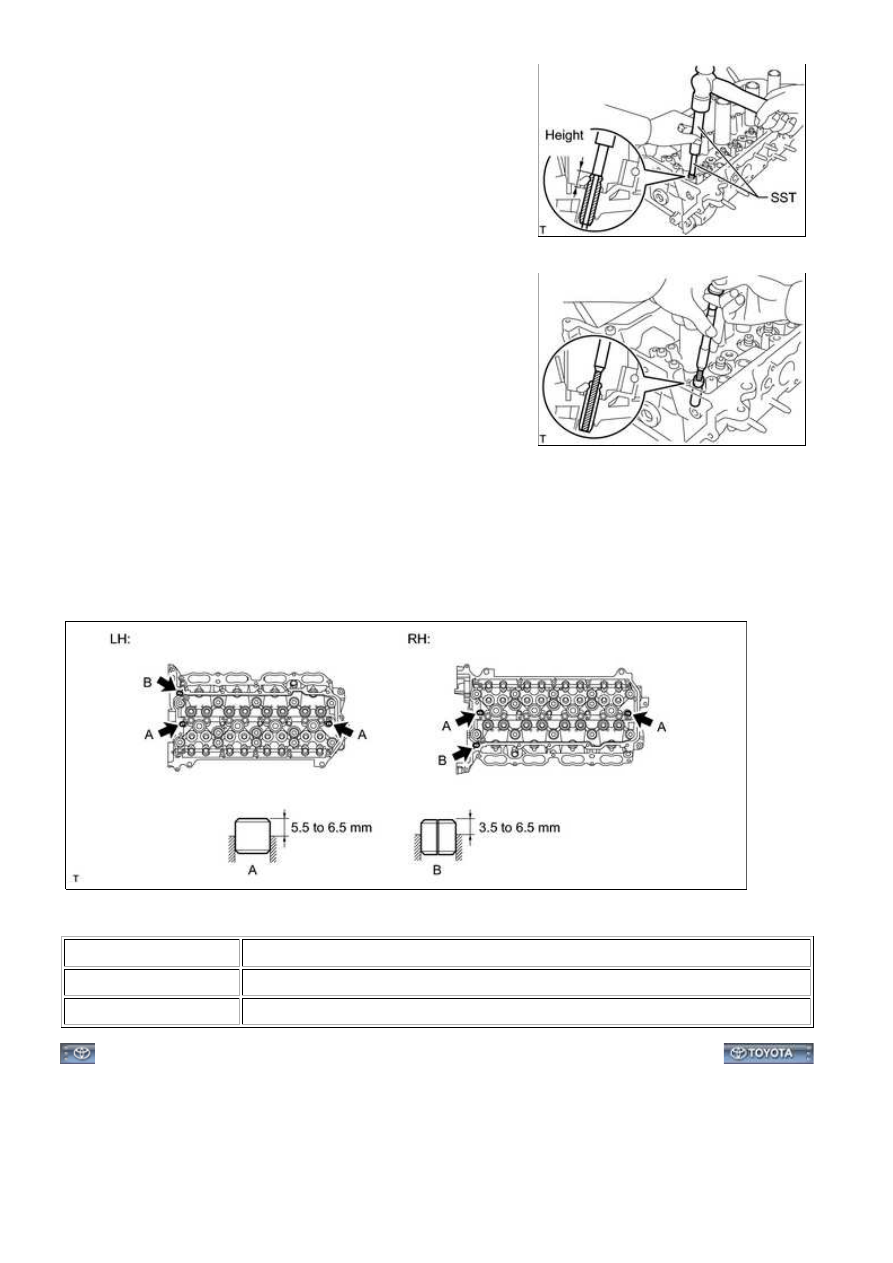

(g) Using SST and a hammer, tap in a new guide bush to the

standard protrusion height.

SST: 09201-10000

09201-01050

SST: 09950-70010

09951-07100

Standard protrusion height:

14.3 to 14.7 mm (0.563 to 0.579 in.)

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD: REPLAC...

(h) Using a sharp 5.5 mm reamer, ream the guide bush to

obtain the standard oil clearance between the guide bush and

valve stem.

Standard oil clearance:

0.025 to 0.060 mm (0.000984 to 0.00236 in.)

2. REPLACE EXHAUST VALVE GUIDE BUSH

(a) Heat the cylinder head to approximately 80 to 100°C (176 to 212°F).

(b) Place the cylinder head on wooden blocks.

(c) Using SST and a hammer, tap out the valve guide bush.

SST: 09201-10000

09201-01050

SST: 09950-70010

09951-07100

(d) Using a caliper gauge, measure the bush bore diameter of

the cylinder head.

Standard cylinder bore diameter:

10.285 to 10.306 mm (0.405 to 0.406 in.)

(e) Select a new guide bush (STD or O/S 0.05), and measure its diameter.

BUSH SIZE

SPECIFIED CONDITION

STD

10.333 to 10.344 mm (0.4068 to 0.4072 in.)

O/S 0.05

10.383 to 10.394 mm (0.4088 to 0.4092 in.)

Standard bush length:

46.8 to 47.2 mm (1.84 to 1.86 in.)

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD: REPLAC...

(g) Using SST and a hammer, tap in a new guide bush to the

standard protrusion height.

SST: 09201-10000

09201-01050

SST: 09950-70010

09951-07100

Standard protrusion height:

14.3 to 14.7 mm (0.563 to 0.579 in.)

(h) Using a sharp 5.5 mm reamer, ream the guide bush to

obtain the standard oil clearance between the guide bush and

valve stem.

Standard oil clearance:

0.030 to 0.065 mm (0.00118 to 0.00256 in.)

3. REPLACE RING PIN

NOTICE:

It is not necessary to remove the ring pin unless it is being replaced.

(a) Remove the ring pins.

(b) Using a plastic-faced hammer, tap in new ring pins to the cylinder head.

Standard protrusion:

ITEM

SPECIFIED CONDITION

Ring pin A

5.5 to 6.5 mm (0.217 to 0.256 in.)

Ring pin B

3.5 to 6.5 mm (0.138 to 0.256 in.)

3UR-FBE ENGINE MECHANICAL: CYLINDER HEAD: REPLAC...
