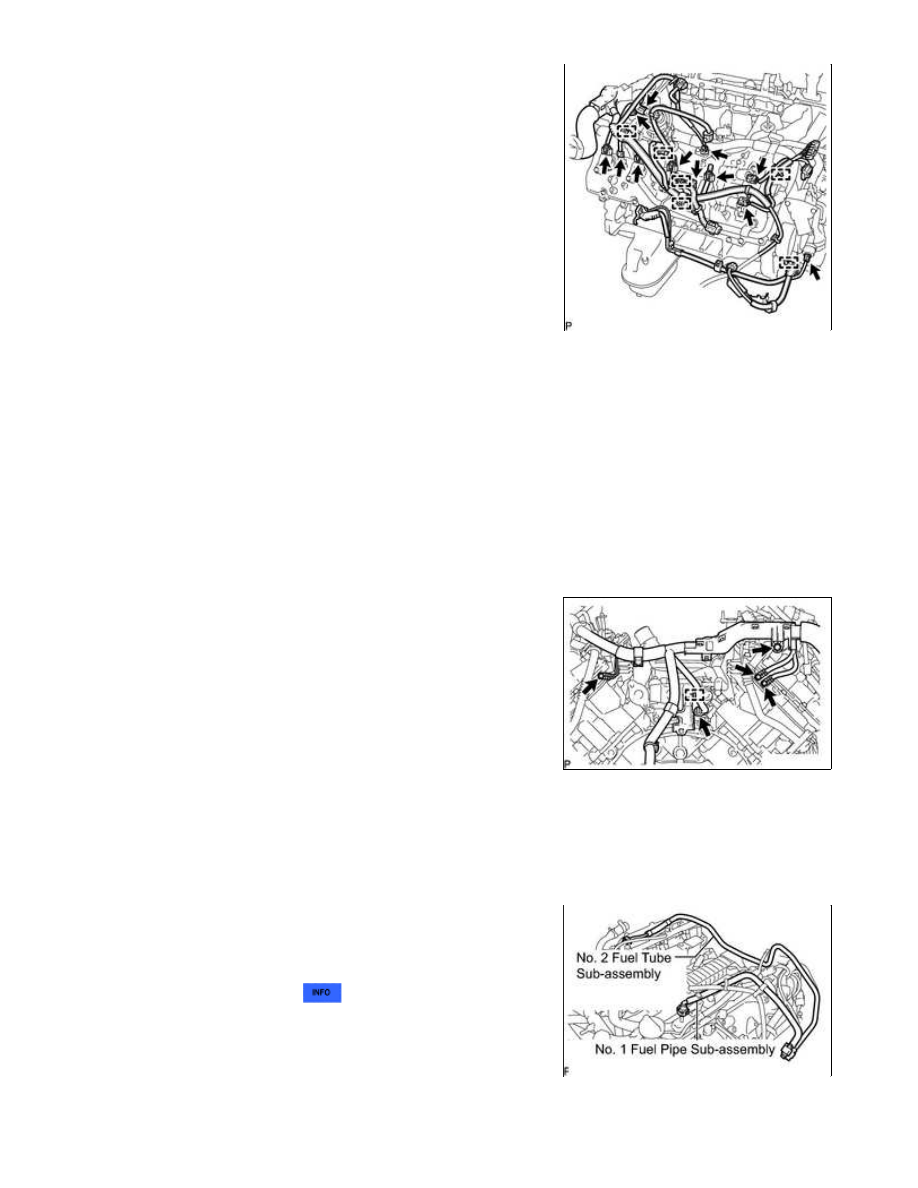

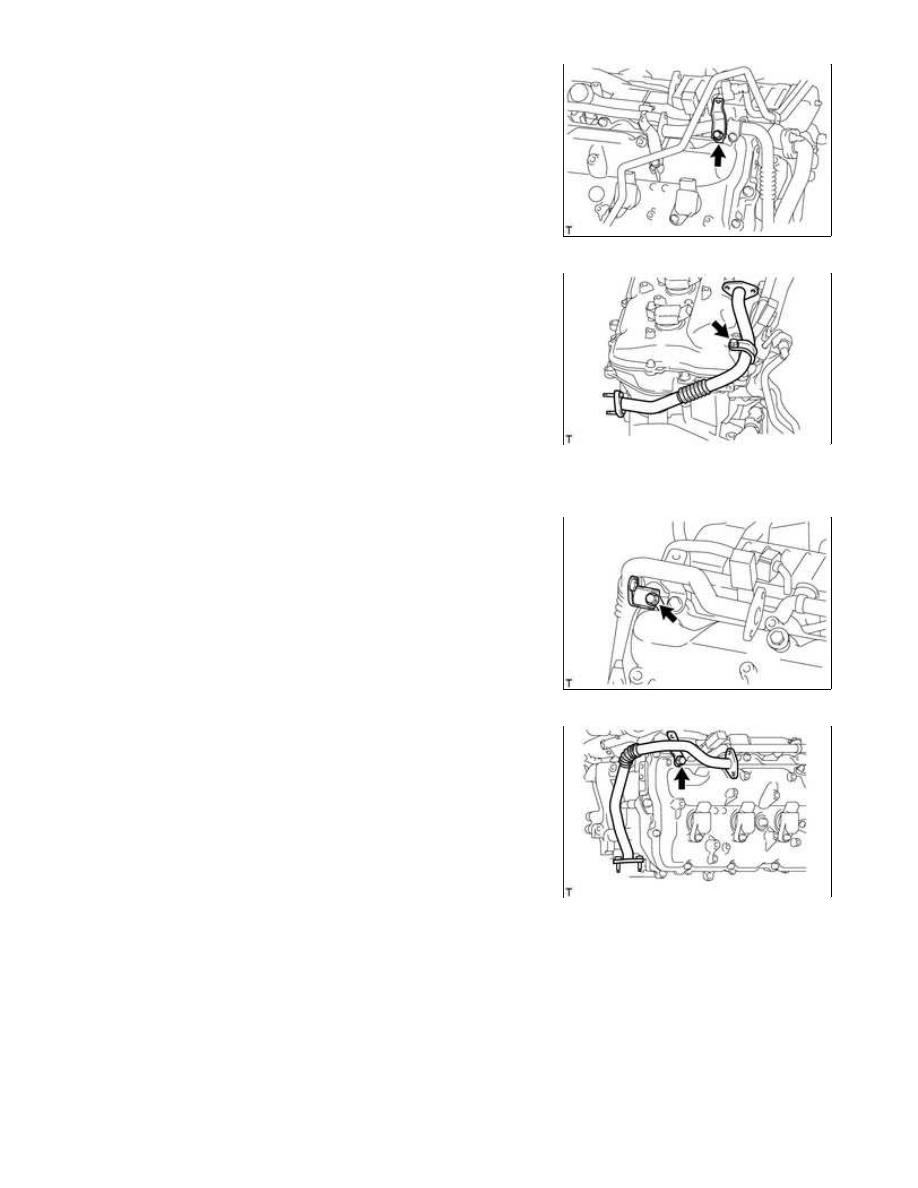

(1) Disconnect the 2 camshaft timing control valve connectors. (2) Disconnect the 4 ignition coil connectors. (3) Disconnect the 2 VVT sensor connectors. (4) Disconnect the fuel injector connector. (5) Disconnect the noise filter connector. (6) Disconnect the air switching valve connector. (7) Disconnect the oil pressure sender gauge connector. (8) Disconnect the 6 clamps. (c) Engine Rear Side: (1) Disconnect the connector and clamp. (2) Remove the 4 bolts. (d) Remove the engine wire. 2. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY (a) Remove the No. 1 fuel pipe
. 3. REMOVE NO. 2 FUEL TUBE SUB-ASSEMBLY 1UR-FE ENGINE MECHANICAL: ENGINE UNIT: REMOVAL; 201... |
