8-2. Steps to take in an emergency

8

W

hen
 trou

bl

e ari

se

s

X

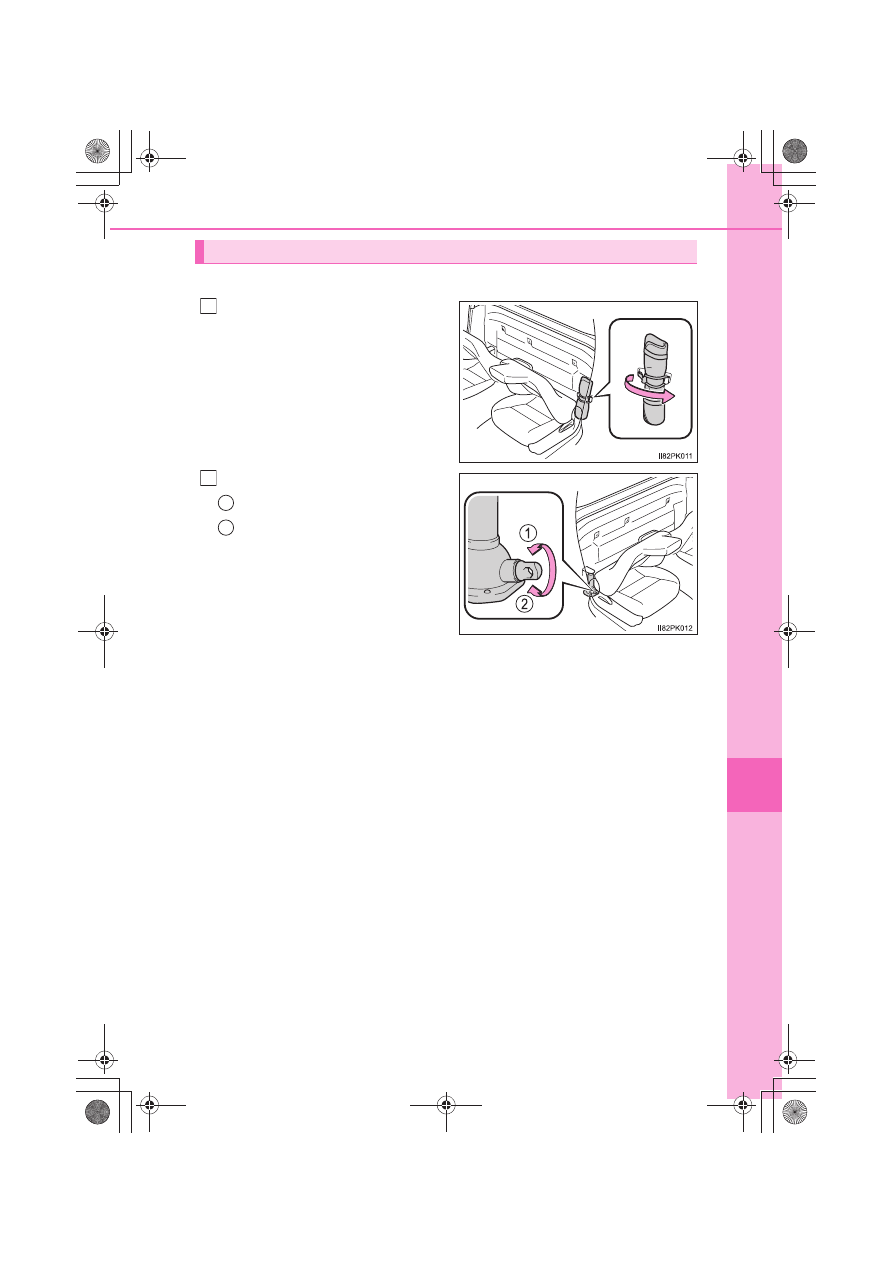

Single-cab models

Unhook the strap and take out
the tool bag.

Take out the jack.

For loosening
For tightening

Taking out the jack and tool bag

1

2

1
2

588

8-2. Steps to take in an emergency

X

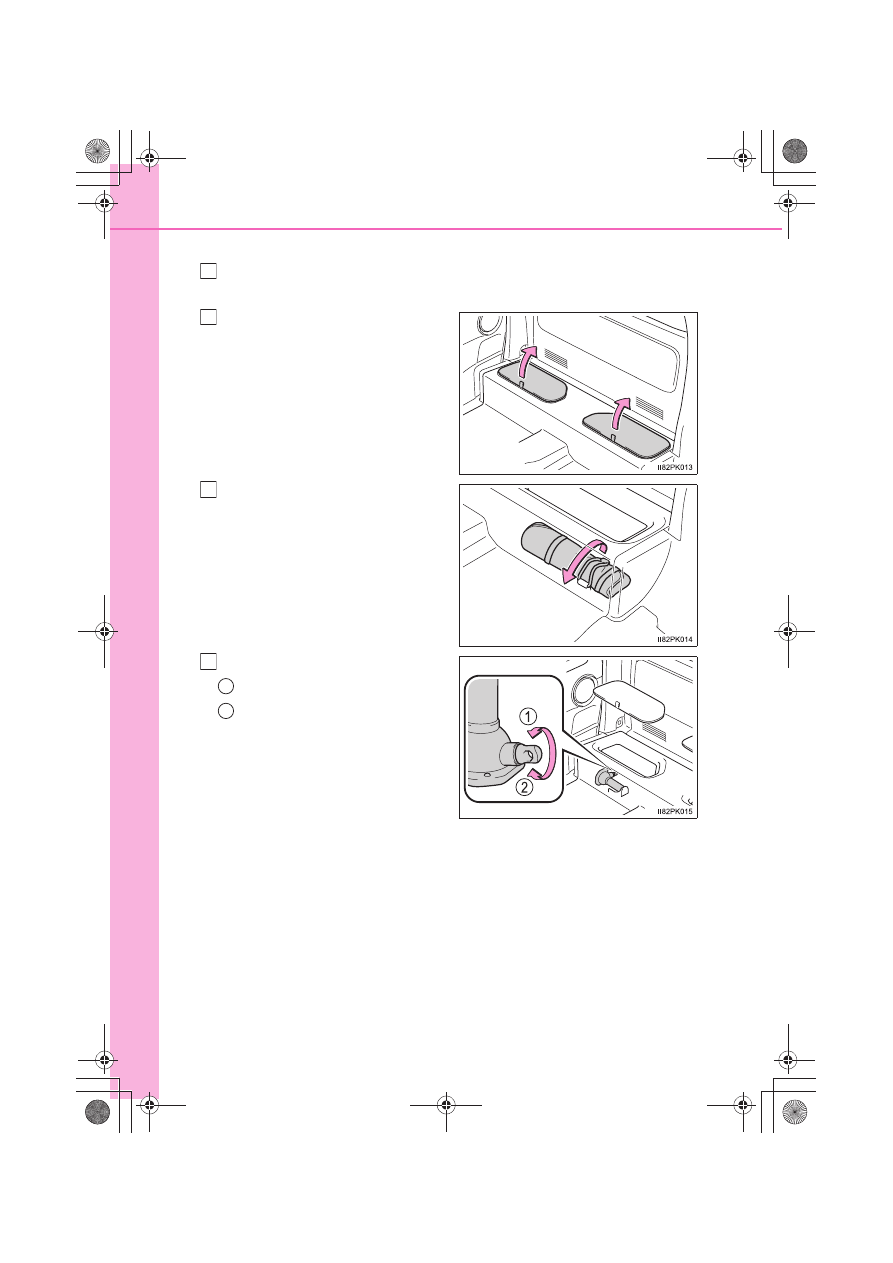

Smart-cab models
Vehicles with rear seat cushions:



Remove the rear seat cushions.

(

→P. 188)

Pull the tag and open the lid.

Unhook the strap and take out
the tool bag.

Take out the jack.

For loosening
For tightening

1

2

3

4

1
2

589

8-2. Steps to take in an emergency

8

W

hen
 trou

bl

e ari

se

s

X

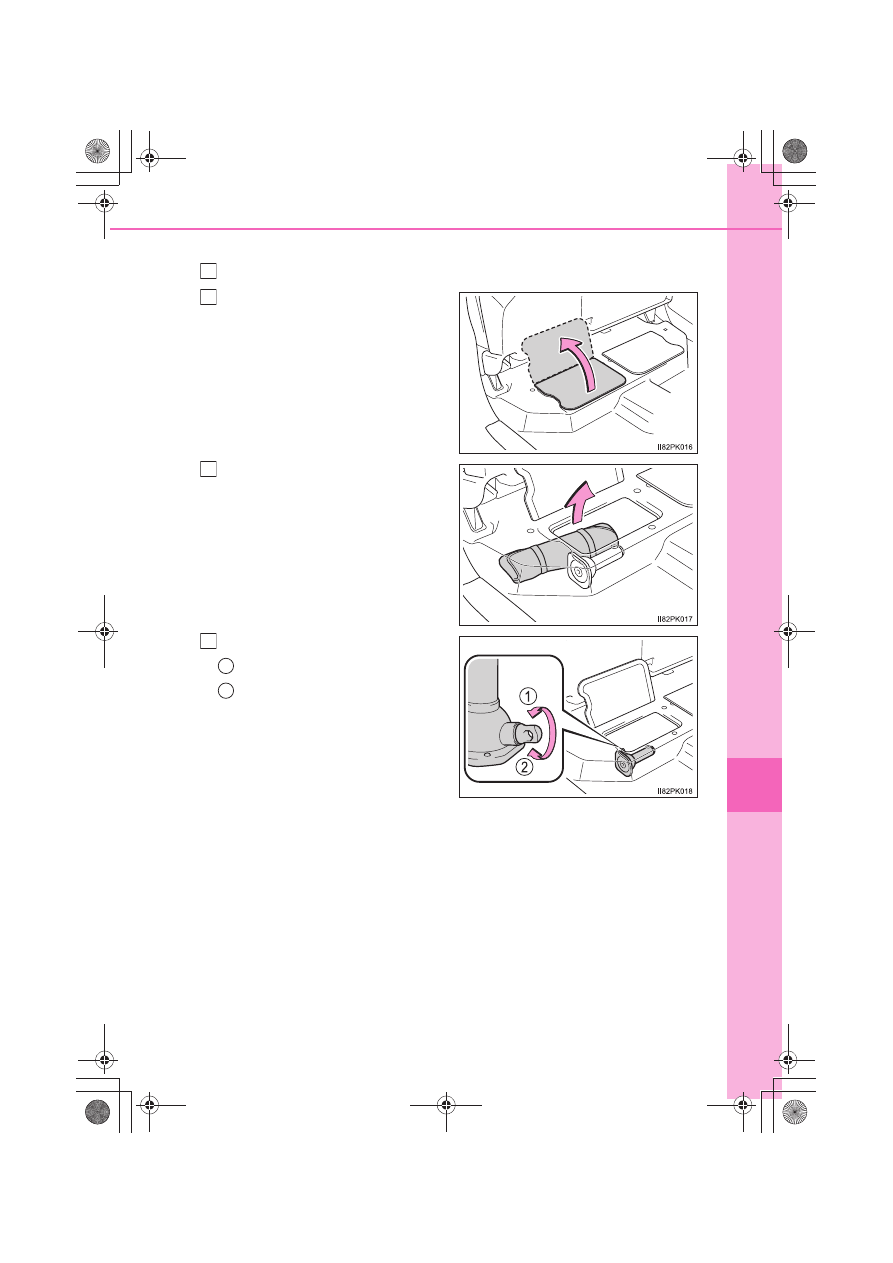

Double-cab models
Tumbling the bottom cushion (

→P. 188)

Open the lid.

Take out the tool bag.

Take out the jack.

For loosening
For tightening

1

2

3

4

1
2

590

8-2. Steps to take in an emergency

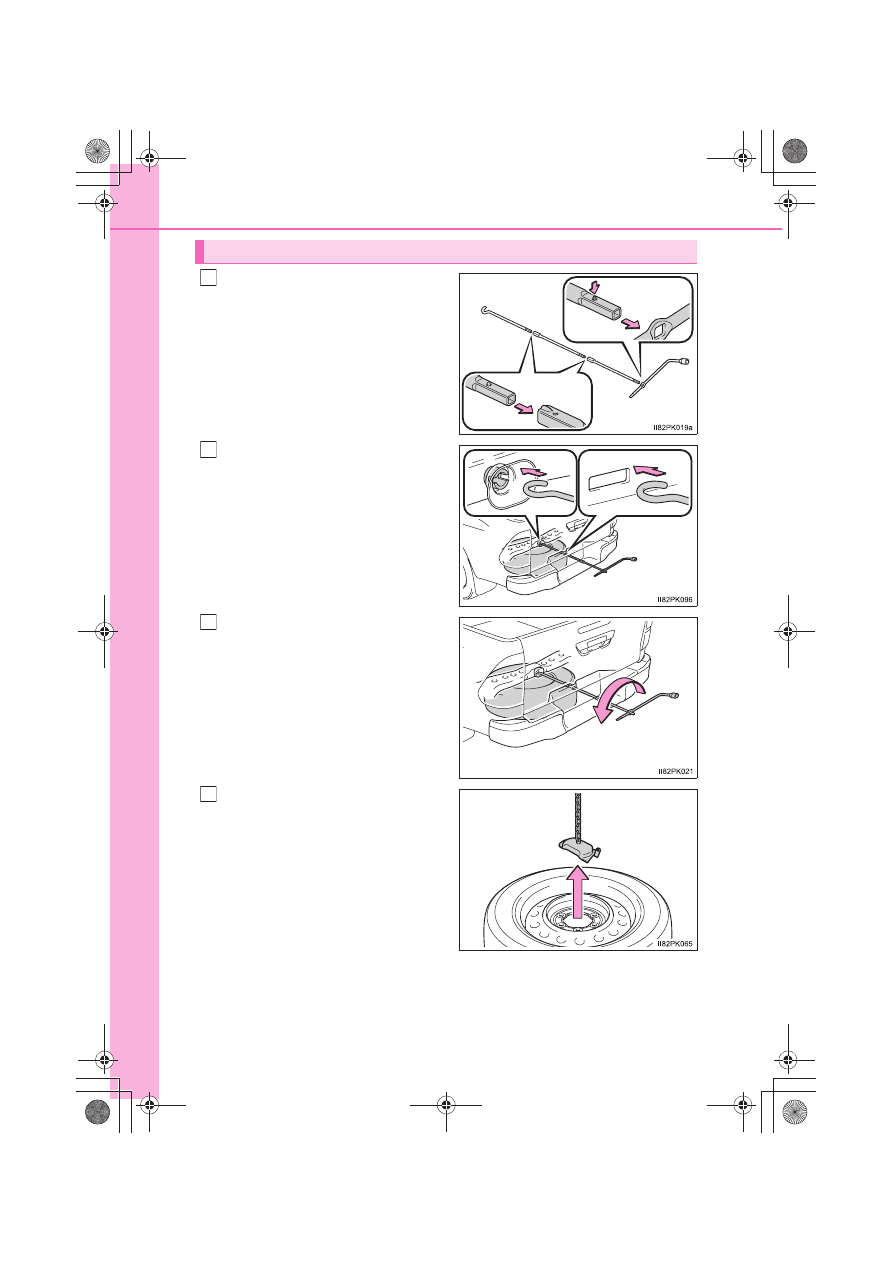

Assemble the jack handle end,
jack handle extensions and
wheel nut wrench.

To assemble the jack handle
extension and wheel nut wrench,
push in the projection on the jack
handle extension.

Insert the jack handle end into
the lowering screw.

Lower the spare tire completely
to the ground.

Remove the holding bracket
and pull out the spare tire.

Taking out the spare tire

1

2

3

4
