7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

■

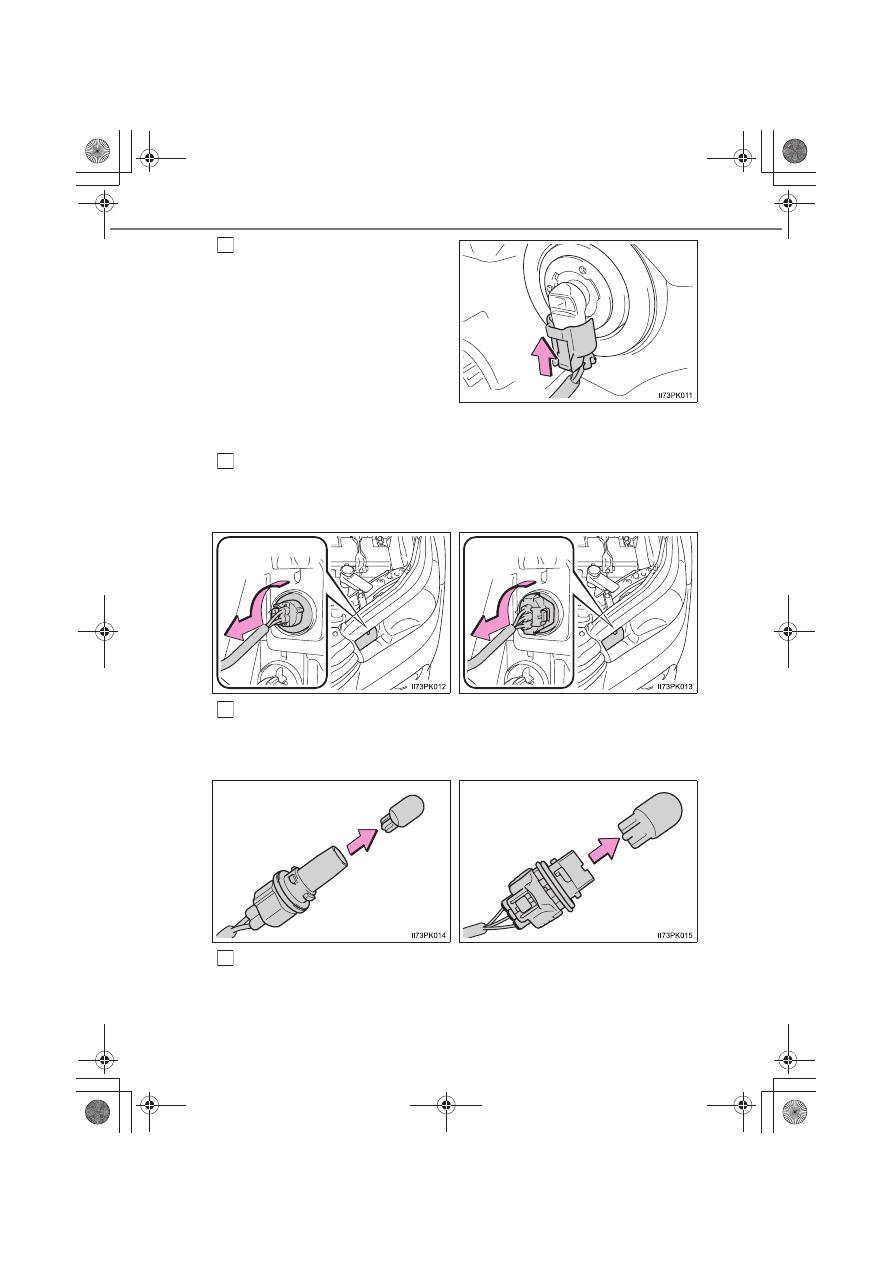

Headlight high beams (vehicles with LED headlights)

Unplug the connector while
depressing the lock release.

Turn the bulb base counter-
clockwise.

Replace the light bulb, and
install the bulb base.

Align the 3 tabs on the light bulb
with the mounting, and insert.

Turn and secure the bulb
base.

1

2

3

4

544

7-3. Do-it-yourself maintenance

Install the connector

Shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.

■

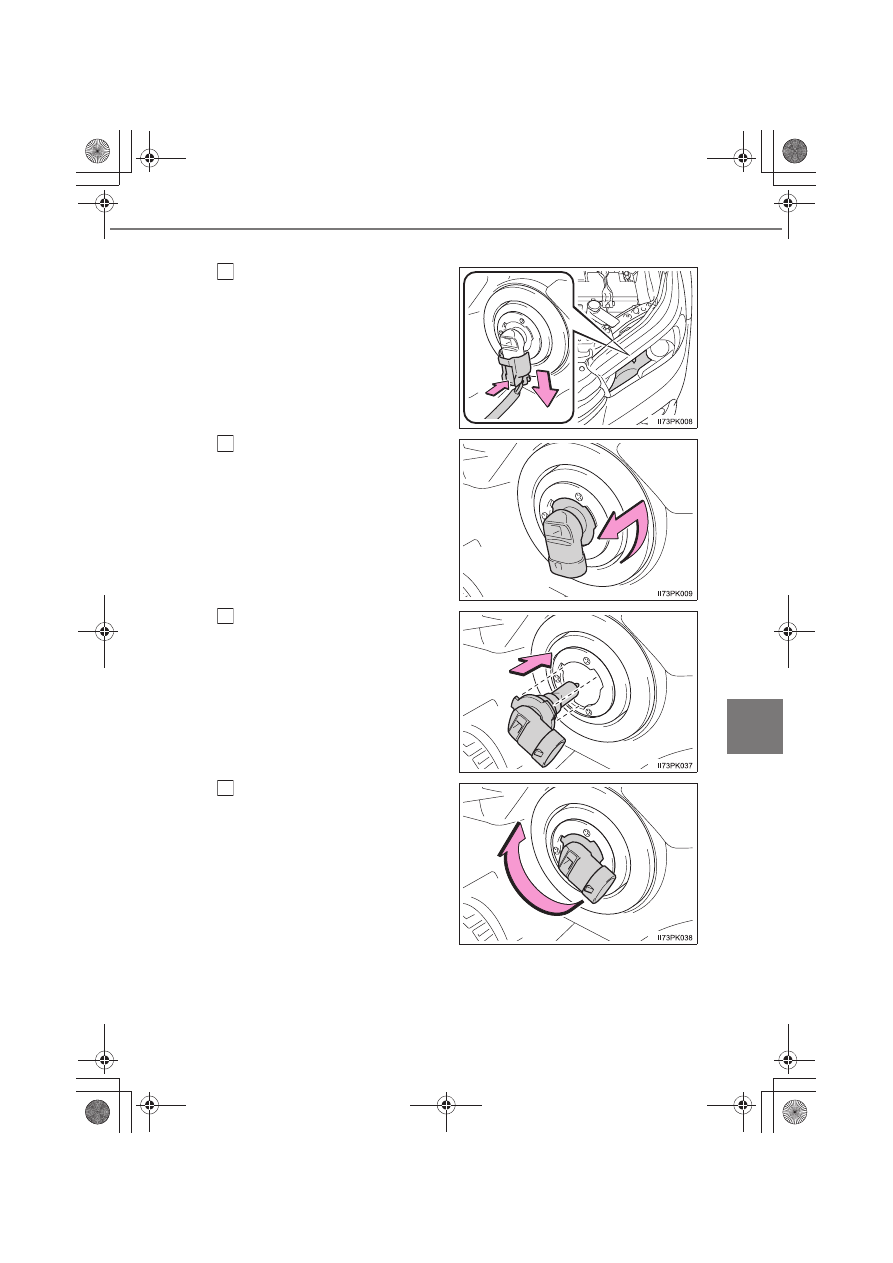

Front position lights/daytime running lights (if equipped)
(vehicles with halogen headlights)

Turn the bulb base counterclockwise.

Remove the light bulb.

When installing, reverse the steps listed.

5

1

X

Vehicles without daytime
running lights

X

Vehicles with daytime running
lights

2

X

Vehicles without daytime
running lights

X

Vehicles with daytime running
lights

3

545

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

■

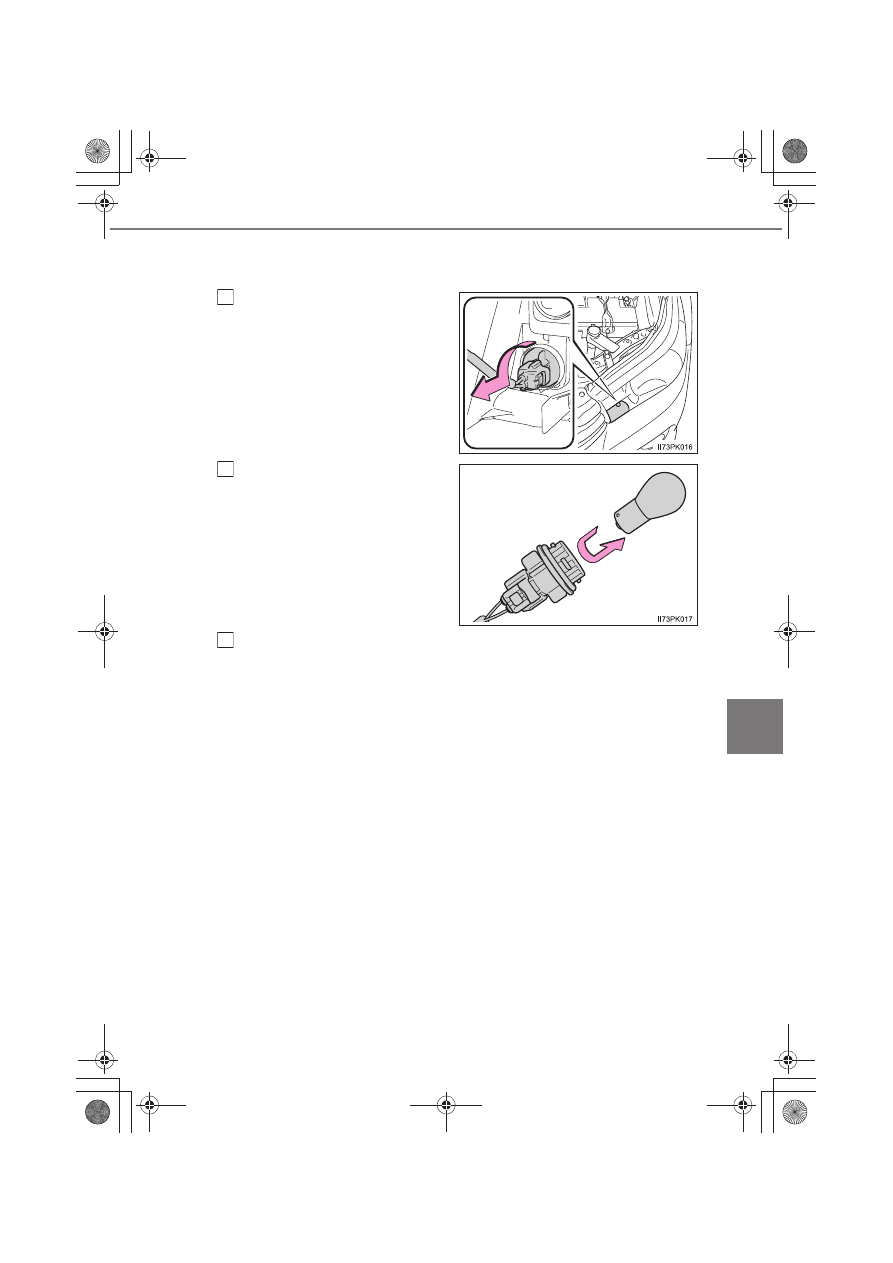

Front turn signal lights

X

Vehicles with halogen headlights

Turn the bulb base counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

546

7-3. Do-it-yourself maintenance

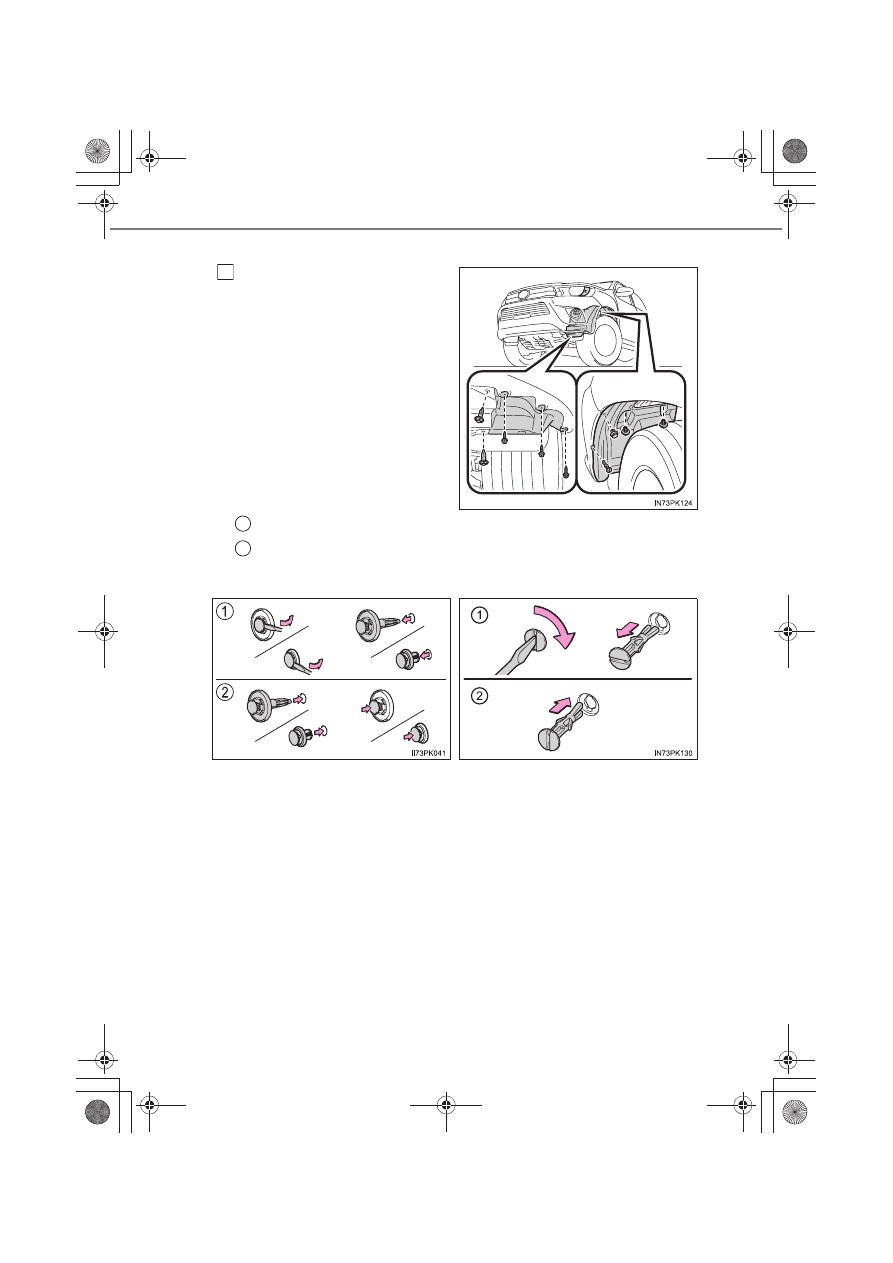

X

Vehicles with LED headlights

To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.

Removing the clip
Installing the clip

1

1
2

X

Type A

X

Type B
