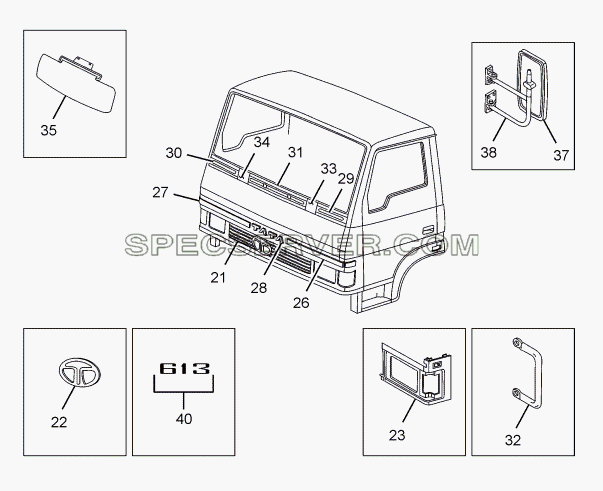

Запчасти: INTERNAL AND EXTERNAL FITMENTS для LPT 613 LHD EURO II

INTERNAL AND EXTERNAL FITMENTS для LPT 613 LHD EURO II (список запасных частей)

INTERNAL AND EXTERNAL FITMENTS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264181100108 LID FUEL PRIMING
- 264181103801 BRACKET TOP LH. (R.V.M.)
- 264181103802 BRACKET TOP RH.(R.V.M.)
- 264181103803 BRACKET BOTTOM LH.(R.V.M.)
- 264181103804 BRACKET BOTTOM RH.(R.V.M.)
- 264181106321 BEADING (FIRE WALL)
- 264181106322 INNER BEADING
- 264181106323 BOTTOM BEADING (CENTRE FLAP)
- 264181106330 RUBBER PAD(BRACKET TOP R.V.M)
- 264181106331 RUBBER PAD(BRACKET BOTTOM R.V.M)
- 264181106332 SLEEVE(FOR FRAME R.V.M)
- 264181900114 ASSY. COVER BAZZLE LH
- 264181900115 ASSY. COVER BAZZLE RH
- 264188806301 BEADING [FRONT PANEL]
- 265166400105 ASSY KNOB (LID FUEL PRIMING)
- 265172506316 GRAB HANDLE (ON DOOR)
- 265181006304 ASSY. LETTER 'T'
- 265181006305 ASSY. LETTER 'A'
21 264181906302 CENTRE GRILL (FRONT)
22 264181900127 ‘T’ EMBLEM OVAL STYLISED
23 264181900101 ASSY. BAZZLE RH
23 264181900102 ASSY. BAZZLE LH
26 264181900150 ASSY. COVER SIDE LH (CENTER FLAP)
27 264181900151 ASSY. COVER SIDE RH (CENTER FLAP)
28 264181900159 ASSY. COVER CENTRE (WITH TATA LETTERS)
29 264181906332 GRILL LH
30 264181906333 GRILL RH
31 264181906331 GRILL MIDDLE
32 215381106901 GRAB HANDLE LH
32 215381106902 GRAB HANDLE RH
33 264181100175 ASSY. COVER LH (CENTRE FLAP HINGE)
34 264181100176 ASSY. COVER RH (CENTRE FLAP HINGE)
35 257581100101 ASSY.SUNVISOR RH
35 257581100102 ASSY.SUNVISOR LH
37 257681100152 REAR VIEW MIRROR OUTSIDE RH
37 257681100153 REAR VIEW MIRROR OUTSIDE LH
38 264181100138 ASSY, FRAME COMPLETE LH
38 264181100139 ASSY, FRAME COMPLETE RH
40 264181900122 "ASSY, MASCOT ""613"""

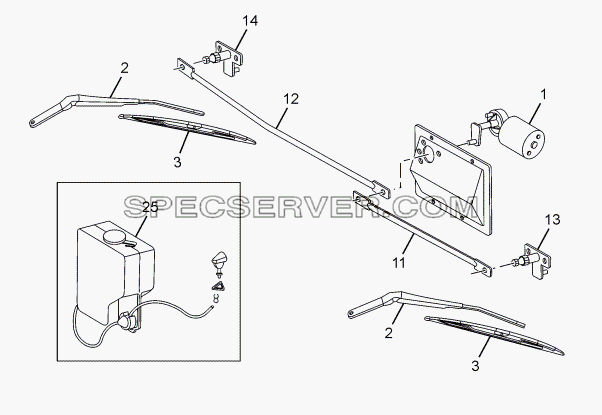

Запчасти: WIPER MOTOR AND LINKAGES для LPT 613 LHD EURO II

WIPER MOTOR AND LINKAGES для LPT 613 LHD EURO II (список запасных частей)

WIPER MOTOR AND LINKAGES для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264182400138 KIT FOR ACCESSORIES WIPER (LUCAS) CONSISTING OF :
- 264182409906 HEX. SCREW
1 264382400109 WIPER MOTOR WITH BKT LHD, 24 V, 17W - HI - POWER
2 264182400110 ASSY. WIPER ARM
3 278082400101 ASSY. WIPER BLADE
11 ASSY.LINK ASSY.LINK (183)
12 ASSY LINK ASSY LINK (792)
13 ASSY WHEEL BOX ASSY WHEEL BOX (58.13 MM)
14 ASSY.WHEEL BOX ASSY.WHEEL BOX ( C0-DRIVER - 45)
25 264382400110 W/S WASHER BOTTLE

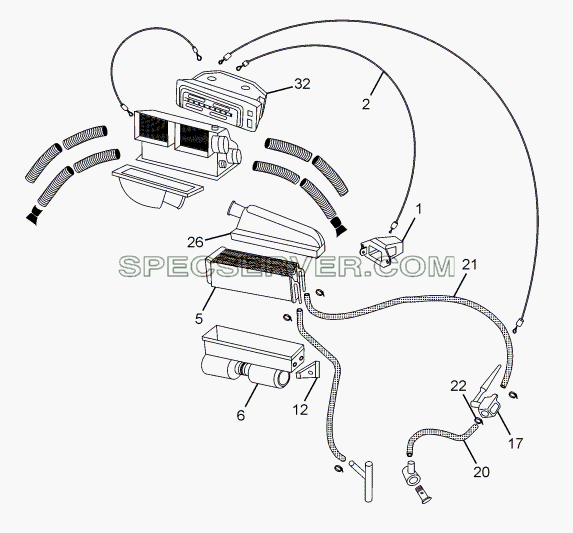

Запчасти: CAB HEATING для LPT 613 LHD EURO II

CAB HEATING для LPT 613 LHD EURO II (список запасных частей)

CAB HEATING для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 215083100103 ASSY, PLENUM CHAMBER COMPL.
- 215083106303 HOSE (VENTILATION)
- 264183100119 ASSY.BRACKET (PLENUM MTG.) LH
- 264183100120 ASSY.BRACKET (PLENUM MTG.) RH
- 264183100130 ASSY. COIL HOUSING
- 264183100137 ASSY LEG VENT LH
- 264183100138 ASSY LEG VENT RH
- 264183106334 DUCT (HEATER UNIT TO PLENUM)
- 264183300108 ASSY.PUSH PULL CABLE `Z' TYPE
- 264183500105 ASSY. BKT.FOR COIL HSG.MTG. R.H.
- 264183500106 ASSY. BKT.FOR COIL HSG. MTG. L.H.
- 264754600106 WIRING HARNESS BACK LIGHTING
- 265168910118 ASSY.CONTROL BRACKET-HTR.(LP-709)
- 265183300132 ASSY.CONTROL COVER.- HEATER
- 265183300132 ASSY.CONTROL COVER.- HEATER
- 265183400135 ASSY.STRIP (TWIN BLOWER MTG.)
- 265183500119 ASSY.BRKT.-LHD [WATER VALVE MTG.]
- 265454700159 BLOWER SWITCH
- 265483106362 HOSE (LEG ROOM CONNECTOR)
- 265483300177 HOSE CLAMP-25
- 265483500108 ASSY.WATER VALVE
- 265483500109 ASSY.LEVER (WATER VALVE)
- 265983306338 CONTROL KNOB
- 265983306338 CONTROL KNOB
- 270754740101 ASSY.TWIN BLOWER WITH MSSL TERS & HSG.24V
1 265983110124 ASSY.FRESH AIR VALVE RHD (W/O.ASSY.CABLE)
2 265983300178 ASSY.PUSH PULL CABLE
5 215483400101 ASSY. HEATER COIL COMPL.
6 264183106324 ADAPTOR HOUSING PLENUM CHAMBER.
12 265983300159 ASSY.PUSH PULL CABLE -BLACK
17 265483106350 DIFFUSER(LEG ROOM VENTILATION)
20 215083505805 RUBBER HOSE (WATER VALVE TO ENGINE) .
20 252520125817 REDUCER HOSE (THERMOSTAT TO WATER PUMP)
21 215083505806 RUBBER HOSE HEATING COIL TO WATER VALVE)
22 215083505804 RUBBER HOSE (HEATING COIL TO ENGINE) .
26 215083106308 COVER (HEATER UNIT) LHD
32 265168900152 ASSY. VENTILATION NOZZLE






BUMPER для LPT 613 LHD EURO II (список запасных частей)

BUMPER для LPT 613 LHD EURO II (список запасных частей)

BUMPER для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 264188500115 ASSY. BUMPER COMPLETE
2 264188500101 ASSY. SUPPORT LH (BUMPER MTG.)
2 264188500102 ASSY. SUPPORT RH (BUMPER MTG.)
4 264188500110 ASSY. BRACKET LH (BUMPER MTG.)
4 264188500111 ASSY. BRACKET RH (BUMPER MTG.)
5 264188500118 ASSY. END COVER LH
5 264188500119 ASSY. END COVER RH
6 257354410137 ASSY. REFLEX REFLECTOR






CAB MOUNTING (FRONT) для LPT 613 LHD EURO II (список запасных частей)

CAB MOUNTING (FRONT) для LPT 613 LHD EURO II (список запасных частей)

CAB MOUNTING (FRONT) для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264189100145 ASSY, MTG. BRACKET FRONT COMPLETE RH
- 264189100197 ASSY, MTG. BRACKET FRONT COMPLETE LH
- 264189103403 SERRATED BUSH RH (CROSS TUBE)
- 264189103404 SPACER BUSH
- 264189103704 ADJUSTER RH (TORSION BAR)
- 264189108004 SPECIAL BOLT (FOR ADJUSTER)
- 274789108242 SHIM
3 267389100102 ASSY.CROSS TUBE (TORSION BAR) LHD
8 264189100154 ASSY. RUBBER BUSH (FRONT MTG.)
9 264189103706 MOUNTING BRACKET BOTTOM LH
10 264189103705 MOUNTING BRACKET BOTTOM RH
11 264189107904 TORSION BAR
15 264189100139 ASSY. STAY COMPLETE

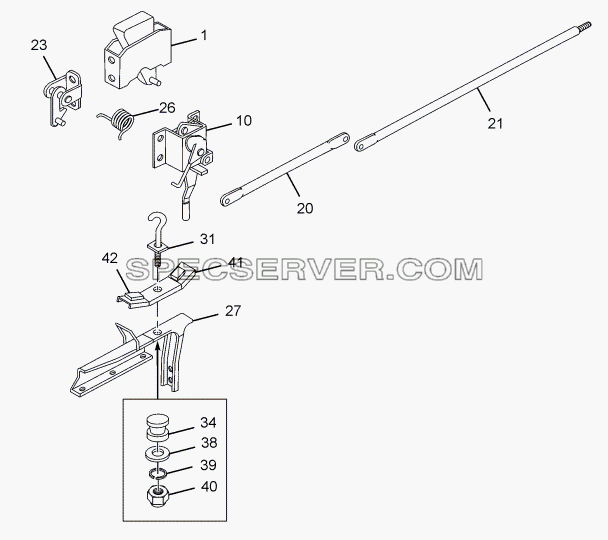

CAB MOUNTING (REAR) для LPT 613 LHD EURO II (список запасных частей)

CAB MOUNTING (REAR) для LPT 613 LHD EURO II (список запасных частей)

CAB MOUNTING (REAR) для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264189100140 ASSY. FINAL LINK (LOCKING MECHANISM)
- 264189100151 ASSY. SECONDARY LOCK (LOCKING MECHANISM)
- 264189100194 ASSY. TIE MEMBER (REAR MOUNTING)
- 264189106314 RUBBER MOUNTING (UPPER)
- 264189106705 PIN (LOCK MECHANISM)
- 264189106913 SPACER (REAR MOUNTING)
- 264189108270 MOUNTING CUP (CAB LOCKING MECHANISM)
- 264189108272 PLATE (CAB LOCKING MECHANISM)
- 264189108703 TORSION SPRING (LOCKING MECHANISM)
1 264189100147 ASSY. HOUSING BRACKET COMPLETE LH
1 264189100148 ASSY. HOUSING BRACKET COMPLETE RH
10 264189100146 ASSY. HANDLE MOUNTING (CAB LOCKING MECHANISM) CONSISTS OF :
20 264189100134 ASSY. CONNECTING LINK LH
21 264189100135 ASSY. CONNECTING LINK RH
23 264189100136 ASSY. LEVER (SECONDARY LOCK)
26 264189108704 TORSION SPRING (SECONDARY LOCK)
27 264189100141 ASSY. MOUNTING BRACKET LH (CHASSIS SIDE)
27 267389100106 ASSY. MOUNTING BRACKET RH (CHASSIS SIDE)
31 264189100185 ASSY, MOUNTING HOOK
34 264189100115 ASSY. RUBBER MOUNTING (LOWER)
38 12460501707 BRIGHT WASHER 17
39 12520698025 SPRING WASHER B 8
40 12140601606 NYLOC NUT M 16X1.5
41 264189100182 ASSY. BRACKET UPPER (CHASSIS SIDE)
42 264189100184 ASSY. MOUNTING PAD (CAB LOCKING MECHANISM)

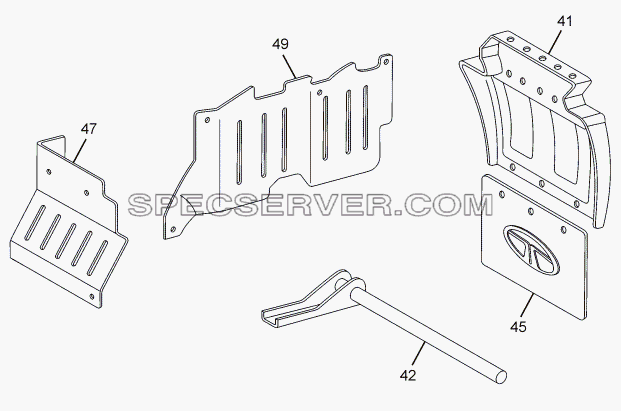

MUDGUARD AND MUDFLAP для LPT 613 LHD EURO II (список запасных частей)

MUDGUARD AND MUDFLAP для LPT 613 LHD EURO II (список запасных частей)

MUDGUARD AND MUDFLAP для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264189106307 SEALING (REAR MUDGUARD)
- 264189108257 CLAMP REAR MUDGUARD MOUNTING
- 267389106302 MUDFLAP MIDDLE INNER
41 264189106305 MUD GUARD LH
41 264189106306 MUD GUARD RH
42 264189100165 ASSY. SUPPORT (BOTTOM) LH
42 264189100166 ASSY. SUPPORT (BOTTOM) RH
45 264081100102 ASSY. MUD FLAP REAR
47 264189110123 ASSY.MUDFLAP FRONT INNER LH
47 264189110124 ASSY.MUDFLAP FRONT INNER RH
49 274789100171 ASSY.MUDFLAP FRONT OUTER-LH
49 274789100172 ASSY.MUDFLAP FRONT OUTER-RH

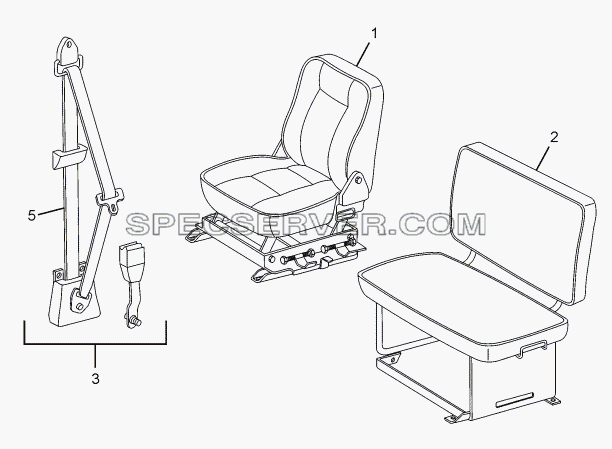

SEAT AND SEAT BELTS для LPT 613 LHD EURO II (список запасных частей)

SEAT AND SEAT BELTS для LPT 613 LHD EURO II (список запасных частей)

SEAT AND SEAT BELTS для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 264191500110 SEAT BELT (MIDDLE PASSENGER)
- 264191500111 SEAT BELT (CO - DRIVER SIDE)
1 264191000123 ASSY. DRIVER’S SEAT LH
2 264194000117 ASSY. CO-DRIVER’S SEAT
3 264191500109 ASSY. SEAT BELT KIT COMPLETE (‘E’ CERTIFIED) CONSISTING OF :
5 264191500112 SEAT BELT (DRIVER SIDE)
