Suzuki Kizashi (2010 year). Manual - part 22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

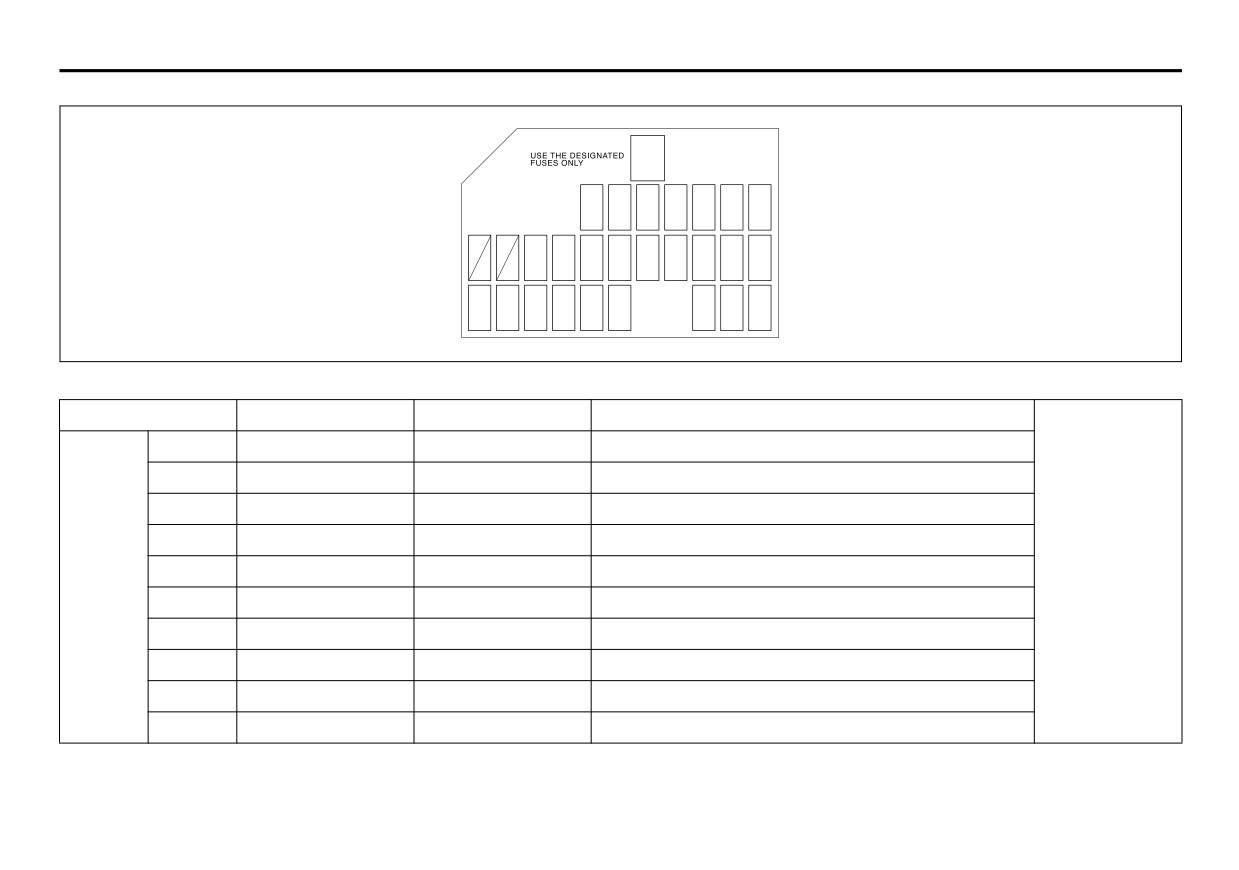

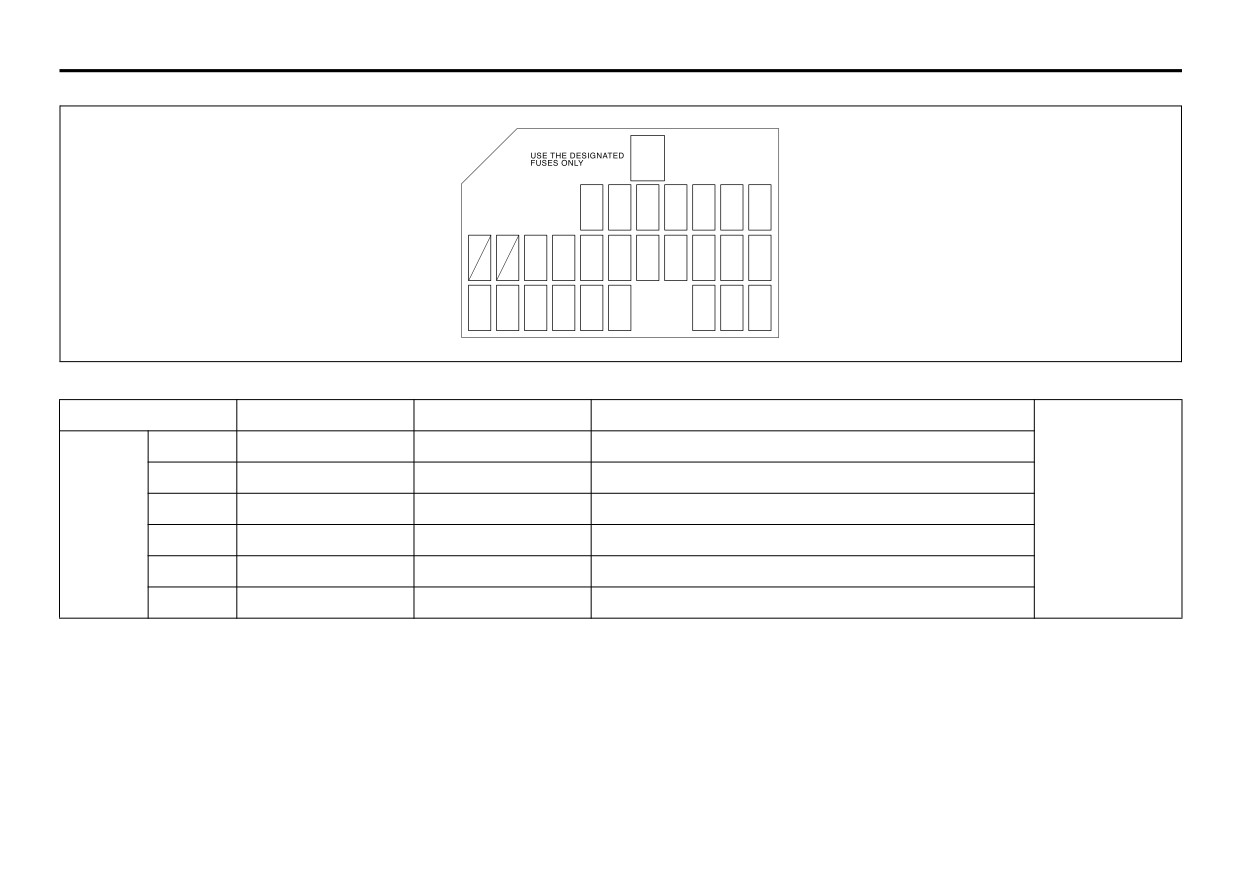

FUSES AND PROTECTED CIRCUITS

57L70034

COLOR/SIZE (AMPS)

FUSE NAME

PROTECTED CIRCUIT

(11)

BROWN (7.5)

IG1 SIG

(12)

BROWN (7.5)

BPIM

Blank

(13)

BROWN (7.5)

MTR

Meter

(14)

RED (10)

BACK

Back-up light

Under the

dashboard of

(15)

RED (10)

A/B

Air bag

FUSE

the driver’s

BOX

(16)

BLUE (15)

STL

Steering lock

seat side

(17)

BROWN (7.5)

BCM

(18)

YELLOW (20)

S/R

Sunroof

(19)

BROWN (7.5)

RR FOG

Blank

(20)

RED (10)

TAIL

Tail light

11-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUSES AND PROTECTED CIRCUITS

57L70034

COLOR/SIZE (AMPS)

FUSE NAME

PROTECTED CIRCUIT

(21)

RED (10)

STOP

Brake light

(22)

RED (10)

HAZ

Hazard

Under the

dashboard of

(23)

YELLOW (20)

DOOR FL

Front power window (Left)

FUSE

the driver’s

BOX

(24)

BLUE (15)

RADIO

Radio

seat side

(25)

RED (10)

DOME

Dome light

(26)

YELLOW (20)

D/L

Door lock

11-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

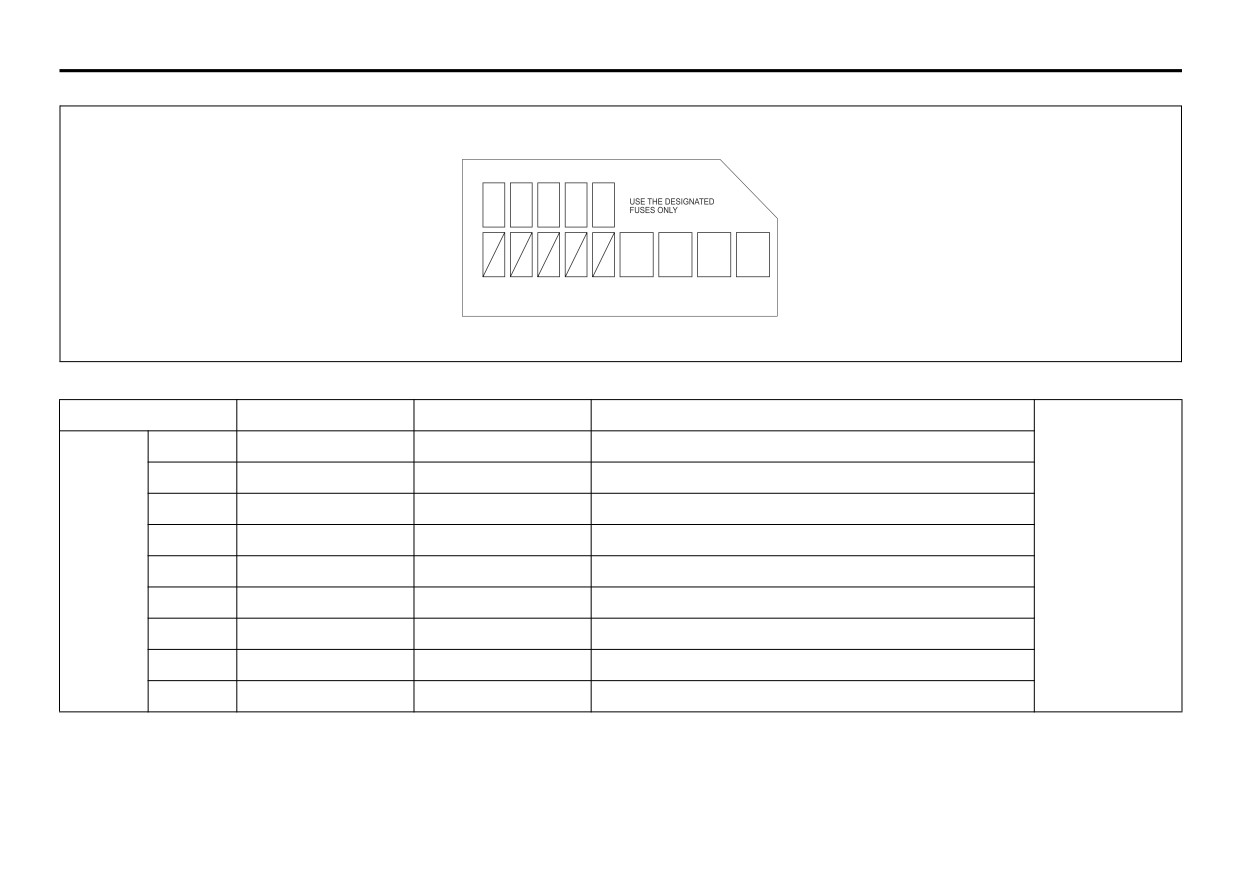

FUSES AND PROTECTED CIRCUITS

57L70016

COLOR/SIZE (AMPS)

FUSE NAME

PROTECTED CIRCUIT

(1)

YELLOW (20)

DOOR RR

Rear power window (Right)

(2)

YELLOW (20)

DOOR RL

Rear power window (Left)

(3)

YELLOW (20)

DOOR FR

Front power window (Right)

Under the

(4)

BLUE (15)

4WD

dashboard of

FUSE

the passen-

(5)

YELLOW (20)

BTRY FAN

Battery fan

BOX

ger’s seat side

(6)

BLUE (20)

AUDIO

Audio

(7)

PINK (30)

PWR SEAT R

Power seat (Right)

(8)

PINK (30)

PWR SEAT L

Power seat (Left)

(9)

PINK (30)

BELT

Blank

11-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

NOTE:

Specifications are subject to change with- M/T: Manual transaxle

2WD: 2-wheel drive

out notice.

CVT: Continuously variable transaxle

i-AWD: intelligent All Wheel Drive

ITEM: Dimensions

UNIT: mm (in.)

Overall length

4650 (183.1)

Overall width

1820 (71.7)

Overall height

1480 (58.3)

Wheelbase

2700 (106.3)

Tread

Front

1565 (61.6)

Rear

1565 (61.6)

Minimum running ground clearance

145 (5.7)

ITEM: Weight

Gross axle weight rating

See the safety certification label and the tire information label which

Gross vehicle weight rating

are located on the driver’s door lock pillar.

Vehicle capacity weight

12-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

ITEM: Engine

Type

J24B (16V DOHC)

Number of cylinders

Bore

92.0 mm (3.62 in.)

Stroke

90.0 mm (3.54 in.)

Piston displacement

2393 cm³ (2393 cc, 146.0 cu.in)

Compression ratio

10.0 : 1

ITEM: Electrical

Ignition timing

5° B.T.D.C.

Standard spark plug

NGK SILFR6A11

Battery

12V GP24

Fuses

See “INSPECTION AND MAINTENANCE” and “FUSES AND PRO-

TECTED CIRCUITS” sections.

12-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

ITEM: Light

WATTAGE

BULB No.

Headlight

12V 55W

Front fog light

12V 55W

H11

Front turn signal light

12V 27W

2357A

Rear turn signal light

12V 21W

PY21W

Parking light

12V 5W

W5W

Brake/tail light

12V 21/5W

P21/5W

License plate light

12V 5W

C5W

Reversing light

12V 21W

P21W

Front dome light

12V 8W

Rear dome light

12V 10W

Glove box light

12V 1.4W

Footwell lights

LED

Trunk room light

12V 5W

W5W

Spot light

12V 8W

High mount stop light

LED

Front side marker light

12V 5W

168

Curtsey light

12V 5W

Vanity mirror light

12V 2W

12-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

ITEM: Wheel

Tire size, front and rear

P215/60R16, P215/55R17, P235/45R18

Tire pressure

For the specified tire pressure, see the Tire Information Label located

on the driver’s door lock pillar.

ITEM: Steering

Toe-in (total)

front

0 ± 2 mm (0 ± 0.08 in.)

rear

2 ± 1 mm (0.08 ± 0.04 in.)

Camber angle

front

-0° 30’ ± 1°

rear

-1° 15’ ± 30’

Caster angle

front

4° 10’ ± 1°

ITEM: Capacities

Coolant (including reserve tank)

6.6 L (13.9 US pt)

Fuel tank

63 L (16.7 US gal)

Engine oil (replaced with filter)

4.5 L (4.8 quarts)

Transaxle oil

Manual transaxle: 2.5 L (5.3 US pt)

CVT: 8.34 L (17.7 US pt) (when overhauling)

Rear differential oil

0.8 L (1.7 US pt)

Transfer gear box oil

0.9 L (1.9 US pt)

12-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX

Average Speed

2-81

INDEX

Symbols

Battery

7-39

“CRUISE” Indicator Light

2-75

Brake Assist System

3-28

“ESP^® OFF” Indicator Light

2-72

Brake Fluid

7-25

“ESP^® OFF” switch

3-33

Brake Pedal

3-11, 7-26

“i-AWD” Indicator Light

2-76, 3-19

Brake System Warning Light

2-70

“SET” Indicator Light

2-75

Brakes

7-25

Braking

3-28

Accelerator Pedal

3-12

Break-In

4-1

Accessory Socket

5-80

Brightness Control

2-79

Adding Coolant

7-19

Bulb Replacement

7-45

Adjusting Seat Position

2-23, 2-24

Adjusting Seatbacks

2-24, 2-25

Catalytic Converter

4-1

Adjusting the Lumbar Support

2-26

Center Console Box

5-89

AIR BAG Light

2-73

Changing Engine Oil and Filter

7-16

Air Cleaner

7-20

Changing Wheels

8-5

Air Conditioning System

7-57

Charging Light

2-73

All Seat Belts Except Rear Center

2-37

Child Lock System (rear doors)

2-5

Anti-Lock Brake System (ABS)

3-29

Child Restraint Systems

2-44

Anti-Lock Brake System (ABS) Warning Light

2-71

Cigarette Lighter

5-81

Armrest

5-90

Cleaning Interior

9-3

Ashtray

5-82

Cleaning the Exterior

9-4

Assist Grips

5-82

Clutch Pedal

3-11, 7-23

Audio Systems

5-10

Coat Hooks

5-83

Auto Dimming Rearview Mirror

2-21

Compact Spare Tire

7-34

Automatic Heating and Air Conditioning System

Continuously Variable Transaxle (CVT)

3-15

(Climate Control)

5-1

Continuously Variable Transaxle (CVT) Fluid

7-24

Automatic Lights Operation

2-101

Coolant Level Check

7-19

Automatic Locking Retractor

2-36

Coolant Replacement

7-20

Average Fuel Consumption

2-83

Corrosion Prevention

9-1

13-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX

Courtesy Lights

5-79

Fluid Level Check

7-24

Cruise Control

3-21

Folding Rear Seats

2-32

Cup Holder and Storage Area

5-87

Footrest

5-89

CVT Selector Position (for continuously variable

Footwell Lights

5-79

transaxle)

2-81

Frame Hooks

5-96

Front Air Bags

2-57

Daily Inspection Checklist

3-1

Front Fog Light Switch

2-105

Daytime Running Light (D.R.L.) Indicator Light

2-76

Front Seat Back Pocket

5-89

Daytime Running Light (D.R.L.) System

2-104

Front Seat Heater

2-28

Door Locks

2-3

Front Seats

2-23

Drive Belt

7-15

Fuel Filler Cap

5-74

Driver’s Seat Belt Reminder Light

2-73

Fuel Filler Door

5-73

Driving on Hills

4-3

Fuel Gauge

2-78

Driving on Slippery Roads

4-4

Fuel Pump Labeling

1-1

Driving Range

2-81

Fuel Recommendation

1-1

Full Wheel Cover

8-5

Fuses

7-40

Electric Power Steering Warning Light

2-77

FUSES AND PROTECTED CIRCUITS

11-1

Electronic Stability Program (ESP^®)

3-31

Fuses in the Engine Compartment

7-40

Emergency Locking Retractor (ELR)

2-36

Fuses under the Dash Board

7-42

Emission Compliance Label (for U.S.A.)

10-2

Engine Block Heater

3-12

Engine Coolant

7-18

Gasoline Containing MTBE

1-1

Engine Hood

5-75

Gasoline/Ethanol blends

1-1

Engine Oil and Filter

7-15

Gasoline/Methanol blends

1-1

Engine Serial Number

10-1

Gear Oil

7-22

Engine Switch

3-2

Gear Oil Level Check

7-23

Engine Switch Illumination

3-4

Gear Oil Replacement

7-23

ESP^® Warning Light

2-71

GLOSSARY OF TIRE TERMINOLOGY

7-36

Exhaust Gas Warning

3-1

Glove Box

5-85

Floor Mats

5-91

Hazard Warning Switch

2-106

13-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX

Head Restraints

2-27, 2-29

Interior Light Switch

5-78

Headlight Aiming

7-44

Interior Workable Area for Engine Starting, Power

Heated Rear Window and Heated Outside Rearview

Supply Mode Selection and “Remote Controller

Mirrors (if equipped) Switch

2-111

Outside” Warning

3-6

High Beam Indicator Light

2-75

Internal Trunk Release

2-6

Highway Driving

4-3

Hill Hold Control System

3-34

Jacking Instructions

8-2

HomeLink^®

5-93

Jump Starting Instructions

8-6

Horn

2-111

How the ABS Works

3-30

Keyless Push Start System

3-4

Keyless Start System Remote Controller

2-6

Identification Numbers

10-1

Keys

2-1

If the Engine is Flooded

8-8

If the Engine Overheats

8-8

Lap-Shoulder Belt

2-36

If the Starter Does Not Operate

8-7

Lidded Instrument Panel Box

5-87

If You Cannot Shift CVT Gearshift Lever Out of

Light Reminder Buzzer

2-104

“P” (PARK)

3-18

Lighting Control Lever

2-100

If Your Vehicle Gets Stuck

4-4

Lighting Operation

2-100

Illumination Indicator Light

2-75

Locking Rear Seatback

2-34

Immobilizer System

2-2, 3-4

Low Fuel Warning Light

2-74

Immobilizer/Keyless Start System Warning Light

2-76

Low Tire Pressure Warning Light

2-69, 3-35

Improving Fuel Economy

4-2

Luggage Under-box

5-92

Information Display

2-80

Inside Rearview Mirror

2-20

Maintenance Recommended under Severe Driving

Installation of Child Restraint with Top Strap

2-52

Conditions

7-7, 7-11

Installation with Lap-Shoulder Seat Belts

Maintenance Schedule

7-2

(child restraint with no top strap)

2-46

Malfunction Indicator Light

2-74

Installation with the LATCH System

2-49

Manual Transaxle

3-13

Instantaneous fuel consumption

2-82

Master Warning Indicator Light

2-77

Instrument Cluster

2-68

Mirrors

2-20

intelligent All Wheel Drive (i-AWD) Indicator Light

2-76

13-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX

Roof Rack Anchors

5-92

Net/Rope Hooks

5-92

Safety Certification Label

10-2

Odometer

2-84

Seat Belt Extender

2-53

Oil Level Check

7-15

Seat Belt Inspection

2-43

Oil Pressure Light

2-72

Seat Belt Pretensioner System

2-54

On-Board Vehicle Computers and Event Data

Seat Belt Reminder

2-40

Recorders

10-3

Seat Belts and Child Restraint Systems

2-34

Open Door Warning Light

2-75

Seat Position Memory System

2-26

Outside Rearview Mirrors

2-22

Selection of Coolant

7-18

Overhead Console

5-86

Selection of Power Supply Modes

3-4

Setting Mode

2-85

Shoulder Anchor Height Adjuster

2-43

Parking Brake Lever

3-10, 7-27

Side Air Bags and Side Curtain Air Bags

2-59

Parking Sensors

3-23

Side Door Locks

2-3

Pedals

3-11

Snow Tires

7-35

Periodic Maintenance Schedule

7-3

Spark Plugs

7-20

Power Door Locking System

2-4

SPECIFICATIONS

12-1

Power Mirror Control

2-22

Specified Fluid

7-24

Power Window Controls

2-17

Specified Gear Oil

7-22

Power-Assisted Brakes

3-28

Specified Oil

7-15

Speedometer

2-78

Radio Antenna

5-9

Spot Light

5-80

Rain-sensing Wipers

2-108

Stability Control System

3-31

Rain-sensing Wipers and Washer Lever

2-107

Starting the Engine

3-7

Rear Center Seat Belt

2-38

Steering Wheel

7-27

Rear Seats

2-29

Sun Visor

5-77

Refill with Oil and Check for Leaks

7-18

Sunroof

5-83

Refilling

7-16

Supplemental Restraint System (air bags)

2-55

Replace the Oil Filter

7-17

Replacing Tires and/or Wheels

3-38

Tachometer

2-78

Reporting Safety Defects

10-4

13-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX

Temperature Gauge

2-79

Theft Deterrent Alarm System

2-14

Vehicle Cleaning

9-3

Thermometer

2-84

Vehicle Identification Number

10-1

Tilt/Telescoping/Steering Lock Lever

2-110

Vehicle Loading

6-1, 7-37

Tire Chains

4-5

Tire Changing Tool

8-1

Warning and Indicator Lights

2-69

Tire Inflation Pressure

7-30

Warning and Indicator Messages

2-86

Tire Inspection

7-31

Warranties

10-2

Tire Pressure Monitoring System (TPMS)

3-34

Washing

9-5

Tire Rotation

7-34

Waxing

9-6

Tire Sidewall Labeling

7-28

Windows

2-17

Tire Size

7-29

Windshield Washer

2-109

Tires

7-28

Windshield Washer Fluid

7-56

Towing a Disabled Vehicle

8-7

Windshield Wipers

2-107

Towing Your Vehicle (recreational towing)

6-2

Wiper Blades

7-54

Traction Control System

3-31

Trailer Towing

6-2

Transaxle Warning Light

2-76

Trip meter

2-84

Trunk Lid

2-5

Trunk Lid Lock Switch

2-6

Trunk Light

5-79

Turn Signal Control Lever

2-105

Turn Signal Indicators

2-75

Turn Signal Operation

2-106

Uniform Tire Quality Grading

7-33

Universal Serial Bus (USB) Socket

5-81

Using the 2WD/i-AWD (intelligent All Wheel Drive)

Switch

3-19

Using the Transaxle

3-13

13-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 20 21 22
