Suzuki Grand Vitara (2010 year). Manual - part 8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Warning and Indicator messages

Transfer Switch

Master Warning

Warning and Indicator messages

Sound

Cause and Remedy

Operation

Indicator

In any position

Blinks

Off

There may be a problem with the 4WD

system.

Have your vehicle inspected by an

authorized SUZUKI dealer.

79K074

In “N” position

Blinks

Series of

This message informs you that the

Beeps

transfer switch is in “N”, which is used

only for towing your vehicle.

Move the transfer switch to a different

position unless you are planning to tow

79K077

your vehicle.

Switching between

Off

Off

This message informs you the

4WD

“4H” and

mode is switching.

“4H LOCK”

79K078

In “4H” position

Blinks

Off

Tires are slipping.

Turn the transfer switch to “4H LOCK”

position.

79K079

3-24

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Transfer Switch

Master Warning

Warning and Indicator messages

Sound

Cause and Remedy

Operation

Indicator

Switching between

Off

Series of

(For automatic transmission)

“4H LOCK” and

Beeps

The desired transfer gear has not been

“4L LOCK”

engaged.

Switching between

Release your foot from the accelerator

“4H” and “N”

pedal.

Depress the brake pedal.

79K080

Shift the automatic transmission gear-

shift lever to the “N” position.

Off

Series of

(For manual transmission)

Beeps

The desired transfer gear has not been

engaged.

Release your foot from the accelerator

pedal.

79K081

Depress the brake pedal and clutch

pedal.

Off

Beep or

The desired transfer gear has not been

Off

engaged.

Turn the transfer switch back to the pre-

viously selected position, and operate

79K082

the transfer switch again.

Off

Off

This message informs you the

4WD

mode is switching.

Do not move your vehicle.

79K083

3-25

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Cruise Control (if equipped)

To Set Cruising Speed

WARNING

1) Turn on the cruise control system by

pushing the “ON/OFF” switch (1). When

To help avoid loss of vehicle control,

the “CRUISE” indicator light comes on,

do not use the cruise control system

you can set cruising speed.

when driving in heavy traffic, on slip-

2) Accelerate or decelerate to the desired

pery or winding roads, or on steep

speed.

downgrades.

3) Push the “SET/COAST” switch (3) and

turn on the “SET” indicator light. Take

your foot off the accelerator pedal and

the set speed will be maintained.

WARNING

(2)

If the cruising speed is set by acci-

dent, you cannot decelerate or could

79K032

loose control of the vehicle. This

(4)

The cruise control system allows you to

(1)

could lead to an accident, resulting in

(3)

maintain a steady speed without keeping

severe injury or death.

your foot on the accelerator pedal. The

Turn off the cruise control system

controls for operating the cruise control

and make sure the “CRUISE” indica-

system are on the steering wheel.

tor light is off when the system is not

You can use the cruise control system with

79K049

in use.

the following conditions:

(1) “ON/OFF” switch

• For manual transmission vehicle, the

(2) “CANCEL” switch

NOTE:

gear position is in 4th or 5th.

If the transfer switch (if equipped) is in the

(3) “SET/COAST” switch

• For

4-Speed automatic transmission

(4) “RES/ACC” switch

“4L LOCK” position, you cannot use the

vehicle, the gearshift lever is in “D” or “3”

cruise control system. Refer to “Using the

position.

Transfer Switch (if equipped)” in this sec-

• For

5-Speed automatic transmission

tion.

vehicle, the gearshift lever is in “D” or “4”

position.

• The vehicle speed is between approxi-

mately 45 km/h (28 mph) or higher.

3-26

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

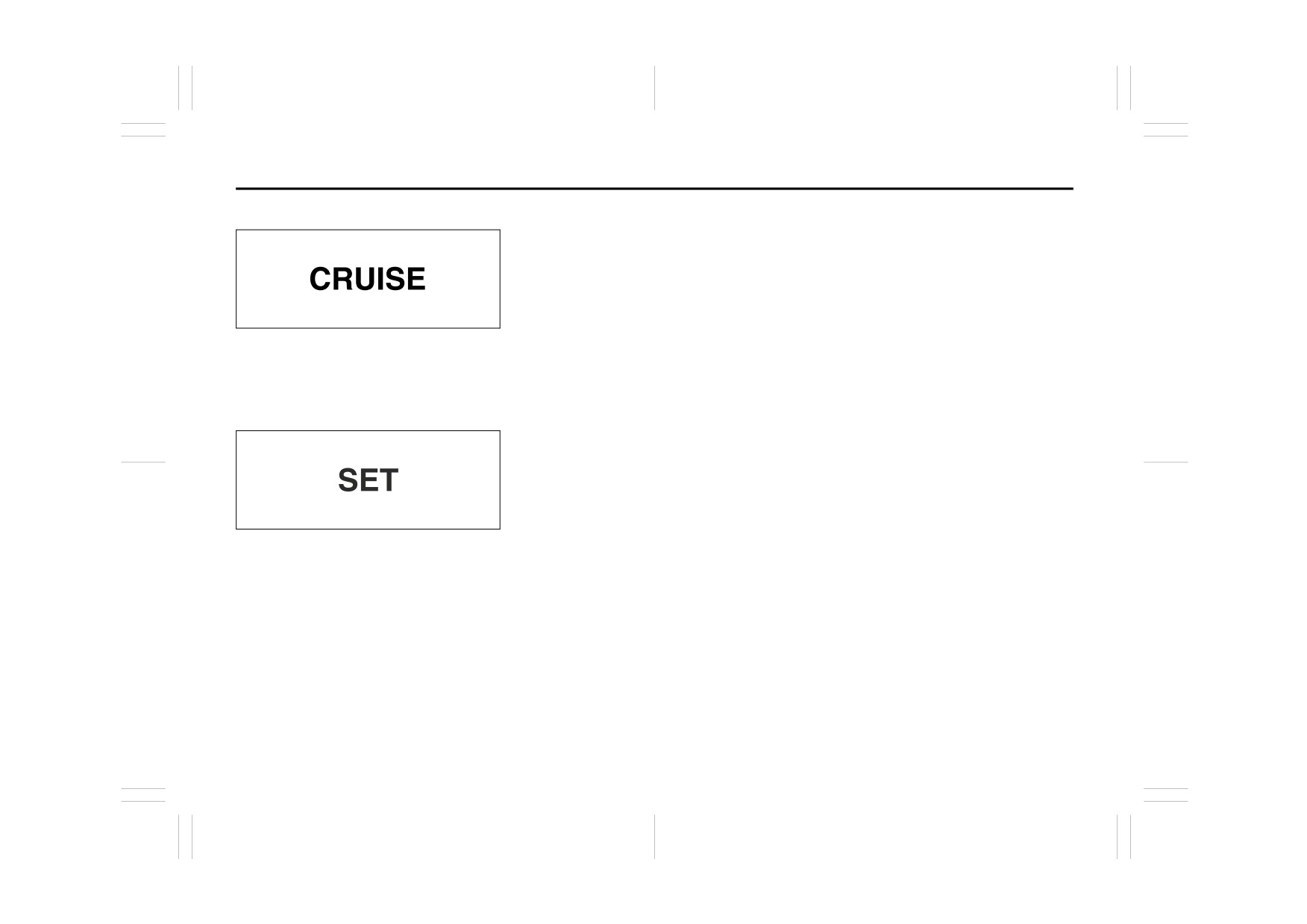

“CRUISE” indicator light

To Change Speed Temporarily

To Change Cruising Speed

When the cruising speed is maintained,

Using the accelerator pedal

you can temporarily accelerate or deceler-

To reset at a faster cruising speed, acceler-

ate.

ate to the desired speed using the acceler-

To accelerate, depress the accelerator

ator pedal and push the

“SET/COAST”

pedal. When you take your foot off the

switch (3). The new speed will be main-

pedal, your vehicle will return to the set

tained.

speed.

52D113

Using the brake pedal

To decelerate, depress the brake pedal.

When you push the “ON/OFF” switch, the

To reset at a slower cruising speed, decel-

The set speed will be canceled and “SET”

system is on and a “CRUISE” indicator

erate to the desired speed using the brake

indicator light will go off. To resume the

light on the instrument cluster will be on.

pedal and push the “SET/COAST” switch

previously set speed, push the “RES/ACC”

(3). The new speed will be maintained.

switch (4) and turn on the “SET” indicator

“SET” indicator light

light again when vehicle speed is above 45

NOTE:

km/h (28 mph). The vehicle will accelerate

When the brake pedal is depressed, the

to and maintain the previously set speed.

“SET” indicator light goes off until reset the

cruising speed.

NOTE:

For 4-Speed/5-Speed automatic transmis-

Using the cruise control switch

sion vehicle, when the cruising speed is

To reset at a faster cruising speed, press

maintained, you cannot decelerate by

65D474

repeatedly or hold in the

“RES/ACC”

using the engine brake if you shift the gear-

switch

(4). Vehicle speed will steadily

When the vehicle’s speed is controlled by

shift lever from “D” to “3” position for 4-

increase. When you release the switch, the

the cruise control system, a “SET” indica-

Speed automatic transmission vehicle, and

new speed will be maintained.

tor light on the instrument cluster will be

from “D” to “4” position for 5-Speed auto-

on.

matic transmission vehicle.

To reset at a slower cruising speed, press

To decelerate while the cruise control is on,

repeatedly or hold in the

“SET/COAST”

depress the brake pedal or push the “SET/

switch (3) until the vehicle has slowed to

COAST” switch (3).

the desired speed, then release the switch.

The new speed will be maintained.

NOTE:

You can adjust the set speed by approxi-

mately 1.5 km/h (1.0 mph) by pushing a

cruise control switch quickly.

3-27

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Cancellation of the Cruise Control

NOTE:

Braking

The “SET” indicator light will go off and the

If you turn off the cruise control system, the

cruise control will be canceled temporarily

previously set speed in the memory is

with following procedures:

cleared. Reset your cruising speed again.

• Push the “CANCEL” switch (2).

• Depress the brake pedal.

• For manual transmission, depress the

clutch pedal.

• For

4-Speed automatic transmission

vehicle, shift the gearshift lever into “2”

or “L” position.

• For

5-Speed automatic transmission

vehicle, shift the gearshift lever into “3”,

“2”, or “L” position.

• The vehicle speed falls more than 20

km/h (12.5 mph) below the set speed.

60G165

• Any time the vehicle speed falls below

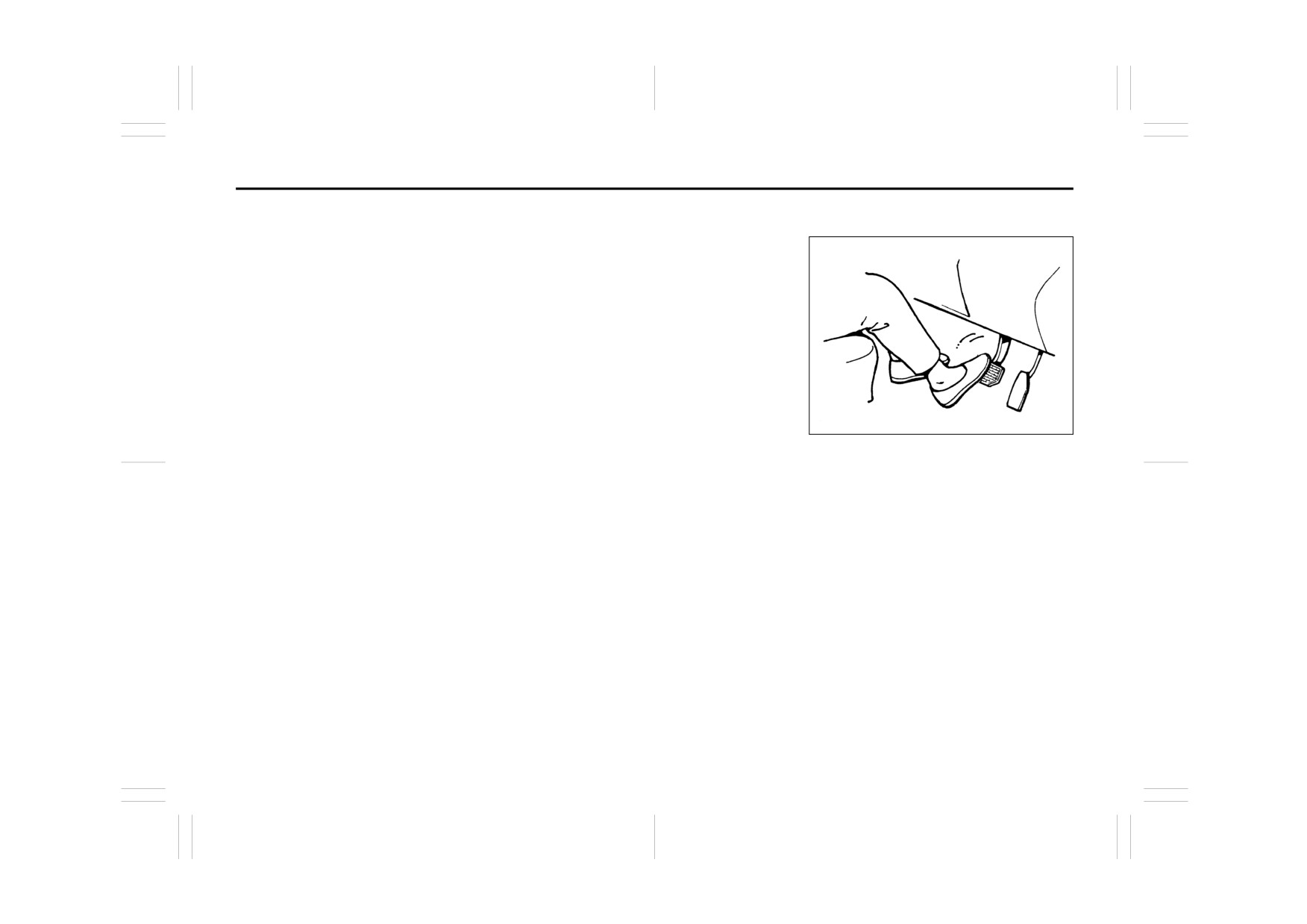

The distance needed to bring any vehicle

40 km/h (25 mph).

to a halt increases with the speed of the

• When the vehicle skids and ESP^® (if

vehicle. The braking distance needed, for

equipped) is activated.

example, at

60 km/h (37 mph) will be

approximately

4 times greater than the

To resume the previously set speed, push

braking distance needed at 30 km/h (19

the “RES/ACC” switch (4) and turn on the

mph). Start to brake the vehicle when there

“SET” indicator light. Besides, the vehicle

is plenty of distance between your vehicle

speed has to be above 45 km/h (28 mph)

and the stopping point, and slow down

when the vehicle is not in the above condi-

gradually.

tions.

To turn off the cruise control system, push

the “ON/OFF” switch (1) and make sure

the “CRUISE” indicator light is off.

Also, if the malfunction indicator light in the

instrument cluster comes on or blinks, the

cruise control system will be turned off.

3-28

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

WARNING

WARNING

•

On some types of loose surfaces

or

(Continued)

(such as gravel, snow-covered

If the warning light comes on briefly

roads, etc.), the stopping distance

then turns off, the system is normal.

(1)

(2)

required for an ABS-equipped vehi-

If the warning light still stays on,

cle may be slightly greater than for

have the system inspected by your

a comparable vehicle with a con-

SUZUKI dealer immediately. If the

ventional brake system. With a

ABS system becomes inoperative,

conventional brake system, skid-

the brake system will function as an

ding tires are able to “plow” the

ordinary brake system that has no

gravel or snow layer, shortening

ABS.

(3)

the stopping distance. ABS mini-

mizes this resistance effect. Allow

65D451

for extra stopping distance when

WARNING

(1) ABS warning light Type 1

driving on loose surfaces.

If the ABS warning light ((1) or (2))

•

On regular paved roads, some driv-

(2) ABS warning light Type 2

and the Brake system warning light

(3) Brake system warning light

ers may be able to obtain slightly

(3) on the instrument panel simulta-

shorter stopping distances with

neously stay on or come on when

conventional brake systems than

WARNING

driving, both anti-lock function and

with ABS.

If the ABS warning light ((1) or (2)) on

rear brake force control function

•

In both of the above conditions,

the instrument panel comes on and

(Proportioning valve function) of the

ABS will still offer the advantage of

stays on while driving, there may be a

ABS system may have failed. This

helping you maintain directional

problem with the ABS system.

could cause the rear wheels to skid

control. However, remember that

If this happens:

or the vehicle to spin during braking

ABS will not compensate for bad

1) Pull off the road and stop care-

on a slippery road or hard braking on

road or weather conditions or poor

fully.

a dry paved road. If both warning

driver judgment. Use good judg-

2) Turn the ignition switch to “LOCK”

lights come on, drive carefully, avoid-

ment and do not drive faster than

and then start the engine again.

ing hard braking as much as possi-

conditions will safely allow.

(Continued)

ble, and ask your SUZUKI dealer to

inspect the ABS system immediately.

3-30

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

How the ABS Works

Electronic Stability Program

The ESP^® has the following three systems:

A computer continuously monitors wheel

(ESP^®)

speed. The computer compares the

Stability Control System

changes in wheel speed when braking. If

ESP^® is a registered trademark of Daimler

The vehicle stability control system helps

the wheels slow suddenly, indicating a

AG.

provide integrated control of systems such

skidding situation, the computer will

as anti-lock brakes, traction control, engine

change braking pressure several times

control, etc. This system automatically

each second to prevent the wheels from

The Electronic Stability Program (ESP^®)

controls the brakes and engine to help pre-

locking. When you start your vehicle or

helps to control the vehicle during corner-

vent the vehicle from skidding when cor-

when you accelerate after a hard stop, you

ing if front wheels or rear wheels skid. It

nering on a slippery road surface or when

may hear a momentary motor or clicking

also assists you in maintaining traction

turning the steering wheel abruptly.

sound as the system resets or checks

while accelerating on loose or slippery

itself.

road surfaces. It does this by regulating the

Traction Control System

engine’s output, and by selectively apply-

The traction control system automatically

WARNING

ing the brakes. In addition, ESP^® helps to

helps prevent the spinning of wheels when

avoid skidding by controlling braking pres-

the vehicle is started or accelerated on

The ABS may not work properly if

sure.

slippery road surfaces. The system oper-

tires or wheels other than those

ates only if it senses that some of the

specified in the owner’s manual are

WARNING

wheels are spinning or beginning to lose

used. This is because the ABS works

traction. When this happens, the system

by comparing changes in wheel

The ESP^® cannot enhance the vehi-

operates the front or rear brakes and

speed. When replacing tires or

cle’s driving stability in all situations

reduces engine power to limit wheel spin.

wheels, use only the size and type

and does not control your vehicle’s

specified in this owner’s manual.

entire braking system. The ESP^® can-

NOTE:

not prevent accidents, including

You may hear a clicking sound in the

those resulting from excessive speed

engine compartment for a few seconds

in turns, or hydroplaning. Only a safe

when you start the engine or just after the

and attentive driver can prevent acci-

vehicle begins to move. This means that

dents. The capabilities of an ESP^®-

the above systems are in the self-check

equipped vehicle must never be used

mode. This sound does not indicate a mal-

as a substitute for careful driving.

function.

3-31

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Anti-Lock Braking System (ABS)

The ESP^® indicator lights are described

ABS will help you avoid skidding by elec-

WARNING

below:

tronically controlling braking pressure. It

•

The ESP^® may not work properly if

will also help you maintain steering control

SLIP Indicator Light

tires or wheels other than those

when braking on slippery surfaces or when

specified in the Owner’s Manual are

braking hard. The ABS works automati-

used. When replacing tires or

cally, so you do not have to use any special

wheels, use only the size and type

braking technique. Just push the brake

specified in this Owner’s Manual.

pedal down without pumping. The ABS will

•

The ESP^® may not work properly if

operate whenever it senses that wheels

tires are not inflated to the recom-

are locking up. You may feel the brake

mended tire inflation pressure.

pedal pulsate while the ABS is operating.

79K019

•

The ESP^® may not work properly if

(For more information on ABS, see “Brak-

tires are fitted with tire chains.

The SLIP indicator light in the instrument

ing” in the “OPERATING YOUR VEHICLE”

•

The ESP^® may not work properly if

cluster blinks 5 times per second when one

section.)

the tires are excessively worn. Be

of the following systems is activated.

sure to replace tires when the tread

• Stability control system

NOTE:

wear indicators in the grooves

• Traction control system

If the ABS system is activated, you may

appear on the tread surface.

• Hill descent control system (if equipped)

hear a clunking noise and/or feel pulsating

•

The ESP^® is not a substitute for

in the brake pedal. This is normal and indi-

winter tires or tire chains on a snow

CAUTION

cates that the brake fluid pressure is being

covered road.

controlled properly.

If the SLIP indicator light comes on

and stays on while driving, there may

WARNING

be a malfunction of the ESP^® sys-

tems (other than ABS). You should

•

The ESP^® may not work properly if

have the systems inspected by an

engine related parts such as the

authorized SUZUKI dealer.

muffler are not equivalent to stan-

dard equipment or are extremely

NOTE:

deteriorated.

When the SLIP indicator light comes on

•

Do not modify the vehicle’s sus-

and stays on while driving, indicating a

pension since the ESP^® may not

malfunction of the ESP^® systems (other

operate correctly.

than ABS), the brake system will function

as an ordinary ABS with no additional

ESP^® functions.

3-32

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

NOTE:

“ESP” Warning Light

“ESP OFF” Indicator Light

When you disconnect and re-connect the

battery, ESP^® system functions other than

ABS will be deactivated and the slip indica-

tor light will blink 1 time per second. In this

case, use the following procedure to re-

activate the ESP^® systems:

1) Drive your vehicle straight ahead with-

out tire slippage at a speed greater than

66J031

66J032

approximately 15 km/h (9 mph) for a

When the ESP^® systems (other than ABS)

You should turn the ESP^® on during your

few seconds

have a system malfunction, the

“ESP”

ordinary driving, so that you have the ben-

2) The slip indicator light will go out and

warning light in the instrument cluster

efits of all of the ESP^® systems.

the ESP^® systems (other than ABS) will

comes on.

be re-activated

It may be required to turn the ESP^® sys-

It may take more than few seconds before

tems (other than ABS) off if your vehicle is

the slip indicator light goes out depending

CAUTION

stuck in sand, mud, or snow, or when driv-

on the road surface condition.

If the “ESP” warning light comes on,

ing in extreme off-road conditions where

or stays on while driving, there may

wheel spin is necessary.

be a malfunction of the ESP^® sys-

tems (other than ABS). You should

have the systems inspected by an

authorized SUZUKI dealer.

NOTE:

When the “ESP” warning light comes on,

or stays on while driving, indicating a mal-

function of the ESP^® systems (other than

ABS), the brake system will function as an

ordinary ABS that has no additional ESP^®

functions.

NOTE:

The information display shows the warning

and indicator message when this light

comes on.

3-33

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

“ESP OFF” switch

When the “ESP OFF” switch located at the

light will come on. After a short period of

(without hill descent control)

center of the instrument panel is pushed

time, the ESP^® systems

(other than

and held to turn off the ESP^® systems

ABS) will turn on automatically and the

(other than ABS), the “ESP OFF” indicator

“ESP OFF” indicator light will go out.

light in the instrument cluster comes on.

• If your vehicle is equipped with a hill

When you push and hold the “ESP OFF”

descent control system and a hill hold

switch again, the “ESP OFF” indicator light

control system, these systems will not be

will go out and all of the ESP^® systems will

turned off when the “ESP OFF” switch is

be activated.

pushed to turn off the ESP^® systems.

NOTE:

•

When the vehicle speed is greater than

approximately

30 km/h (19 mph), the

ESP^® systems (other than ABS) will turn

(1)

on automatically and the

“ESP OFF”

indicator light will go out.

78K045

•

When the transfer switch (if equipped) is

79K084

(1) “ESP OFF” switch

turned to the “4L LOCK” position, the

NOTE:

ESP^® systems (other than ABS) will be

(with hill descent control)

If you push the “ESP OFF” switch when the

canceled to provide improved vehicle

transfer switch is in the “4H” position, the

traction, and the

“ESP OFF” indicator

ESP^® systems will not be turned off, and

light will come on.

the message shown in the above illustra-

When the transfer switch (if equipped) is

tion will appear on the information display.

turned to the “4L LOCK” position, brake-

You should turn the transfer switch to the

traction control can be activated. Brake-

“4H LOCK” position to turn off the ESP^®

(1)

traction control brakes the spinning

systems. Refer to

“Using the Transfer

wheel to distribute drive power to the

Switch” in this section.

other wheels for increased climbing abil-

ity or for better performance on a rolling

ABS Warning Light / Brake System

hill or a slippery surface.

Warning Light

•

If the ESP^® systems operate continu-

See “Braking” in the “OPERATING YOUR

ously, such as when driving on slippery

VEHICLE” section.

roads, the traction control functions of

78K046

the ESP^® systems may be canceled

temporarily to avoid overheating the

(1) “ESP OFF” switch

brake pads, and the “ESP OFF” indicator

3-34

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Hill descent control System

Hill descent control switch

approximately 5 km/h (3 mph) when going

(if equipped)

down a hill.

The hill descent control system is designed

The brake/tail lights come on and the slip

to reduce the driver’s workload when going

indicator light blinks while the hill descent

down steep, rough and/or slippery hills

control system applies the brakes to main-

where the vehicle cannot decelerate

tain the vehicle speed.

enough by engine braking alone. The hill

If the accelerator or brake pedal is

descent control system helps to control

depressed while the hill descent control

vehicle speed by automatically engaging

system is activated, the system will stop

the vehicle’s brakes, as needed, so you

(1)

working temporarily. As soon as the accel-

can concentrate on steering the vehicle.

erator or brake pedal is released, the hill

descent control system begins to function

WARNING

again if the hill descent control operating

conditions are fulfilled. However, when the

Do not rely excessively on the hill

vehicle speed exceeds 25 km/h (15 mph),

descent control system. The hill

79K051

the hill descent control system will be

descent control system may not con-

deactivated automatically.

(1) Hill descent control switch

trol vehicle speed on a hill under all

load or road conditions. Always be

To deactivate the hill descent control sys-

prepared to control vehicle speed by

To activate the hill descent control system:

tem, push the hill descent control switch

1) Turn the transfer switch to the

“4H

again.

applying the brakes. Failure to pay

LOCK” or “4L LOCK” position.

attention and control vehicle speed

2) Shift the gearshift lever into a forward

using the brakes when necessary

gear or reverse gear.

may result in loss of control or an

3) Push the hill descent control switch (1)

accident.

when the vehicle speed is under 25 km/

h (15 mph). The hill descent control

indicator on the instrument cluster will

come on and the hill descent control

system will be activated.

If the transfer switch is in the “4H LOCK”

position, vehicle speed is maintained at

approximately

10 km/h

(6 mph) when

going down a hill.

If the transfer switch is in the “4L LOCK”

position, the vehicle speed is maintained at

3-35

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Hill descent control Indicator Light

NOTE:

CAUTION

If any of the following conditions occur,

there may be a problem with the hill

•

When the hill descent control sys-

descent control system or the ESP^® sys-

tem is used continuously for a long

tem. Have your vehicle inspected by an

time, the temperature of the brake

authorized SUZUKI dealer.

system may increase and the hill

• The hill descent control indicator does

descent control system may be

not come on or blink when you push the

deactivated temporarily to protect

79K050

hill descent control switch.

the device of the brake system. The

• The hill descent control indicator stays

hill descent control indicator blinks

When the ignition switch is turned to the

on when driving without pushing the hill

to let you know the system is deac-

“ON” position, this light comes on briefly so

descent control switch.

tivated. Depress the brake pedal

you can check that the light is working.

and stop the vehicle in a safe place.

When you push the hill descent control

When the temperature of the brake

switch and the hill descent control operat-

system goes down, the hill descent

ing conditions are fulfilled, the hill descent

control indicator will come on and

control indicator comes on. If the hill

the system is activated again.

descent control indicator blinks, the hill

•

The hill descent control system

descent control will not be activated.

may be activated when the gear-

79K072

shift lever is in the

“N” (Neutral)

NOTE:

position, but engine braking will

If the message shown in the above illustra-

If the hill descent control indicator blinks

not work. Always use the hill

tion appears on the information display,

when you push the hill descent control

descent control system with the

there may be a problem with the hill

switch, following conditions may not be ful-

gearshift lever in a forward gear or

descent control system and the hill hold

filled.

reverse gear.

control system. Have your vehicle

• The transfer switch is in the “4H LOCK”

inspected by an authorized SUZUKI

or “4L LOCK” position

NOTE:

dealer.

• The gearshift lever is in a forward gear

You may hear a sound coming from the

or reverse gear

engine when the hill descent control sys-

NOTE:

• The vehicle speed is under 25 km/h (15

tem is activated. This sound is normal and

You cannot activate the hill descent control

mph)

does not indicate a malfunction.

system while this message is displayed.

• The brake system is under normal oper-

ating temperature

3-36

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING YOUR VEHICLE

Tire Pressure Monitoring

Low Tire Pressure Warning Light

WARNING

System (TPMS) (if equipped)

(Continued)

The tire pressure monitoring system is

Accordingly, when the low tire pres-

designed to alert you when one or more of

sure telltale illuminates, you should

the tires on your vehicle is significantly

stop and check your tires as soon as

under-inflated. A Tire Pressure Monitoring

possible, and inflate them to the

System

(TPMS) sensor containing a

proper pressure.

unique identification code is mounted on

52D305

Driving on a significantly under-

each wheel. The TPMS sensors transmit

inflated tire causes the tire to over-

tire pressure signals to a central receiver

WARNING

heat and can lead to tire failure.

which relays the information to a tire pres-

Under-inflation also reduces fuel effi-

sure monitoring system controller. When

Each tire, including the spare (if pro-

ciency and tire tread life, and may

the inflation pressure of one or more tires

vided), should be checked monthly

affect the vehicle’s handling and

indicates significant under-inflation, the low

when cold and inflated to the inflation

stopping ability.

tire pressure warning light shown below

pressure recommended by the vehi-

Please note that the TPMS is not a

comes on.

cle manufacturer on the vehicle plac-

substitute for proper tire mainte-

ard or tire inflation pressure label. (If

nance, and it is the driver’s responsi-

NOTE:

your vehicle has tires of a different

bility

to maintain correct tire

The TPMS controller is not programmed to

size than the size indicated on the

pressure, even if under-inflation has

recognize the ID code of the TPMS sensor

vehicle placard or tire inflation pres-

not reached the level to trigger illumi-

in your spare tire. The tire pressure moni-

sure label, you should determine the

nation of the TPMS low tire pressure

toring system will only work with the spare

proper tire inflation pressure for

telltale.

tire if you bring your vehicle to an autho-

those tires.)

rized SUZUKI dealer to register the ID

As an added safety feature, your

code of the spare tire sensor. Refer to

vehicle has been equipped with a tire

“Replacing Tires and/or Wheels” in this

pressure monitoring system (TPMS)

section.

that illuminates a low tire pressure

telltale when one or more of your

tires is significantly under-inflated.

(Continued)

3-38

79K21-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content      ..     6      7      8      9     ..
