Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 536

10C-5 Immobilizer Control System: For Petrol Engine Model

Diagnostic Information and Procedures

Immobilizer Control System Check

S6JB0AA314001

Step

Action

Yes

No

1

Immobilizer indicator lamp ON check
1) Turn ignition switch to ON position using ignition key.

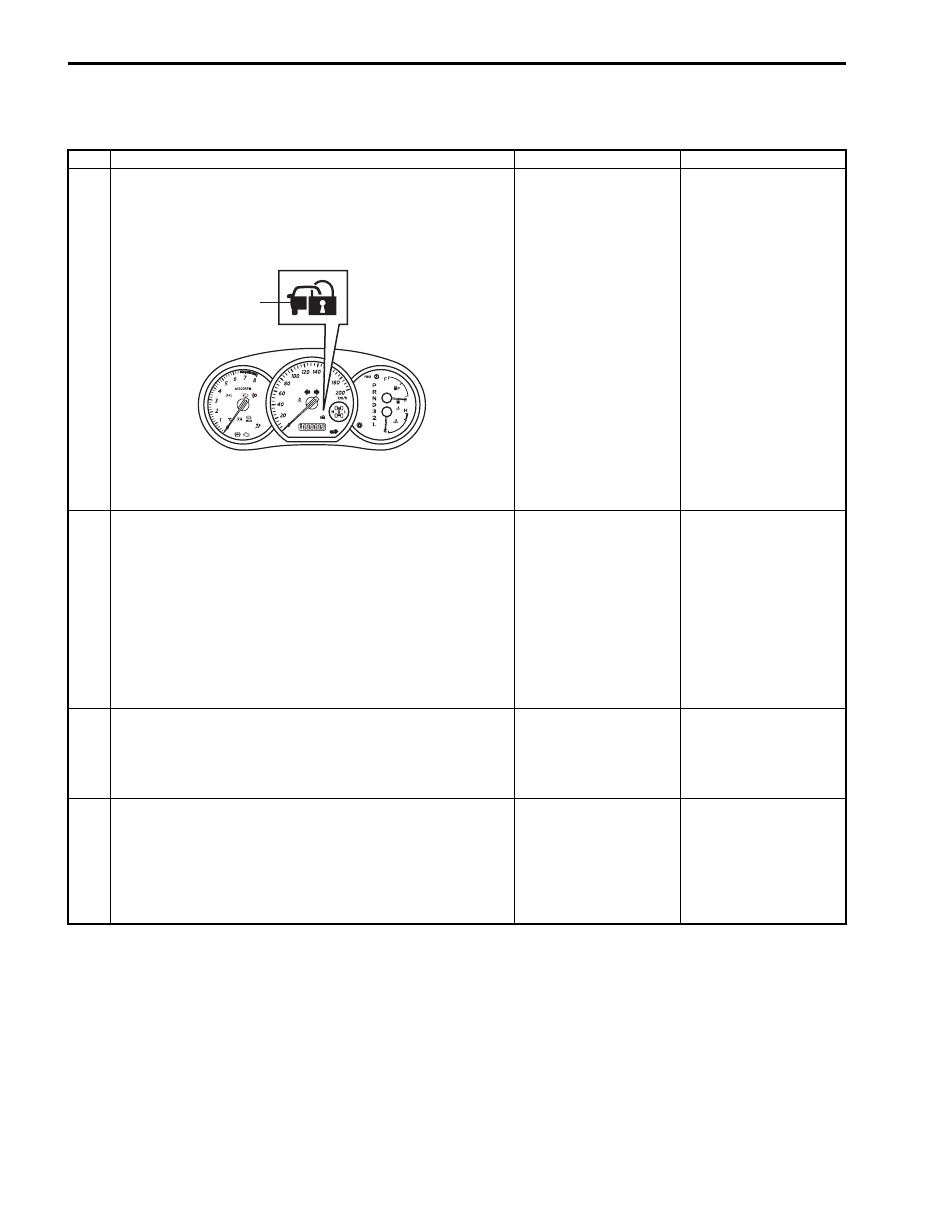

Does immobilizer indicator lamp (1) come on?

Go to Step 2.

Check if DTC P1636
and/or P1638 are
detected by ECM
referring to “Diagnostic
Trouble Code (DTC)
Check: For Petrol
Engine Model”. If
detected, perform the
troubleshooting
referring to the
corresponding flowchart
in this section. If not
detected, go to
“Immobilizer Indicator
Lamp Does Not Come
ON with Ignition Switch
ON and Engine Stop:
For Petrol Engine
Model”.

2

Immobilizer indicator lamp flash check

Does immobilizer indicator lamp flash on and off
continuously in Step 1?

Check what DTC is
detected by ECM
referring to “Diagnostic
Trouble Code (DTC)
Check: For Petrol
Engine Model”. Then,
perform the
troubleshooting
referring to the
corresponding flowchart
in this section.

Go to Step 3.

3

Engine start check
1) Start engine using ignition key.

Does engine start?

Go to Step 4.

Perform “Engine and
Emission Control
System Check: For
Petrol Engine Model in
Section 1A”.

4

Immobilizer indicator lamp remain ON check
1) Check if immobilizer indicator lamp remains ON after

engine start.

Does immobilizer indicator lamp remain ON after engine
start?

Go to “Immobilizer
Indicator Lamp
Remains ON after
Engine Start: For Petrol
Engine Model”.

Immobilizer control
system is in good
condition. Then, go to
“Keyless Start System
Check in Section 10E”
for the vehicle with
keyless start system.

1

I5JB0AA30004-01

Immobilizer Control System: For Petrol Engine Model 10C-6

Diagnostic Trouble Code (DTC) Check

S6JB0AA314002

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position.

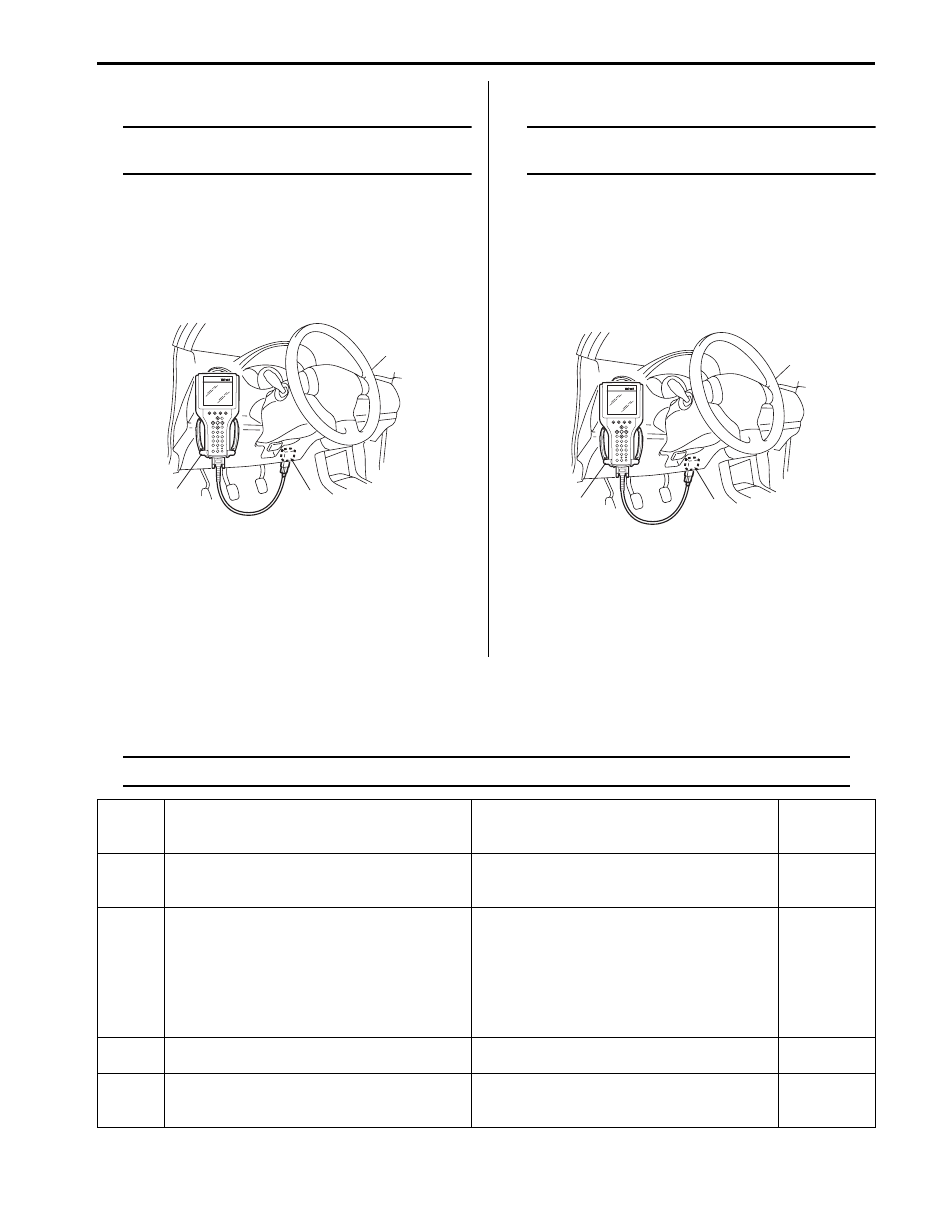

2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

3) Turn the ignition switch to ON position.
4) Check if any DTC is stored in ECM according to the

instructions displayed on SUZUKI scan tool.

5) After completing the check, turn ignition switch to

OFF position, and then disconnect SUZUKI scan
tool from DLC.

Diagnostic Trouble Code (DTC) Clearance

S6JB0AA314003

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position,
2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

1) Turn the ignition switch to ON position.
2) Clear DTC(s) according to the instructions displayed

on SUZUKI scan tool.

3) After completing the clearance, turn the ignition

switch to OFF position, and then disconnect SUZUKI
scan tool from DLC.

Diagnostic Trouble Code (DTC) Table

S6JB0AA314004

ECM

NOTE
ECM detects diagnostic trouble code (DTC). Immobilizer control module (ICM) does not.



(A)

1

I4RS0BA30003-03

(A)

1

I4RS0BA30003-03

DTC No.

Detecting Item

Detecting Condition

Immobilizer

Indicator

Lamp

P1614 Transponder response error

Transponder code in the transponder built in
the ignition key cannot be read through
immobilizer control module (ICM).

Flash

P1615

Steering lock unit communication error (for
vehicle with keyless start system)

• While registering the transponder code in

the transponder built in the ignition key in
ECM, the keyless start control module sent
a signal to ECM indicating that the ID code
could not be registered.

• The ID code could not be registered in the

keyless start control module or ECM.

Flash

P1616

Unregistered keyless start control module (for
vehicle with keyless start system)

ECM detects different ID codes registered in
ECM and keyless start system.

Flash

P1618

Keyless start control module CAN
communication error (for vehicle with keyless
start system)

Reception error of communication data for
keyless start control module is detected for
longer than specified time continuously.

Flash

10C-7 Immobilizer Control System: For Petrol Engine Model

NOTE
If any DTC other than the above DTCs is detected, refer to “DTC Table: For Petrol Engine Model in
Section 1A”.



Scan Tool Data

S6JB0AA314005

The data listed below is the standard data obtained from the normal vehicle by using SUZUKI scan tool. Those are
output from ECM. Use them as reference.

Scan Tool Data Definitions
NUMBER OF LEARNT KEY
0 – 4 PCS:  The number of the transponder code in the transponder built in the ignition key that is registered with ECM

NOTE
A maximum of four transponder codes can be registered with ECM. Therefore, the maximal value
should be 4.



INPUT YEAR
20**:  The year in which the transponder code in the transponder built in the ignition key is registered with ECM

INPUT MONTH
1 – 12:  The month in which the transponder code in the transponder built in the ignition key is registered with ECM

P1621 Immobilizer communication line error

Communication error between immobilizer
control module (ICM) and ECM is detected by
ECM.

Flash

P1622 EEPROM read/write error

EEPROM in ECM is corrupted.

Flash

P1623 Unregistered transponder

Transponder code in the transponder built in
the ignition key is invalid.

Flash

P1625 Immobilizer antenna error

Immobilizer control module (ICM) is faulty.

Flash

P1636 Immobilizer information registration failure

Communication error between ECM and
BCM is detected by ECM.

No operation

P1638 Immobilizer information mismatched

• Communication error between ECM and

BCM is detected by ECM.

• Wrong ECM or BCM is used.

No operation

DTC No.

Detecting Item

Detecting Condition

Immobilizer

Indicator

Lamp

Scan Tool Data

Vehicle Condition

Normal Data

NUMBER OF LEARNT KEY

Ignition switch at ON position

0 – 4

INPUT YEAR

Ignition switch at ON position

2004 or later

INPUT MONTH

Ignition switch at ON position

1 – 12

Immobilizer Control System: For Petrol Engine Model 10C-8

Immobilizer Indicator Lamp Does Not Come ON with Ignition Switch ON and Engine Stop

S6JB0AA314006

Wiring Diagram
Refer to “Immobilizer Control System Wiring Circuit Diagram: For Petrol Engine Model”.

Circuit Description
When the ignition switch is turned ON, ECM transmits the indication ON signal to the combination meter to turn ON the
immobilizer indicator lamp in case that there is not any problem with the immobilizer control system. Then, the
combination meter turns ON the lamp. When the engine is started up, ECM transmits the indication OFF signal to the
combination meter to turn OFF the lamp. Then, the combination meter turns OFF the immobilizer indicator lamp.
However, in case that there is some trouble with the immobilizer control system, the immobilizer indicator lamp flashes
ON and OFF when the ignition switch is turned ON.

Troubleshooting

Step

Action

Yes

No

1

Immobilizer indicator lamp power supply check
1) Turn the ignition switch to ON position.

Do other warning lights come ON?

Go to Step 2.

Go to Step 3.

2

Diagnostic Trouble Code (DTC) check
1) Check if DTC P1674, P1675, P1678 and/or P1685 are

detected by ECM referring to “Diagnostic Trouble Code
(DTC) Check: For Petrol Engine Model”.

Is any of them detected?

Perform the
troubleshooting
referring to the
corresponding flowchart
in Section 1A.

Replace combination
meter with a known-
good one and recheck.
If the immobilizer
indicator lamp still
remains OFF, replace
ECM with a known-good
one and recheck.

3

Fuse check
1) Turn the ignition switch to OFF position.
2) Check if any related fuse is blown.

Is any fuse blown?

Replace blown fuse,
and then check for
short.

Go to Step 4.

4

Combination meter power supply wire circuit check
1) Remove combination meter referring to “Combination

Meter Removal and Installation in Section 9C”.

2) Check for proper connection at “G28-13” and “G28-15”

wire terminals of combination meter connector.

3) If OK, turn the ignition switch to ON position and

measure voltage between “G28-13” wire terminal of
combination meter and vehicle body ground.

Is it 10 – 14 V?

Go to Step 5.

Repair open in power
supply wire circuit.

5

Combination meter ground wire circuit check
1) Turn ignition switch OFF position.
2) Measure resistance between “G28-15” terminal of

combination meter connector and vehicle body ground.

Is resistance 1

Ω

 or less?

Replace combination
meter with a know-good
one and recheck. If the
immobilizer indicator
lamp still remains OFF,
replace ECM with a
known-good one and
recheck.

Repair open or high
resistance in ground
wire circuit.
