10B-13 Body Electrical Control System:

DTC Table

S6JB0BA204004

DTC

(displayed on

SUZUKI scan

tool)

DTC (indicated

by theft

deterrent light)

DTC (displayed on

odometer in

combination meter)

Detected item

Detecting condition

NO DTC

0000

—

No DTC detected

)

B1133

1133

b1133

Battery voltage too high

)

B1141

1141

b1141

Outside air temperature
(ambient temperature)
sensor circuit open

Sensor output voltage too
high

)

B1142

1142

b1142

Outside air temperature
(ambient temperature)
sensor circuit short to
ground

Sensor output voltage too
low

)

B1150

1150

b1150

Air bag communication
circuit malfunction

Air bag communication
circuit open or short to
ground

)

B1157

1157

b1157

Air bag deployment signal
input

Air bag deployment signal
inputted

)

B1170

1170

b1170

EEPROM access error

Memory error

)

U0155

0155

U0155

Lost communication with
instrument panel cluster
(IPC) control module

Receiving error of BCM from
combination meter for
specified time continuously

)

U1073

1073

U1073

Control module
communication bus off

Transmitting and receiving
error of BCM for specified
time continuously

)

U1100

1100

U1100

Lost communication with
ECM

Receiving error of BCM from
ECM for specified time
continuously

)

U1101

1101

U1101

Lost communication with
TCM

Receiving error of BCM from
TCM for specified time
continuously

)

U1144

1144

U1144

Lost communication with
keyless start control module

Receiving error of BCM from
keyless start control module
for specified time
continuously

Body Electrical Control System: 10B-14

DTC Check

S6JB0BA204005

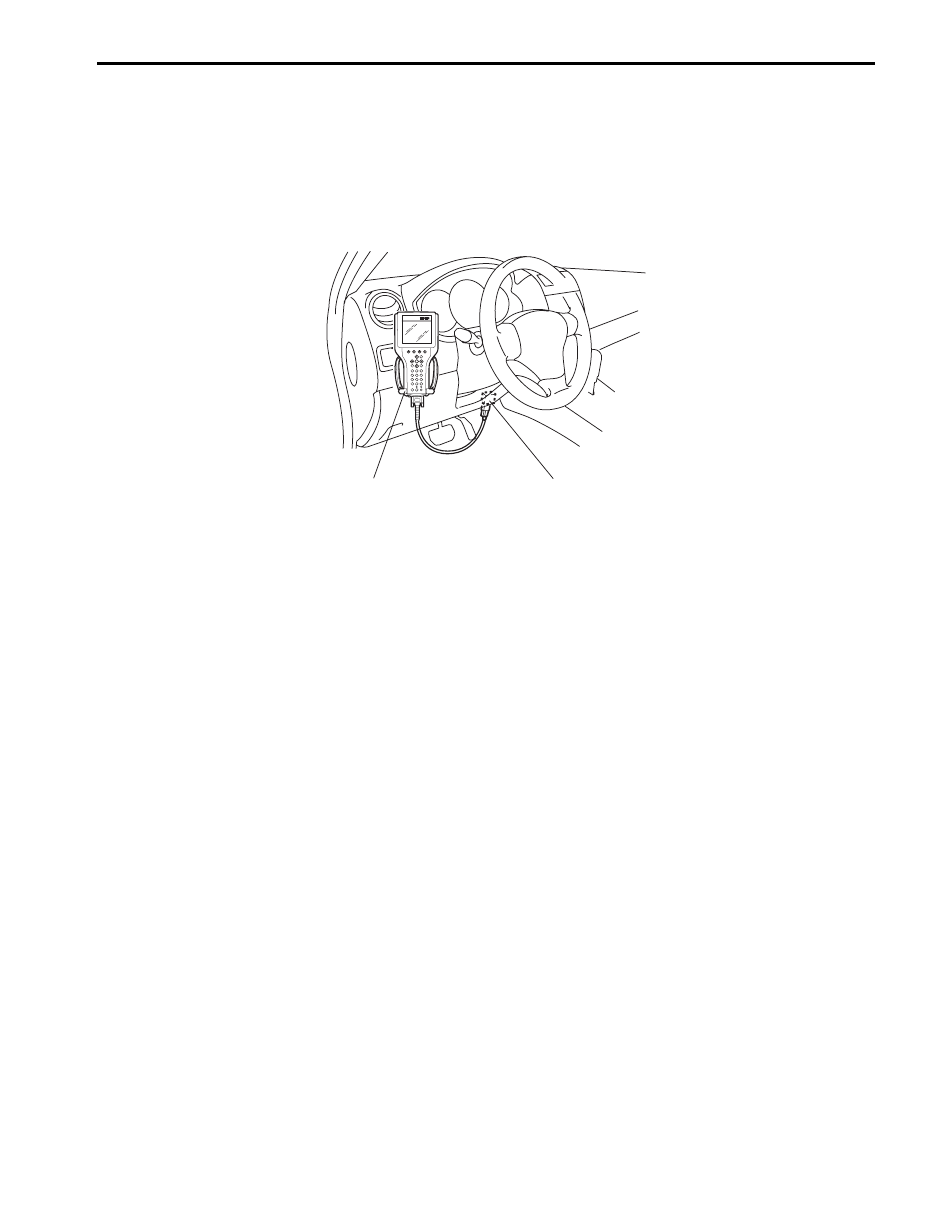

Using SUZUKI Scan Tool

1) Prepare SUZUKI scan tool.
2) With ignition switch turned OFF, connect it to data link connector (DLC) located on underside of instrument panel

of driver’s side.

Special tool
(A): SUZUKI scan tool

3) Turn ignition switch ON.
4) Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down.

Refer to SUZUKI scan tool operator’s manual for further details.
If communication between SUZUKI scan tool and BCM is not possible, check if SUZUKI scan tool is
communicable by connecting it to BCM in another vehicle. If communication is possible in this case, SUZUKI scan
tool is in good condition. Then check data link connector and serial data line (circuit) in the vehicle with which
communication was not possible.

5) After completing the check, turn ignition switch off and disconnect SUZUKI scan tool from data link connector.

Without Using SUZUKI Scan Tool

1) Turn ignition switch to OFF position.
2) Perform following Steps a) to d) within 10 seconds after ignition switch is turned ON and engine stops.

a) Turn lighting switch to “CLEARANCE” position.
b) Turn lighting switch to “OFF” position.
c) Repeat Steps a) and b) 2 times.
d) Press and release driver side door switch 3 times.

(A)

I5JB0AA20005-02

10B-15 Body Electrical Control System:

3) Check DTC displayed on odometer of combination meter or read flashing pattern of theft deterrent light which

represents DTC as shown in the following example and write it down.
When more than 2 DTCs are stored in memory, flashing for each DTC starts with the smallest DTC number in
increasing order. Also, DTC is indicated repeatedly until the ignition switch is turned OFF.

4) After completing the check, turn ignition switch to OFF position.

DTC Clearance

S6JB0BA204006

After repair or replace of malfunction part(s), clear all DTCs by performing the following procedure.

Using SUZUKI Scan Tool

1) Connect SUZUKI scan tool to data link connector in the same manner as when making this connection for DTC

check.

2) Turn ignition switch ON and engine stops.
3) Erase DTC according to instructions displayed on scan tool. Refer to scan tool operator’s manual for further

details.

4) After completing the clearance, turn ignition switch off and disconnect scan tool from data link connector.

Without Using SUZUKI Scan Tool

1) Turn ignition switch to OFF position.
2) Perform following Steps a) to d) within 10 seconds after ignition switch is turned ON and engine stops.

a) Turn lighting switch to “CLEARANCE” position.
b) Turn lighting switch to “OFF” position.
c) Repeat Steps a) and b) 3 times.
d) Press and release driver side door switch 4 times.

3) After completing above Steps, confirm that no malfunction DTC is detected.

[B]

[A]

[C]

I5JB0AA20011-01

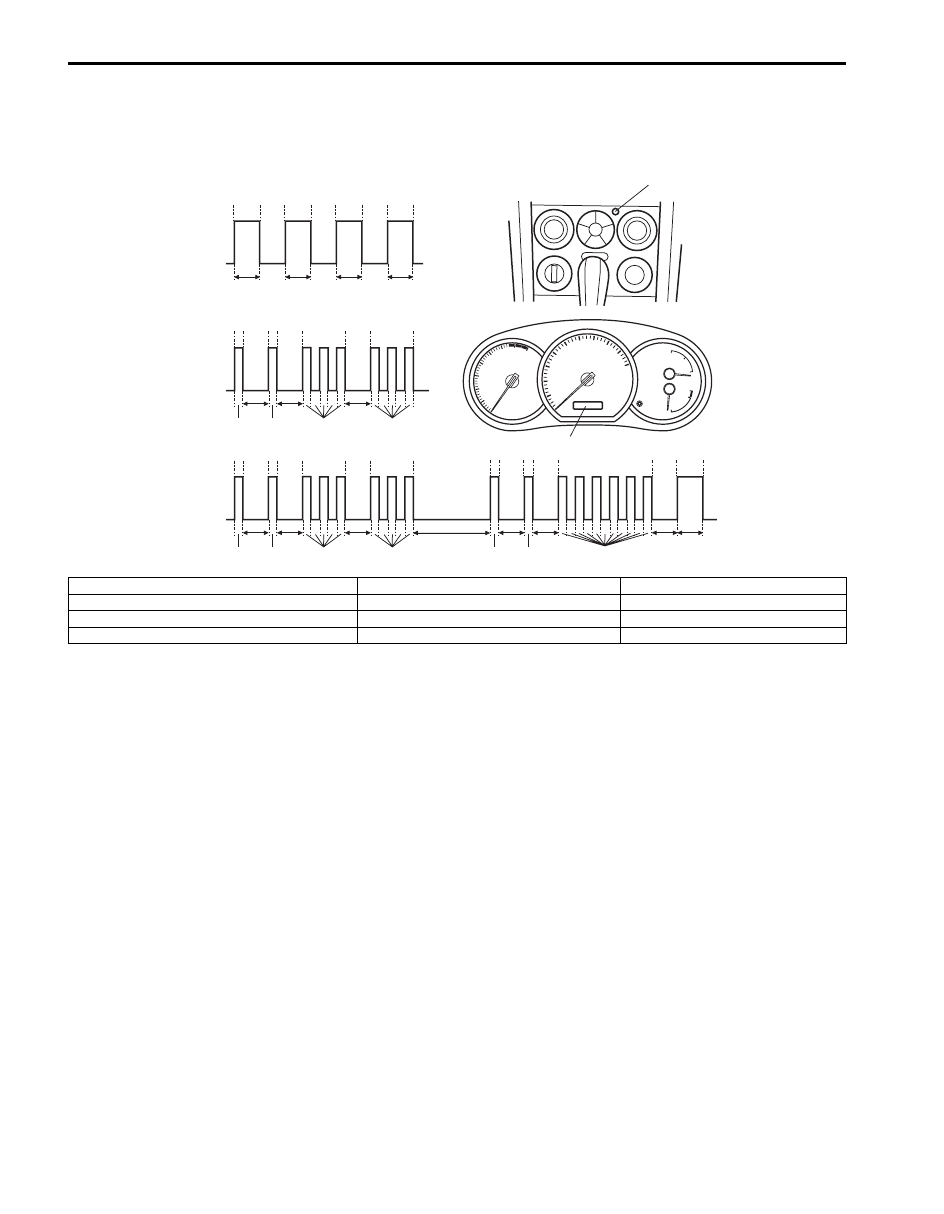

[A]: No DTC (No. 0000)

B: Indicator light turned OFF

1. Theft deterrent light

[B]: DTC B1133 (No. 1133)

T1: 0.3 seconds

2. Odometer

[C]: When 2 DTCs are detected

T2: 1.0 seconds

A: Indicator light turned ON

T3: 3.0 seconds

Body Electrical Control System: 10B-16

BCM Power Circuit and Ground Circuit Check

S6JB0BA204007

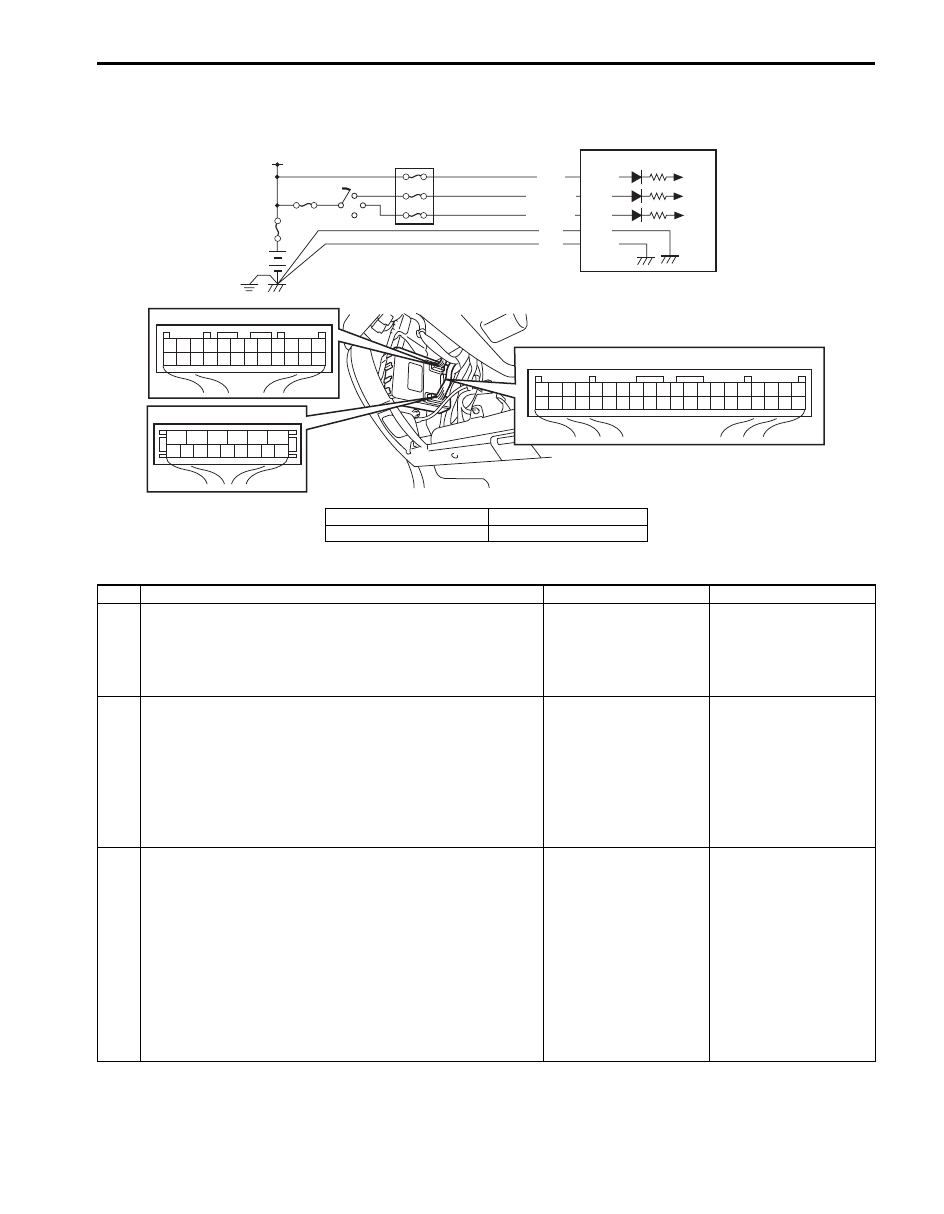

Wiring Diagram

Troubleshooting

G32

G30

G31

BLK
BLK

G32-1
G30-12

G32-13

WHT

WHT/BLK G30-2

PPL/RED G30-1

I7JB01A20008-01

1. BCM

3. Battery

2. Ignition switch

4. Junction block

Step

Action

Yes

Fuse check
1) Turn ignition switch to OFF position.
2) Check circuit fuses for condition.

Are circuit fuses in good condition?

Go to Step 2.

Replace fuse and check
for short circuit to
ground.

Power supply circuit check
1) Disconnect connectors from BCM.
2) Check for proper connection to BCM connector at

terminal “G32-13”.

3) If OK, then measure voltage between “G32-13” terminal

of BCM and vehicle body ground.

Is voltage 10 – 14 V?

Go to Step 3.

Repair power supply
circuit.

Power supply circuit check
1) Check for proper connection to BCM connector at

terminals “G30-1” and “G30-2”.

2) If OK, turn ignition switch ON.
3) Measure voltage between following terminals.

• Between “G30-1” terminal of BCM connector and

vehicle body ground

• Between “G30-2” terminal of BCM connector and

vehicle body ground

Is each voltage 10 – 14 V?

Go to Step 4.

Repair power supply
circuit.
