9C-21 Instrumentation / Driver Info. / Horn:

Installation
Reverse removal procedure noting the following.
• When installing each part, be careful not to catch any

cable or wiring harness.

• Tighten instrument panel mounting bolts to specified

torque

Tightening torque
Instrument panel mounting bolt (a):  23 N·m (2.3
kgf-m, 17.0 lb-ft)

• Tighten steering column mounting nuts referring to

“Steering Column Assembly Removal and Installation
in Section 6B”.

• Enable air bag system referring to “Enabling Air Bag

System in Section 8B”.

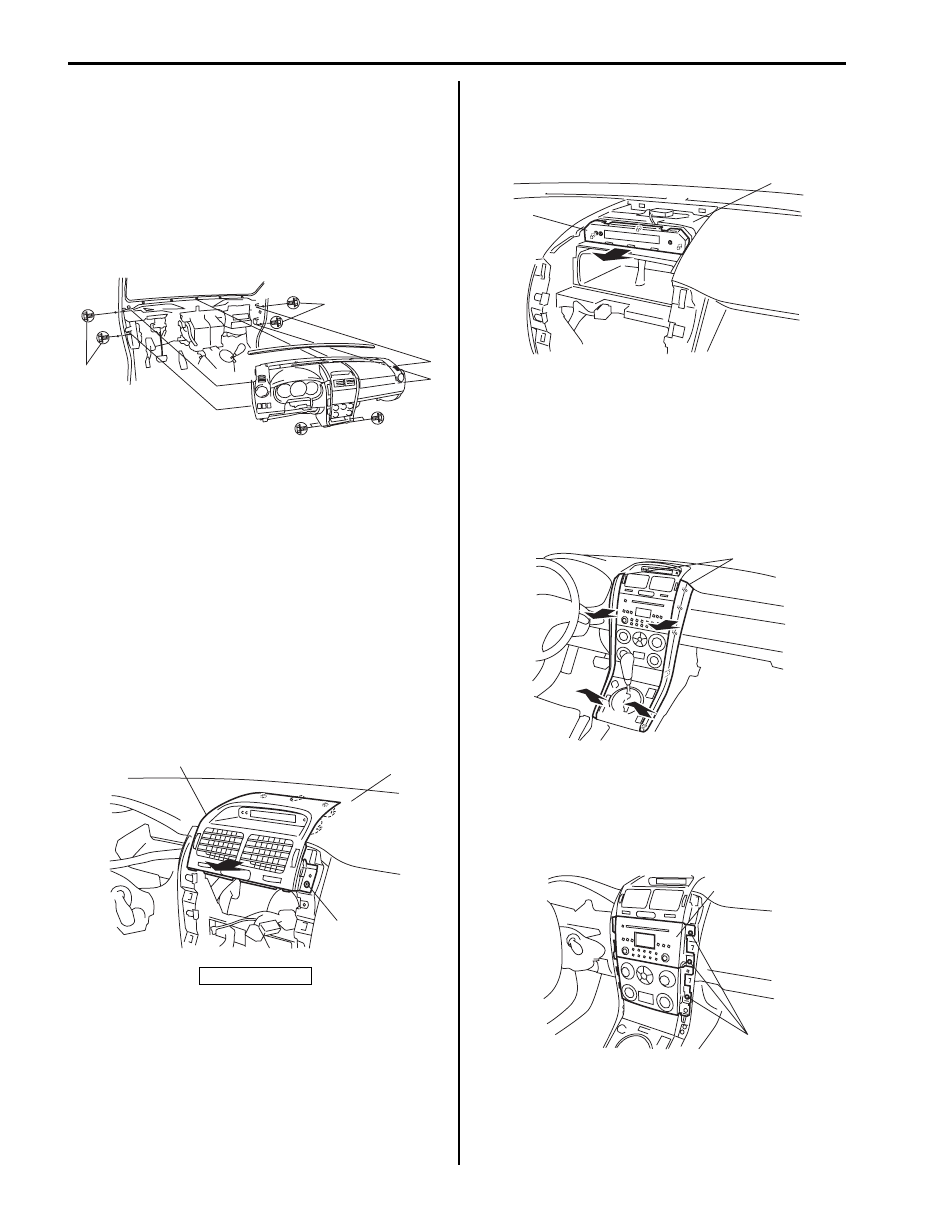

Information Display (Clock) Removal and
Installation

S6JB0B9306015

Removal

1) Remove audio unit referring to “Audio Unit Removal

and Installation”.

2) Remove center ventilation louver (1) from instrument

panel (2) pulling it arrow direction as shown.

3) Disconnect hazard switch connector.

4) Remove information display (clock) (1) from

instrument panel (2) pulling it in arrow direction
shown in figure.

5) Disconnect information display (clock) coupler.

Installation
Reverse removal procedure.

Audio Unit Removal and Installation

S6JB0B9306016

Removal

1) Disconnect negative (–) cable at battery.
2) Remove instrument panel center garnish trims (1).

3) Remove 6 mounting screws (1).
4) Disconnect electrical connectors from audio unit and

HVAC control module.

5) Remove audio unit (2) with HVAC control module

from instrument panel.

6) Remove audio unit from HVAC control module.

Installation
Reverse removal procedure.

3. screw

(a)

(a)

I5JB0A930015-01

1

2

3

I5JB0A930016-01

1

2

I5JB0A930017-01

1

I5JB0A930018-03

2

1

I5JB0A930019-04

Instrumentation / Driver Info. / Horn:  9C-22

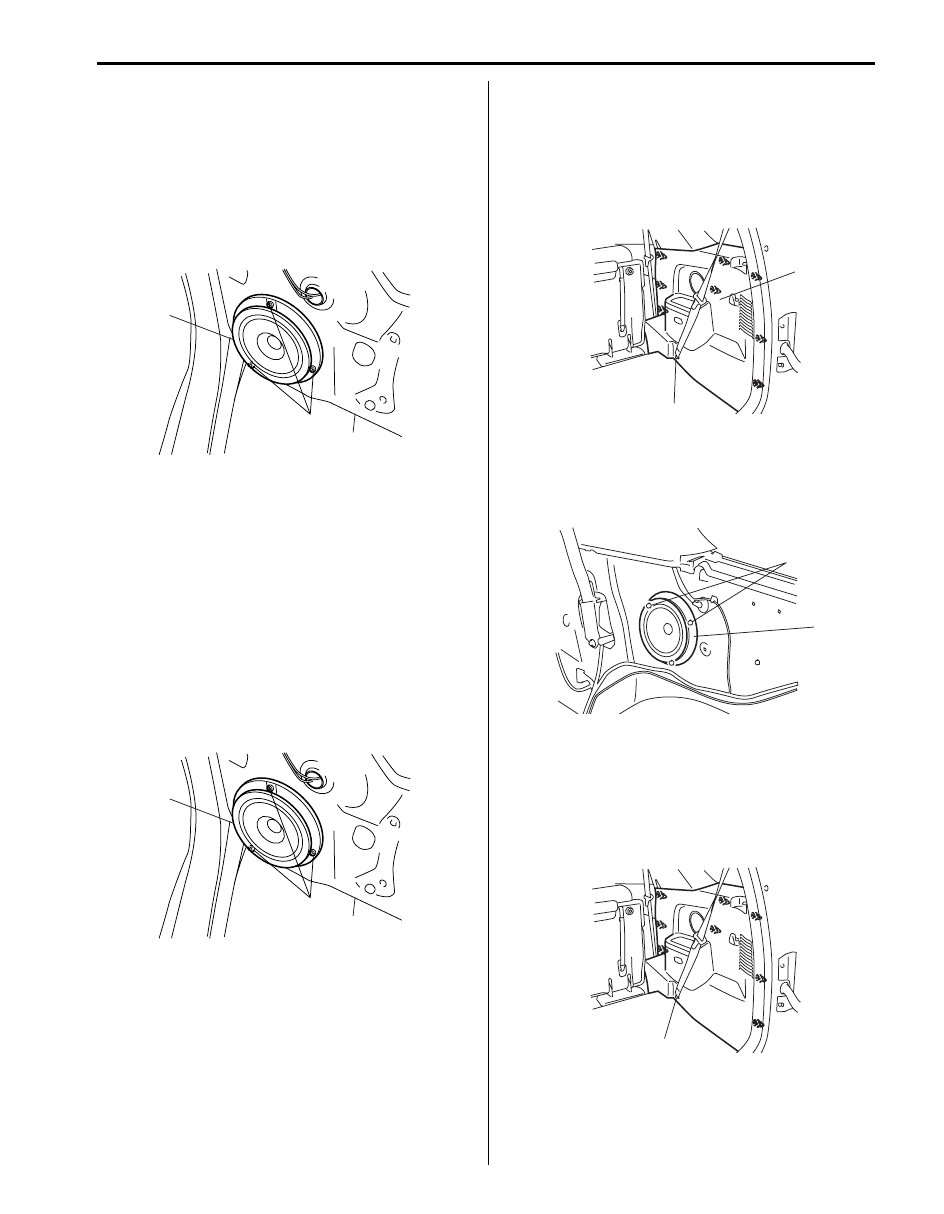

Front Speaker Removal and Installation

S6JB0B9306017

Removal

1) Remove door trim referring to Step 1) to 3) of “Front

Door Glass Removal and Installation in Section 9E”.

2) Remove 3 front speaker mounting screws (1).
3) Remove front speaker (2) from front door (3).
4) Disconnect front speaker coupler from front speaker

(2).

Installation
Reverse removal procedure.

Rear Speaker Removal and Installation (5 Door
Model)

S6JB0B9306018

Removal

1) Remove door trim referring to Step 1) to 3) of “Rear

Door Glass Removal and Installation in Section 9E”.

2) Remove 3 rear speaker mounting screws (1).
3) Remove rear speaker (2) from rear door (3).
4) Disconnect rear speaker coupler from rear speaker

(2).

Installation
Reverse removal procedure.

Rear Speaker Removal and Installation (3 Door
Model)

S6JB0B9306019

Removal

1) Remove right and left lower anchor bolts (2) from

body panel.

2) Remove quarter lower trim (1).

3) Remove 3 rear speaker mounting screws (1) and

rear speaker (2) from quarter panel.

4) Disconnect rear speaker coupler from rear speaker

(2).

Installation
Reverse removal procedure noting the following.
• Tighten lower anchor bolts to specified torque.

Tightening torque
Lower anchor bolt (a):  35 N·m (3.5 kgf-m, 25.5 lb-ft)

1

2

3

I4RS0A930027-01

1

2

3

I4RS0A930027-01

1

2

I5JB0A930020-02

2

1

I5JB0A930021-02

(a)

I5JB0A930022-02

9C-23 Instrumentation / Driver Info. / Horn:

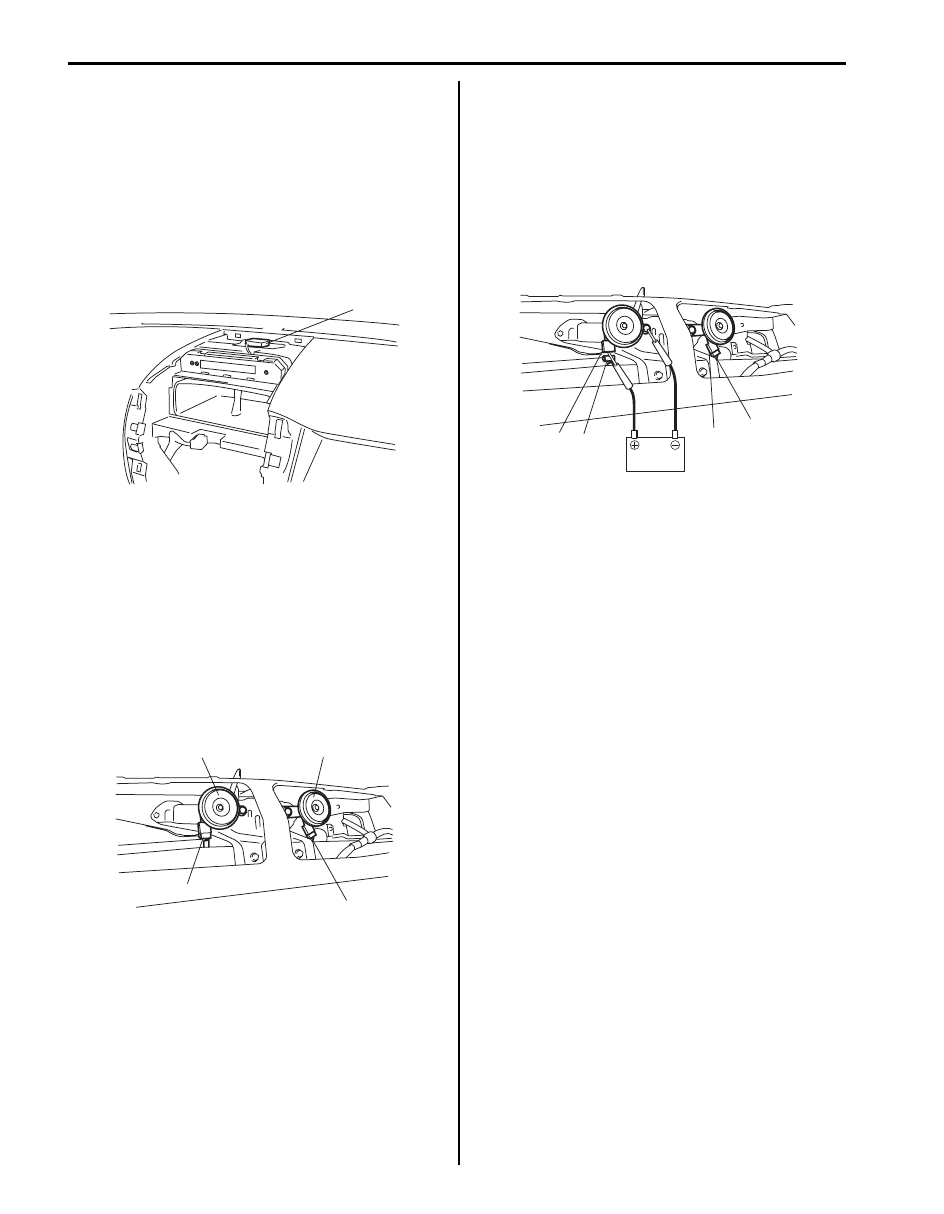

GPS Antenna Removal and Installation (If
Equipped)

S6JB0B9306020

Removal

1) Remove center ventilation louver referring to step 1)

and 2) of “Information Display (Clock) Removal and
Installation”.

2) Disconnect GPS antenna connector from navigation

unit referring to “Audio Unit Removal and
Installation”.

3) Remove GPS antenna (1).

Installation
Reverse removal procedure.

Horn Removal and Installation

S6JB0B9306021

Removal

1) Disconnect negative (–) cable at battery.
2) Remove front bumper referring to “Front Bumper

Components in Section 9K”.

3) Disconnect horn connector (1).
4) Remove horn (2).

Installation
Reverse removal procedure for installation.

Horn Inspection

S6JB0B9306022

1) Disconnect negative (–) cable at battery.
2) Remove front bumper referring to “Front Bumper

Components in Section 9K”.

3) Disconnect horn connector (1).
4) Connect battery positive (+) to terminal of horn

connector (2) and negative (–) terminal to body
ground.
If horn is not sounding, replace horn.

1

I5JB0A930023-01

1

2

2

1

I5JB0A930029-01

1

2

2

1

I5JB0A930024-01

Instrumentation / Driver Info. / Horn:  9C-24

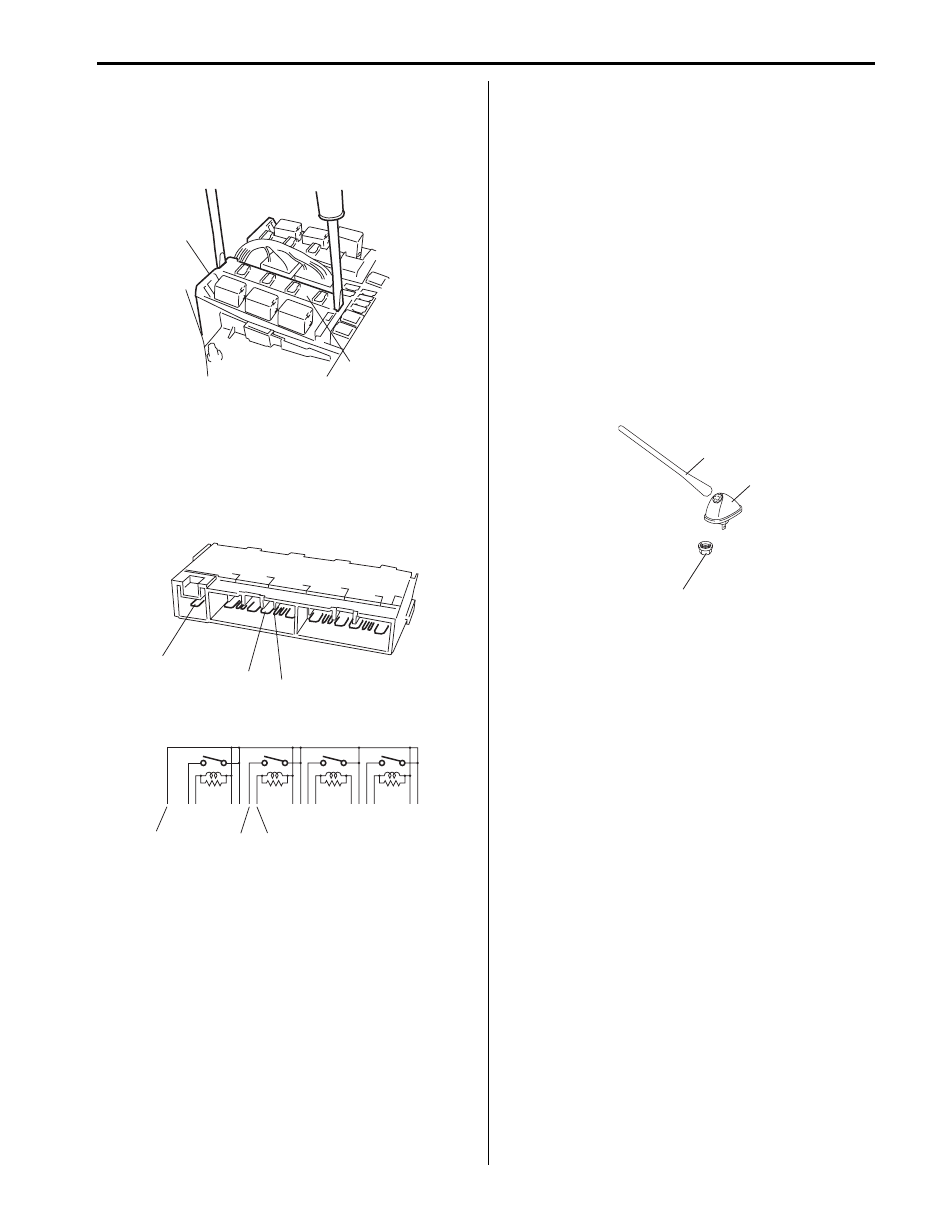

Horn Relay Inspection

S6JB0B9306023

1) Disconnect negative (–) cable at battery.
2) Remove horn relay (included in integration relay) (1)

from main fuse box (2).

3) Check that there is no continuity between terminal

“a” and “b”.
If there is continuity, replace relay.

4) Check that there is continuity between terminals “a”

and “b” when a 12 V battery is connected to terminal
“a” and “c”.
If malfunction is found, replace integration relay.

Antenna Base Removal and Installation

S6JB0B9306024

Removal

1) Remove antenna (1) from antenna base (2).
2) Remove head lining referring to “Head Lining

Removal and Installation in Section 9H”.

3) Disconnect antenna feeder (3) from antenna base

(2).

4) Remove antenna base (2) from vehicle.

Installation
Reverse removal procedure noting the following.
• Tighten antenna base mounting nut to specified

torque.

Tightening torque
Antenna base mounting nut (a):  10 N·m (1.0 kgf-
m, 7.5 lb-ft)

2

1

I5JB0A950031-01

“b”

“c”

“a”

“b”

“c”

“a”

I5JB0A930025-03

(a)

1

2

I4RH01930009-01
