9A-66 Wiring Systems:

Fuse Box No.3 (In J/B)

S6JB0B910D005

49

51

50

48 47 46 45 44 43 42 41 40 39

38 37 36 35 34 33 32 31 30 29

USE THE DESIGNATED

FUSES AND RELAYS ONLY

Tail light relay

"D-2"

ACC relay

"G-2"

Shift lock relay

"A-6"

I5JB0A910926-02

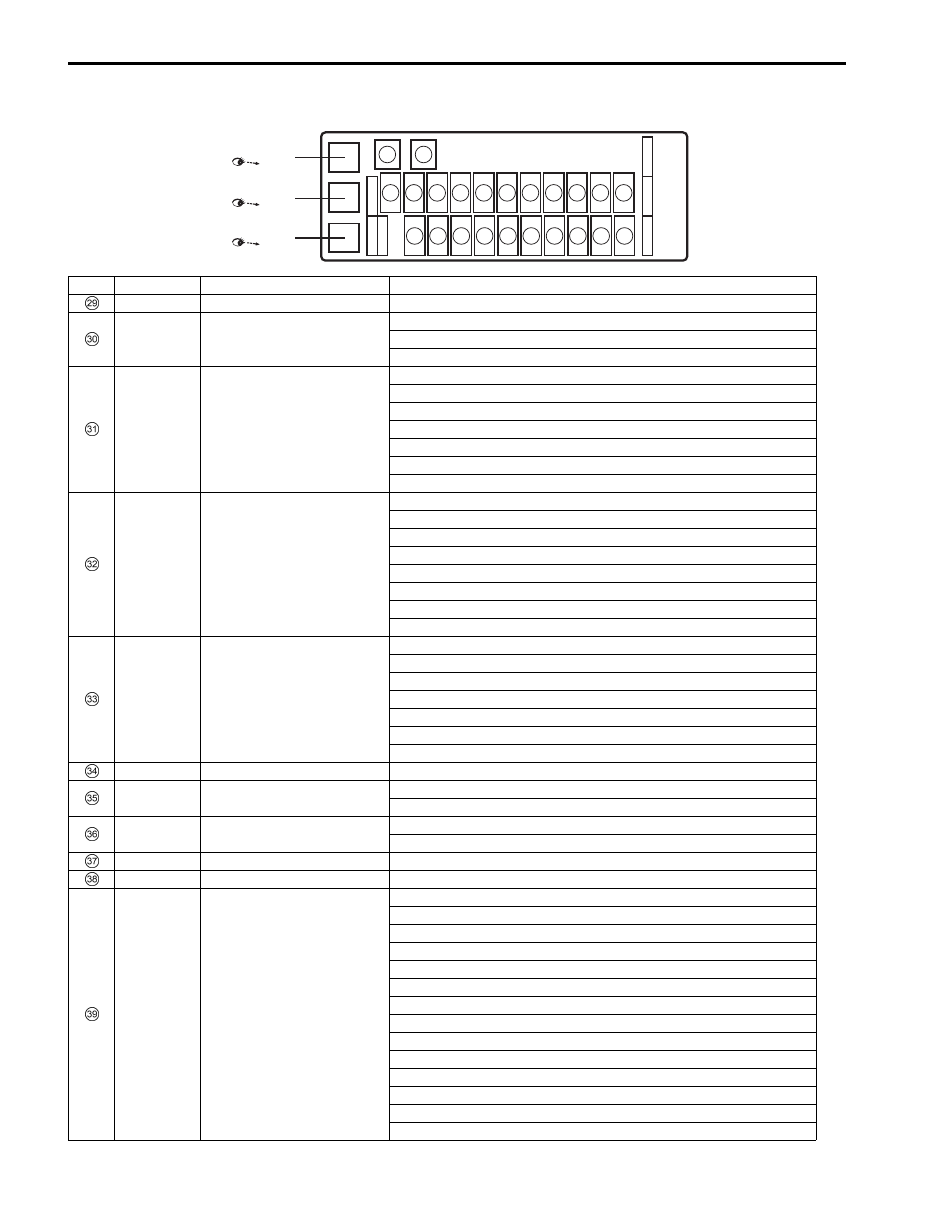

No.

Fuse

Description on the cover

Protected circuit

15 A

A/B

A/B SDM

10 A

ABS/ESP

®

ABS control module
ESP

®

 control module

Steering angle sensor

10 A

BACK

KLS ECM
Back-up light switch
Transmission range sensor
Headlight beam leveling switch
Headlight beam leveling actuator (L)
Headlight beam leveling actuator (R)
Auto leveling control module

15 A

IG2 SIG

Radiator fan relay #1
Radiator fan relay #2
Radiator fan relay #3
A/C compressor relay
Seat heater switch (Driver side)
Seat heater switch (Passenger side)
Sliding roof unit
Heater motor relay

20 A

WIP

COMB switch
Windshield washer motor
Windshield wiper motor
Rear washer motor
Rear wiper motor
Rear wiper relay
HLC control module

15 A

ACC2

Cigar lighter (ACC Socket #3)

10 A

CRUISE

Brake light switch
Steering switch

15 A

ACC3

ACC socket #1
ACC socket #2

7.5 A/15 A

RR FOG/RADIO

COMB switch (Rear fog light)

15 A

STOP

Brake light switch

20 A

IG COIL

Generator
IG coil #1
IG coil #2
IG coil #3
IG coil #4
IG coil #5
IG coil #6
Noise filter
ECM
Fuel pump relay
Heated oxygen relay
A/T relay
ICM
4WD control module

Wiring Systems:  9A-67

10 A

METER

BCM
COMB meter
Turn signal relay
Auto A/C unit

15 A

ACC

ACC relay
BCM
Power mirror switch
KLS ECM
Audio
Multi information display
Sub woofer relay

20 A

D/L

BCM

10 A

TAIL

Tail light relay

15 A

DOME

Audio
Auto A/C unit
ECM
DLC
TCM
BCM
Main switch
KLS ECM
Multi information display
COMB meter
Interior light
Rear interior light
Console light
Luggage compartment light
Curtain light (Driver side)
Curtain light (Passenger side)
Steering angle sensor

25 A

S/R

Sliding roof unit

20 A

RR BLW

BLANK

7.5 A

ST SIG

Starting motor relay

15 A

HAZ

Turn signal relay

7.5 A

VANITY

Vanity light (Driver side)
Vanity light (passenger side)

30 A

P/W

Front power window main switch
Front power window sub switch
Rear power window sub switch (R)
Rear power window sub switch (L)

20 A

P/W T

BLANK

No.

Fuse

Description on the cover

Protected circuit

9A-68 Wiring Systems:

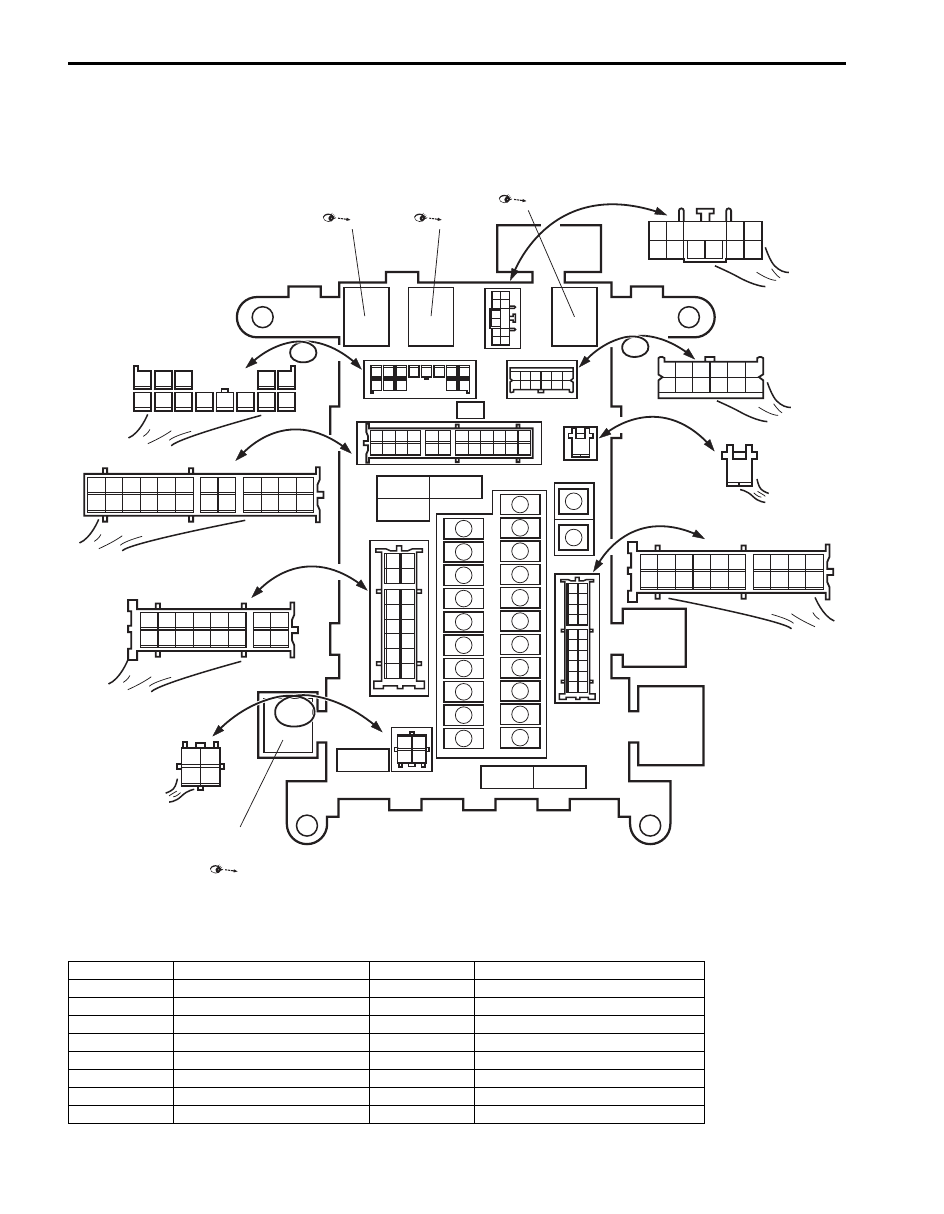

Junction Block (J/B) Connector / Fuse Layout

S6JB0B910D006

Fuse side

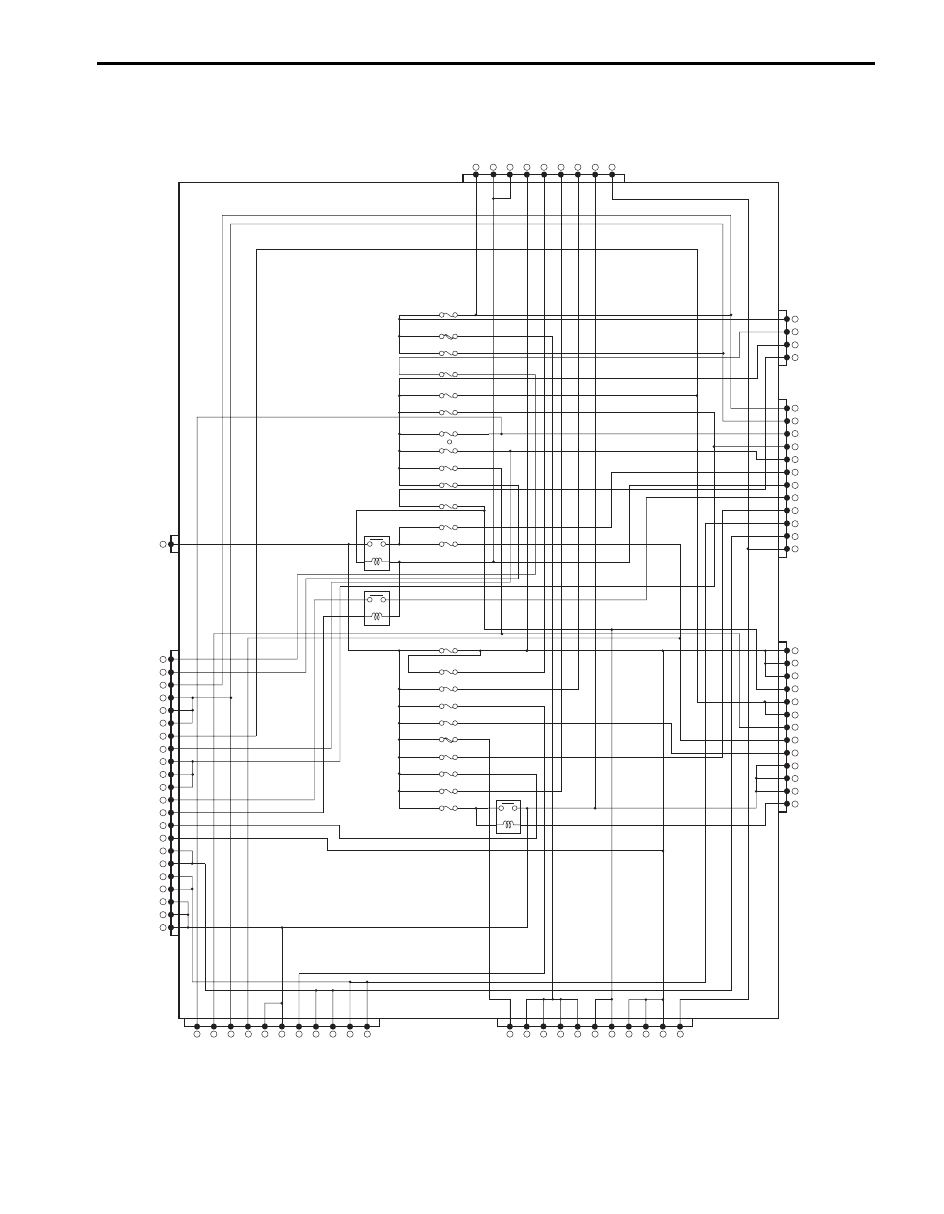

Junction Block Inner Circuit (Overview)

S6JB0B910D007

Abbreviations

1

1

1 2 3 4 5 6

11 12 13 14 15 16

7 8

17 18

9 10

19 20

1

2

3

4

5

6

11

12

13

14

15

16

7

8

17

18

9

10

19

20

2

1

8

3
9

4

10

5

11

6

12

7

2

1

8

3

9

4

10

5

11

6

12

7

2

1

3

4

2

1

3

4

1 2 3 4 5 6

9 10 11 12 13 14

7 8

15 16

1

2

3

4

5

6

9

10

11

12

13

14

7

8

15

16

1

5

2

3

6

7

4

12 13

8

9 10 11

1

5

2

3

6

7

4

12 13

8

9 10 11

1 2 3 4 5 6

13 14 15 16 17 18

9 10 11 12

21 22 23 24

7 8

19 20

1

2

3

4

5

6

13

14

15

16

17

18

9

10

11

12

21

22

23

24

7

8

19

20

1 2

5 6

3 4

9 10

7 8

1

2

5

6

3

4

9

10

7

8

49

51

50

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

L05

E82

G01

G02

G03

E83

L06

K01

Shift

lock

relay

"A-6"

ACC
relay

"G-2"

Tail

light

relay

"D-2"

Sub woofer

relay

"G-1"

I5JB0B910926-01

Abbreviation
