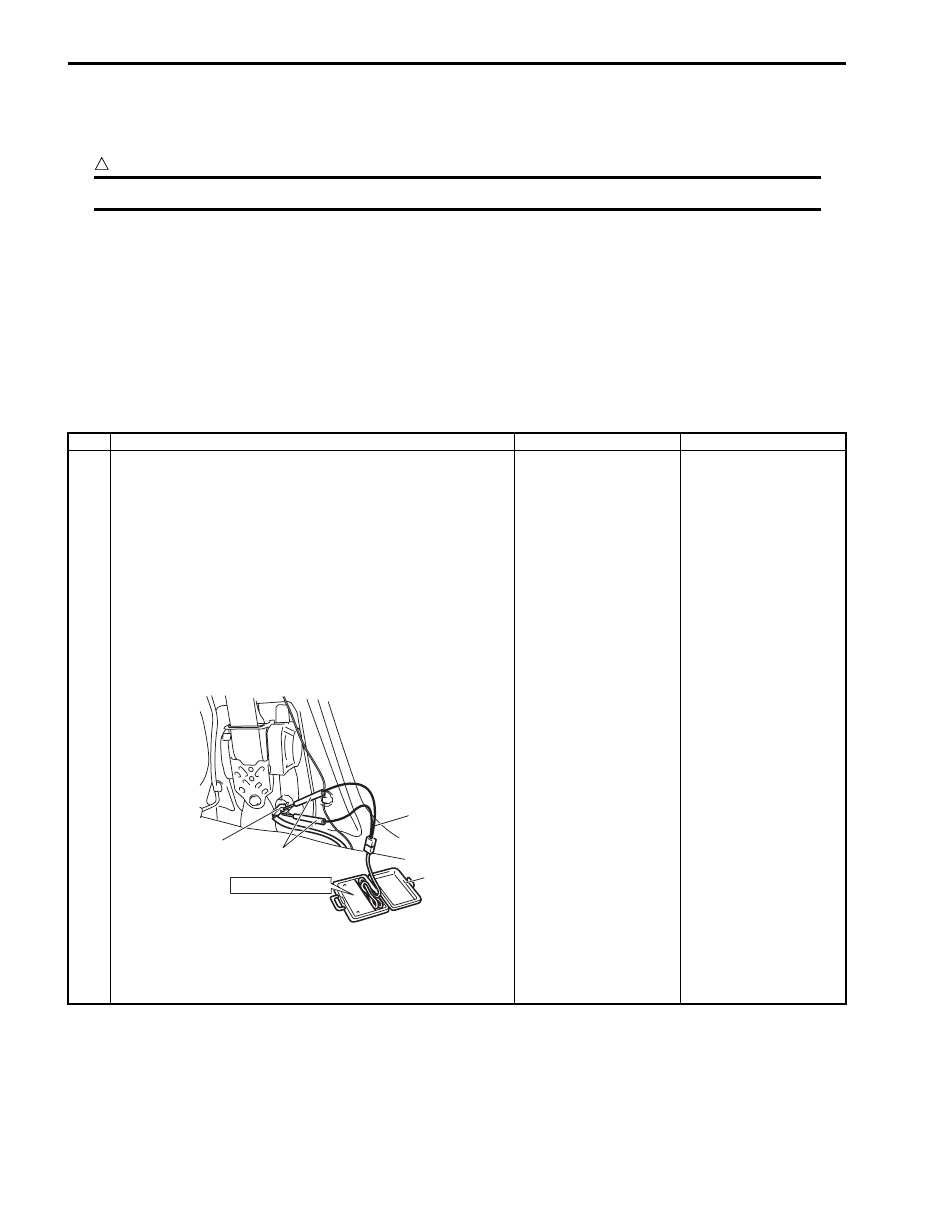

8B-58 Air Bag System:

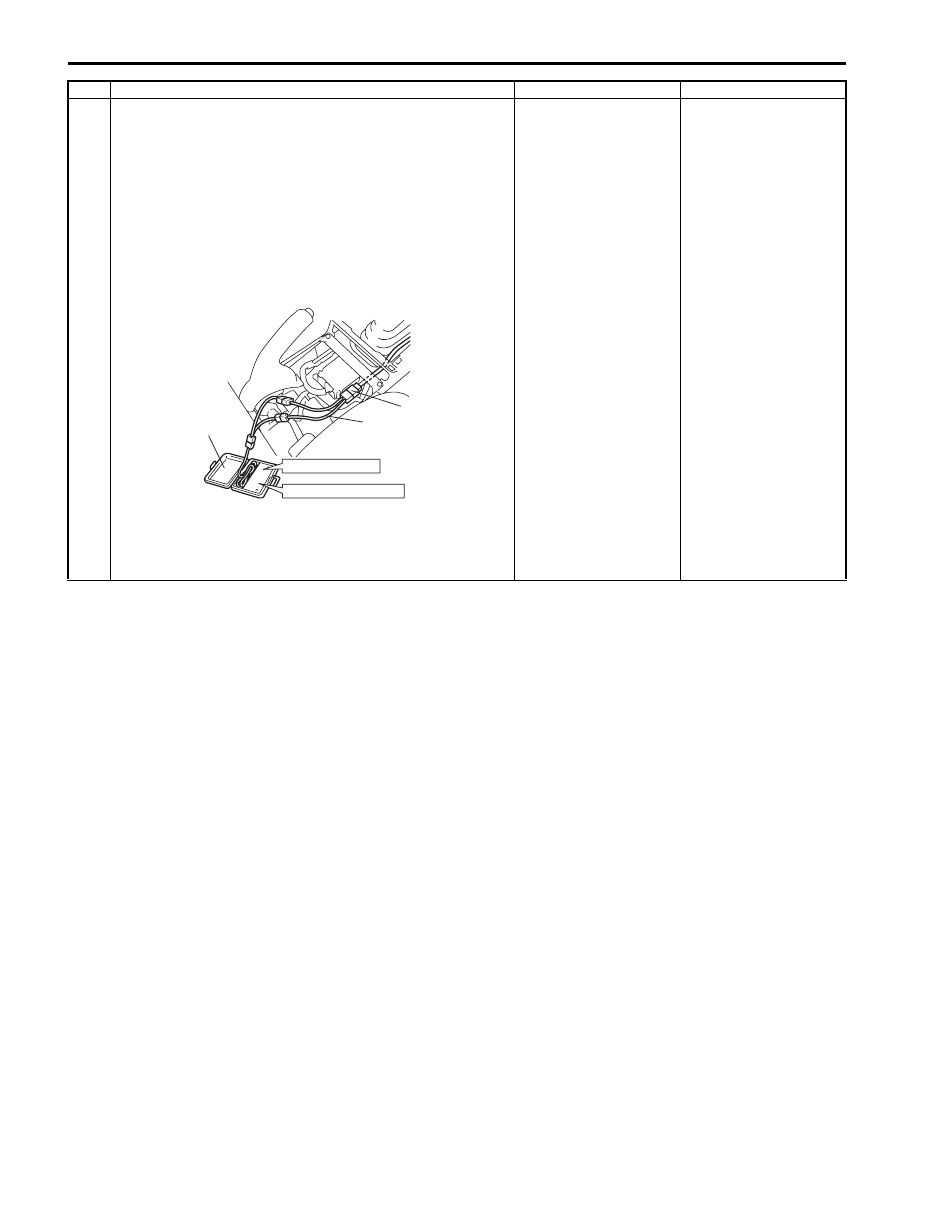

2

1) With ignition switch OFF, disconnect “G55” connector

located near the console box.

2) Check proper connection to applicable seat belt

pretensioner at terminal in “G55” connector.

3) If OK, then connect special tools (B) and (D) to “G55”

connector.

Special tool
(B):  09932–75010
(D):  09932–77320

4) Check SDM DTC.

With ignition switch ON, is DTC B1052 or B1056 still
indicated?

Go to Step 3.

DTC B1052: “GRN/
ORN” circuit shorted to
“GRN/YEL” circuit,
“GRN/ORN” circuit or
“GRN/YEL” circuit
shorted to other circuit.
(Between “L29” and
“L12” connectors)
DTC B1056: “BLU/
ORN” circuit shorted to
“BLU/YEL” circuit, “BLU/
ORN” circuit or “BLU/
YEL” circuit shorted to
other circuit. (Between
“L29” and “L36”
connectors)

Step

Action

Yes

No

BASE OF COLUMN

PASSENGER INFLATOR

(B)

(D)

“G55”

I5JB0A820040-01

Air Bag System:  8B-59

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.



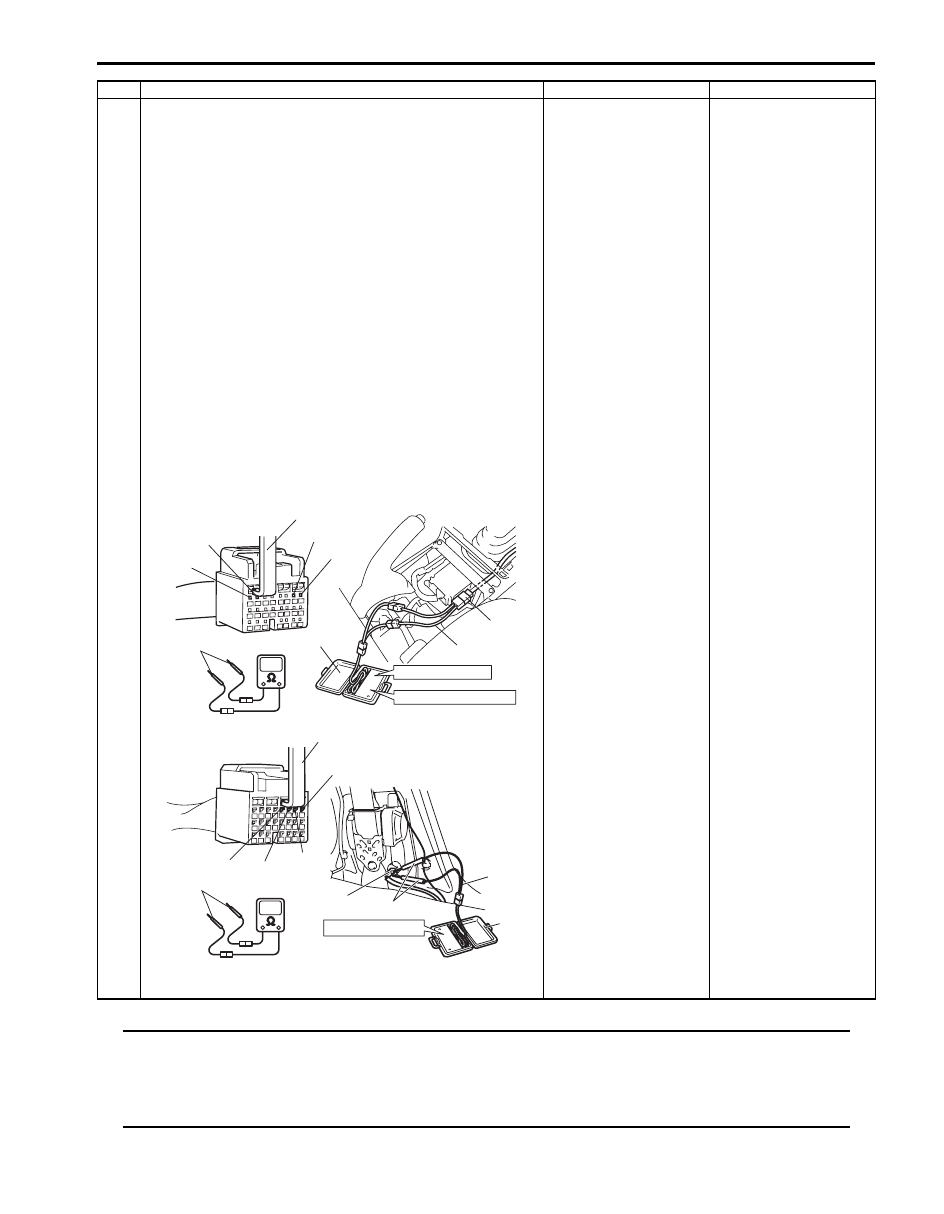

3

1) With ignition switch OFF, disconnect SDM connector

“G47” or “L33”.

2) Check proper connection to SDM at terminals “G47-7”

and “G47-8” or “L33-5” and “L33-6” (for DTC B1052) or
terminals “G47-1” and “G47-2” or “L33-7” and “L33-8”
(for DTC B1056).

3) If OK, release shorting bar in SDM connector inserting

release tool (1) included in special tool (A).

4) Measure resistance between “G47-7” and “G47-8” (for

DTC B1052) or “G47-1” and “G47-2” (for DTC B1056)
with connected special tools (B) and (D) [A], or between
“L33-5” and “L33-6” (for DTC B1052) or “L33-7” and
“L33-8” (for DTC B1056) with connected special tools
(A), (B) and (C) [B].

Special tool
(A):  09932–76010
(B):  09932–75010
(C):  09932–78310
(D):  09932–77320

Is resistance 0.65

Ω

 or more?

Substitute a known-
good SDM and recheck.

DTC B1052: “GRN/
ORN” circuit shorted to
“GRN/YEL” circuit,
“GRN/ORN” circuit or
“GRN/YEL” circuit
shorted to other circuit.
(Between “G55” and
“G47” connectors or
between “L12” and
“L33” connectors)
DTC B1056: “BLU/
ORN” circuit shorted to
“BLU/YEL” circuit, “BLU/
ORN” circuit or “BLU/
YEL” circuit shorted to
other circuit. (Between
“G55” and “G47”
connectors or between
“L36” and “L33”
connectors)

Step

Action

Yes

No

BASE OF COLUMN

PASSENGER INFLATOR

[A]

“L12”, “L36”

[B]

(C)

(B)

(A)

STEERING WHEEL

(A)

“L33-5”

“L33-6”

“L33-7”

“L33-8”

“G47-1”

“G47-2”

“G47-7”

“G47-8”

“G55”

(D)

(B)

1, (A)

(A)

1, (A)

I5JB0A820041-01

8B-60 Air Bag System:

DTC B1053 / B1057: Driver / Passenger Pretensioner Initiator Circuit Short to Ground

S6JB0B8204025

Wiring Diagram
Refer to “DTC B1051 / B1055: Driver / Passenger Pretensioner Initiator Circuit Resistance High”.

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



DTC Will Set when
The voltage measured at driver or passenger seat belt pretensioner initiator circuit is below a specified value for
specified time.

Flow Test Description
Step 1: Check if malfunction is in seat belt pretensioner.
Step 2: Check seat belt pretensioner initiator circuit. (Between “L29” and “L12” or “L29” and “L36”)
Step 3: Check seat belt pretensioner initiator circuit. (Between “G55” and “G47”, “L12” and “L33” or “L36”
and “L33”)

DTC Troubleshooting

Step

Action

Yes

No

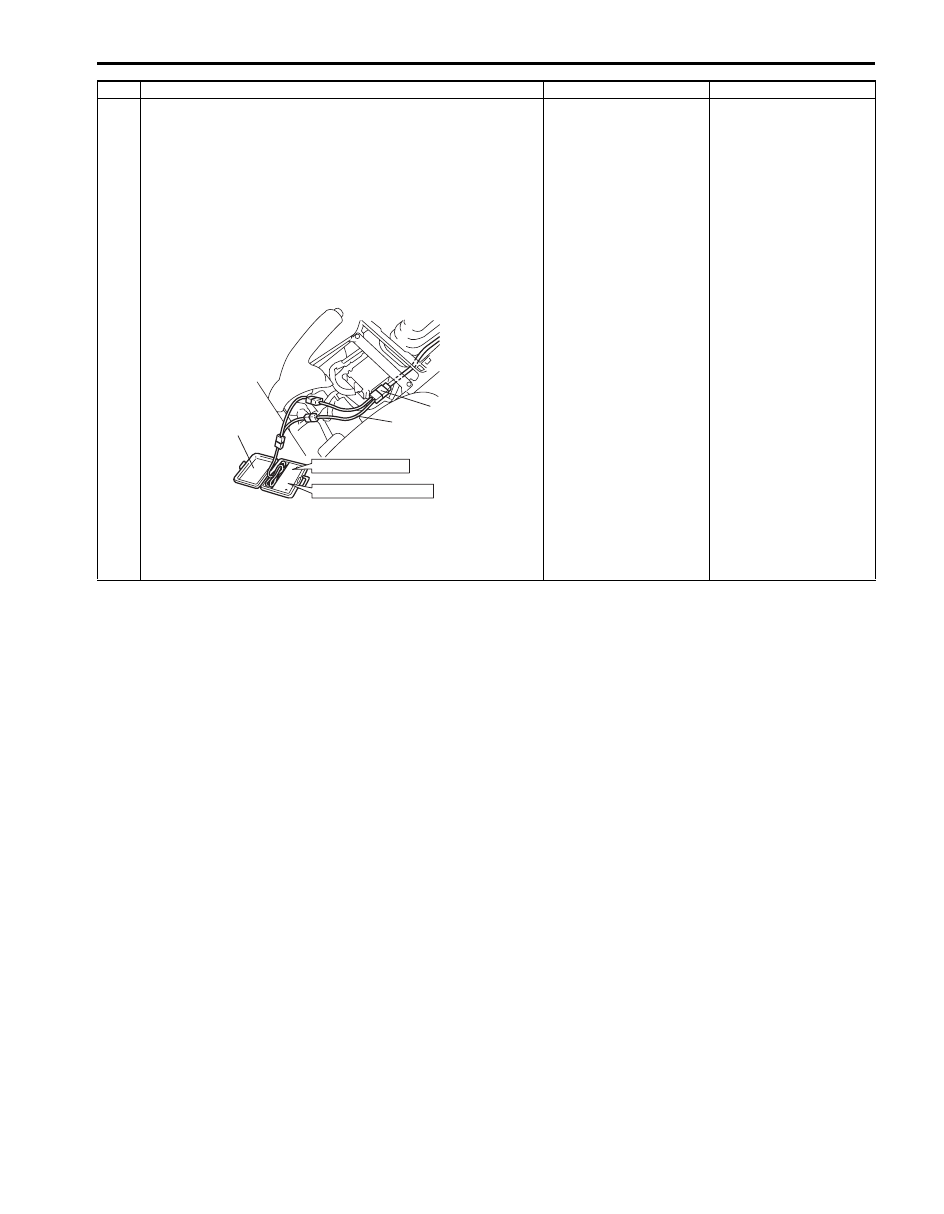

1

1) With ignition switch OFF, remove center pillar lower trim

of driver or passenger side and disconnect seat belt
pretensioner connector “L12” or “L36” (1).

2) Check proper connection to seat belt pretensioner at

terminals in “L12” or “L36” connector.

3) If OK, then connect special tools (A), (B) and (C) to “L12”

or “L36” connector disconnected in Step 1).

Special tool
(A):  09932–76010
(B):  09932–75010
(C):  09932–78310

4) Check SDM DTC.

With ignition switch ON, is DTC B1053 or B1057 still
indicated?

Without side-air bag and
curtain-air bag: go to
Step 2.
With side-air bag and
curtain-air bag: go to
Step 3.

Ignition switch OFF.
Replace seat belt
pretensioner referring to
“Front Seat Belt
Removal and
Installation in Section
8A”.

(C)

(A)

(B)

“L12”, “L36”

STEERING WHEEL

I5JB0A820039-01

Air Bag System:  8B-61

2

1) With ignition switch OFF, disconnect “G55” connector

located near the console box.

2) Check proper connection to applicable seat belt

pretensioner at terminal in “G55” connector.

3) If OK, then connect special tools (B) and (D) to “G55”

connector.

Special tool
(B):  09932–75010
(C):  09932–77320

4) Check SDM DTC.

With ignition switch ON, is DTC B1053 or B1057 still
indicated?

Go to Step 3.

DTC B1053: “GRN/
ORN” or “GRN/YEL”
circuit shorted to
ground. (Between “L29”
and “L12” connectors)
DTC B1057: “BLU/
ORN” circuit or “BLU/
YEL” circuit shorted to
ground. (Between “L29”
and “L36” connectors)

Step

Action

Yes

No

BASE OF COLUMN

PASSENGER INFLATOR

(B)

(D)

“G55”

I5JB0A820040-01
