4A-19 Brake Control System and Diagnosis:

Specifications

Tightening Torque Specifications

S6JB0B4107001

NOTE
The specified tightening torque is also described in the following.
“Front Brake Hose / Pipe Construction”
“Master Cylinder Components”
“Brake Booster Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0B4108001

NOTE
Required service material is also described in the following.
“Master Cylinder Components”

Special Tool

S6JB0B4108002

Fastening part

Tightening torque

Note

⋅m

kgf-m

lb-ft

Front brake caliper bleeder plug

0.7

5.0

)

Rear wheel cylinder bleeder plug

0.7

5.0

)

Brake pipe flare nut (M10)

1.6

12.0

)

/ )

Brake pipe flare nut (M12)

1.9

14.0

)

/ )

Master cylinder fixing nut

1.8

13.0

)

Booster attaching nut

1.3

9.5

)

Clevis pin lock nut

2.6

19.0

)

09916–44310
Valve guide remover (5 mm)
)

/ )

Front Brakes: 4B-1

Brakes

Front Brakes

General Description

Front Disc Brake Caliper Assembly Construction

S6JB0B4201001

This caliper is mounted to the brake caliper carrier with two caliper pin bolts. Hydraulic force, created by applying force
to the brake pedal, is converted by the caliper to friction. The hydraulic force acts equally against the piston and the
bottom of the caliper bore to move the piston outward and to move (slide) the caliper inward, resulting in a clamping
action on the disc. This clamping action forces the pads (linings) against the disc, creating friction to stop the vehicle.
For components, refer to “Front Disc Brake Components”.

NOTE
Lubricate parts as specified. Do not use lubricated shop air on brake parts as damage to rubber
components may result. If any component is removed or line disconnected, bleed the brake system.
Replace pads in axle sets only. The torque values specified are for dry, unlubricated fasteners.

4B-2 Front Brakes:

Repair Instructions

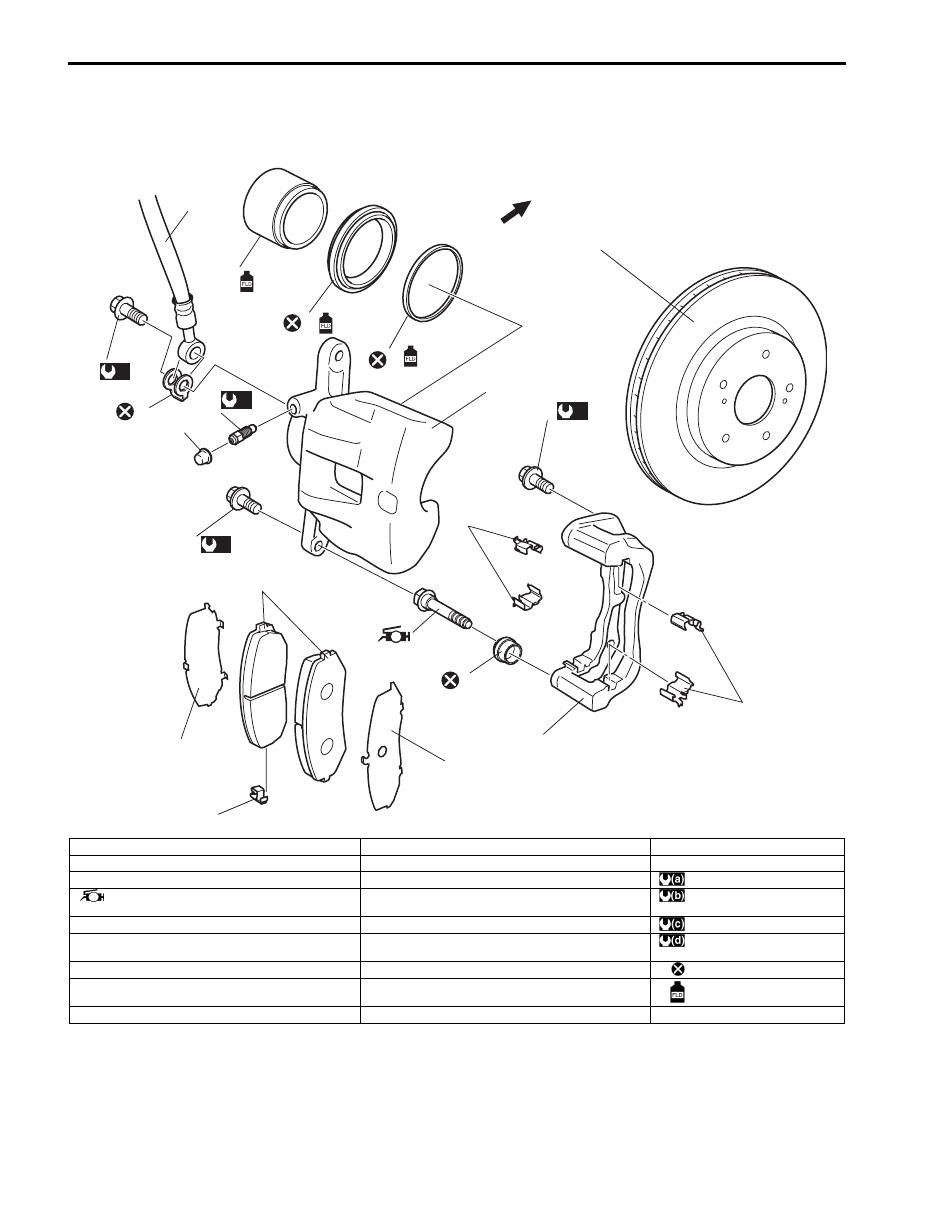

Front Disc Brake Components

S6JB0B4206001

(b)

(a)

(c)

(d)

I6JB0B420001-01

1. Caliper

10. Piston seal

19. Brake disc

2. Caliper pin bolt

11. Piston boot

F: Forward

3. Slide pin boot

12. Brake caliper carrier

: 36 N

⋅m (3.6 kgf-m, 26.0 lb-ft)

4. Slide pin

: Use included grease for pin boot.

13. Caliper carrier bolt

: 85 N

⋅m (8.5 kgf-m, 61.5 lb-ft)

5. Brake pad

14. Front caliper bleeder plug

: 7 N

⋅m (0.7 kgf-m, 5.0 lb-ft)

6. Wear indicator (vehicle center side on right wheel

brake only)

15. Bleeder plug cap

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

7. Shim

16. Brake flexible hose

: Do not reuse.

8. Pad spring

17. Flexible hose joint bolt

: Apply brake fluid

9. Disk brake piston

18. Hose washer

Front Brakes: 4B-3

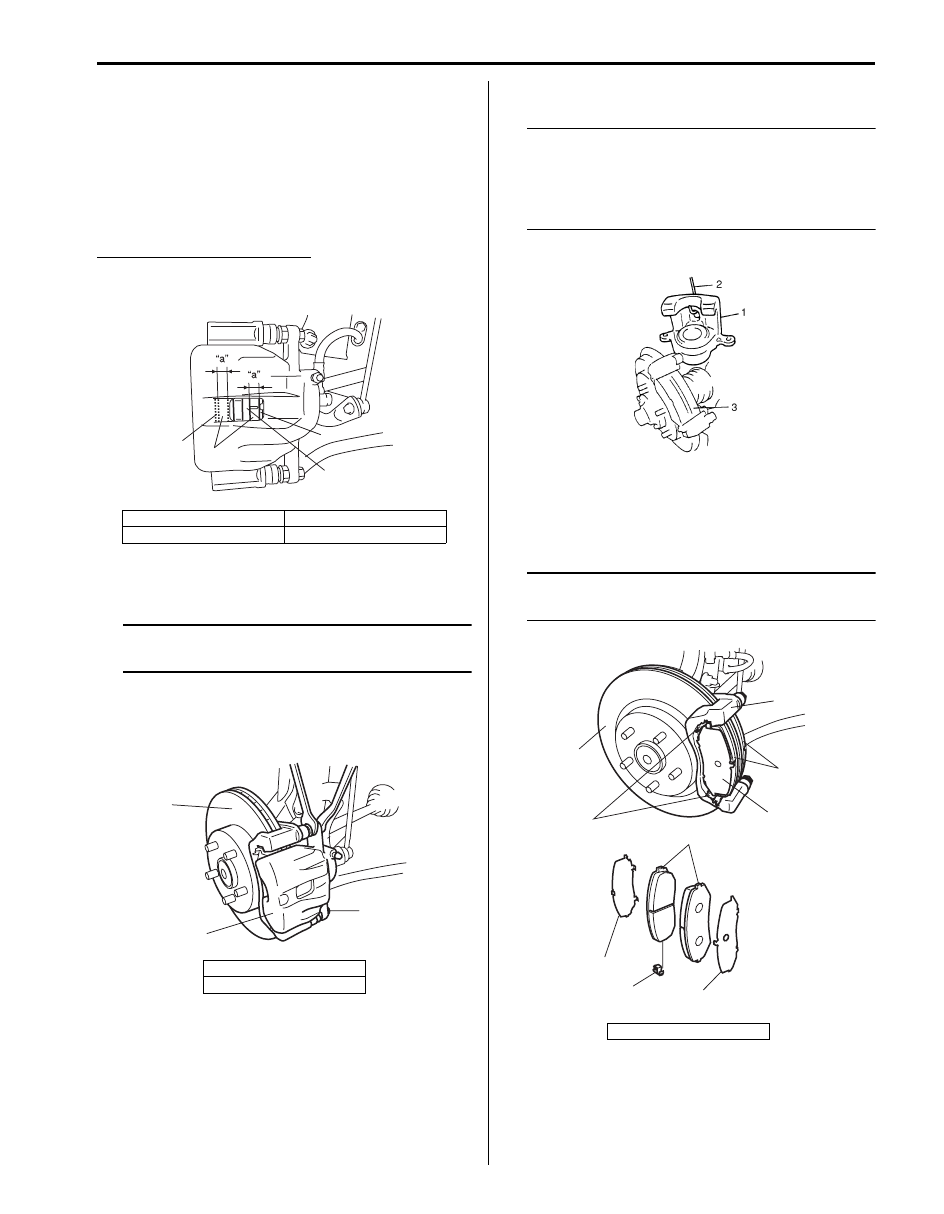

Front Disc Brake Pad On-Vehicle Check

S6JB0B4206002

Inspect pad linings periodically according to
maintenance schedule whenever wheels are removed
(for tire rotation or other reason). Take a look through
hole of caliper and check lining thickness of outside and
inside pads.
If one of brake pad is worn to service limit, all linings
must be replaced at the same time.

Front brake pad thickness “a”
Standard: 11.0 mm (0.43 in.)
Limit: 2.0 mm (0.08 in.)

Front Disc Brake Pad Removal and Installation

S6JB0B4206003

NOTE
When replacing brake pad, replace it on the
right and left.

Removal

1) Hoist vehicle and remove front wheel.
2) Remove caliper pin bolts (2).

3) Remove caliper (1) from caliper carrier.

NOTE
Hang removed caliper (1) with a wire hook (2)
or the like so as to prevent brake hose from
bending and twisting excessively or being
pulled. Don’t operate brake pedal with pads
removed.

4) Remove pads (3).

Installation

1) Install pad spring (1), shims (6) and pads (2) to

caliper carrier (4).

NOTE
Install brake pad with wear indicator (5) to
vehicle center side on right wheel brake.

1. Pad rim

3. Disc

2. Lining

1. Caliper
3. Disc

I5JB0A420002-01

I5JB0A420003-01

3. Disc

I1SQ01420004-01

I5JB0A420004-01
