2B-10 Front Suspension:

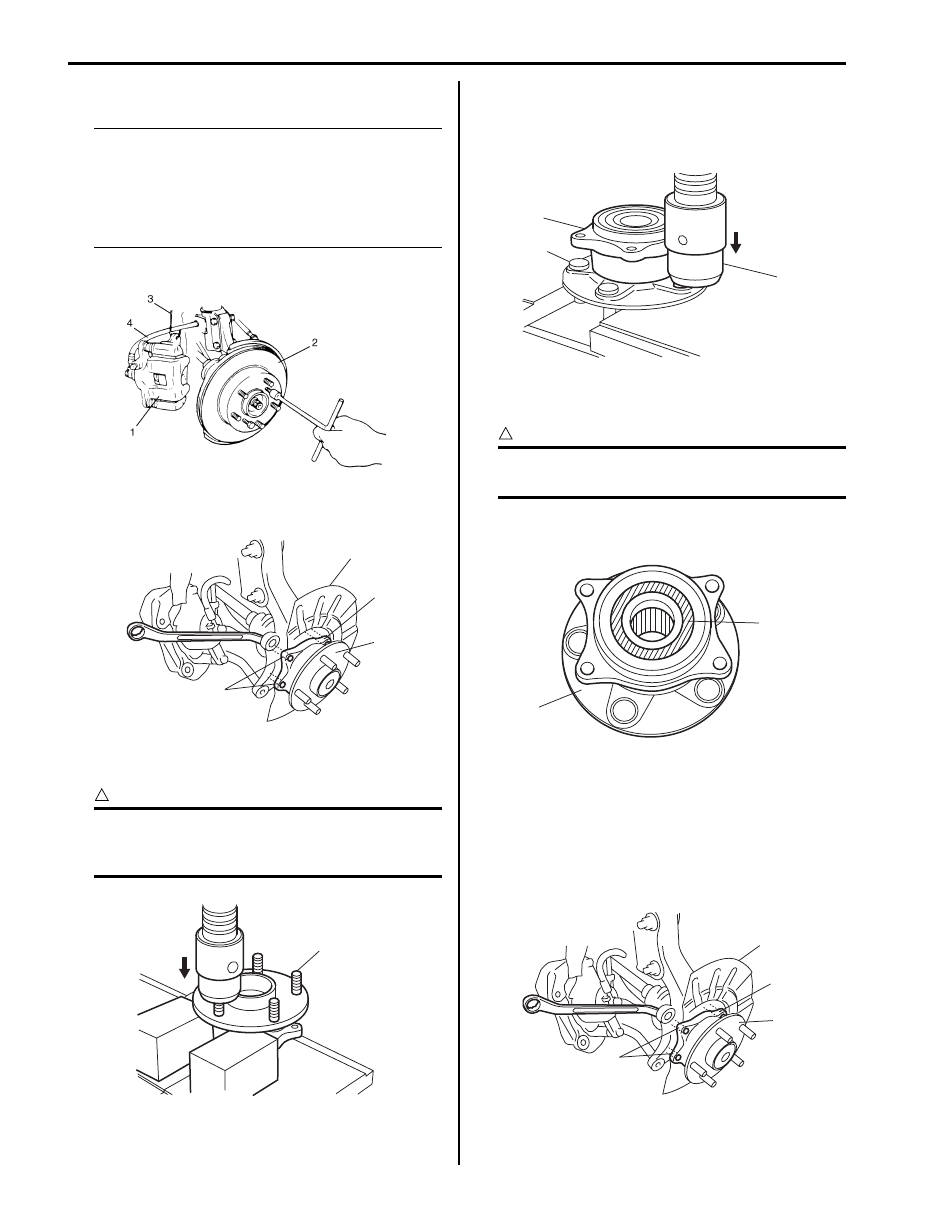

4) Remove caliper (1) with carrier.

NOTE
Hang removed caliper with a wire hook or the
like (3) so as to prevent brake hose (4) from
bending, twisting or tension.Do not depress
brake pedal during pads removal.
Do not operate brake pedal with pads
removed.

5) Pull brake disc (2) off by using two 8 mm bolts.

6) Remove wheel hub housing bolts (3), and then

remove wheel hub assembly (1) and dust cover (2).

7) Remove hub bolts (1) with copper hammer or

hydraulic press.

CAUTION

Never remove bolt unless replacement is
necessary.
Be sure to use a new bolt for replacement.

Installation

1) Insert new hub bolt (1) in hub hole. Rotate hub bolt

slowly to assure that serrations are aligned with
those made by original bolt.

2) Apply grease to end face of inner ring (2) before front

wheel nub (1) installation.

CAUTION

Do not apply the grease to the encoder
section to avoid the encoder malfunction.

“A”: Grease 99000–25010 (SUZUKI Super
Grease A)

3) Install wheel hub (1) and dust cover (2) to steering

knuckle.

4) Tighten wheel hub housing bolts (3) to specified

torque

Tightening torque
Wheel hub housing bolt (a): 50 N·m (5.0 kgf-m,
36.5 lb-ft)

I5JB0A220014-01

I5JB0A220015-01

I5JB0A220016-01

I5JB0A220017-01

2, "A"

I5JB0A220018-01

3,(a)

I5JB0A220019-01

Front Suspension: 2B-11

5) Install brake disk and brake caliper.
6) Tighten caliper carrier bolt to specified torque.

Tightening torque
Caliper carrier bolt: 85 N·m (8.5 kgf-m, 61.5 lb-ft)

7) Depress foot brake pedal and hold it there. Tighten

new drive shaft nut (1) to specified torque.

Tightening torque
Drive shaft nut: 220 N·m (22.0 kgf-m, 159.5 lb-ft)

8) Caulk drive shaft nut (1) as shown.

9) Tightening wheel nuts to specified torque.

Tightening torque
Wheel nut: 100 N·m (10.0 kgf-m, 72.5 lb-ft)

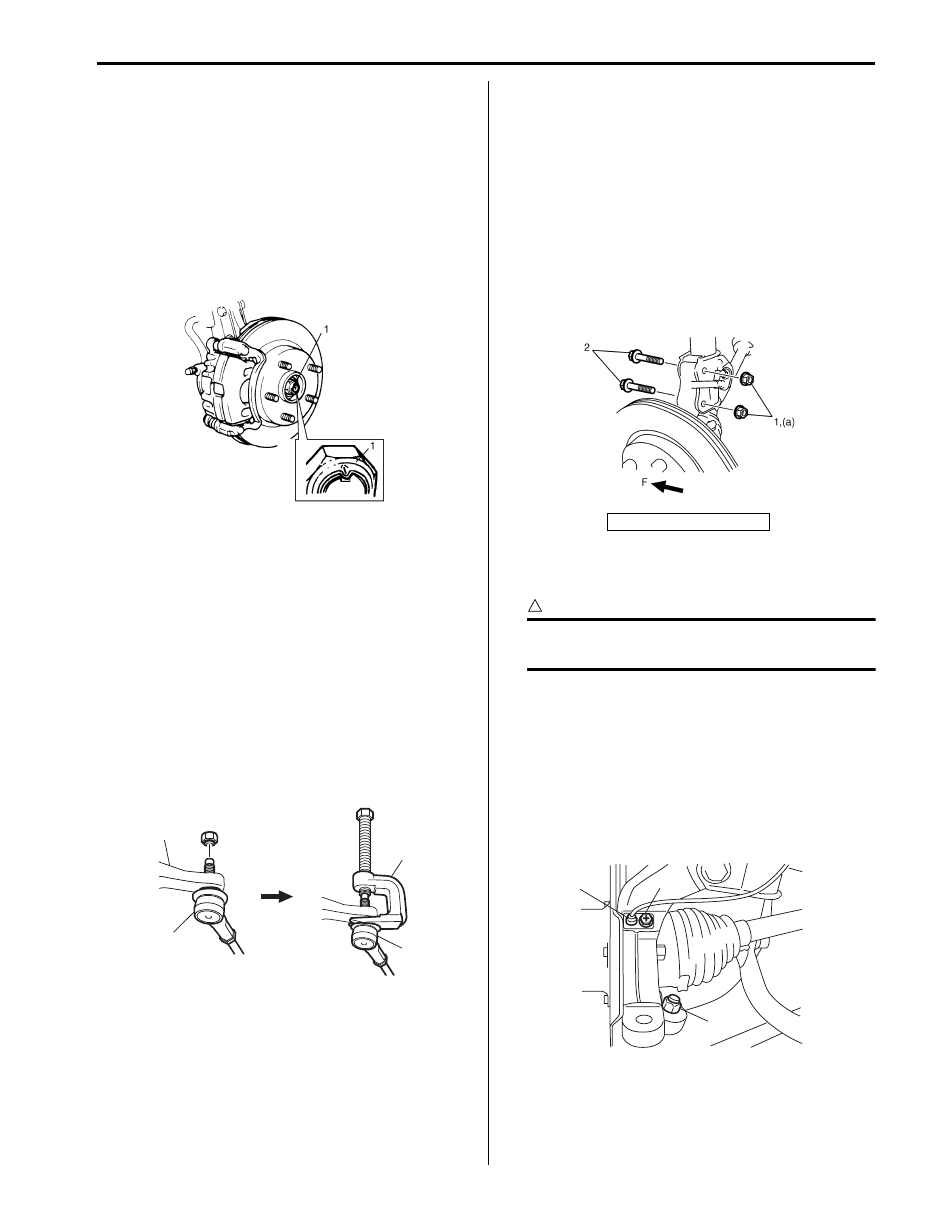

Steering Knuckle Removal and Installation

S6JB0B2206008

Removal

1) Hoist vehicle and remove wheel.
2) Remove Front wheel hub assembly referring to

“Front Wheel Hub Assembly Removal and
Installation”.

3) Disconnect tie-rod end (1) from steering knuckle (2)

with puller (3).

4) Disconnect front height sensor (if equipped) from

suspension control arm for left side referring to
“Height Sensor Removal and Installation (If
Equipped) in Section 9B”.

5) Remove wheel speed sensor from knuckle.
6) Remove steering knuckle ball joint nut then remove

strut bracket bolts and nut.

7) Disconnect ball joint from steering knuckle with

puller and then remove steering knuckle.

Installation
For installation, reverse removal procedure, noting the
following instructions.

1) Connect steering knuckle to suspension arm.
2) Install strut bracket bolts (2) and nuts (1).
3) Tighten strut bracket nuts (1) to specified torque.

Tightening torque
Strut bracket nut (a): 135 N·m (13.5 kgf-m, 98.0
lb-ft)

4) Tighten new suspension arm ball joint nut (1) to

specified torque.

CAUTION

Never reuse the removed suspension arm
ball joint nut.

Tightening torque
Suspension arm ball joint nut (a): 55 N·m (5.5
kgf-m, 40.0 lb-ft)

5) Install wheel speed sensor (2) and tighten wheel

speed sensor bolt (3).

Tightening torque
Wheel speed sensor bolt (b): 11 N·m (1.1 kgf-m,
8.0 lb-ft)

I5JB0A220021-01

I5JB0A220020-01

F: Vehicle forward

I5JB0A220025-01

3,(b)

1,(a)

I5JB0A220026-01

2B-12 Front Suspension:

6) Connect front height sensor (if equipped) to

suspension control arm for left side referring to
“Height Sensor Removal and Installation (If
Equipped) in Section 9B”.

7) Connect tie-rod end (1) to steering knuckle (2),

tighten new nut (3) to specified torque.

Tightening torque
Tie-rod end nut (a): 45 N·m (4.5 kgf-m, 32.5 lb-ft)

8) Install front wheel hub assembly and dust cover to

steering knuckle referring to “Front Wheel Hub
Assembly Removal and Installation”.

9) Check front wheel alignment adjust it as necessary.

For check and adjustment procedures, refer to
“Front Wheel Alignment Inspection and Adjustment”.

10) Adjust headlight auto leveling system (if equipped),

refer to “Initialization of Auto Leveling Headlight
System in Section 9B”.

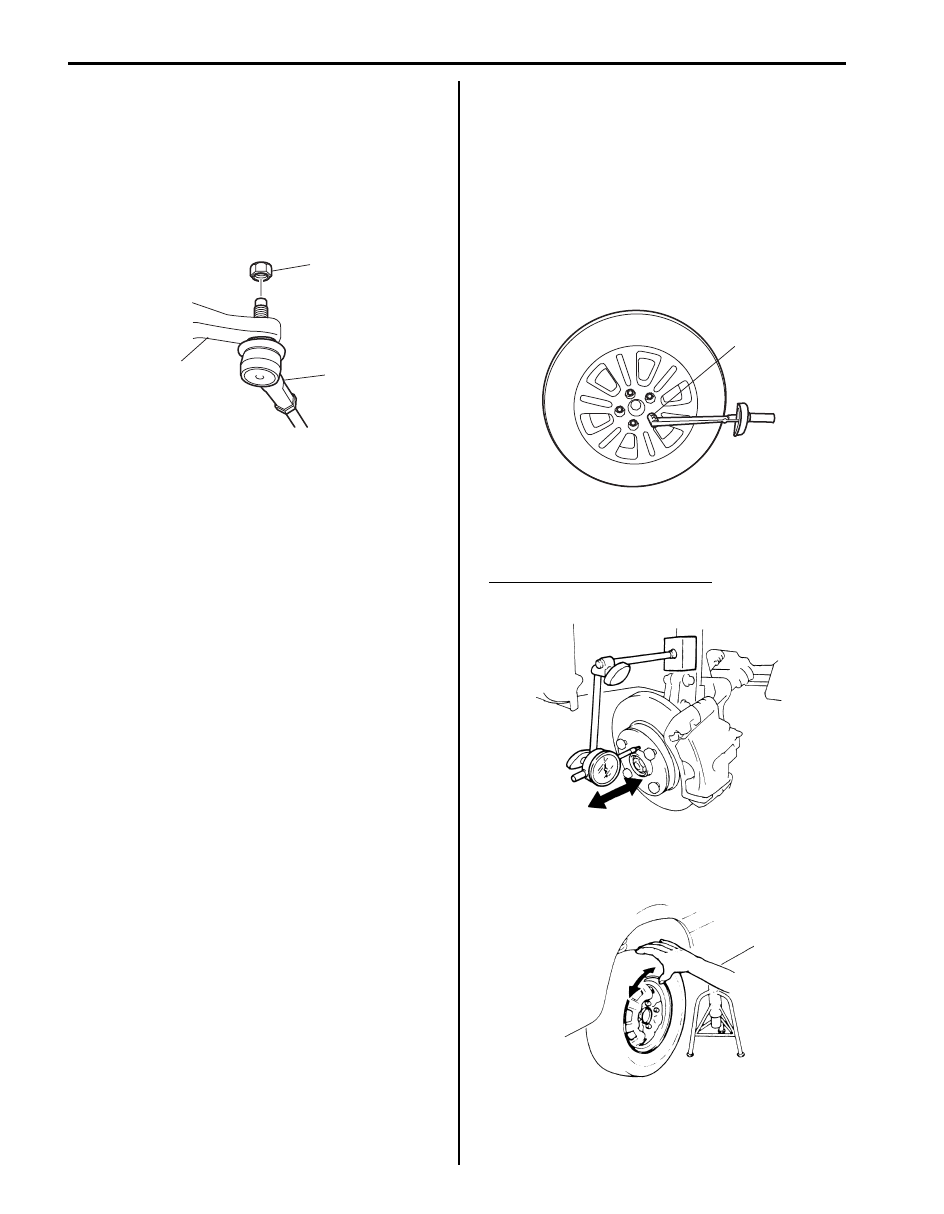

Front Wheel Hub, Disc, Nut and Bearing Check

S6JB0B2206009

• Inspect each wheel disc for dents, distortion and

cracks.
A disc in badly damaged condition must be replaced.

• Check rust of installation face inside of wheel disc.

As rust affects adversely, remove it thoroughly.

• Check tightness of wheel nuts and, if necessary,

retighten them to specified torque.

Tightening torque
Wheel nut (a): 100 N·m (10.0 kgf-m, 72.5 lb-ft)

• Check wear of wheel bearing. When measuring thrust

play, apply a dial gauge to wheel hub as shown in
figure.

Front wheel bearing thrust play
Limit: 0.1 mm (0.004 in.)

• Check wheel bearing noise and smooth wheel rotation

by rotating wheel in figure.
If defective, replace bearing.

3,(a)

I5JB0A220028-01

(a)

I5JB0A220029-01

I3RM0A220034-01

I2RH01220011-01

Front Suspension: 2B-13

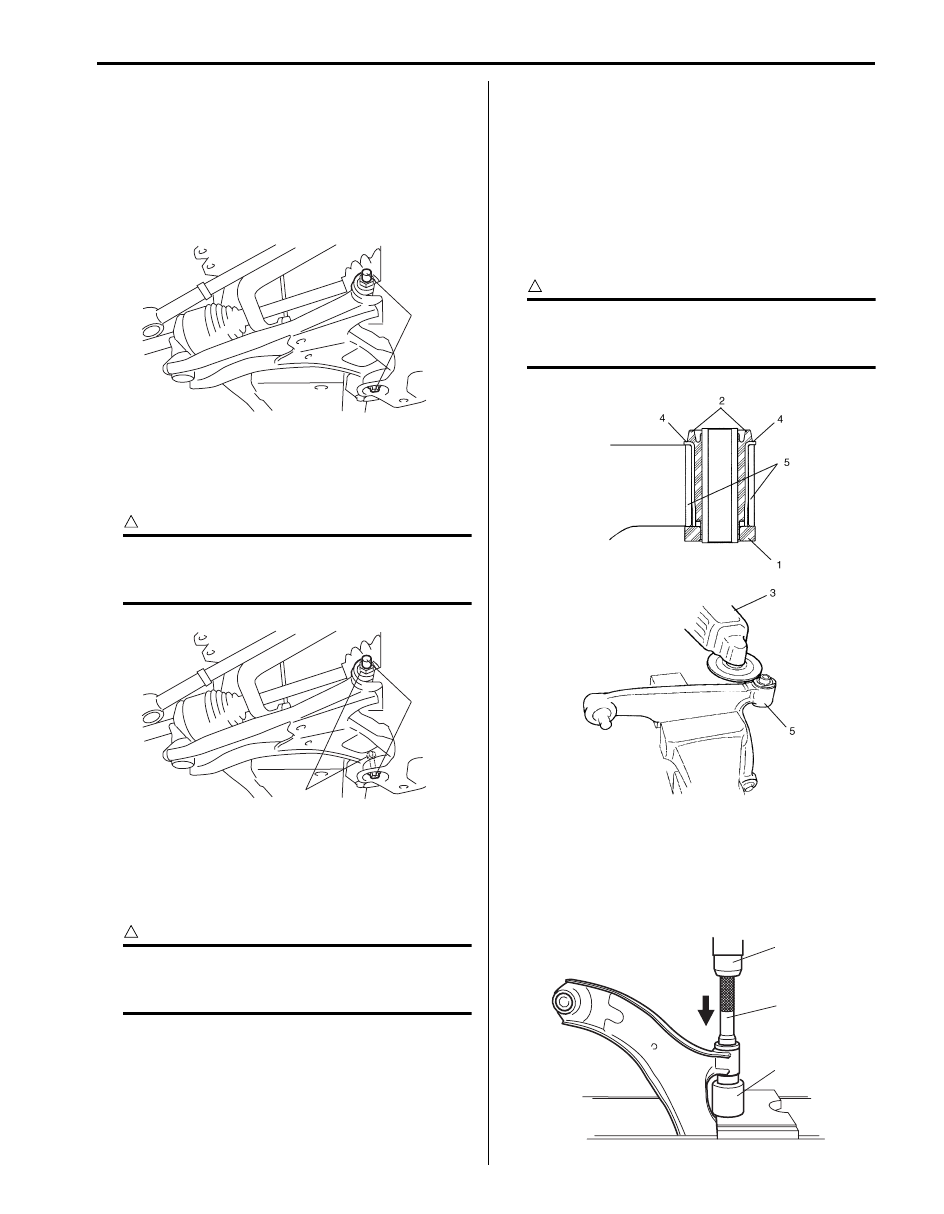

Suspension Control Arm Removal and
Installation

S6JB0B2206010

Removal

1) Remove steering knuckle from suspension control

arm referring to “Steering Knuckle Removal and
Installation”.

2) Remove suspension control arm bolts (1).

Installation

1) Install suspension control arm bolts (1) and tighten

suspension control arm nuts (2) temporarily by hand.

CAUTION

If suspension control arm nut is reused,
apply engine oil to thread, bearing and trunk
surface.

2) Connect steering knuckle to suspension control arm

referring to “Steering Knuckle Removal and
Installation”.

3) Tighten suspension control arm nuts to specified

torque with vehicle weight on suspension.

CAUTION

It is the most desirable to have vehicle off
hoist and in non-loaded condition when
tightening them.

Tightening torque
Suspension control arm nut: 135 N·m (13.5 kgf-
m, 98.0 lb-ft)

Suspension Control Arm / Bushing
Disassembly and Assembly

S6JB0B2206011

Disassembly

1) Remove rubber stopper (1).
2) Cut rubber (2) of flange of suspension control arm

front bushing.

3) Using grinder (3), grind off flange (4) of front

bushing.

CAUTION

Be careful not to damage suspension control
arm (5) when grinding flange (4) of front
bushing with grinder.

4) Push out bushing by using hydraulic press (2) and

special tools.

Special tool
(A): 09945–55410
(B): 09913–75821

I5JB0A220031-01

I5JB0A220033-01

I5JB0A220027-02

(A)

(B)

I5JB0A220035-01
