1B-2 Aux. Emission Control Devices:

Diagnostic Information and Procedures

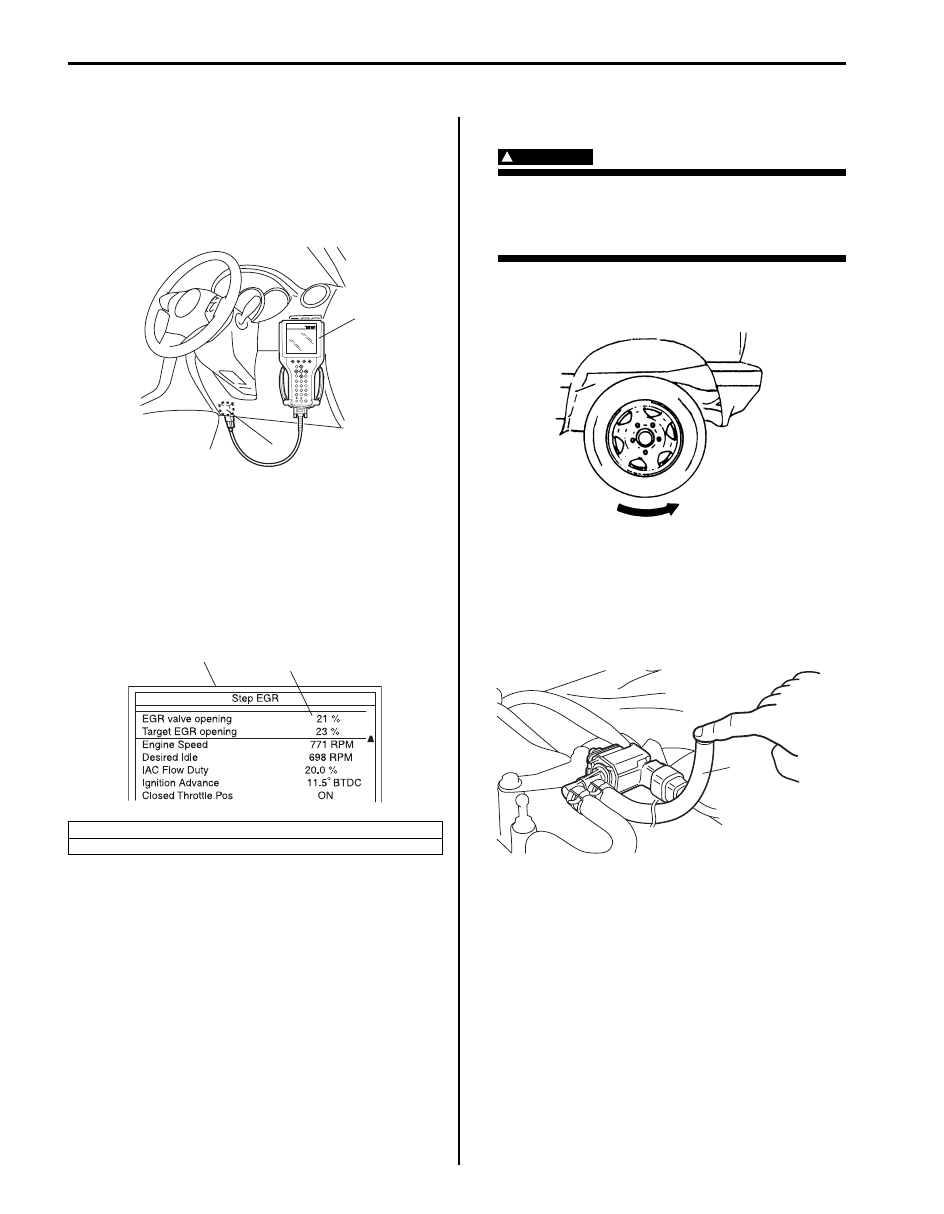

EGR System Inspection (If Equipped)

S6JB0B1204001

1) Connect SUZUKI scan tool to DLC (1) with ignition

switch turned OFF.

Special tool
(A):  SUZUKI scan tool

2) Start engine and warm it up to normal operating

temperature.

3) With engine idling (without depressing accelerator

pedal), open EGR valve by using “MISC. TEST”
mode. In this state, according as EGR valve opening
increases engine idle speed drops. If not, possible
cause is clogged EGR gas passage, stuck or faulty
EGR valve.

EVAP Canister Purge System Inspection

S6JB0B1204002

WARNING

!



The front wheels rotates when servicing the
vehicle with the 4WD system. Therefore, do
not service near the front wheels. Or, there is
a possibility of the severe injury.



1) Warm up engine to normal operating temperature.
2) Hoist vehicle so that all wheels rotate freely.

3) Set M/T in “Neutral” or A/T in “P” position and

parking brake.

4) Disconnect purge hose (1) from purge pipe.
5) Place finger against the end of disconnected hose

(1) and check that vacuum is not felt there when
engine is running at idle speed.

6) Release parking brake lever, set M/T in “1st” or A/T

in “L”.

7) Also check that vacuum is felt when engine speed is

increased to higher than about 1,500 r/min. and keep
it for 3 min. or more. If check result is not described
in Steps 5) and 7), check EVAP canister purge valve,
wire harness and vacuum passage.

1. SUZUKI scan tool display
2. EGR valve opening (0: Close, 100: Full Open)

(A)

1

I5JB0C120001-02

1

2

I6JB01120022-01

IYSQ01124001-01

1

I6JB01120010-01

Aux. Emission Control Devices:  1B-3

Repair Instructions

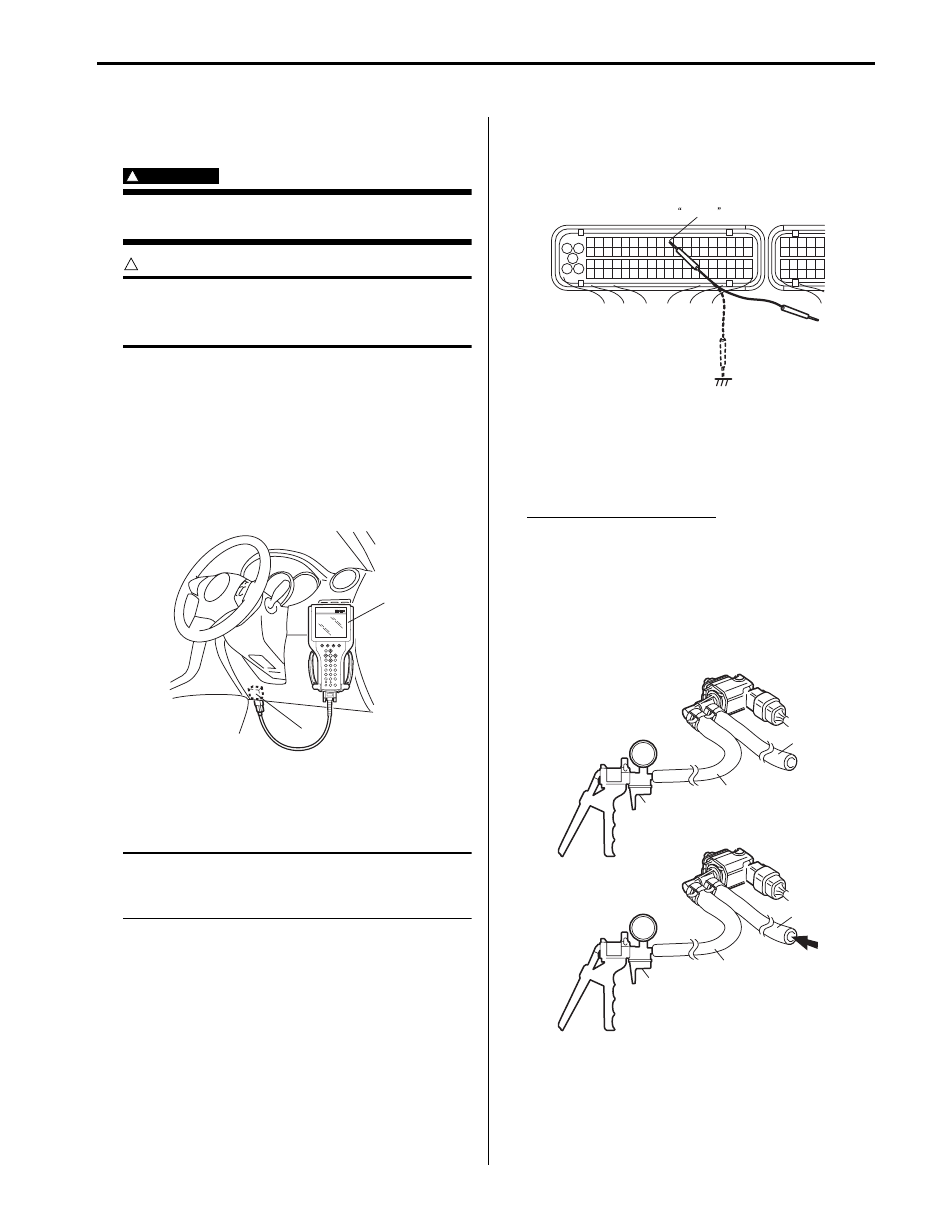

EVAP Canister Purge Valve and Its Circuit
Inspection

S6JB0B1206001

WARNING

!



Do not apply vacuum by mouth; otherwise
harmful fuel vapor can be breathed in.



CAUTION

!



Do not apply vacuum more than –86 kPa (–
12.47 psi); otherwise EVAP canister purge
valve could be damaged.



1) Prepare to operate EVAP canister purge valve as

follows.
When using SUZUKI scan tool:
a) Connect SUZUKI scan tool to DLC with ignition

switch OFF and disconnect vacuum hoses from
each pipe.

Special tool
(A):  SUZUKI scan tool

b) Turn ignition switch ON, clear DTC and select

“MISC TEST” mode on SUZUKI scan tool.

When not using SUZUKI scan tool:

NOTE
Before performed this check, be sure to read
the “Precautions of ECM Circuit Inspection in
Section 1A”.



a) Disconnect purge valve vacuum hoses from

intake manifold and purge pipe.

b) Remove ECM cover.
c) Connect special tool between ECM and ECM

connector referring to “Inspection of ECM and Its
Circuits in Section 1A”

d) Turn ON ignition switch.

Using service wire, ground “C37-10” terminal
circuit of special tool (valve ON: “B”) and
unground it (valve OFF: “A”).

2) Check purge valve for operation and vacuum

passage for clog when valve is switched ON and
OFF by using SUZUKI scan tool or service wire.
If check result is not described, check vacuum
hoses, purge valve, wire harness and connections.

EVAP canister purge valve
Valve OFF [A]: When vacuum (–53 kPa (–7.69 psi)
to –67 kPa (–9.72 psi)) is applied to hose (1),
vacuum is maintained.
Valve ON [B]: When vacuum is applied to hose
(1), air goes into hose (2).

Special tool
(A):  09917–47011

(A)

1

I5JB0C120001-02

C37-10

“A”

“B”

I5JB0C120002-02

2

2

1

1

(A)

(A)

[A]

[B]

I6JB01120011-01

1B-4 Aux. Emission Control Devices:

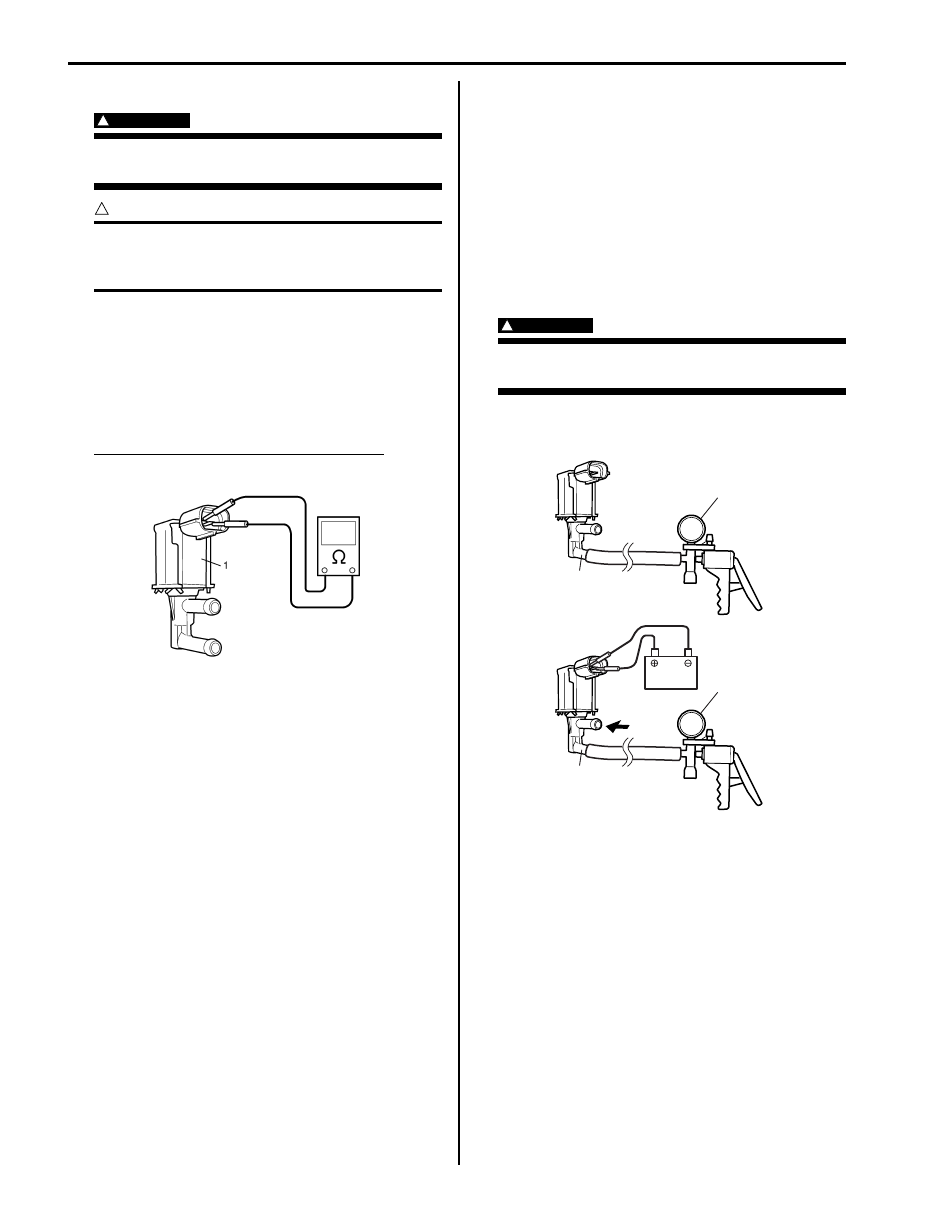

EVAP Canister Purge Valve Inspection

S6JB0B1206002

WARNING

!



Do not apply vacuum by mouth; otherwise
harmful fuel vapor can be breathed in.



CAUTION

!



Do not apply vacuum more than 86 kPa
(12.47 Psi); otherwise EVAP canister purge
valve could be damaged.



1) With ignition switch OFF, disconnect coupler from

canister purge valve.

2) Check resistance between two terminals of EVAP

canister purge valve (1).
If resistance is as specified, proceed to next
operation check. If not, replace EVAP canister purge
valve.

Resistance of EVAP canister purge valve
28 – 35

Ω at 20 °C (68 °F)

3) Remove EVAP canister purge valve from intake

manifold.

4) With coupler disconnected, apply vacuum (–53 kPa

(–7.69 psi) to –67 kPa (–9.72 psi)) to pipe (1) using a
special tool. Check that vacuum is manifold. If
vacuum can not be maintained, replace EVAP
canister purge valve.

5) In this state, connect 12 V-battery to EVAP canister

purge valve terminals.
If vacuum can not be maintained, EVAP canister
purge valve is in good condition.
If maintained, replace EVAP canister purge valve.

WARNING

!



Do not suck the through valve. Fuel vapor
inside valve is harmful.



Special tool
(A):  09917–47011

6) Connect vacuum hoses.
7) Connect EVAP canister purge valve coupler

securely.

I6JB01120012-01

1

1

(A)

(A)

I3RB0A120007-01

Aux. Emission Control Devices:  1B-5

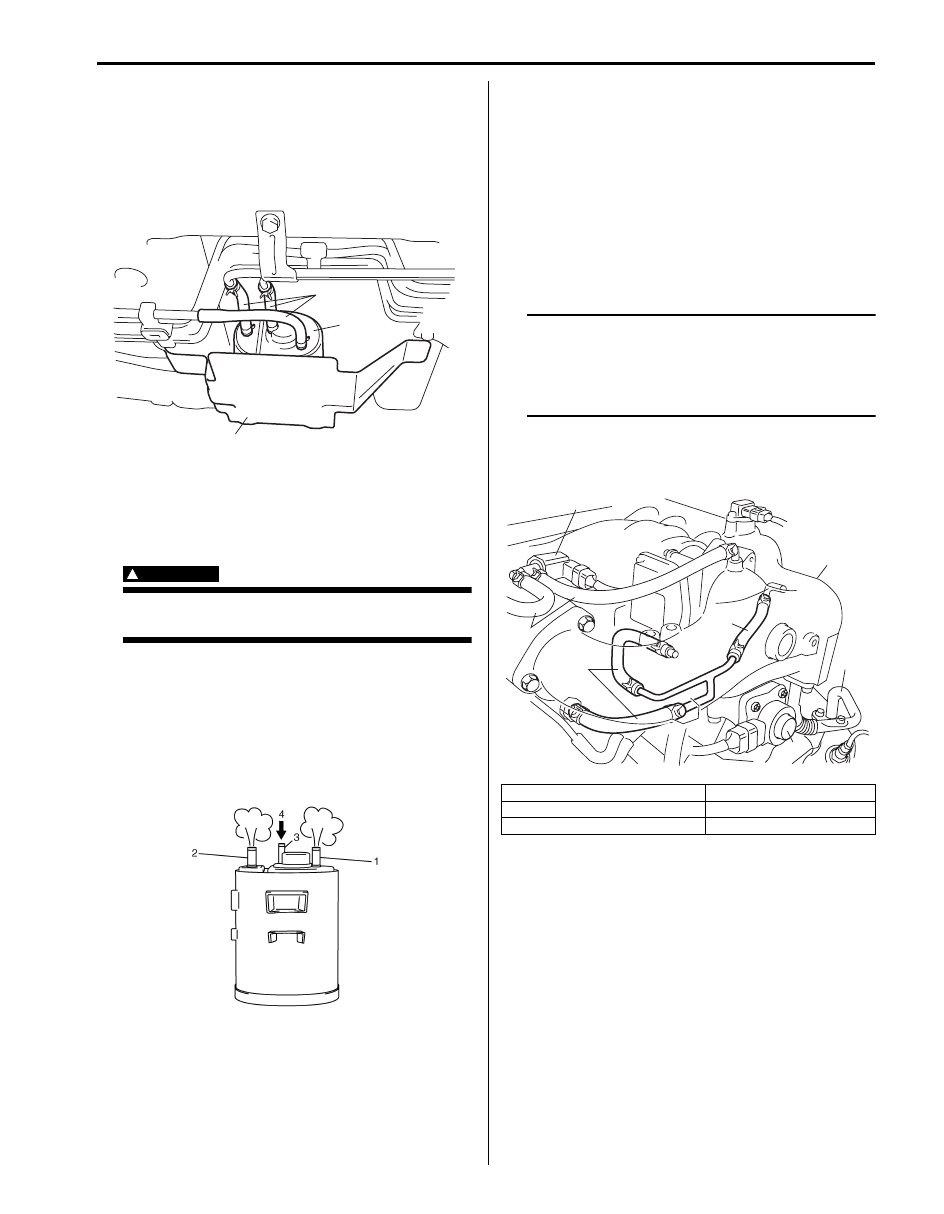

EVAP Canister Removal and Installation

S6JB0B1206003

Removal

1) Hoist vehicle.
2) Disconnect hoses (1) from EVAP canister (2).
3) Remove EVAP canister with its bracket (3).

4) Remove EVAP canister from its bracket.
5) Disconnect hoses from EVAP canister.

EVAP Canister Inspection

S6JB0B1206004

WARNING

!



Do not suck nozzles on EVAP canister.
Fuel vapor inside EVAP canister is harmful.



1) Check outside of EVAP canister visually.
2) Disconnect vacuum hoses from EVAP canister.
3) Check that there is no restriction of flow through

purge pipe (1) and air pipe (2) when air is blown (4)
into tank pipe (3).
If any faulty condition is found in this inspection,
replace EVAP canister.

Vacuum Passage Inspection

S6JB0B1206005

1) Start engine and run it at idle speed.
2) Disconnect vacuum hose from EVAP canister purge

valve.

3) With finger placed on the hole of disconnected hose,

check if vacuum is applied.
If it is not applied, clean vacuum passage by blowing
compressed air.

PCV Hose Inspection

S6JB0B1206006

NOTE
Be sure to check that there is no obstruction
in PCV valve or its hoses before checking
engine idle speed / IAC duty for obstructed
PCV valve or hose hampers its accurate
checking.



Check hoses for connection, leakage, clog, and
deterioration.
Replace as necessary.

1

2

3

I5JB0C120003-01

I2RH0B120001-01

1. EVAP canister purge valve

4. EGR pipe (if equipped)

2. EVAP canister purge valve hose

5. EGR valve (if equipped)

3. Intake collector

6. PCV hose

1

2

3

6

6

4

5

I6JB01120020-01
