Suzuki Grand Vitara JB627. Manual - part 63





1A-201 Engine General Information and Diagnosis:

Inspection of ECM and Its Circuits

S6JB0B1104084

ECM and its circuits can be checked by measuring voltage, pulse signal and resistance with special tool connected.

CAUTION

!



ECM cannot be checked by itself. It is strictly prohibited to connect voltmeter or ohmmeter to ECM
with ECM connectors disconnected from it.



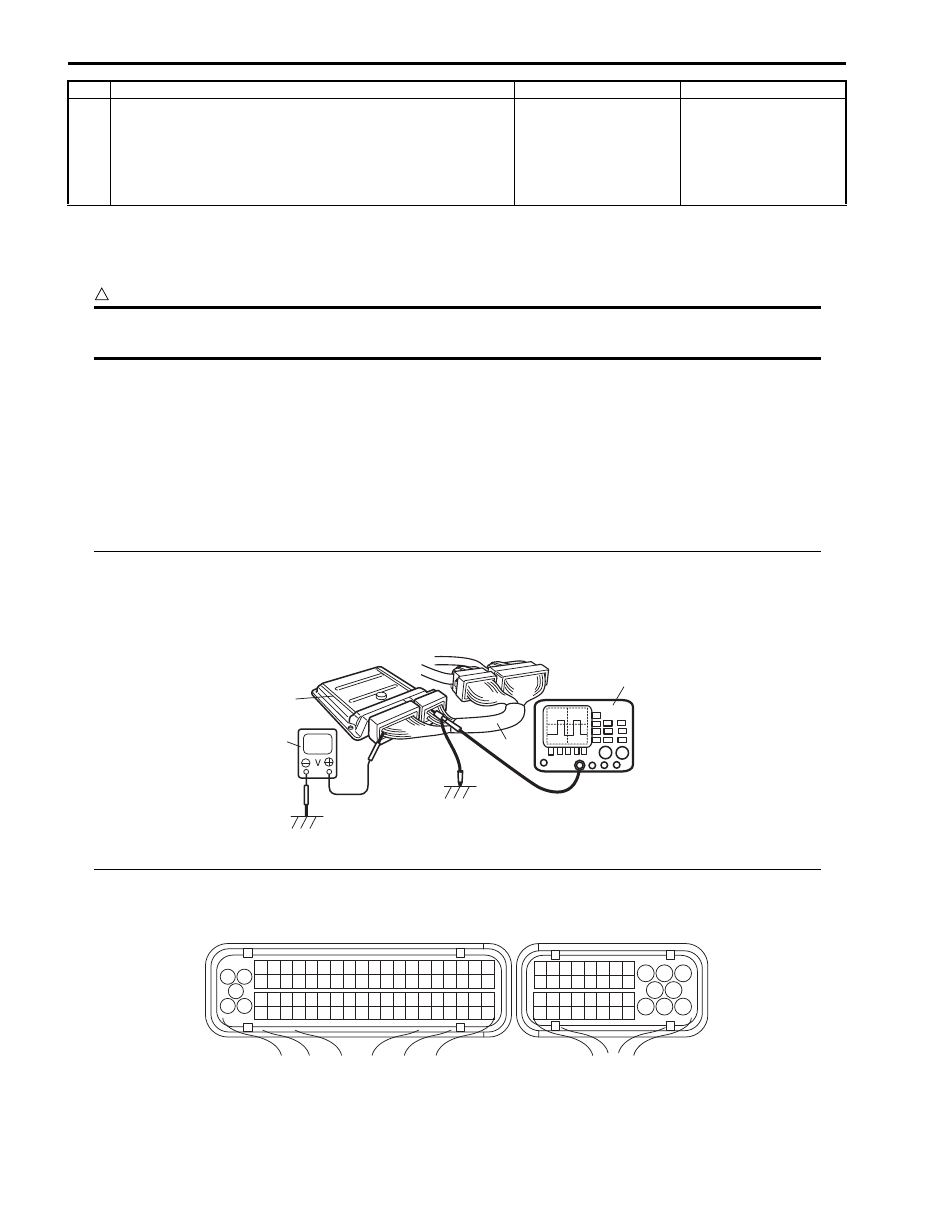

Voltage Check

1) Remove ECM (1) from its bracket referring to “Engine Control Module (ECM) Removal and Installation in Section

1C”.

2) Connect special tool (A) between ECM and ECM connectors securely.

Special tool
(A):  09933–06520

3) Check voltage and/or pulse signal using voltmeter (2) and oscilloscope (3).

NOTE

• As each terminal voltage is affected by battery voltage, confirm that it is 11 V or more when ignition

switch is turned ON.

• Voltage with asterisk (*) cannot be measured with voltmeter because it is pulse signal. Use

oscilloscope for its check if necessary.

• Before performed this inspection, be sure to read the “Precautions of ECM Circuit Inspection”.



Viewed from harness side

17 Combination meter operation check

1) Check combination meter operation for seat belt warning

light by fastening and unfastening driver side seat belt
with ignition switch turned ON.

Is it check result satisfactory?

Substitute a known-
good ECM and recheck.

Check BCM power and
ground circuits, If
circuits are OK,
substitute a known-
good BCM and recheck.

Step

Action

Yes

No

3

2

1

(A)

I6JB01110115-03

1

3 2

4

5

6

7

8

9

1110

12

13

14

15

16

17

18

19

20

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

33

34

35

36

37

38

39

40

32

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

C37

E23

I6JB01110064-02

Engine General Information and Diagnosis:  1A-202

ECM connector “C37”

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks

1

BLK/

RED

Heater output of
heated oxygen
sensor-2 (Bank-1)
(if equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
duty pulse. Duty ratio
varies depending on the
engine condition.

2

BLK/

RED

Heater output of
heated oxygen
sensor-2 (Bank-1)
(if equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
duty pulse. Duty ratio
varies depending on the
engine condition.

3

RED

Oxygen signal of
heated oxygen
sensor-2 (Bank-1)
(if equipped)

4 – 5 V

Ignition switch is at ON
position.

Approx. 0.15 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal varies
depending on the engine
condition.

4

LT GRN MAF sensor signal

0.5 – 1.0 V

Ignition switch is at ON
position.

1.2 – 3.6 V

Refer to “Reference

waveform No.3: ”.

Engine running at
specified idle speed after
warmed up engine.

Output signal varies
depending on the throttle
valve opening and engine
speed.

5

6

7

8

BLU/

RED

Power steering
pump pressure
switch signal

10 – 14 V

Ignition switch is at ON
position.

0 – 1 V

Turning steering wheel to
the right or left as far as it
stops while engine is
running.

9

10

GRN/

BLK

EVAP canister
purge valve output

10 – 14 V

Ignition switch is at ON
position.

*0 – 0.6 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.4: ”.

Ignition switch is at ON
position. Set EVAP
canister purge valve at
50% by using “MISC. Test”
of SUZUKI scan tool.

Output signal is active low
duty pulse. Duty ratio
varies depending on the
vehicle condition.

11

YEL/
GRN

EGR valve
(stepper motor coil
3) output (if
equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.5: ”.

Engine is at cranking.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
engine condition.

1A-203 Engine General Information and Diagnosis:

12

YEL/

BLK

EGR valve
(stopper motor coil
1) output (if
equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.5: ”.

Engine is at cranking.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
engine condition.

13

GRY/

GRN

Fuel injector No.5
output

10 – 14 V

Ignition switch is at ON
position.

*0 – 0.6 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.6: ”,

“Reference waveform

No.7: ” and

“Reference waveform

No.29: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
pulse. Pulse frequency
varies depending on the
engine speed.
Pulse width varies
depending on the ECT
and engine load.

14

PNK/

GRN

Fuel injector No.3
output

10 – 14 V

Ignition switch is at ON
position.

*0 – 0.6 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.6: ”,

“Reference waveform

No.8: ” and

“Reference waveform

No.29: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
pulse. Pulse frequency
varies depending on the
engine speed.
Pulse width varies
depending on the ECT
and engine load.

15

PNK

Fuel injector No.1
output

10 – 14 V

Ignition switch is at ON
position.

*0 – 0.6 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.6: ”,

“Reference waveform

No.9: ” and

“Reference waveform

No.29: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
pulse. Pulse frequency
varies depending on the
engine speed.
Pulse width varies
depending on the ECT
and engine load.

16

RED/

BLU

Ground for A/F
sensor adjusting
resister (Bank-1)

Below 0.3 V

Ignition switch is at ON
position.

17

RED/

YEL

A/F sensor
adjusting resister
signal (Bank-1)

0.15 – 4.82 V

Ignition switch is at ON
position.

18

BLK

A/F sensor signal
(+) (Bank-1)

2.0 – 2.4 V

Refer to “Reference

waveform No.10: ”

and “Reference

waveform No.11: ”.

Engine is running at
specified idle speed after
warmed up engine.

19

WHT

A/F sensor signal
(–) (Bank-1)

1.6 – 2.0 V

Refer to “Reference

waveform No.10: ”

and “Reference

waveform No.11: ”.

Engine is running at
specified idle speed after
warmed up engine.

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks

Engine General Information and Diagnosis:  1A-204

20

WHT/

BLK

Heater output of
heated oxygen
sensor-2 (Bank-2)
(if equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
duty pulse. Duty ratio
varies depending on the
engine condition.

21

WHT/

BLK

Heater output of
heated oxygen
sensor-2 (Bank-2)
(if equipped)

10 – 14 V

Ignition switch is at ON
position.

*0 – 1 V

↑↓

10 – 14 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

Output signal is active low
duty pulse. Duty ratio
varies depending on the
engine condition.

22

RED

Oxygen signal of
heated oxygen
sensor-2 (Bank-2)
(if equipped)

4 – 5 V

Ignition switch is at ON
position.

Output signal varies
depending on the engine
condition.

Approx. 0.15 V

Refer to “Reference

waveform No.1: ” and
“Reference waveform

No.2: ”.

Engine is running at
specified idle speed after
warmed up engine.

23

BLU

Ground for MAF
sensor

Below 0.3 V

Ignition switch is at ON
position.

24

RED IAT sensor signal

3.62 – 3.93 V

Ignition switch is at ON
position and intake air
temperature is at 0

°C (32

°F)

1.85 – 2.02 V

Ignition switch is at ON
position and intake air
temperature is at 40

°C

(104

°F)

0.73 – 0.80 V

Ignition switch is at ON
position and intake air
temperature is at 80

°C

(176

°F)

25

WHT

Knock sensor
signal

2 – 3 V

Refer to “Reference

waveform No.12: ”.

Engine is running at 4000
rpm after warmed up
engine.

26

PPL/

YEL

ECT sensor signal

3.64 – 3.95 V

Ignition switch is at ON
position and engine
coolant temperature is at 0

°C (32 °F)

1.50 – 1.63 V

Ignition switch is at ON
position and engine
coolant temperature is at
50

°C (122 °F)

0.45 – 0.49 V

Ignition switch is at ON
position and engine
coolant temperature is at
100

°C (212 °F)

27

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks
