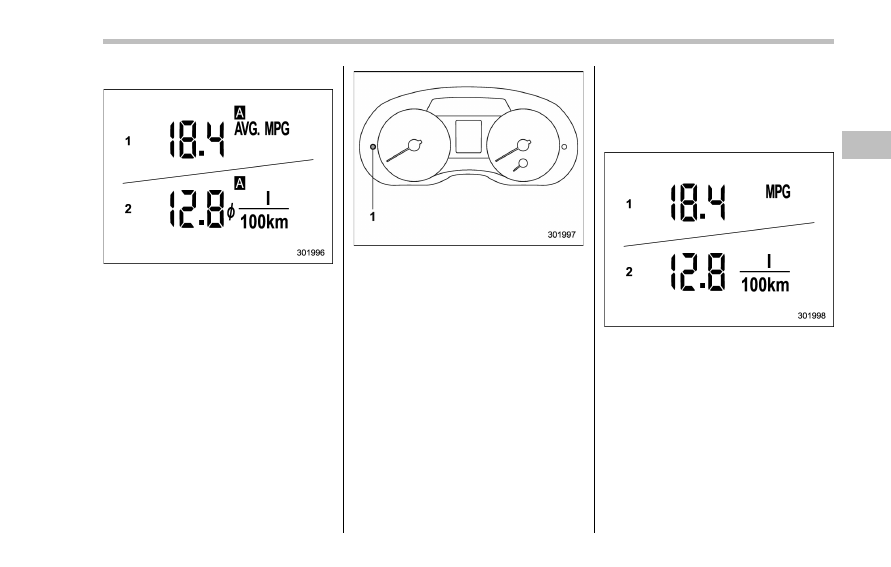

! Average fuel consumption

U.S.-spec. models

Except U.S.-spec. models

This display shows the average rate of
fuel consumption since the trip meter was
last reset.

Trip knob

Pressing the trip knob toggles the display
between the average fuel consumption
corresponding to the A trip meter display
and the average fuel consumption corre-
sponding to the B trip meter display.
When either of the trip meter displays is
reset, the corresponding average fuel
consumption value is also reset.

NOTE

. The indicated values vary in accor-
dance with changes in the vehicle

’s

running conditions. Also, the indicated
values may differ slightly from the
actual values and should thus be
treated only as a guide.

. When either trip meter display is
reset, the average fuel consumption

corresponding to that trip meter dis-
play is not shown until the vehicle has
subsequently covered a distance of 1
mile (or 1 km).

! Current fuel consumption

U.S.-spec. models

Except U.S.-spec. models

This indication shows the rate of fuel
consumption at the present moment.

Instruments and controls/Information display

– CONTINUED –

3-35

Instruments and controls/Information display

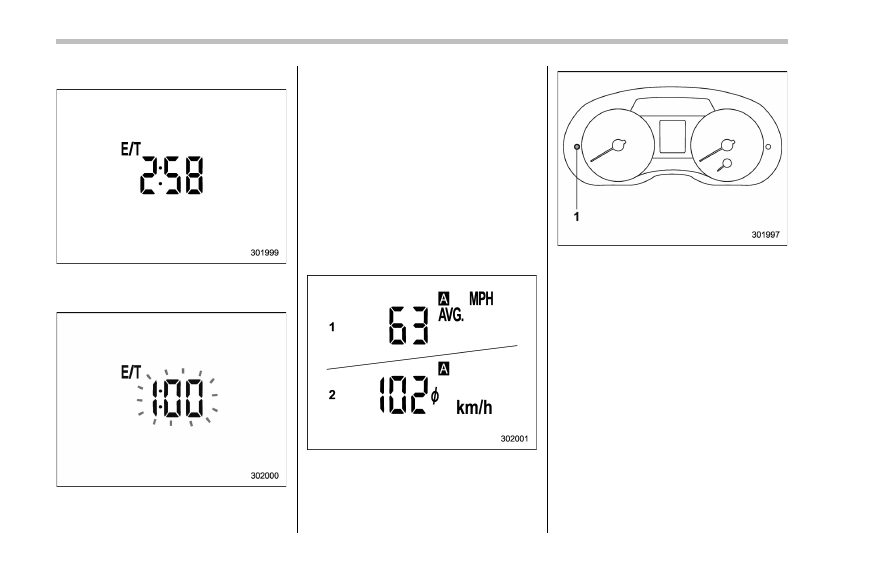

! Journey time

The journey time shows the time that has
elapsed since the ignition switch was
turned to the

“ON” position.

The journey time indication flashes each
time a complete hour has elapsed. If the

display is giving a reading other than the
journey time, the display switches to the
journey time, flashes for 5 seconds, and
returns to its original reading each time a
complete hour has elapsed.

NOTE

The journey time is reset when the
ignition switch is turned to the

“LOCK”/

“OFF” position. It is also reset if the
ignition switch is turned to the

“LOCK”/

“OFF” or “ACC” position prior to
restarting of the engine.

! Average vehicle speed

U.S.-spec. models

Except U.S.-spec. models

This display shows the average vehicle
speed since the trip meter was last reset.

Trip knob

Pressing the trip knob toggles the display
between the average vehicle speed cor-
responding to the A trip meter display and
the average vehicle speed corresponding
to the B trip meter display.
When either of the trip meter displays is
reset, the corresponding average vehicle
speed value is also reset.

NOTE

When either trip meter display is reset,
the average vehicle speed correspond-
ing to that trip meter display is not
shown until the vehicle has subse-
quently covered a distance of 1 mile
(or 1 km).

3-36

! Turn off display of driving informa-

tion display

The driving information display can be
turned off.
To turn off the display, turn the ignition
switch to the

“LOCK”/“OFF” position and

press the

“+” button adjacent to the clock

display for approximately 5 seconds.
Then, the driving information display and
the clock display will blink for 3 seconds to
notify you that the driving information
display has been turned off.
To restore the driving information display,
once again press the

“+” button for

approximately 5 seconds.

NOTE

. The initial display setting of the
driving information display has been
set to operational at the time of ship-
ment from the factory.

. The average fuel consumption and
average vehicle speed are calculated
even while the driving information dis-
play is not displayed.

. Even if you turn off the driving
information display, the display will
automatically turn on when the battery
voltage is disconnected and then re-
connected for battery replacement or
fuse replacement.

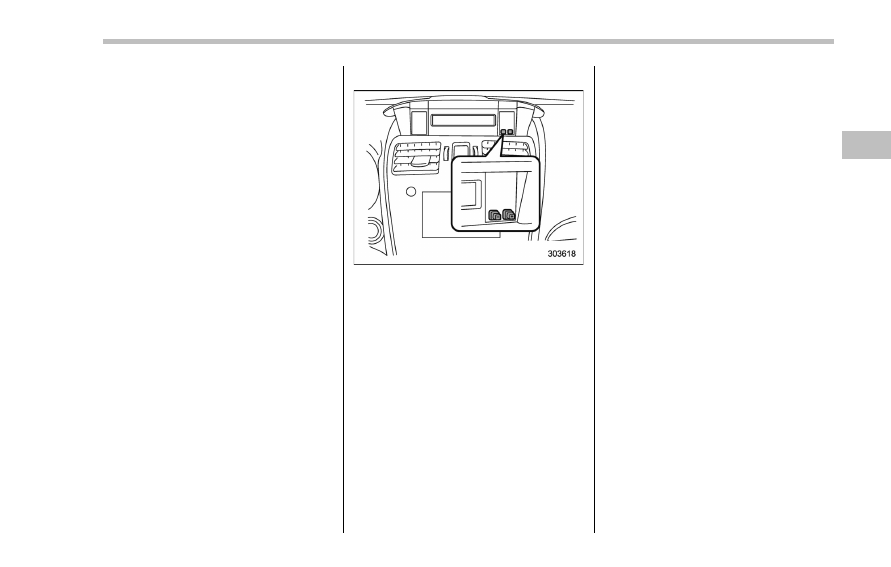

& Clock

To adjust the time shown by the clock,
press the

“+” button or “−” button. If you

press the

“+” button, the indicated time will

change in one-minute increments. If you
press the

“−” button, the indicated time will

change in one-minute decrements. If you
keep the button pressed, the rate at which
the indicated time changes will speed up.

The clock can be set to 12-hour or 24-hour
clock displays. Perform the following
procedure to switch the display format.
1. Place the ignition switch in the

“LOCK”/“OFF” position.
2. Press and hold the

“−” button that is

located near the clock display for approxi-
mately 5 seconds. The clock display will
then start to flash.

3. While the clock display is flashing,
press and hold the

“+” button for approxi-

mately 2 seconds. The clock format will
then change.
4. The clock display will continue to flash
for approximately 3 seconds to inform you
that the clock display has been changed.
If you want to change the clock display
again, press and hold the

“+” button for

approximately 2 seconds while the clock
display is flashing.

Instruments and controls/Information display

3-37

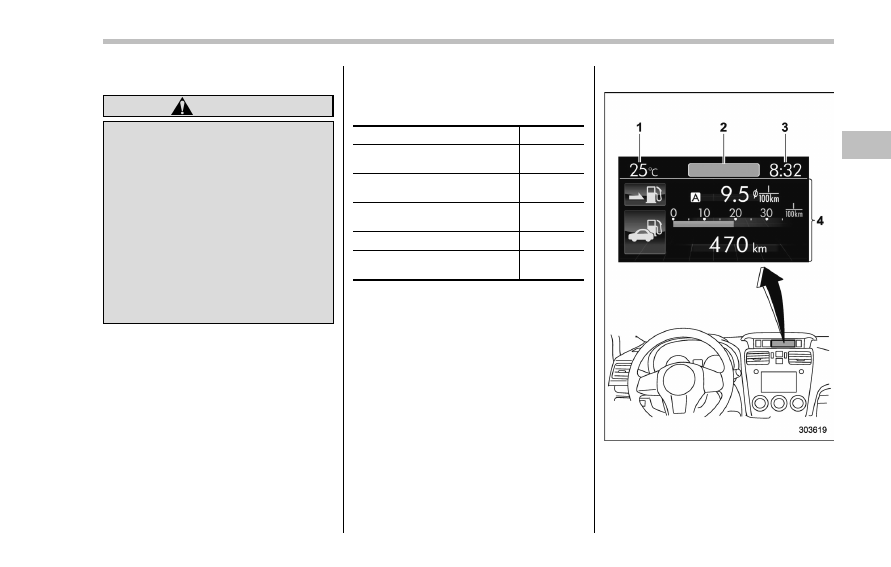

Instruments and controls/Multi information display (models with type B combination meter)

Multi information display
(models with type B combi-
nation meter)

WARNING

Always pay adequate attention to
safe driving when operating the
multi information display while the
vehicle is in motion. When operation
of the multi information display
interferes with your ability to con-
centrate on driving, stop the vehicle
before performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from
the road and could result in an
accident.

Various information will be shown on the
multi information display. Also, a warning
message will appear on the display if a
malfunction, etc. is detected. In addition,
several settings for the displayed content
can be performed.

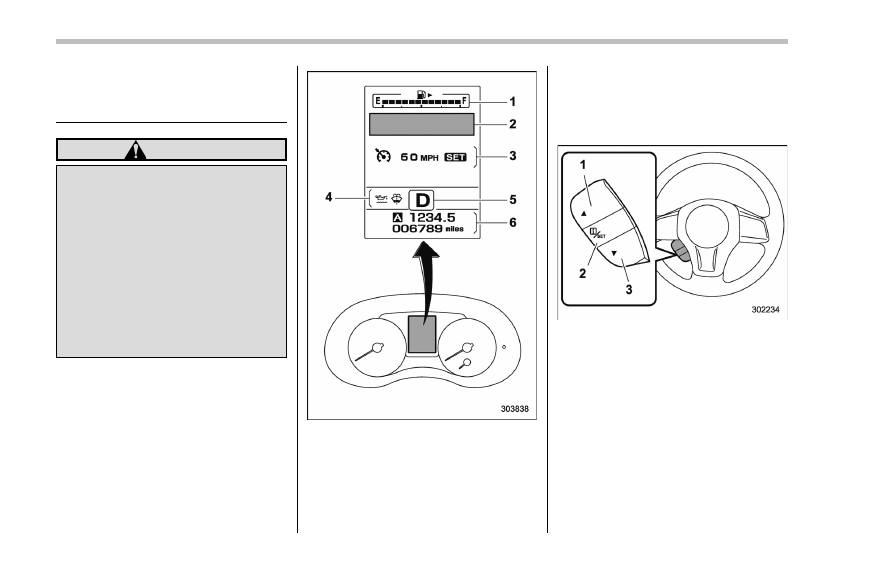

Multi information display
1)

Fuel gauge (refer to

“Fuel gauge” F3-

12.)

Warning screen (refer to

“Warning

screen

” F3-40.)/Basic screen (refer to

“Basic screens” F3-40.)

Cruise control information display

Warning indicator

Select lever/gear position indicator (refer
to

“Select lever/gear position indicator

(CVT models)

” F3-30.)

Odometer (refer to

“Odometer” F3-10.)/

double trip meter (refer to

“Double trip

meter

” F3-11.)

Control switch (except Crosstrek models)
1)

Up (select)

Set (enter)

Down (select)

3-38

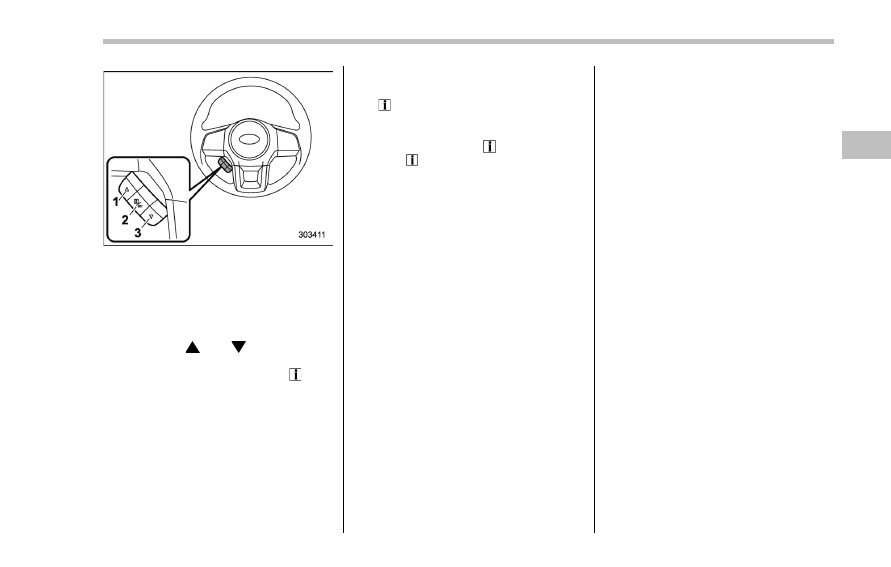

Control switch (Crosstrek models)
1)

Up (select)

Set (enter)

Down (select)

& Basic operation

By operating

“ ” or “ ” of the control

switch, the screens and selection items
can be switched. When the

“ /SET”

switch is pulled toward you, the item can
be selected and set.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the
original screen after a few seconds. While
the

“ ” information reminder is shown on

the display, it may be possible to display
the warning screen again. To recall the
message marked with

“ ” on the display,

pull the

“ /SET” switch on the steering

wheel toward you.

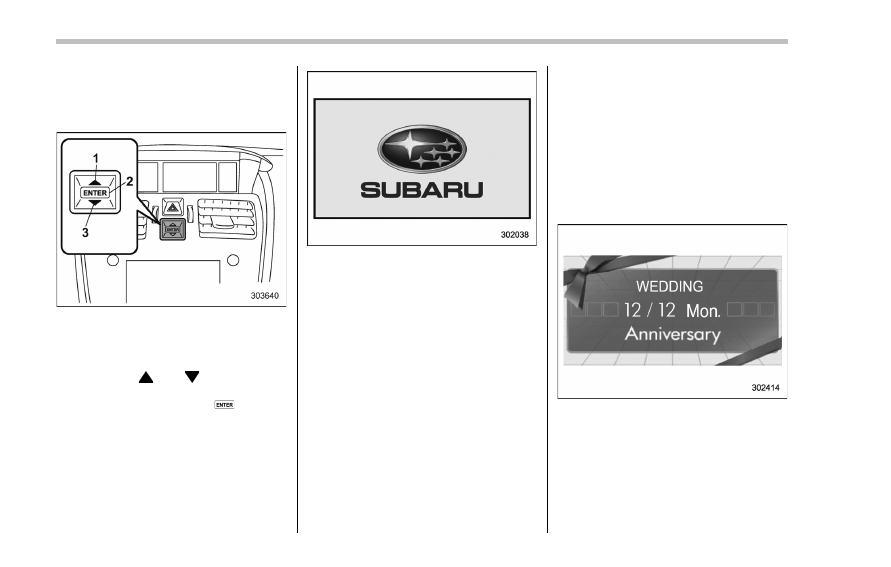

& Welcome screen and Good-

bye screen

When the driver

’s door is opened and

closed after unlocking the door, the
welcome screen will appear on the multi
information display for approximately 20
seconds.
When the ignition switch is turned to the

“LOCK”/“OFF” position, the multi informa-
tion display gradually turns off (Good-bye
screen).

NOTE

. The basic screen will be shown
when the ignition switch is turned to
the

“ON” position while the welcome

screen is displayed.

. Once the welcome screen appears,
it takes a certain period of time to
display it again.

. If the ignition switch is operated
after unlocking the driver

’s door, the

welcome screen will not appear even

when the driver

’s door is opened and

closed.

. The welcome screen will disappear
when you lock the driver

’s door by

using the remote keyless entry system
(all models) or the keyless access
function (if equipped) while the wel-
come screen is displayed.

. If any of the doors (including the
rear gate) is opened while the welcome
screen is displayed, the door ajar
warning will appear.

. The welcome screen can be set to
on or off. For details, refer to

“Welcome

Good-bye Screen

” F3-41.

Instruments and controls/Multi information display (models with type B combination meter)

– CONTINUED –

3-39

Instruments and controls/Multi information display (models with type B combination meter)

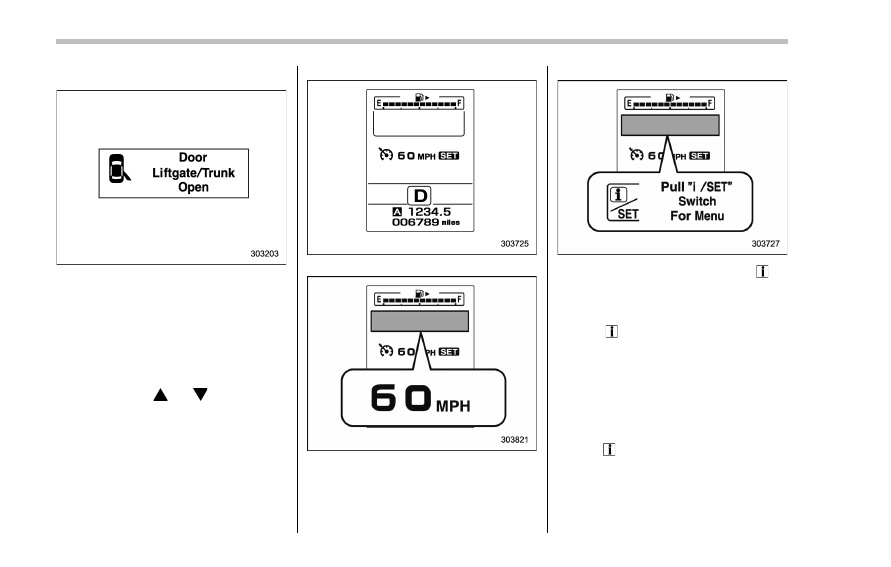

& Warning screen

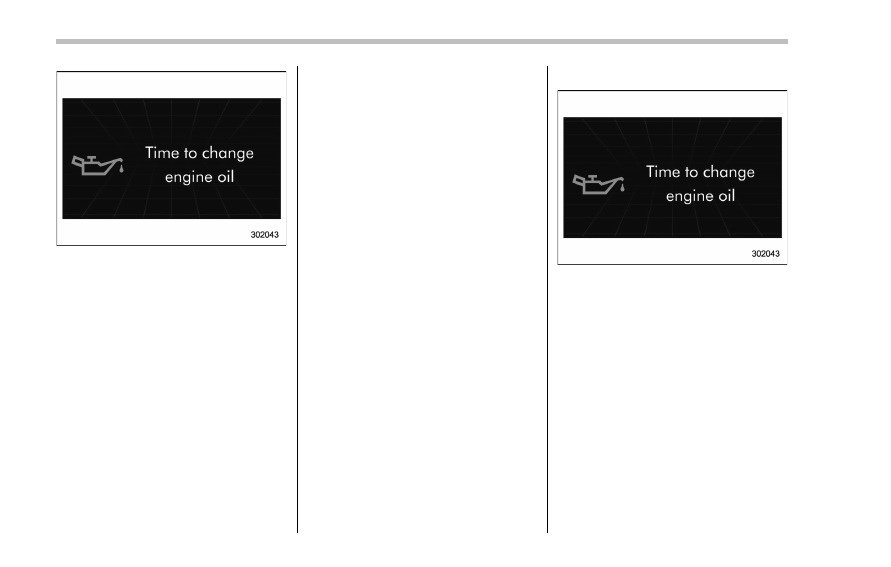

Example of warning

If there is a warning message or a
maintenance notification, it will appear for
approximately 3 seconds. Take the appro-
priate actions based on the messages
indicated.

& Basic screens

By operating the

“ ” or “ ” switch on the

steering wheel, you can change the
screen that is always displayed.

Default screen:

Digital speedometer:

Menu screen entering screen:

While this screen is selected, pull the

“ /

SET

” switch to enter the menu screen.

& Menu screens

Pull the

“ /SET” switch to enter the menu

screens when all of the following condi-
tions are satisfied.
. The vehicle has been completely
stopped.
. The select lever is in the “P” position.

. The menu screen entering screen is
selected.
. The “ ” information reminder is off.

3-40

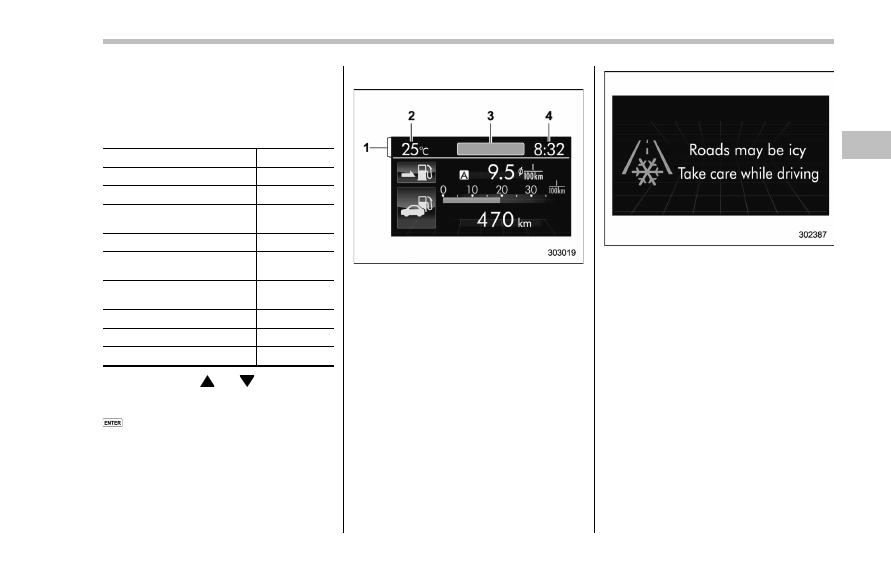

The menu list is as follows.

First menu

Second menu

Screen Settings

Welcome Good-bye Screen

Gauge Initial Movement

Languages

Go Back

EyeSight (models with EyeSight system)

Warning Volume

Lead Vehicle Acquisition Sound

Lead Vehicle Moving Monitor Function

Go Back

BSD/RCTA (if equipped)

Warning Volume

Default Settings

―

By operating the

“ ” or “ ” switch on the

steering wheel, you can select the menu.
Pull the

“ /SET” switch to enter the

selected menu.

NOTE

If you enter the

“Go Back” menu, the

system will return to the previous
screen.

! Screen Settings
After entering the

“Screen Settings” menu,

select one of the following menus.

! Welcome Good-bye Screen

The welcome screen/good-bye screens
can be activated or deactivated. Select

“On” to activate the screens. Select “Off”
to deactivate the screens.

! Gauge Initial Movement

The movement of the meter needles and
gauge needles that occurs when the
ignition switch is turned to the

“ON”

position can be activated or deactivated.
Select

“On” to activate. Select “Off” to

deactivate.

Instruments and controls/Multi information display (models with type B combination meter)

– CONTINUED –

3-41

Instruments and controls/Multi function display

! Languages

Operate the

“ ” or “ ” switch on the

steering wheel to display the preferred
language. Then pull the

“ /SET” switch to

select the displayed language.
! EyeSight (models with EyeSight

system)

NOTE

For models with the EyeSight system,
refer to the Owner

’s Manual supple-

ment for the EyeSight system.

After entering the

“EyeSight” menu, select

one of the following menus.

! Warning Volume

The volume of the warning buzzer that
sounds when the EyeSight system is in
use can be set in 3 stages (

“Max”, “Mid”

and

“Min”).

! Lead Vehicle Acquisition Sound

When adaptive cruise control is used, the
buzzer that sounds if a vehicle is detected
in front or if detection is not possible can
be activated or deactivated. Select

“On” to

activate the buzzer. Select

“Off” to deac-

tivate the buzzer.

! Lead Vehicle Moving Monitor

Function

When adaptive cruise control is used, the
buzzer that sounds if a vehicle in front has
started can be activated or deactivated.
Select

“On” to activate the buzzer. Select

“Off” to deactivate the buzzer.
! BSD/RCTA (if equipped)
After entering the

“BSD/RCTA” menu,

select the

“Warning Volume” menu. You

can set the volume of the warning buzzer
that sounds when the function of the
RCTA (Rear Cross Traffic Alert) has been
activated. You can select

“Max”, “Mid”,

“Min” or “Off”.
! Default Settings
Select

“Yes” to use the menu screen to

restore customized settings to the factory
default settings. Select

“No” to return to

the previous screen without restoring to
the factory default settings.

Multi function display

& Models without multi func-

tion display

NOTE

For models with information display
(black and white), refer to

“Information

display

” F3-32.

The U.S.-spec models are not equipped
with the multi function display. The other
models may be equipped with the multi
function display or not, depending on the
model.

3-42

& Safety precautions

WARNING

Always pay adequate attention to
safe driving when operating the
multi function display while the
vehicle is in motion. When operation
of the multi function display is
disturbing your awareness and abil-
ity to concentrate on driving, stop
the vehicle in a safe place before
performing operations on the
screen. Also, do not concentrate
on the display while driving. Doing
so may cause you to look away from
the road and could result in an
accident.

& Features

The multi function display has the follow-
ing functions.

Description

Page

Displays useful messages, such
as warning information, etc.

3-46

Displays basic screens (e.g. fuel
consumption screen, etc.)

3-47

Sets and adjusts maintenance
notification

3-74

Registers driving history

3-77

Sets and customizes car opera-
tion

3-78

Also, the multi function display can also be
used to set and initialize the multi function
display itself.

NOTE

When the vehicle is in motion, certain
functions and selections may not be
available.

& Locations

Multi function display
1)

Outside temperature indicator

Top display (For the display setting, refer
to

“Top display setting” F3-66.)

Clock

Driving information display (For the dis-

Instruments and controls/Multi function display

– CONTINUED –

3-43

Instruments and controls/Multi function display

played contents, refer to

“Basic screens”

F3-47.)

& Basic operation

Control switch
1)

Up (select)

ENTER (push)

Down (select)

By operating

“ ” or “ ” of the control

switch, the screens and selection items
can be switched. When the

button is

pushed, the item can be selected and set.

& Welcome screen

When the door is unlocked and the
driver

’s door is opened, the welcome

screen will appear for a short time.

NOTE

. The welcome screen will disappear
when the ignition switch is turned to
the

“ON” position while the welcome

screen is displayed.

. If any of the doors (including the
rear gate) is opened while the welcome
screen is displayed, the door ajar
warning will appear.

. The welcome screen can be set to
on or off. For details, refer to

“Bypass

screen setting

” F3-72.

. For a certain period of time after the
welcome screen has once appeared, it
may not appear again even when the
driver

’s door is opened again. This

does not indicate a malfunction.

& Date screen

If you have set the date and time in the
selection screen, after the welcome
screen is displayed, the current date will
be displayed for a certain period of time. If

“On/Off setting” is set to “On” in the

“Maintenance settings”, the date screen
will be displayed after the self-check
screen.

! Birthday/anniversary screen

Example of notification on an anniversary

If you have set a birthday or anniversary,
after the date screen is displayed, the
notification (reminder) will be displayed for
a certain period of time from 7 days prior
to the set date.

3-44

NOTE

. Displaying the birthday/anniversary
screen can be set to on or off. Refer to

“Bypass screen setting” F3-72.

. Up to five items can be set for
birthdays and anniversaries respec-
tively. Refer to

“Selection screen” F3-

54.

& Ending screen

“Eco Summary” is set to “On” in the

“Bypass screen setting”, the “Fuel con-
sumption results screen

” will be displayed

before the screen turns off when the
ignition switch is turned to the

“LOCK”/

“OFF” position.

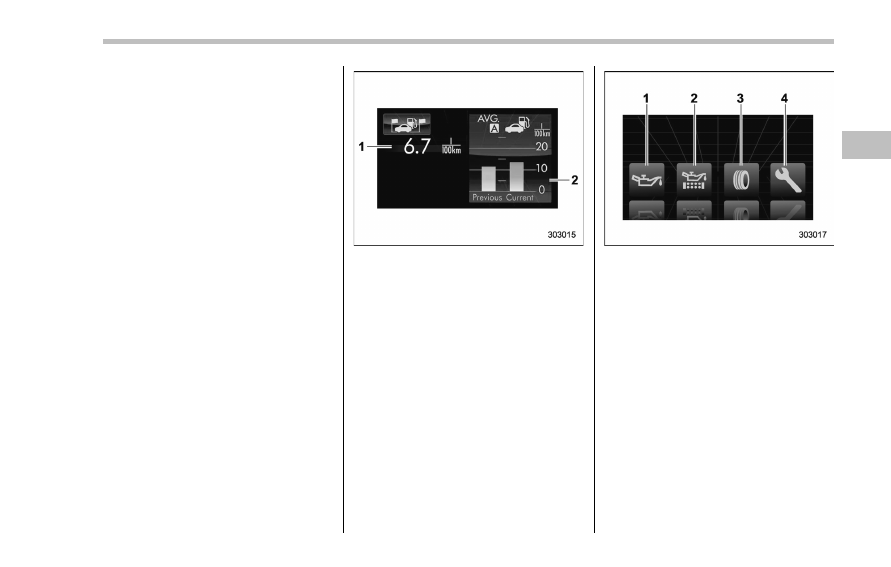

Fuel consumption results screen
1)

The average fuel consumption for the
entire driving distance, from when the
ignition switch was turned to the

“ON”

position to when it was turned to the

“LOCK”/“OFF” position.

This display shows the average rate of
fuel consumption since the trip meter
was last reset. It displays the average
fuel consumption corresponding to the A
trip meter mileage or the one corre-
sponding to the B trip meter mileage.

& Self-check screen

When the ignition switch is turned to the

“ON” position, the vehicle self-check will
be performed. The screens corresponding
to the following items will appear one after
another for several seconds each.

Engine oil: Checks the interval of engine
oil replacement.

Oil filter: Checks the interval of oil filter
replacement.

Tires: Checks the interval of tire rotation.

Inspection and maintenance: Checks the
interval of inspection and maintenance.

When the checks are performed, the color
of the icon corresponding to the checked
item will turn green.
If there is no warning message, the self-
check will be complete without notification.

Instruments and controls/Multi function display

– CONTINUED –

3-45

Instruments and controls/Multi function display

Example of notification

If there is a warning message or a
maintenance notification, the color of the
icon corresponding to the item will turn
yellow and the warning message or the
maintenance notification will be displayed.
Take the appropriate actions based on the
messages indicated.

NOTE

. The self-check screen can be set to
on or off. For details, refer to

“On/Off

setting

” F3-75.

. After performing the maintenance,
change the setting of the correspond-
ing maintenance item. For details, refer
to

“Maintenance settings” F3-74.

. The maintenance notification screen
will be displayed under either of the

following conditions.

– The period of time remaining
until the registered notification date
is 15 days or less.
– The total driving distance remain-
ing until the registered notification
distance is approximately 311 miles
(500 km) or less.

. The maintenance notification screen
will be displayed until either of the
following conditions is satisfied.

– The period of time passed after
the registered notification date is 15
days or more.
– The total distance driven after the
registered notification distance is
approximately 311 miles (500 km) or
more.

& Interruption screen

Warning information (display example)

Useful messages, such as reminder in-
formation, vehicle information, warning
information, etc. may interrupt the current
screen and appear on the display accom-
panied by a beep. Take proper action
according to the message.

The warning screen will return to the
original screen after a few seconds.

3-46

& Basic screens

! Basic screen items
These are the basic screens of the multi
function display.

Item

Page

Information bar

3-47

Fuel consumption screen

3-48

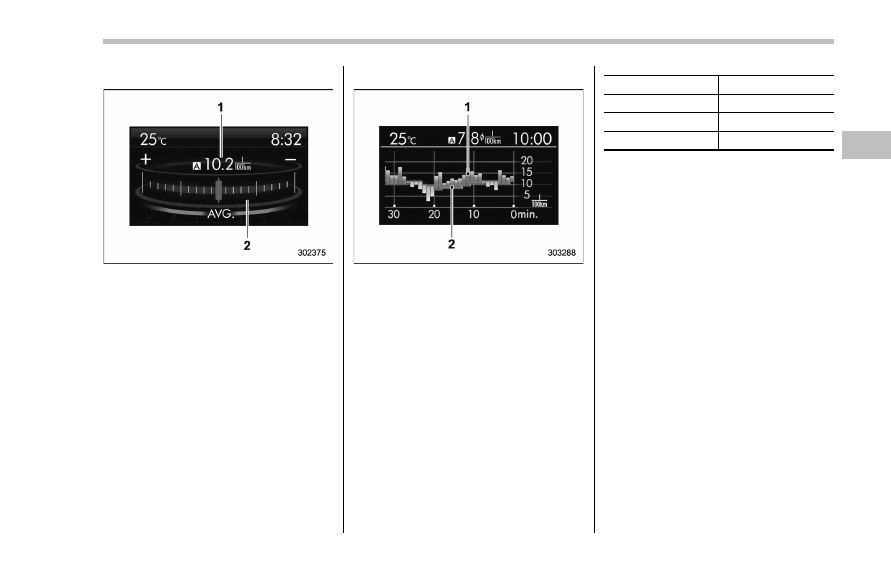

ECO gauge screen (if
equipped)

3-49

ECO history screen

3-49

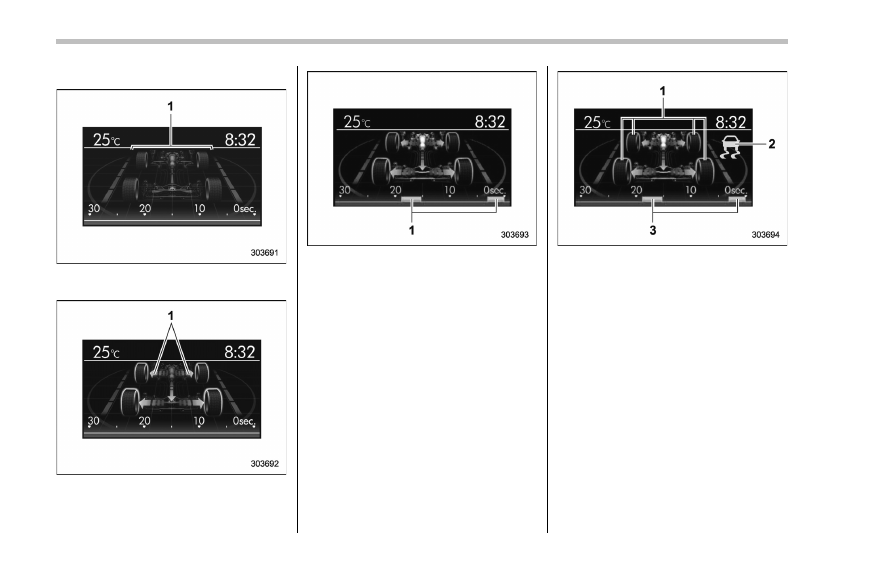

Vehicle activation status
screen

3-50

EyeSight screen (models with
the EyeSight system)

3-51

Triple meter screen

3-51

Guidance screen

3-52

Clock/calendar screen

3-52

By operating the

“ ” or “ ” switch on the

steering wheel, you can switch the screen
that is always displayed. Also, when the

button is pressed and held, the

selection screen can be displayed. For
details about the selection screen, refer to

“Selection screen” F3-54.

! Information bar

Information bar

Outside temperature indicator

Top display

Clock

While the ignition switch is in the

“ACC” or

“ON” position, the outside temperature
indicator, clock, etc. will be shown on the
information bar.

! Outside temperature indicator

This displays the outside temperature
between

−408F (−408C) and 1228F

(50

8C).

Icy road surface warning screen

When the outside temperature becomes
37

8F (38C) or less, the icy road surface

warning screen interrupts to inform the
driver that the road surface may be frozen.

NOTE

. The outside temperature indicator
shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.

. The icy road surface warning screen
should be treated only as a guide. Be
sure to check the condition of the road
surface before driving.

. Once the icy road surface warning
screen is displayed, it will not be
displayed again unless the outside

Instruments and controls/Multi function display

– CONTINUED –

3-47

Instruments and controls/Multi function display

temperature has increased to 41

8C) or higher.

! Top display

One of the following items can be dis-
played on the top display.
. Average fuel consumption correspond-
ing to the driving distance of each trip
meter
. Current fuel consumption (This may
not be displayed when driving at a low
speed.)
. Driving range on remaining fuel

For details about the setting of the top
display, refer to

“Top display setting” F3-

66.

NOTE

The driving range on the remaining fuel
is calculated using the average fuel
consumption of the last 19 miles (30
km) driven. This value may be different
from the values calculated using the
average fuel consumption correspond-
ing to the driving distance of each trip
meter or the current fuel consumption.

! Clock

The clock can be displayed in either 12-
hour display or 24-hour display. For details
about the setting, refer to

“Current date

and time setting

” F3-57.

NOTE

If the vehicle battery is disconnected,
the clock shown in the information bar
will be reset. Set the time again after
the vehicle battery is connected. For
details about the setting, refer to

“Top

display setting

” F3-66.

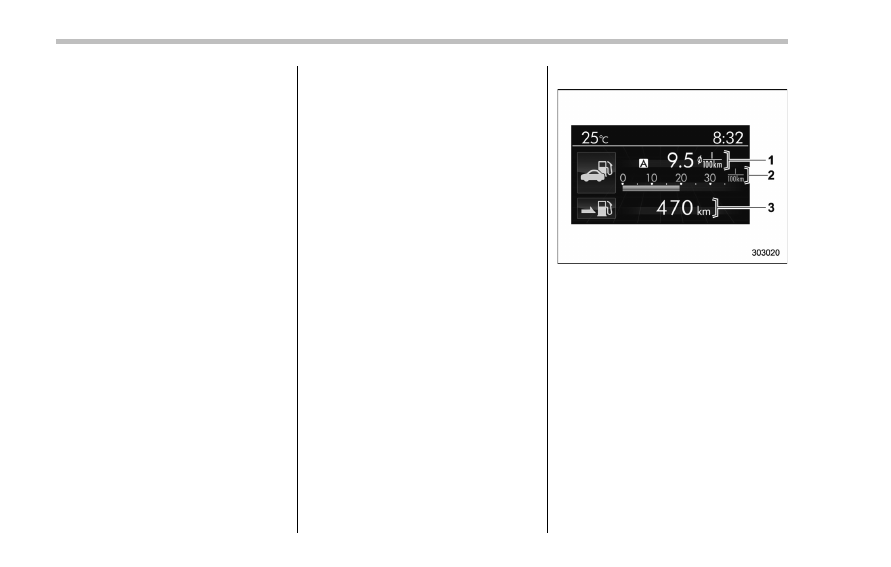

! Fuel consumption screen

Average fuel consumption corresponding
to the driving distance of each trip meter

Current fuel consumption

Driving range on remaining fuel

The displayed location can be custo-
mized. For details, refer to

“Fuel consump-

tion screen setting

” F3-67.

3-48

! ECO gauge screen (if equipped)

Average fuel consumption corresponding
to the driving distance of each trip meter

ECO gauge

The gauge pointer shows the difference
between the current fuel consumption and
the average fuel consumption that is
displayed on the center part of the screen.
If the gauge pointer moves toward the
green side, this indicates better fuel
efficiency.

! ECO history screen

Average fuel consumption per unit time
(bar graph)

Average fuel consumption corresponding
to the driving distance of each trip meter
(red line)

This screen displays the fuel economy
history for the vehicle using a bar graph.

The horizontal scale represents the past
time range and the vertical scale repre-
sents the fuel consumption. The green
bars show driving with good fuel economy
and the yellow bars show driving with poor
fuel economy.

The time range of the history can be set.
The width of the bar graph is adjusted as
follows depending on the set time range.

Time range

Width of bar graph

30 minutes

1 minute

60 minutes

2 minutes

120 minutes

4 minutes

For details about the setting, refer to

“Economy history setting” F3-68.

Instruments and controls/Multi function display

– CONTINUED –

3-49

Instruments and controls/Multi function display

! Vehicle activation status screen

When the vehicle stops
1)

Steering axle

When the vehicle is being driven regularly
1)

Power train (illuminated in blue)

When the Vehicle Dynamics Control sys-
tem is being activated: the tires illuminate
in yellow.
1)

History of Vehicle Dynamics Control
system activation

When the Vehicle Dynamics Control sys-
tem has been activated: the tires remain
illuminated in yellow while the Vehicle
Dynamics Control System is activated.
1)

Activation status of the ABS (Anti-lock
Brake System)

Vehicle Dynamics Control system oper-
ating indicator (flashing in yellow)

History of Vehicle Dynamics Control
system activation

This screen displays the following vehicle
information.
. steering angle and driving wheel status

. activation status of the ABS (Anti-lock
Brake System)
. activation status of the Vehicle Dy-
namics Control system

While driving, the vehicle wheels are
illuminated in blue and the driving direc-

3-50

Subaru XV Crosstrek (2016 year). Instruction - part 12
