Subaru Outback (2019 year). Instruction

(234,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

HomeLink

button 1

HomeLink

button 2

HomeLink

button 3

2. Press and hold the two outer
HomeLink

buttons (button 1 and button

3) until the HomeLink

indicator light

begins to flash (after approximately 20
seconds). Then release both buttons.
3. Hold the end of the entrance gate’s/
garage door opener’s hand-held transmit-
ter between 1 and 3 inches (25 and 76
mm) away from the HomeLink

button you

wish to program.
4. Press and hold the desired HomeLink

button.
5. Press and release (“cycle”) the hand-
held transmitter button every 2 seconds
until step 6 is complete.

6. When the indicator light flashes slowly
and then rapidly after several seconds,
release both buttons.
7. Plug the motor of the entrance gate/
garage door opener to the outlet.
8. Test your entrance gate/garage door
opener by pressing the programmed
HomeLink

button.

Operating the HomeLink

Wire-

less Control System

Once programmed, the HomeLink

Wire-

less Control System can be used to
remote-control the devices to which its
buttons are programmed. To activate a
device, simply press the appropriate but-
ton. The indicator light illuminates, indicat-
ing that the signal is being transmitted.

Programming other devices

To program other devices such as door
locks, home lighting and security systems,
contact HomeLink

at www.homelink.com

or call 1-800-355-3515.

R e p r o g r a m m i n g a s i n g l e
HomeLink

button

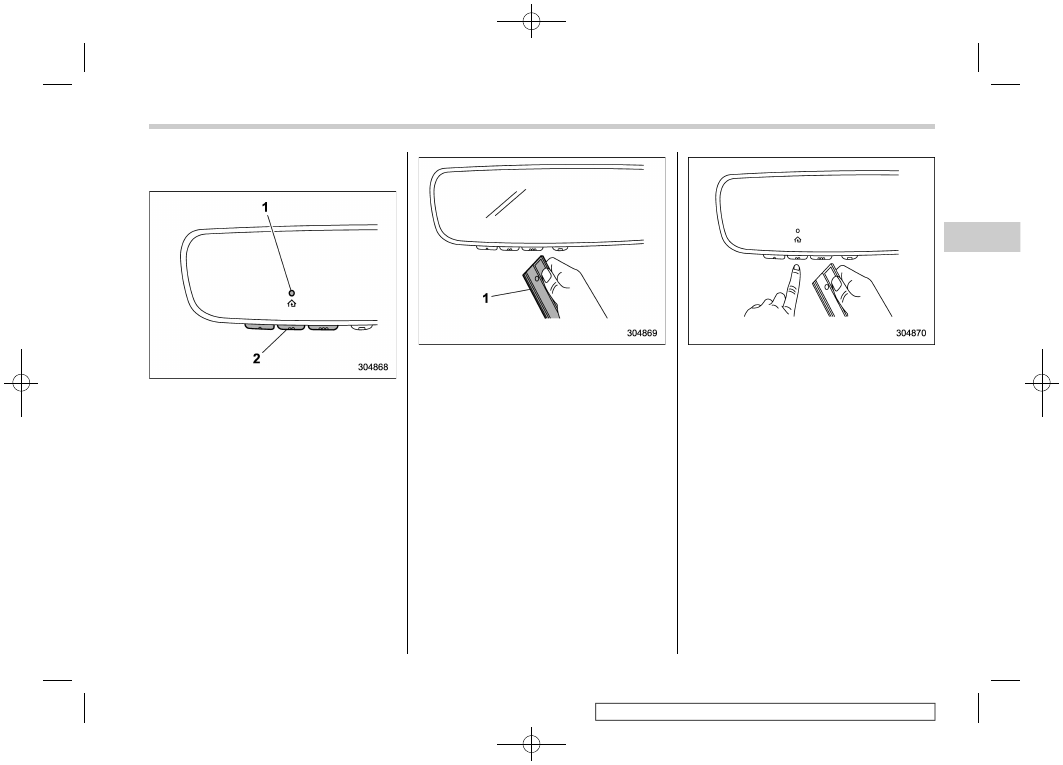

1. Press and hold the HomeLink

button

you wish to reprogram. DO NOT release
the button until step 4 has been completed.
2. When the HomeLink

indicator light

begins to flash slowly (after approximately

20 seconds), position the hand-held trans-
mitter of the device between 1 to 3 inches
(25 to 76 mm) away from the HomeLink

button you wish to program.
3. Press and hold the hand-held trans-
mitter button. The HomeLink

indicator

light will flash, first slowly and then rapidly.
4. When the indicator light begins to flash
rapidly, release both buttons.

The programming for the previous device
is now erased and the new device can be
operated by pressing the HomeLink

button.

Erasing HomeLink

button mem-

ory

NOTE

Performing this procedure erases

the memory of all the preprogrammed
buttons simultaneously. The memory
of individual buttons cannot be erased.
.

It is recommended that upon the sale

of the vehicle, the memory of all
programmed HomeLink

buttons be

erased for security purposes.

Instruments and controls/Mirrors

3-76

(235,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

HomeLink

button 1

HomeLink

button 2

HomeLink

button 3

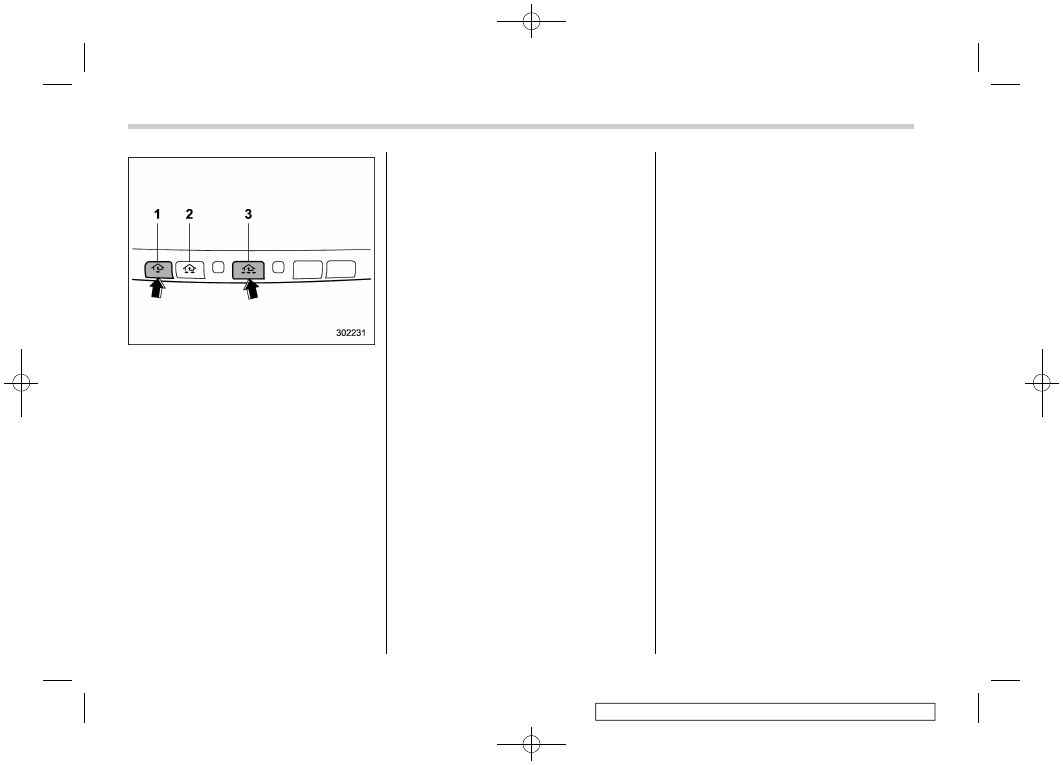

1. Press and hold the two outer buttons
(button 1 and button 3) until the indicator
light begins to flash (after approximately
20 seconds).
2. Release both buttons.

In case a problem occurs

If you cannot activate a device using
the corresponding HomeLink

button

after programming, contact HomeLink

at www.homelink.com or call 1-800-355-
3515 for assistance.

Auto-dimming mirror/com-
pass with HomeLink

(models

with EyeSight system)

Display

HomeLink

buttons

Switch

During nighttime driving, the auto-dimming
feature senses distracting glare from
vehicle headlights behind you and auto-
matically dims to eliminate the glare and
help preserve your vision.

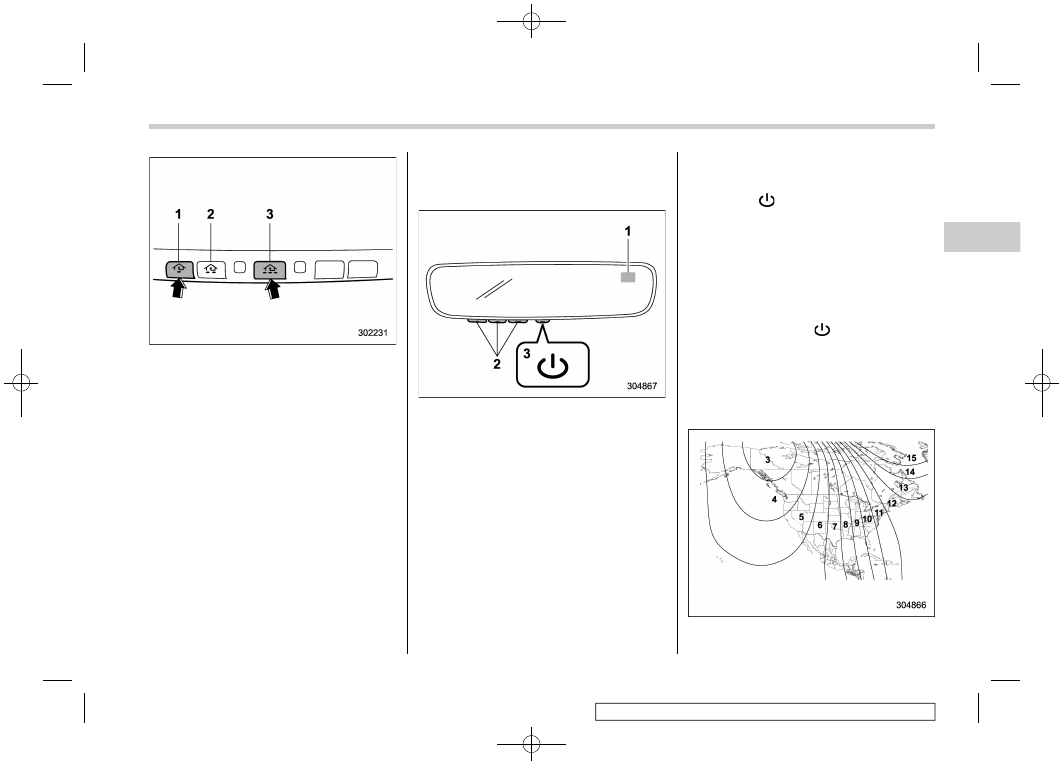

To Operate the Auto-Dimming Fea-
ture

Press the “

” switch to turn the auto-

dimming feature on/off. The auto-dimming
feature is enabled when the switch’s green
LED indicator is on. The auto-dimming
feature will default to on with each ignition
cycle.

To Operate the Compass Feature

1. To turn the compass feature on/off,
press and hold the “

” switch for more

than 3 seconds or until the display turns
on/off. The compass feature will default to
on with each ignition cycle.
2. If the display reads “C”, slowly drive the
vehicle in circles until compass is cali-
brated.

Compass calibration zones

– CONTINUED –

Instruments and controls/Mirrors

3-77

(236,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

3. To adjust for compass zone variance:

(1) Find your current location and
zone number on the map.
(2) Press and hold the “

” switch for

more than 6 seconds or until a zone
number appears in the display.
(3) Once the zone number appears in
the display, toggle the “

” switch

again until your current location zone
number appears. After you stop press-
ing the switch, your new zone number
will be saved. Within a few seconds,
the display will show a compass direc-
tion.

4. If the vehicle’s magnetics have chan-
ged or if the compass appears inaccurate,
recalibrate the compass. Press and hold
the “

” switch for more than 9 seconds or

until a “C” appears in the display. Once a
“C” appears in the display, slowly drive the
vehicle in circles until compass is cali-
brated.

HomeLink

Wireless Control Sys-

tem

The HomeLink

Wireless Control System

provides a convenient way to replace up to
three hand-held radiofrequency remotes
used to activate devices such as gate
operators, garage door openers, entry
door locks, security systems, even home
lighting. The below steps are generic

programming instructions; for Genie and
Sommer garage door openers please go
directly to the HomeLink

website. Addi-

tional information and programming vi-
deos can be found at
www.HomeLink.com and
www.youtube.com/HomeLinkGentex.

CAUTION

Before programming HomeLink

to a garage door opener or gate
operator, make sure that people
and objects are out of the way of
the device to prevent potential
harm or damage.

When programming a garage

door opener, it is advised to park
outside of the garage.

Do not use HomeLink

with any

garage door opener that lacks
safety stop and reverse features
as required by U.S. federal safety
standards (this includes any gar-
age door opener model manufac-
tured before April 1, 1982). A
garage door that cannot detect
an object signaling the door to
stop and reverse does not meet
current U.S. federal safety stan-
dards.

It is also recommended that a new

battery be placed in the hand-
held remote (garage door opener
remote) of the device for quicker
and more accurate training.

Turn the ignition switch to the

“ON” or “ACC” position before
programming and/or operating
HomeLink

Keep the hand-held remote (gar-

age door opener remote) of the
device you are programming for
use in other vehicles as well as
for future HomeLink

program-

ming. It is also suggested that
upon the sale of the vehicle, the
programmed HomeLink

buttons

be erased for security purposes.
Refer to “Erasing HomeLink

but-

tons” F3-81.

Instruments and controls/Mirrors

3-78

(237,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Programming a New HomeLink

button

Indicator Light

HomeLink

buttons

1. Press and release the HomeLink

button that you would like to program.
The HomeLink

indicator light will flash

orange slowly (if not, refer to “Erasing
HomeLink

buttons” F3-81).

Garage door opener remote

2. Position the hand-held remote (garage
door opener remote) 1 to 3 inches (2 to 8
cm) away from the HomeLink

button that

you would like to program.

NOTE

Some hand-held remotes (garage door
opener remotes) may actually train
better at a distance of 6 to 12 inches
(15 to 30 cm). Keep this in mind if you
have difficulty with the programming
process.

3. While the HomeLink

indicator light is

flashing orange, press and hold the hand-
held remote button. Continue pressing the
hand-held remote button until the
HomeLink

indicator light changes from

orange to green. You may now release the
hand-held remote button.

NOTE

Some devices may require you to re-
place this “Programming a New
HomeLink

button” step 3 with proce-

dures noted in the “Gate Operator /
Canadian Programming” section. Refer
to “Gate Operator / Canadian Program-
ming” F3-81.

– CONTINUED –

Instruments and controls/Mirrors

3-79

(238,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Indicator Light

4. Press the HomeLink

button that you

would like to program and observe the
indicator light.

If the indicator light remains constant

green, your device should operate
when the HomeLink

button is

pressed. At this point, if your device
operates, programming is complete.
.

If the indicator light rapidly flashes

green, firmly press, hold for two sec-
onds and release the HomeLink

but-

ton up to three times to complete the
programming process. At this point if
your device operates, programming is
complete. If the device does not
operate, continue with the next step
of the programming instructions.

“Learn” button

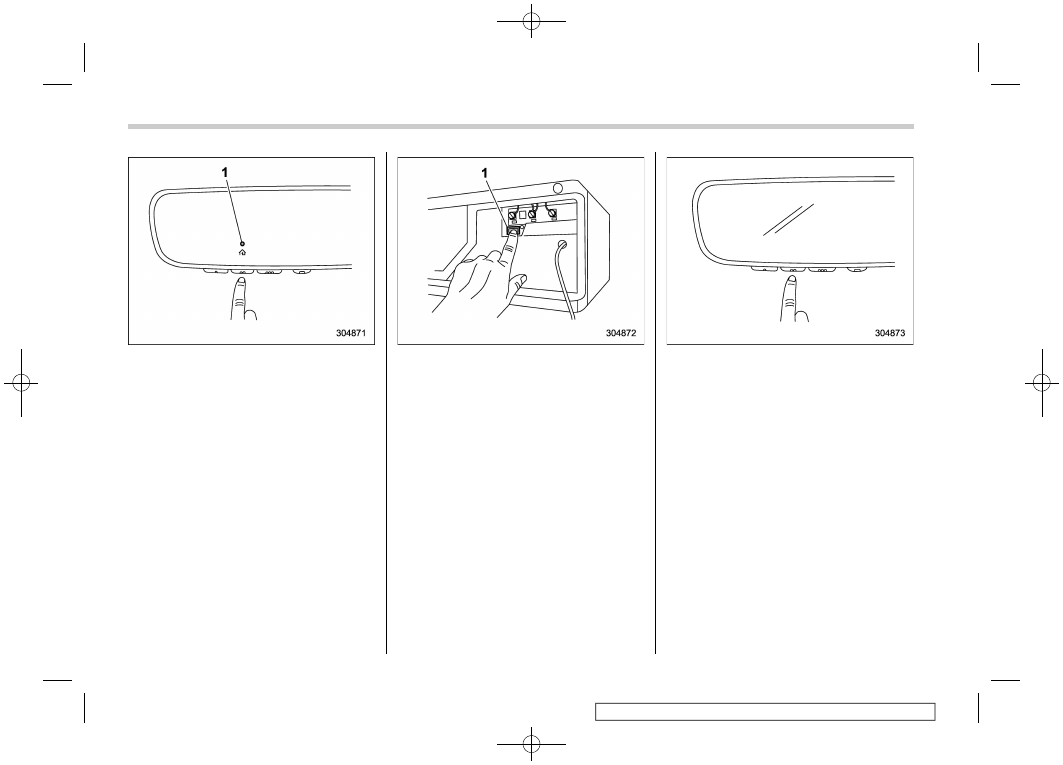

5. At the garage door opener motor,
(security gate motor, etc...) locate the
“Learn”, “Smart”, or “Program” button. This
can usually be found where the hanging
antenna wire is attached to the motor-head
unit (see the device’s manual to identify
this button). The name and color of the
button may vary by manufacturer.

NOTE

A ladder and/or second person may
simplify the following steps.

6. Firmly press and release the “Learn”,
“Smart”, or “Program” button. You now
have 30 seconds in which to complete step
7.

7. Return to the vehicle and firmly press,
hold for 2 seconds and release the
HomeLink

button up to three times. At

this point programming is complete and
your device should operate when the
HomeLink

button is pressed and re-

leased.

Instruments and controls/Mirrors

3-80

(239,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

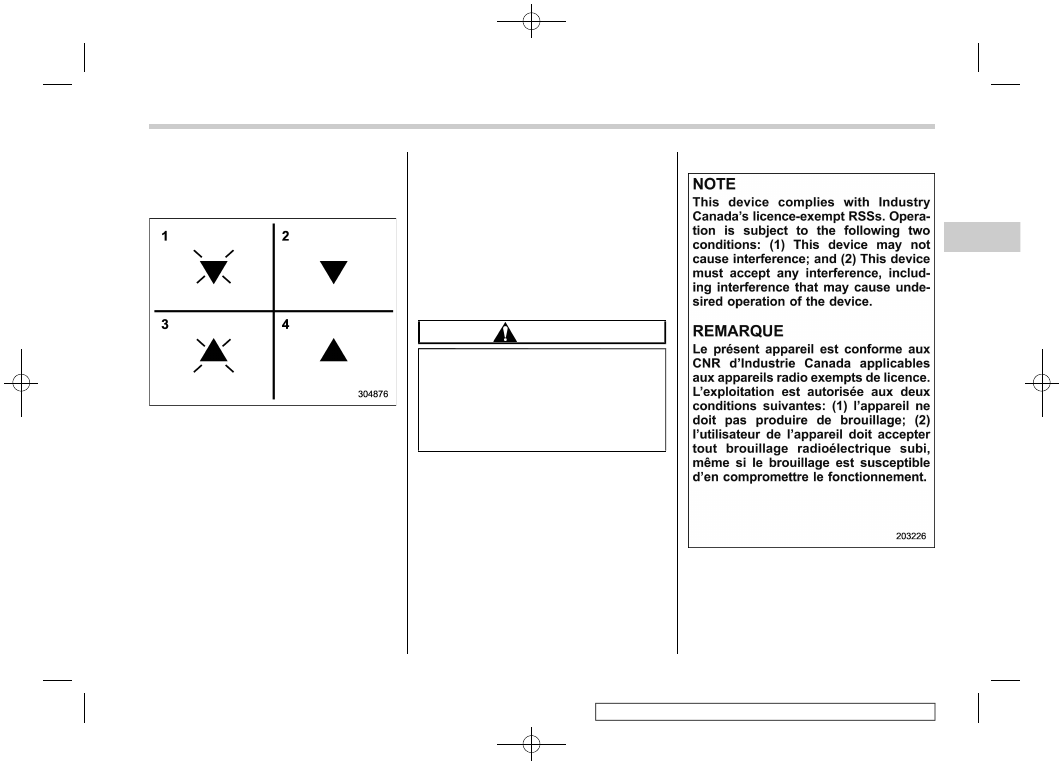

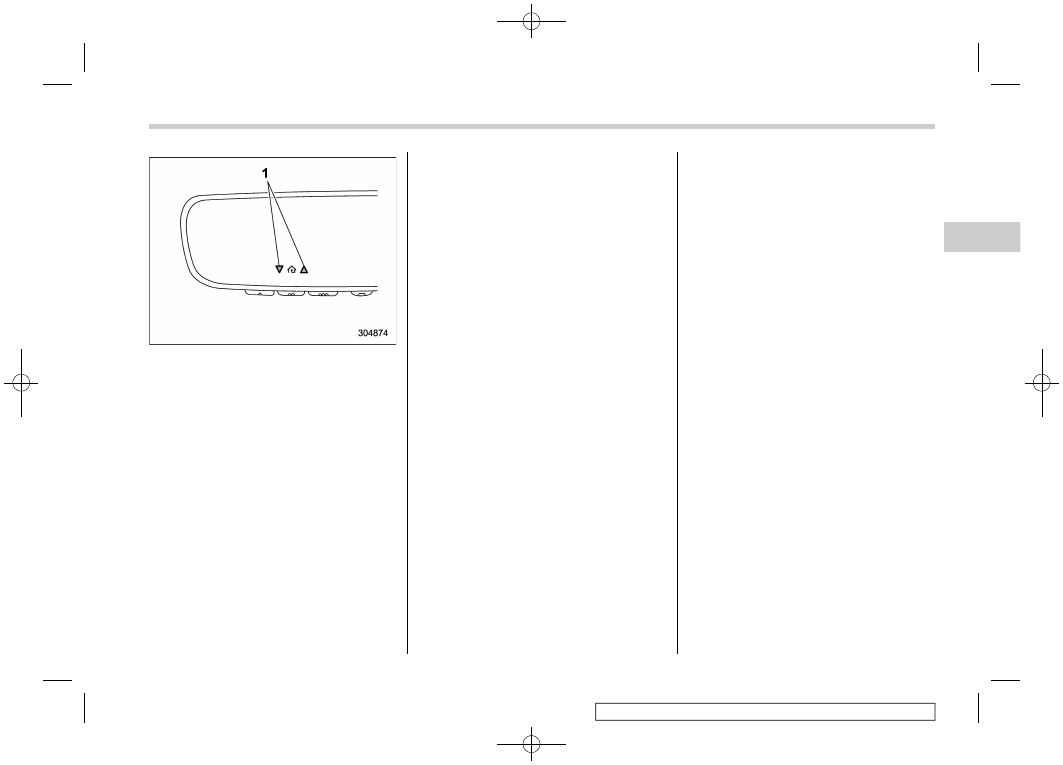

Status Indicators

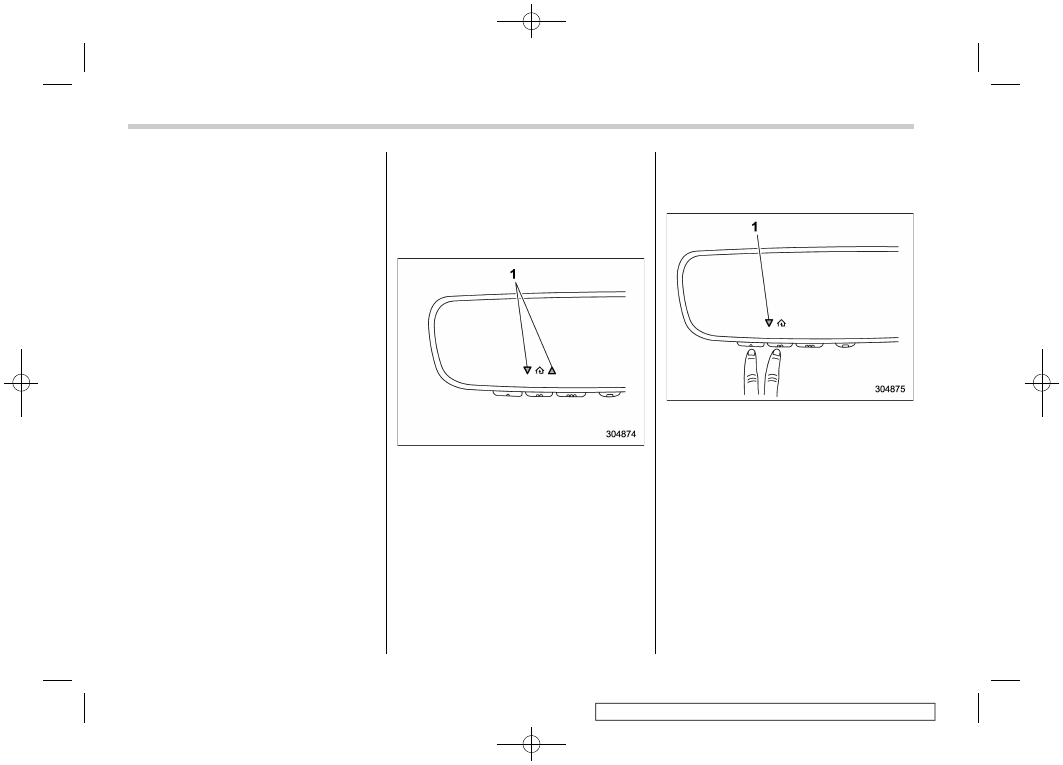

8. If status indicator arrows appear next
to the indicator light, please refer to
“Garage Door Two-Way Communication”
F3-82.

In the event that there are still program-
ming difficulties or questions, additional
HomeLink

information and programming

videos can be found at
www.HomeLink.com and
www.youtube.com/HomeLinkGentex. For
Genie and Sommer garage door openers
please go directly to the HomeLink

website.

Gate Operator / Canadian Pro-
gramming

Canadian radio-frequency laws require
transmitter remote signals to “time-out”
(or quit) after several seconds of transmis-
sion, which may not be long enough for
HomeLink

to pick up the signal during

programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
The indicator LED on the hand-held
remote will go off when the device times
out, indicating that it has finished transmit-
ting.

If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the program-
ming procedures, replace “Programming a
New HomeLink

button” step 3 with the

following:

While the HomeLink

indicator light is

flashing orange, press and release (“cy-
cle”) your device’s hand-held remote every
two seconds until the HomeLink

indicator

light changes from orange to green. You
may now release the hand-held remote
button.

NOTE

If programming a garage door opener
or gate operator, it is advised to unplug

the device during the “cycling” process
to prevent possible overheating.

Proceed with “Programming a New
HomeLink

button” step 4 to complete.

Using HomeLink

To operate, simply press and release the
programmed HomeLink

button. Activa-

tion will now occur for the trained device
(i.e. garage door opener, gate operator,
security system, entry door lock, home/
office lighting, etc.). For convenience, the
hand-held remote of the device may also
be used at any time.

Erasing HomeLink

buttons

To erase programming from the three
buttons (individual buttons cannot be
erased but can be “reprogrammed” as
outlined below), follow the step noted:

Press and hold the two outer HomeLink

buttons for at least 10 seconds. The LED
indicator will change from continuously lit
to rapidly flashing. Release both buttons.
Do not hold for longer than 20 seconds.
HomeLink

is now ready to be pro-

grammed at any time beginning with
“Programming a New HomeLink

button”

- step 1.

– CONTINUED –

Instruments and controls/Mirrors

3-81

(240,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

R e p r o g r a m m i n g a S i n g l e
HomeLink

button

To program a previously trained button,
follow these steps:
1. Press and hold the desired HomeLink

button. DO NOT release the button.
2. The indicator light will begin to slowly
flash orange after 20 seconds. The
HomeLink

button can be released at this

point. Proceed with “Programming a New
HomeLink

button” - step 3.

3. If you do not complete the program-
ming of a new device to the button, it will
revert to the previously stored program-
ming.

Garage Door Two-Way Commu-
nication

HomeLink

has the capability of commu-

nicating with your garage door opener.
HomeLink

can receive and display “clos-

ing” or “opening” status messages from
compatible garage door opener systems.
At any time, HomeLink

can also recall and

display the last recorded status commu-
nicated by the garage door opener to
indicate your garage door being “closed”
or “opened”.

HomeLink

has the capability of receiving

this communication from the garage door
opener at a range up to 820 feet (250 m).

Range may be reduced by obstacles such
as houses or trees. You may have to slow
your vehicle speed to successfully receive
the garage door opener communication.

Programming Two-Way Commu-
nication

Status Indicators

Within 5 seconds after programming a new
HomeLink

button, both of HomeLink’s

garage door status indicators will flash
rapidly green indicating that the garage
door two-way communication has been
enabled. If your garage door status in-
dicators flashed, two-way communication
programming is complete.

If the garage door status indicators do not
flash, additional HomeLink

information

and programming videos can be found

online at www.HomeLink.com and
www.youtube.com/HomeLinkGentex.

Using Two-Way Communication

Status Indicator

Recall and display (at any time) the last
recorded garage door status message
communicated to HomeLink

by simulta-

neously pressing HomeLink

buttons 1

and 2 for 2 seconds. HomeLink

will

display the last recorded status for 3
seconds.

Instruments and controls/Mirrors

3-82

(241,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

If two-way communication programming is
successful, HomeLink

will display the

status of your garage door opener with
arrow indicators (see below).

Garage Door Opener CLOSING (Blinking
Orange)

Garage Door Opener CLOSED (Solid
Green)

Garage Door Opener OPENING (Blink-
ing Orange)

Garage Door Opener OPENED (Solid
Green)

Certification

In the event that there are still program-
ming difficulties or questions, additional
HomeLink

information and programming

videos can be found at
www.HomeLink.com,
www.youtube.com/HomeLinkGentex, or
by calling the toll-free HomeLink-hotline
at 1-800-355-3515.
.

U.S.-spec. models

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

Canada-spec. models

HomeLink

and the HomeLink

house are

registered trademarks of Gentex Corpora-
tion.

– CONTINUED –

Instruments and controls/Mirrors

3-83

(242,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

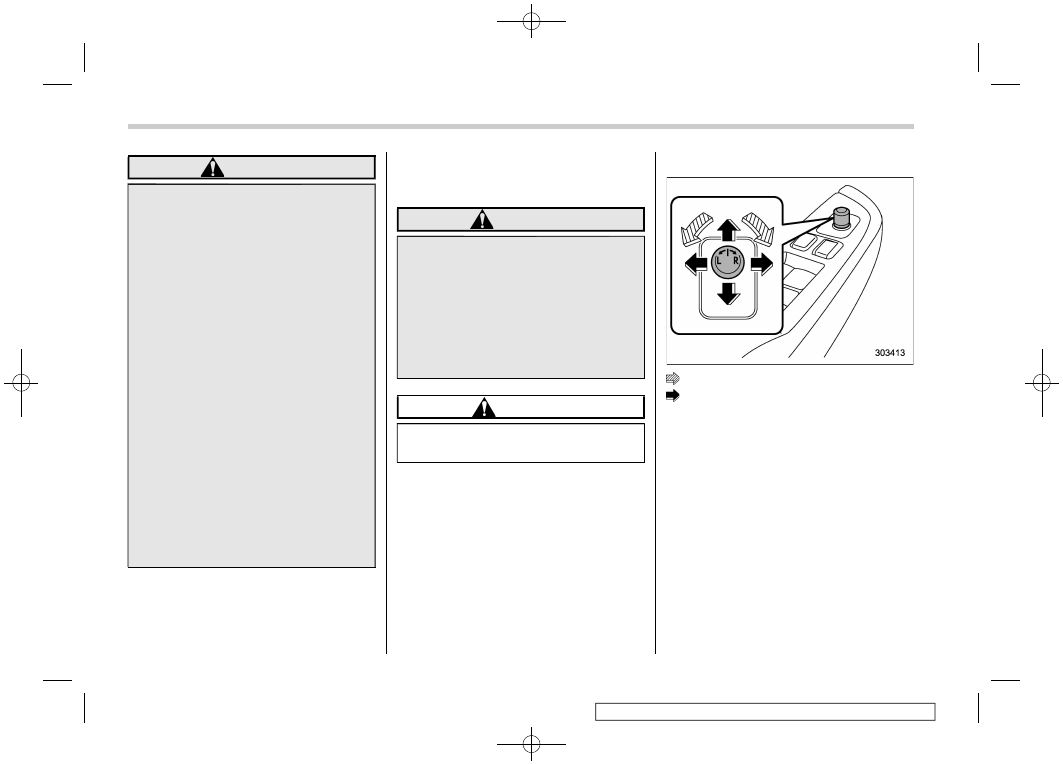

WARNING

W h e n

p r o g r a m m i n g

t h e

HomeLink

Wireless Control Sys-

tem, you may be operating a
garage door opener or other
device. Make sure that people
and objects are out of the way of
the garage door or other device
to prevent potential harm or da-
mage.

Do not use the HomeLink

Wire-

less Control System with a gar-
age door opener that lacks the
safety stop and reverse feature
as required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and
reverse, does not meet these
safety standards. Using a garage
door opener without these fea-
tures increases risk of serious
injury or death. For more infor-
mation, consult the HomeLink

website at www.homelink.com or
call 1-800-355-3515.

Outside mirrors

Convex mirror (passenger side)

WARNING

Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use the
convex mirror to judge the distance
of vehicles behind you when chan-
ging lanes. Use the inside mirror (or
glance backwards) to determine the
actual size and distance of objects
that you view in convex mirror.

CAUTION

Make sure to adjust the mirrors
before driving.

Remote control mirror switch

: Select side to adjust
: Direction control

The remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the control switch to the side that
you want to adjust. “L” is for the left mirror,
“R” is for the right mirror.
2. Move the control switch in the direction
you want to move the mirror.
3. Return the control switch to the neutral
position to prevent unintentional opera-
tion.

The mirrors can also be adjusted manu-
ally.

Instruments and controls/Mirrors

3-84

(243,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

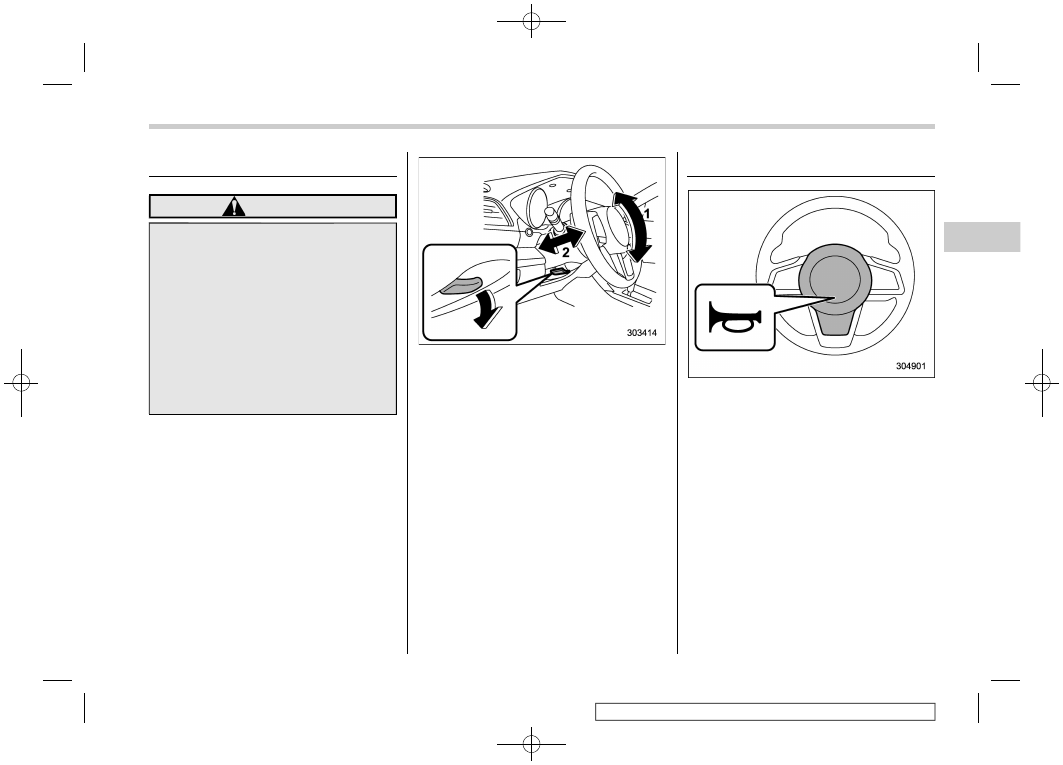

Tilt/telescopic steering wheel

WARNING

Do not adjust the steering wheel

tilt/telescopic position while driv-
ing. This may cause loss of
vehicle control and result in per-
sonal injury.

If the lever cannot be raised to the

fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in per-
sonal injury.

Tilt adjustment

Telescopic adjustment

1. Adjust the seat position. Refer to “Front
seats” F1-2.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down,
and forward and backward.

Horn

To sound the horn, push the horn pad.

Instruments and controls/Tilt/telescopic steering wheel

3-85

(244,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

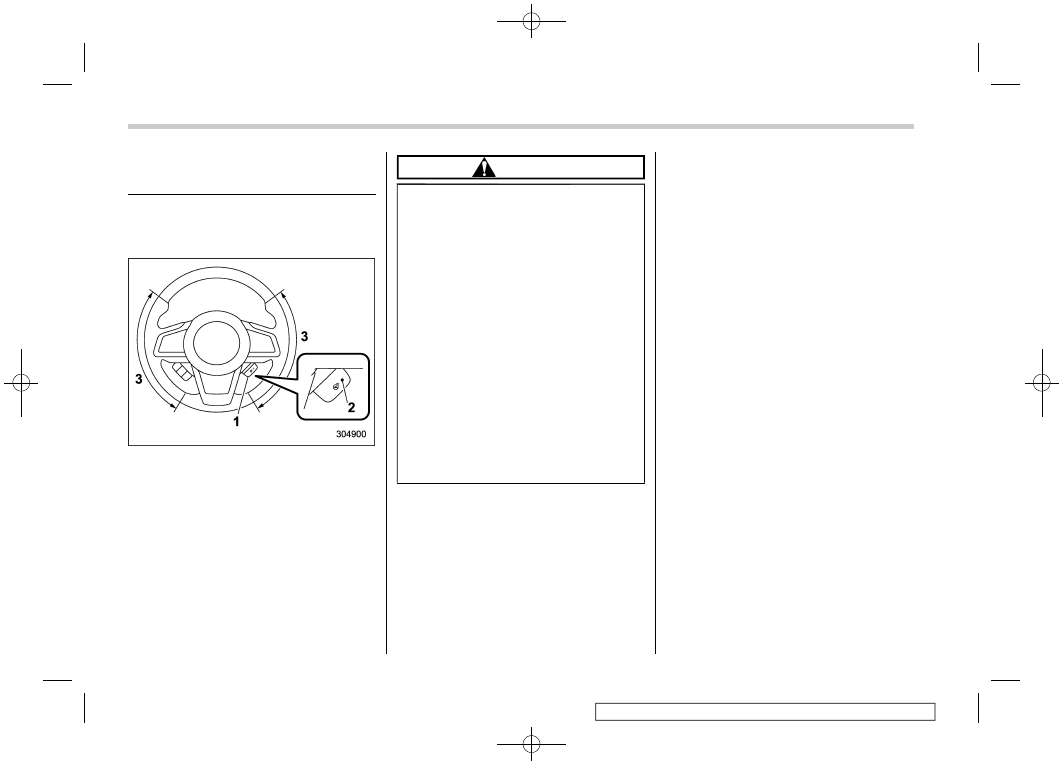

Heated Steering Wheel sys-
tem (if equipped)

The Heated Steering Wheel system
warms the steering wheel at a constant
temperature.

Heated Steering Wheel switch

Indicator light

Heated area

To turn on the Heated Steering Wheel
system, pull the Heated Steering Wheel
switch when the ignition switch is in the
“ON” position. Then the steering wheel will
be warmed and the indicator light on the
switch will illuminate. To turn off the Heated
Steering Wheel system, pull the switch
again. Then the indicator light will turn off.

CAUTION

Use the Heated Steering Wheel

system with the engine running.
Otherwise, the battery voltage
may drop below the permissible
level and it may not be possible to
start the engine.

People with delicate skin may

suffer slight burns even at low
temperatures if they use the
Heated Steering Wheel for a long
period of time. When using the
Heated Steering Wheel, always
be sure to warn the persons
concerned.

Do not cover the Heated Steering

Wheel with an object such as a
steering wheel cover. Doing so
may cause the Heated Steering
Wheel to overheat.

NOTE

If the surface temperature of the

steering wheel is approximately above
1048F (408C) when the Heated Steering
Wheel system is turned on, the system
will not heat the steering wheel. Then,
the indicator light will continue to
illuminate.
.

The Heated Steering Wheel system

will automatically turn off approxi-
mately 30 minutes after the system
has been turned on.

Instruments and controls/Heated Steering Wheel system

3-86

(247,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Ventilator control .................................................... 4-2

Center ventilators .................................................. 4-2
Side ventilators...................................................... 4-2
Rear ventilators (if equipped) ................................. 4-2

Climate control panel ............................................. 4-3

Type A ................................................................... 4-3
Type B ................................................................... 4-4

Automatic climate control system (type B) .......... 4-5

Sensors ................................................................. 4-5

Manual climate control ........................................... 4-6

Airflow mode selection........................................... 4-6
Temperature control ............................................... 4-7
Fan speed control .................................................. 4-8
Air conditioner control ........................................... 4-8
Air inlet selection................................................... 4-8

Defrosting................................................................ 4-9
Operating tips for heater and air conditioner ...... 4-9

Cleaning ventilator grille .........................................4-9
Efficient cooling after parking in direct sunlight ......4-9
Lubrication oil circulation in the refrigerant

circuit..................................................................4-9

Checking air conditioning system before summer

season ................................................................4-9

Cooling and dehumidifying in high humidity and

low temperature weather condition .................... 4-10

Air conditioner compressor shut-off when engine

is heavily loaded................................................ 4-10

Refrigerant for your climate control system .......... 4-10

Air filtration system.............................................. 4-10

Replacing the cabin air filter ................................. 4-11

Climate control

(248,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Ventilator control

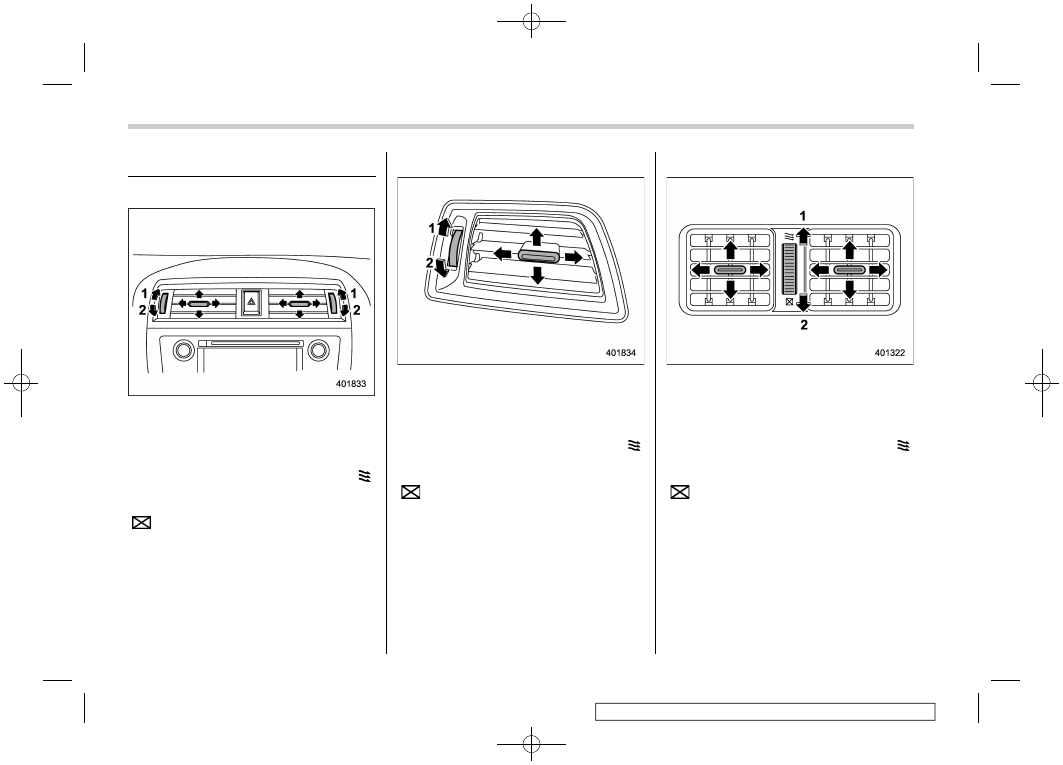

Center ventilators

Open

Move the tab to adjust the flow direction.
To open the ventilator, turn the center grille
open/close wheel upward to the “ ”
position.
To close it, turn the wheel downward to the
“

” position.

Side ventilators

Open

Move the tab to adjust the flow direction.
To open the ventilator, turn the side grille
open/close wheel upward to the “ ”
position.
To close it, turn the wheel downward to the
“

” position.

Rear ventilators (if equipped)

Open

Move the tab to adjust the flow direction.
To open the ventilator, turn the rear grille
open/close wheel upward to the “ ”
position.
To close it, turn the wheel downward to the
“

” position.

Climate control/Ventilator control

4-2

(249,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Climate control panel

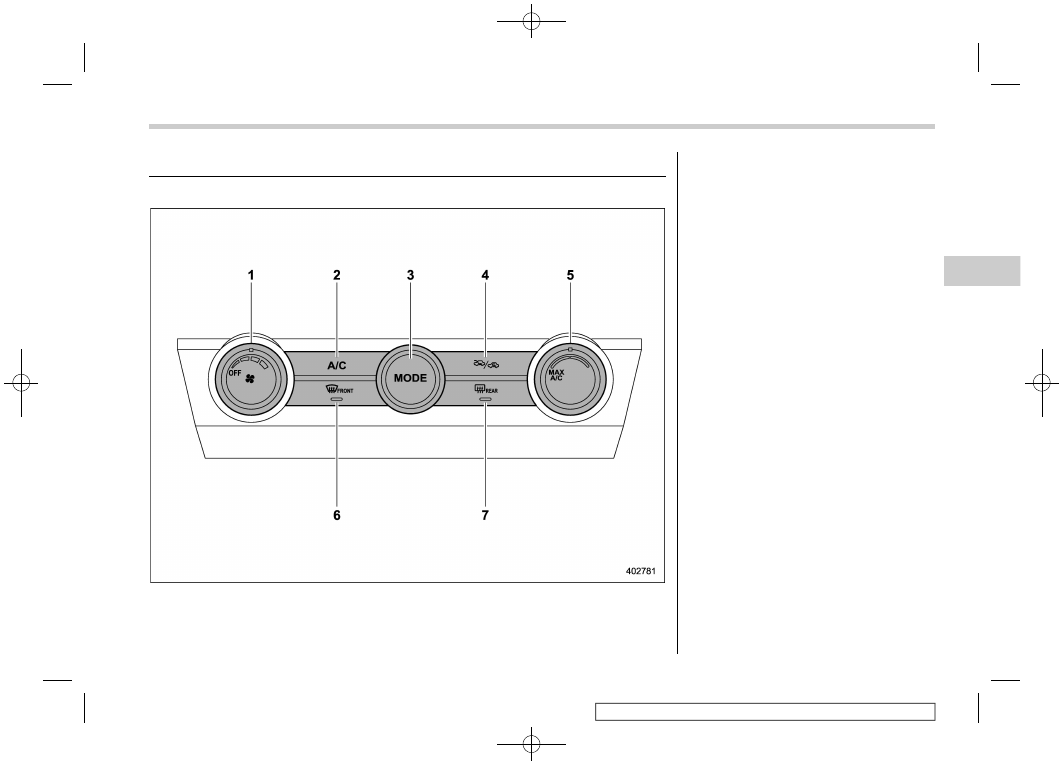

Type A

Fan speed control dial (Refer to “Fan
speed control” F4-8.)

“A/C” button (Refer to “Air conditioner
control” F4-8.)

Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)

Air inlet selection button (Refer to “Air
inlet selection” F4-8.)

Temperature control dial (Refer to “Tem-
perature control” F4-7 and “MAX A/C
mode” F4-7.)

Defroster button (Refer to “Airflow mode
selection” F4-6 and “Defrosting” F4-9.)

Rear window defogger button (Refer to
“Defogger and deicer” F3-64.)

– CONTINUED –

Climate control/Climate control panel

4-3

(250,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

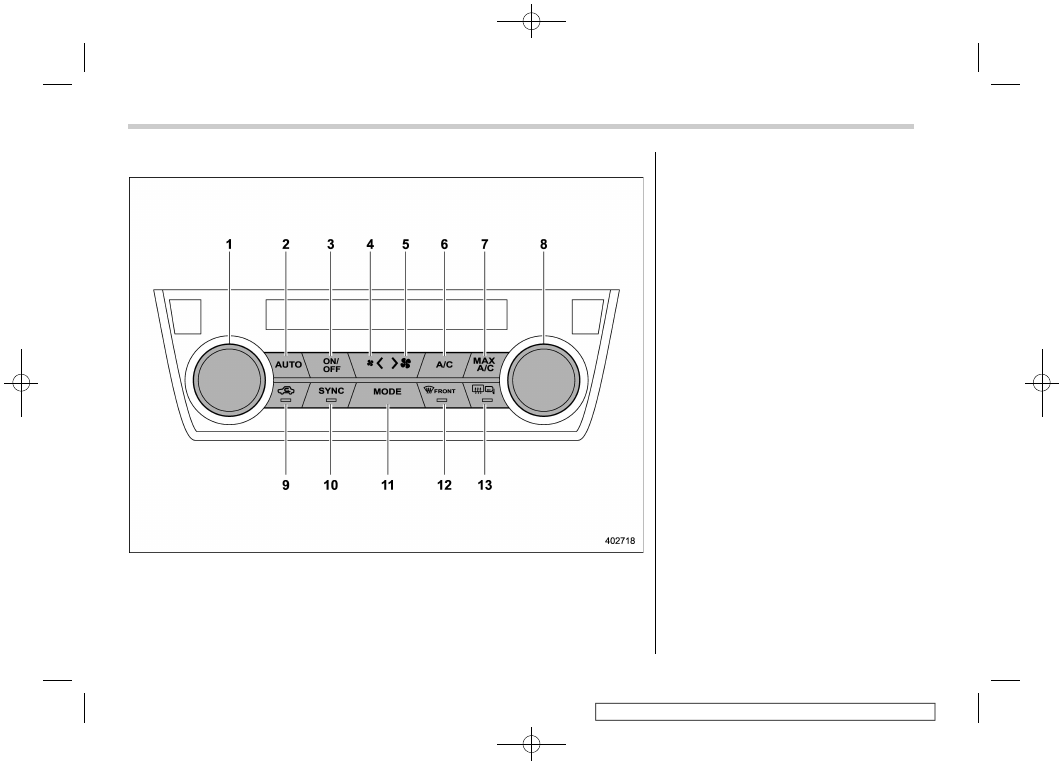

Type B

Temperature control dial (Refer to “Tem-
perature control” F4-7.)

“AUTO” button (Refer to “Automatic
climate control system (type B)” F4-5.)

“ON/OFF” button (Refer to “Automatic
climate control system (type B)” F4-5.)

Fan speed control button (for decreasing
the fan speed) (Refer to “Fan speed
control” F4-8.)

Fan speed control button (for increasing
the fan speed) (Refer to “Fan speed
control” F4-8.)

“A/C” button (Refer to “Air conditioner
control” F4-8.)

“MAX A/C” button (Refer to “MAX A/C
mode” F4-7.)

Temperature control dial (Refer to “Tem-
perature control” F4-7.)

Air inlet selection button (Refer to “Air
inlet selection” F4-8.)

10) “SYNC” button (Refer to “SYNC mode

(type B)” F4-8.)

11) Airflow mode selection button (Refer to

“Airflow mode selection” F4-6.)

12) Defroster button (Refer to “Airflow mode

selection” F4-6 and “Defrosting” F4-9.)

13) Rear window and outside mirror defogger

button (Refer to “Defogger and deicer”
F3-64.)

Climate control/Climate control panel

4-4

(251,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Automatic climate control
system (type B)

NOTE

Operate the automatic climate con-

trol system when the engine is running.
.

The blower fan rotates at a low speed

when the engine coolant temperature is
low.
.

For efficient defogging or dehumidi-

fying in cold weather, press the “A/C”
button.

When the automatic climate control mode
is selected, the following items are auto-
matically controlled.
.

Outlet air temperature

Fan speed

Airflow distribution

Air inlet control

Air conditioner compressor operation

To activate this mode, perform the follow-
ing procedure.
1. Set the preferred temperature using
the temperature control dials.
2. Press the “AUTO” button. The FULL
AUTO mode is selected and the “FULL
AUTO” indicator light on the display
illuminates.

NOTE

If you operate any of the buttons on

the control panel other than the “ON/
OFF” button, rear window and outside
mirror defogger button or temperature
control dials during FULL AUTO mode
operation, the “FULL” indicator light on
the control panel will turn off and the
“AUTO” indicator light will remain
illuminated. You can then manually
control the system as desired. To
change the system back to the FULL
AUTO mode, press the “AUTO” button.
.

During FULL AUTO mode operation,

a small amount of air may flow from the
foot outlets when ventilation mode is
displayed.

To turn off the climate control system,
press the “ON/OFF” button. The air inlet
selection is then automatically switched to
the outside air mode.

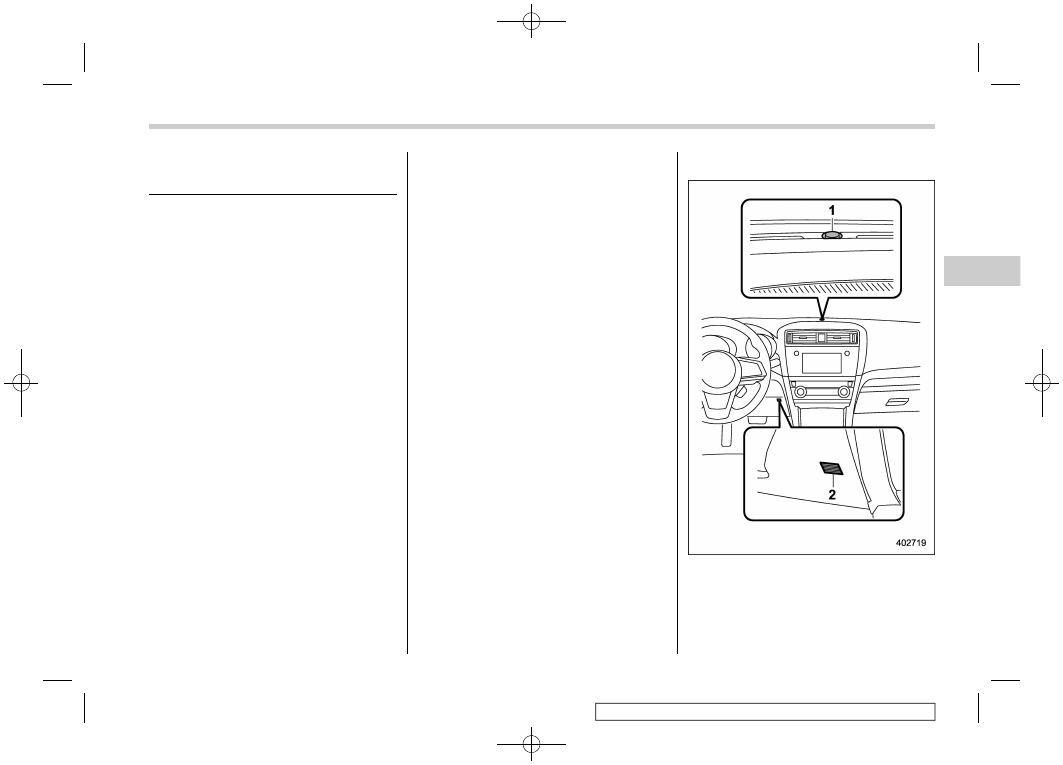

Sensors

Solar sensor

Interior air temperature sensor

The automatic climate control system
employs several sensors. These sensors
are delicate. If they are treated incorrectly

– CONTINUED –

Climate control/Automatic climate control system (type B)

4-5

Subaru Outback (2019 year). Instruction - part 15
