Subaru Outback (2019 year). Instruction - part 2

(20,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

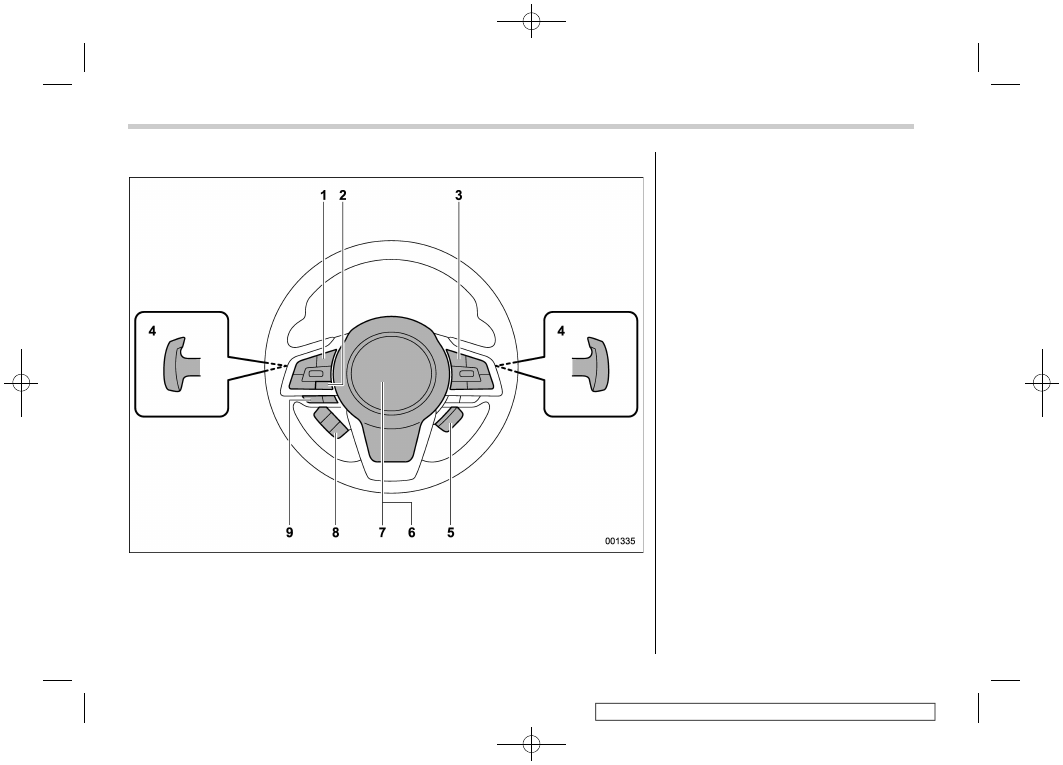

Steering wheel

1)

Audio control switches*

2)

Talk switch for voice command system*

3)

Cruise control (page 7-45)

4)

Shift paddle (page 7-27)

5)

Heated Steering Wheel switch (page 3-
86)

6)

SRS airbag (page 1-42)

7)

Horn (page 3-85)

8)

Control switches for combination meter
display (page 3-37)

9)

Hands-free phone switches*

*: For details about how to use the

switches, refer to the separate naviga-
tion/audio Owner’s Manual.

18

(21,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

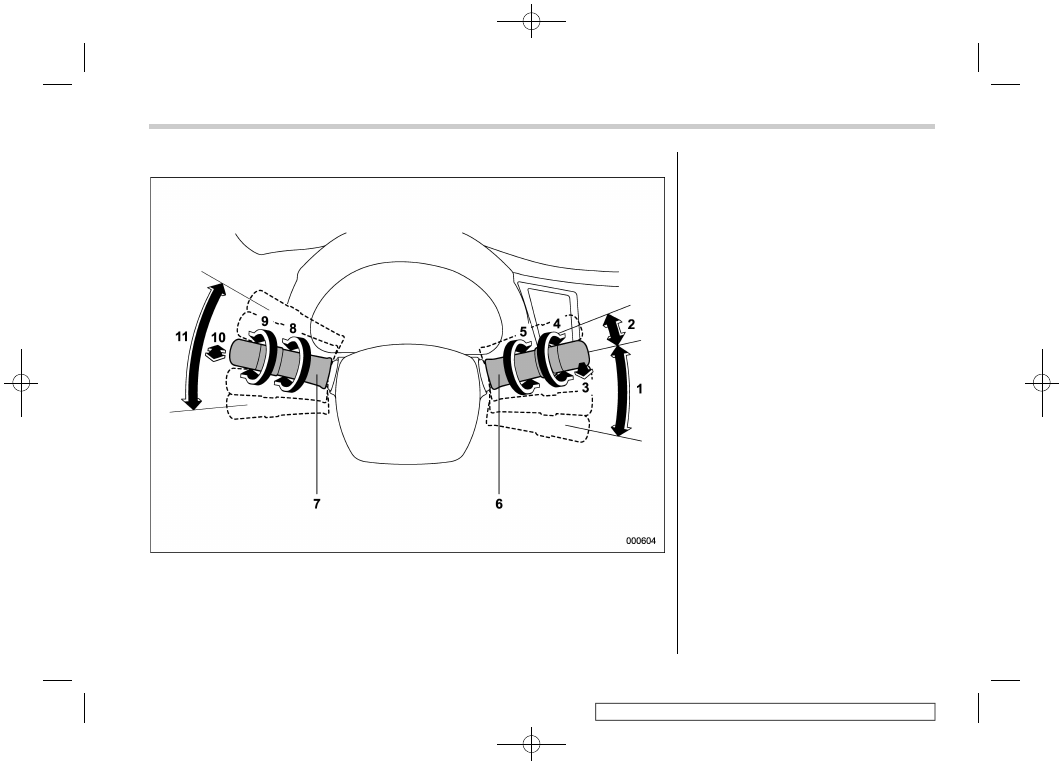

Light control and wiper control levers/switches

1)

Windshield wiper (page 3-60)

2)

Mist (page 3-61)

3)

Windshield washer (page 3-62)

4)

Rear window wiper and washer switch
(page 3-63)

5)

Wiper intermittent time control switch
(page 3-62)

6)

Wiper control lever (page 3-61)

7)

Light control switch (page 3-48)

8)

Front fog light switch (page 3-59)

9)

Headlight ON/OFF/AUTO (page 3-49)

10) Headlight flasher High/Low beam change

(page 3-51)

11) Turn signal lever (page 3-58)

– CONTINUED –

19

0

(22,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

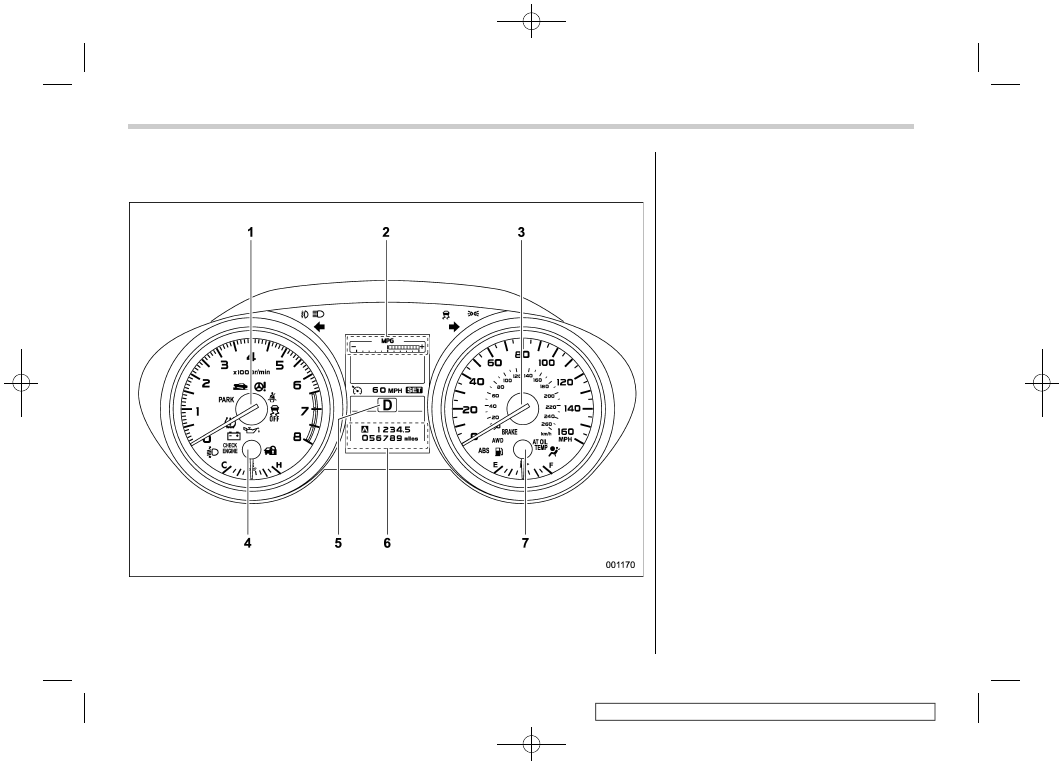

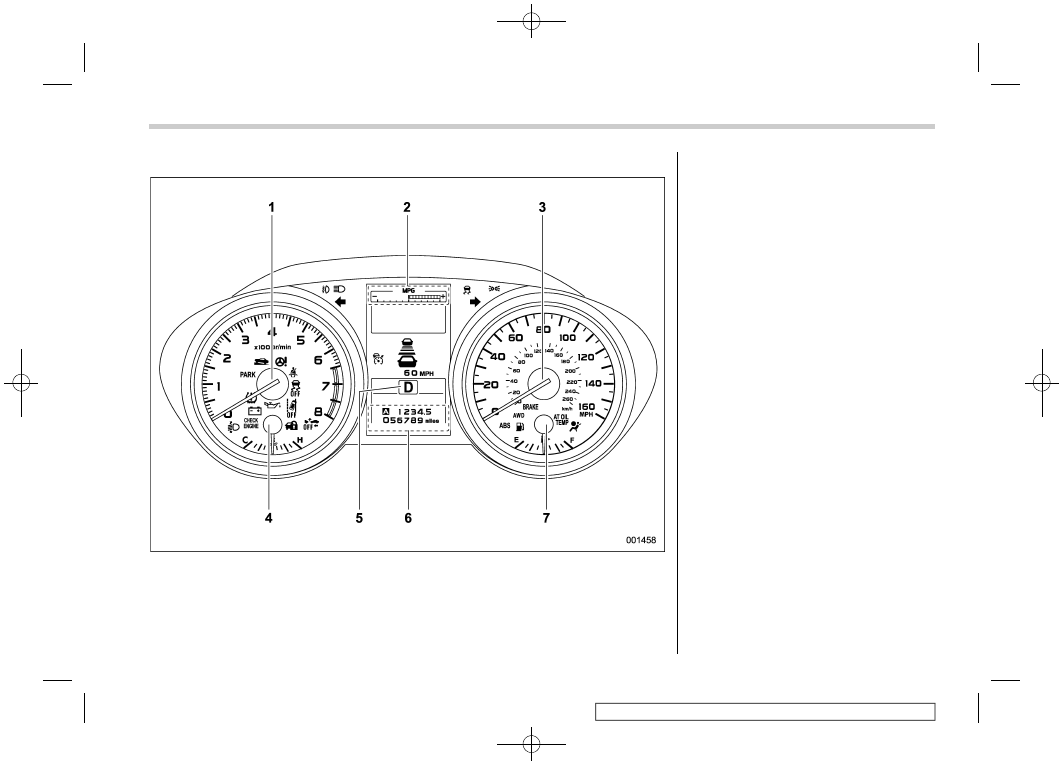

Combination meter

!

U.S. spec. models (type A)

1)

Tachometer (page 3-10)

2)

ECO gauge (page 3-12)

3)

Speedometer (page 3-9)

4)

Temperature gauge (page 3-11)

5)

Select lever/gear position indicator (page
3-30)

6)

Trip meter and odometer (page 3-9)

7)

Fuel gauge (page 3-11)

20

(23,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

!

U.S. spec. models (type B)

1)

Tachometer (page 3-10)

2)

ECO gauge (page 3-12)

3)

Speedometer (page 3-9)

4)

Temperature gauge (page 3-11)

5)

Select lever/gear position indicator (page
3-30)

6)

Trip meter and odometer (page 3-9)

7)

Fuel gauge (page 3-11)

– CONTINUED –

21

0

(24,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

!

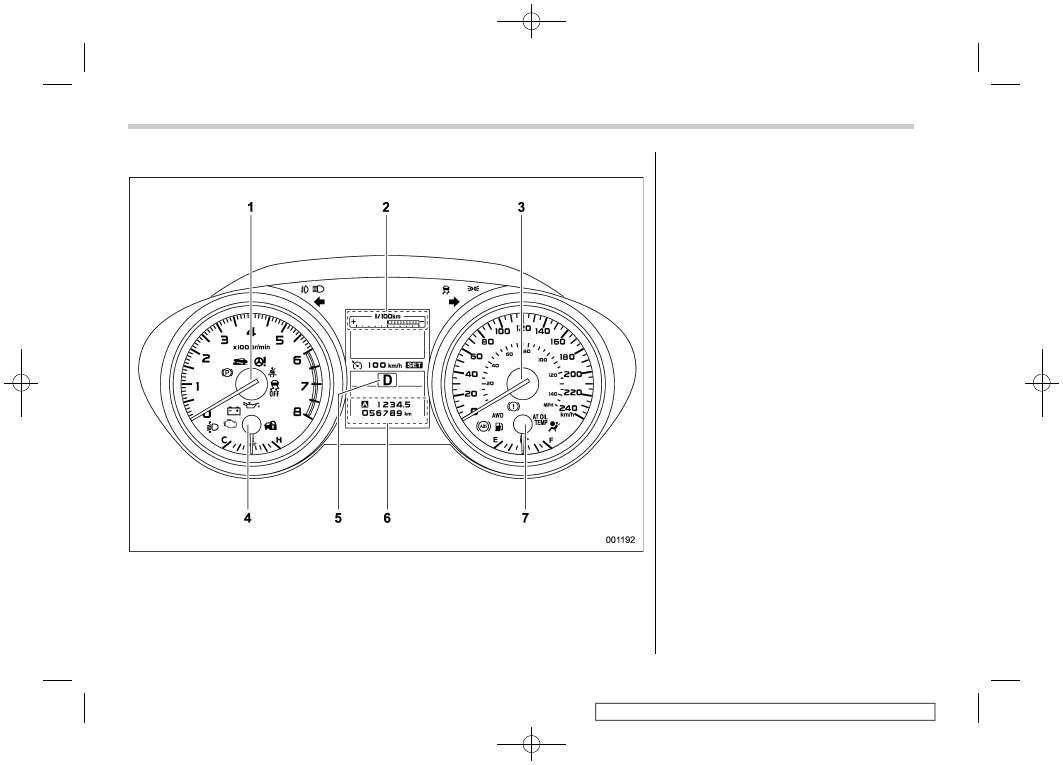

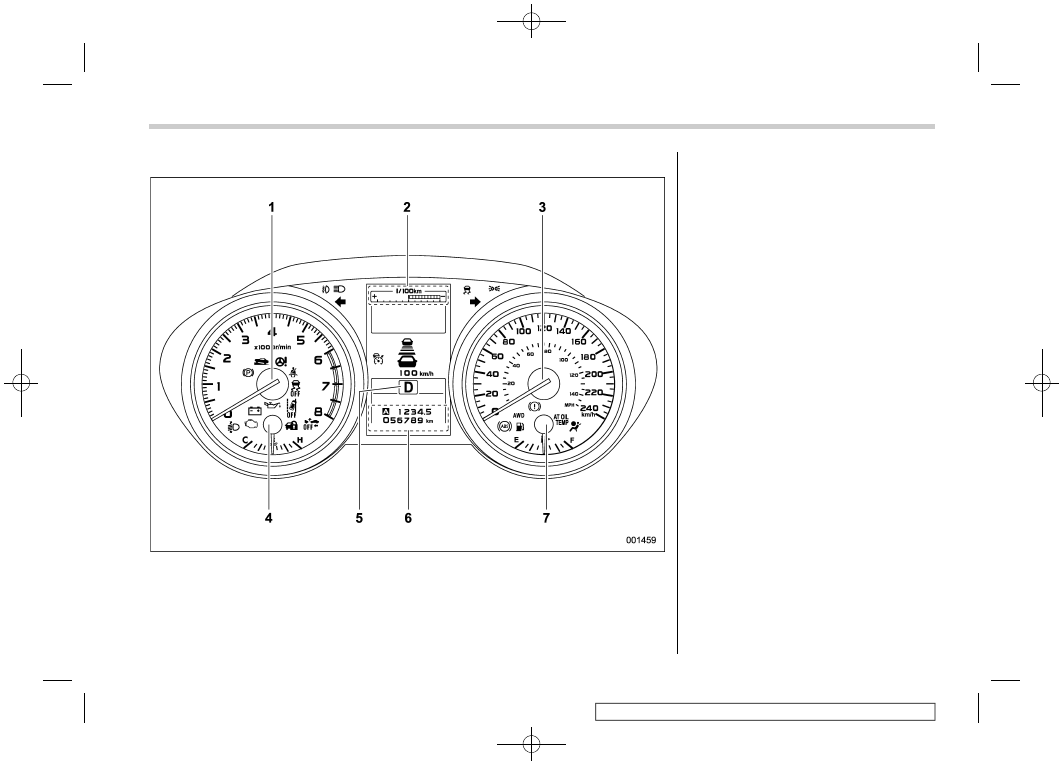

Except U.S. spec. models (type A)

1)

Tachometer (page 3-10)

2)

ECO gauge (page 3-12)

3)

Speedometer (page 3-9)

4)

Temperature gauge (page 3-11)

5)

Select lever/gear position indicator (page
3-30)

6)

Trip meter and odometer (page 3-9)

7)

Fuel gauge (page 3-11)

22

(25,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

!

Except U.S. spec. models (type B)

1)

Tachometer (page 3-10)

2)

ECO gauge (page 3-12)

3)

Speedometer (page 3-9)

4)

Temperature gauge (page 3-11)

5)

Select lever/gear position indicator (page
3-30)

6)

Trip meter and odometer (page 3-9)

7)

Fuel gauge (page 3-11)

– CONTINUED –

23

0

(26,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

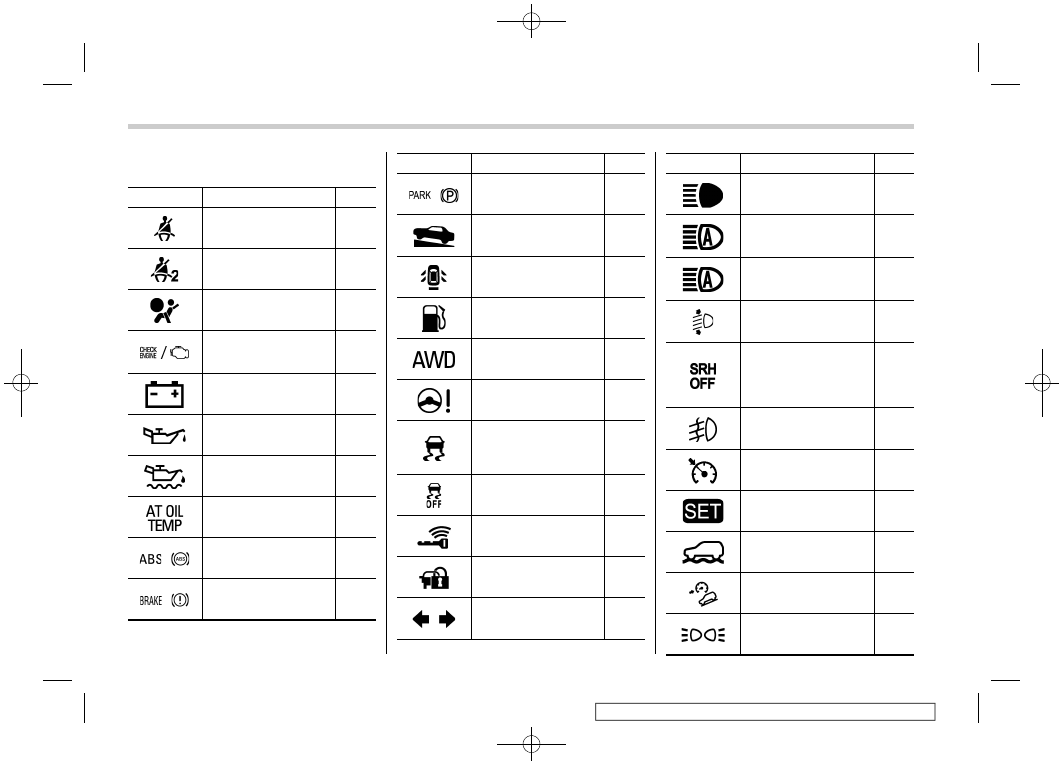

Warning and indicator lights

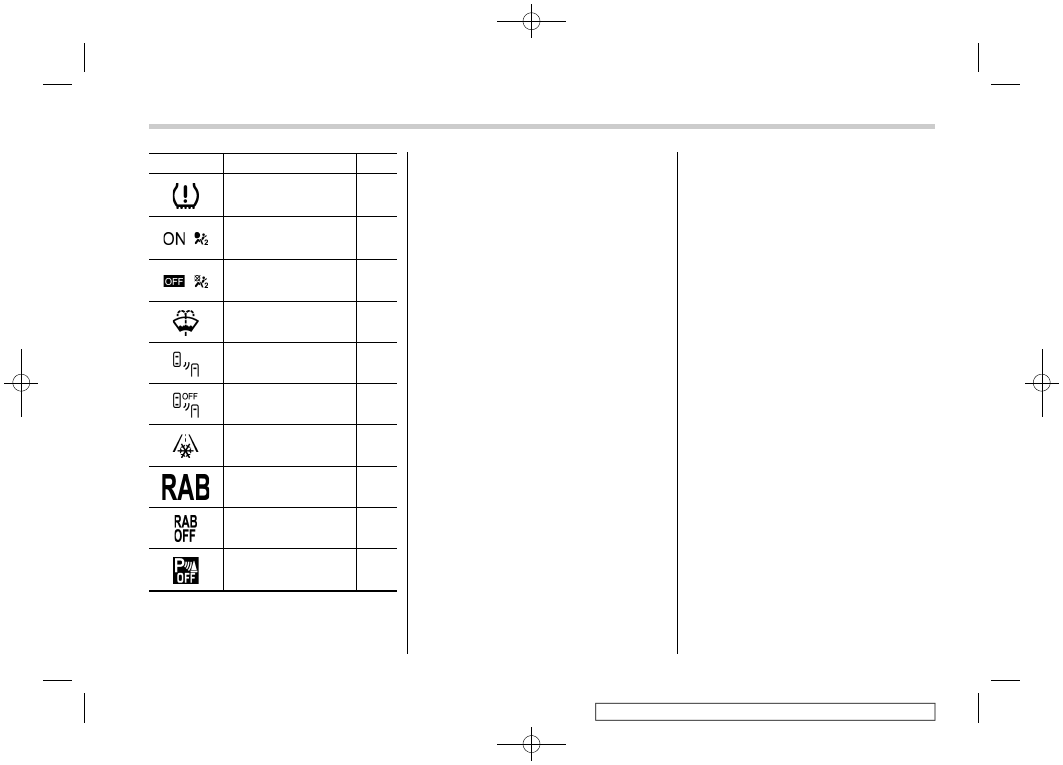

Mark

Name

Page

Seatbelt warning light

Front passenger’s
seatbelt warning light

SRS airbag system
warning light

CHECK ENGINE warn-
ing light/Malfunction in-
dicator light

Charge warning light

Oil pressure warning
light

Engine low oil level
warning indicator

AT OIL TEMP warning
light

/

ABS warning light

/

Brake system warning
light

Mark

Name

Page

/

Electronic parking
brake indicator light

Hill Holder indicator
light

Door open indicator

Low fuel warning light

All-Wheel Drive warn-
ing light

Power steering warning
light

Vehicle Dynamics Con-
trol warning light/Vehi-
cle Dynamics Control
operation indicator light

Vehicle Dynamics Con-
trol OFF indicator light

Access key warning in-
dicator (if equipped)

Security indicator light

Turn signal indicator
lights

Mark

Name

Page

High beam indicator
light

High beam assist indi-
cator (green) (if
equipped)

High beam assist warn-
ing indicator (yellow)
(if equipped)

Automatic headlight
beam leveler warning
light (if equipped)

Steering Responsive
Headlight warning light/
Steering Responsive
Headlight OFF indicator
light (if equipped)

Front fog light indicator
light (if equipped)

Cruise control indicator

Cruise control set indi-
cator

X-MODE indicator (if
equipped)

Hill descent control in-
dicator (if equipped)

Headlight indicator light

24

(27,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Mark

Name

Page

Low tire pressure warn-
ing light (U.S. spec.
models)

/

Front passenger’s fron-
tal airbag ON indicator
light

/

Front passenger’s fron-
tal airbag OFF indicator
light

Windshield washer fluid
warning light

BSD/RCTA warning in-
dicator (if equipped)

BSD/RCTA OFF indi-
cator (if equipped)

Icy road surface warn-
ing indicator

RAB warning indicator
(if equipped)

RAB OFF indicator (if
equipped)

Sonar audible alarm
OFF indicator (if
equipped)

25

0

(28,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Function settings

&

Function settings and adjustments on the combination meter display

Setting adjustments to the following items can be manually changed within the combination meter display to meet your personal
requirements.

Item

Function

Available settings

Factory default setting

Page

Keyless Access (if equipped)

Audible signal*

1

On/Off

On

Hazard warning flasher

On/Off

On

Door unlock selection function
(driver’s door unlock)

Driver’s door only/All doors

Driver’s door only

Door unlock selection function
(rear gate unlock)

Rear gate only/All doors

Rear gate only

Remote keyless entry system

Audible signal*

1

On/Off

On

Hazard warning flasher

On/Off

On

Defogger and deicer system

Rear window defogger, out-
side mirror defogger and
windshield wiper deicer

Operation for 15 minutes/
Continuous operation

Operation for 15 minutes

Map light/Dome light/Cargo
area light

Operation of map light/dome
light/cargo area light Off delay
timer

Off/10 seconds/20 seconds/
30 seconds

30 seconds

Auto Headlights

Light Sensitivity

Max/Mid/Low/Min

Mid

Wiper Link

On/Off

On

Welcome lighting function

Approaching Time Set

Off/30 seconds/60 seconds/
90 seconds

30 seconds

Leaving Time Set

Off/30 seconds/60 seconds/
90 seconds

30 seconds

26

(29,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Item

Function

Available settings

Factory default setting

Page

Auto door lock and unlock

Automatic door lock function

Vehicle speed/Shift to P posi-
tion/off

Vehicle Speed

Automatic door unlock func-
tion

Shift Out of PARK/Ignition Off/
Driver Door Open/Off

Driver Door Open

*1: This setting also works as the On/Off setting of the power rear gate buzzer for starting operation.

However, you cannot change the warning buzzer setting for a detecting jam, etc.

&

Individual settings and adjustments excluding combination meter display

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Function

Available settings

Factory default setting

Page

Alarm system

Alarm system

Operation/Non-operation

Operation

Remote keyless entry system

Audible signal

Operation/Non-operation

Operation

&

Function settings and adjustments performed by a dealer

Item

Function

Available settings

Factory default

setting

Alarm system

Monitoring start delay time (after closing
doors)

0 seconds/30 seconds

30 seconds

Impact sensor operation (only models with
shock sensors (dealer option))

Operation/Non-operation

Non-operation

Map light/Dome light/Cargo area light
illumination

ON/OFF

OFF

Keyless access with pushbutton

Audible signal volume*

2

Level 1 to 7

Level 5

Trunk open without key (Legacy)

ON/OFF

ON

Remote keyless entry system

Audible signal volume*

2

Level 1 to 7

Level 5

One-touch lane changer

Operation of the one-touch lane changer

ON/OFF

ON

– CONTINUED –

27

0

(30,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Item

Function

Available settings

Factory default

setting

Remote trunk open/power rear gate
open function

*1

Activation of trunk opening/power rear
gate opening by remote transmitter/ac-
cess key fob

Operation/Non-operation

Operation

Key lock-in prevention

Key lock-in prevention

Operation/Non-operation

Operation

Battery drainage prevention function

Battery drainage prevention function

Operation/Non-operation

Operation

Auto dimmer cancel

Sensitivity of the operation of the auto
dimmer cancel

OFF/Min/Low/Mid/Hi/Max

Mid

High beam assist function*

1

High beam assist function

Operation/Non-operation

Operation

Reverse gear interlocked rear wiper

Reverse gear interlocked rear wiper op-
eration

Operation/Non-operation

U.S.-spec. models:
Non-operation
Other models: Op-
eration

*1: If equipped
*2: The audible signal volume cannot be set under level 5 for the warning chime.

28

(33,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Front seats .............................................................. 1-2

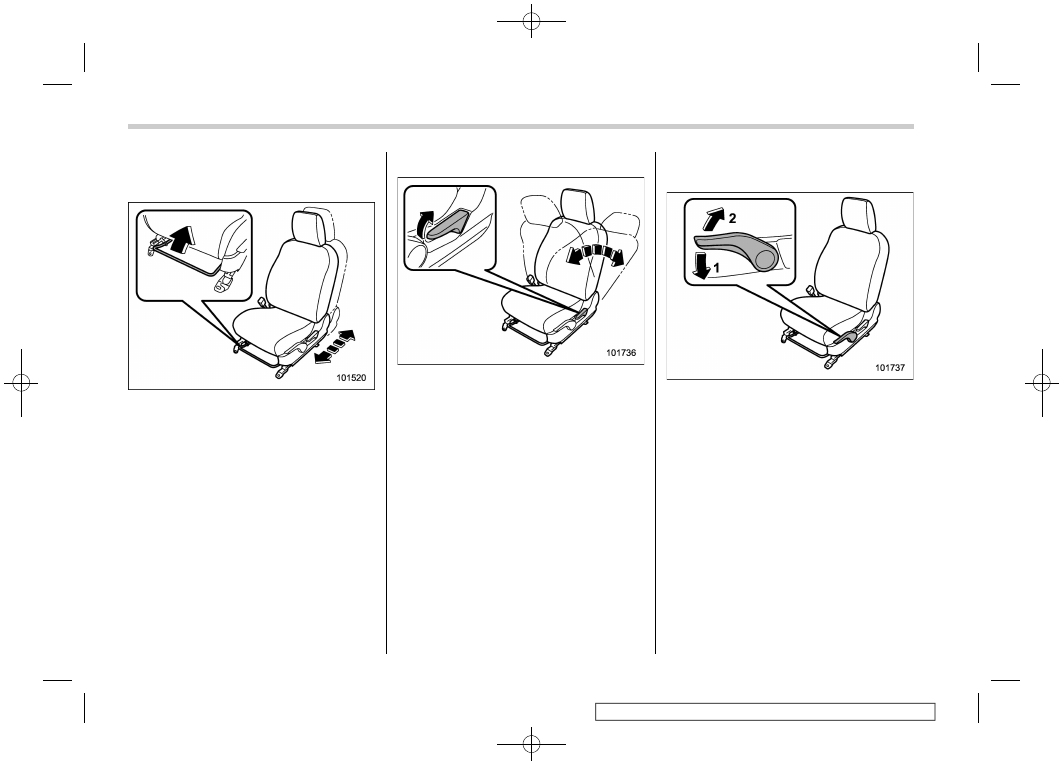

Manual seat (if equipped) ....................................... 1-4

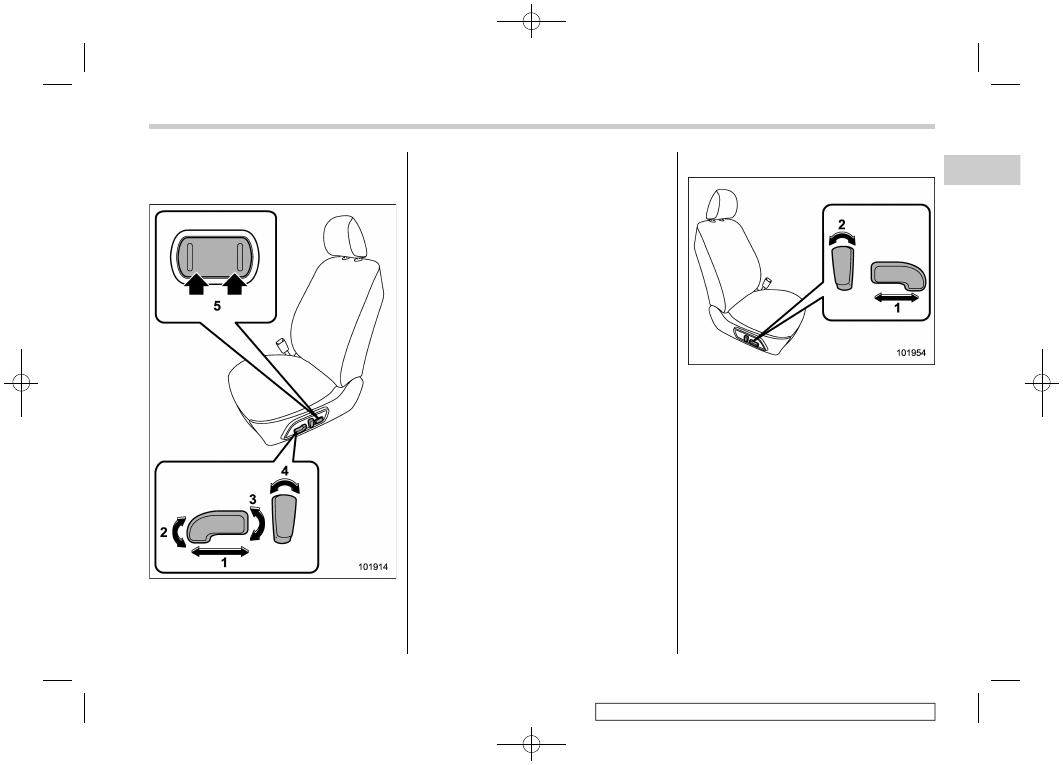

Power seat (if equipped) ........................................ 1-5
Head restraint adjustment ...................................... 1-8

Seat heater (if equipped) ........................................ 1-9

Front seat heater .................................................. 1-10
Rear seat heater (if equipped) ............................... 1-10

Rear seats.............................................................. 1-11

Reclining the seatback (Outback) .......................... 1-11
Folding down the rear seatback ............................ 1-12
Head restraint adjustment ..................................... 1-14
Armrest ................................................................ 1-15

Seatbelts ................................................................ 1-16

Seatbelt safety tips ............................................... 1-16
Emergency Locking Retractor (ELR)...................... 1-17
Automatic Locking Retractor/Emergency Locking

Retractor (ALR/ELR)............................................ 1-17

Seatbelt warning light and chime .......................... 1-17
Fastening the seatbelt........................................... 1-17
Seatbelt maintenance ............................................ 1-24

Front seatbelt pretensioners................................ 1-25

System monitors................................................... 1-26

System servicing .................................................. 1-26
Precautions against vehicle modification .............. 1-27

Child restraint systems ........................................ 1-27

Where to place a child restraint system ................ 1-29
Choosing a child restraint system......................... 1-30
Installing child restraint systems with ALR/ELR

seatbelt ............................................................. 1-31

Installing a booster seat ....................................... 1-35
Installation of child restraint systems by use of

lower and tether anchorages (LATCH) ................ 1-36

Top tether anchorages .......................................... 1-39

SRS airbag (Supplemental Restraint System

airbag) ................................................................ 1-42

General precautions regarding SRS airbag

system .............................................................. 1-42

Components ......................................................... 1-49
SUBARU advanced frontal airbag system, SRS

seat cushion airbag, SRS side airbag and SRS
curtain airbag .................................................... 1-52

System operation ................................................. 1-57
SRS airbag system monitors................................. 1-69
SRS airbag system servicing ................................ 1-70
Precautions against vehicle modification .............. 1-71

Seat, seatbelt and SRS airbags

1

(34,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

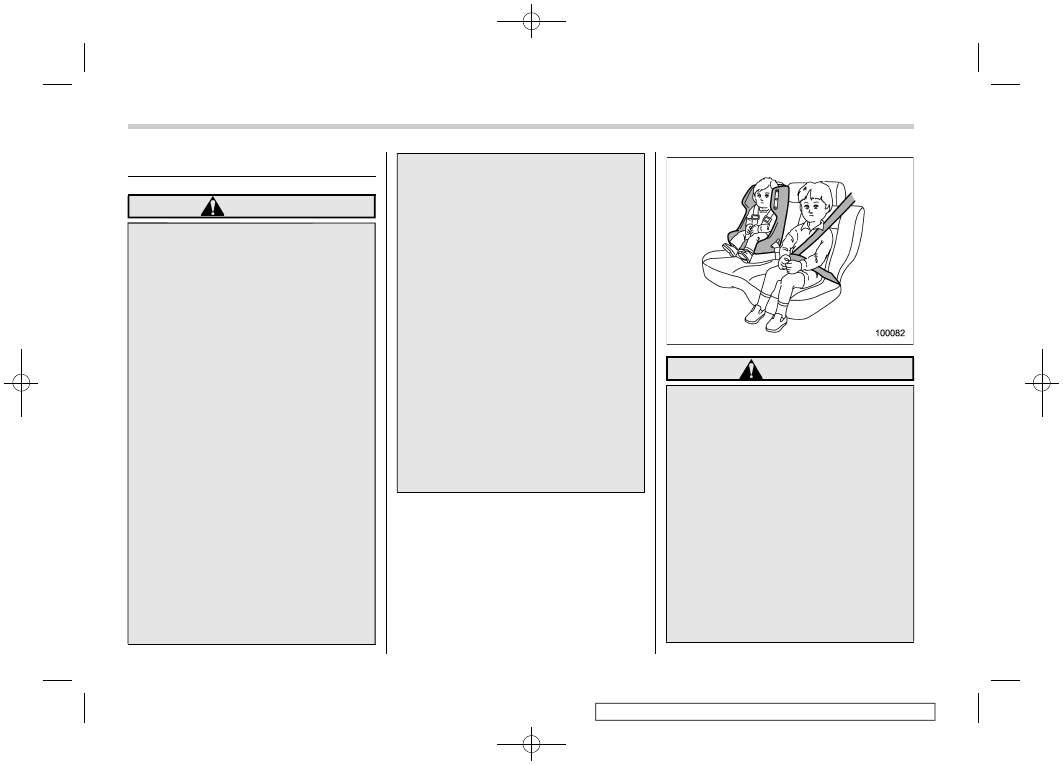

Front seats

WARNING

.

Never adjust the seat while driv-

ing to avoid loss of vehicle con-
trol and personal injury.

.

Before adjusting the seat, make

sure the hands and feet of rear
seat passengers or cargo are
clear of the adjusting mechan-
ism.

.

After adjusting the seat, move it

back and forth to make sure it is
securely locked. If the seat is not
securely locked, it may move or
the seatbelt may not operate
properly.

.

Do not put objects under the front

seats. They may interfere with
front seat locking and cause an
accident.

.

Seatbelts provide maximum re-

straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding
under the seatbelt in a collision,
the front seatbacks should be
always used in the upright posi-
tion while the vehicle is running.
If the front seatbacks are not

used in the upright position in a
collision, the risk of sliding under
the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious internal injury or death.

.

The SRS airbags deploy with

considerable speed and force.
Occupants who are not in the
proper position when the SRS
airbag deploys could suffer very
serious injuries. Because the
SRS airbag needs enough space
for deployment, the driver should
always sit upright and well back
in the seat as far from the steer-
ing wheel as practical while still
maintaining full vehicle control
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.

WARNING

Put children in the rear seat properly
restrained at all times. The SRS
airbag deploys with considerable
speed and force and can injure or
even kill children, especially if they
are not restrained or improperly
restrained. Because children are
lighter and weaker than adults, their
risk of being injured from deploy-
ment is greater. Consequently, we
strongly recommend that ALL chil-
dren (including those in child seats
and those that have outgrown child
restraint devices) sit in the REAR
seat properly restrained at all times
in a child restraint device or in a
seatbelt, whichever is appropriate

Seat, seatbelt and SRS airbags/Front seats

1-2

(35,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

for the child’s age, height and
weight.

Secure ALL types of child restraint
devices (including forward facing
child seats) in the REAR seats at all
times.

NEVER INSTALL A REARWARD FA-
CING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS AIRBAG.

According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, refer to “Child restraint sys-
tems” F1-27.

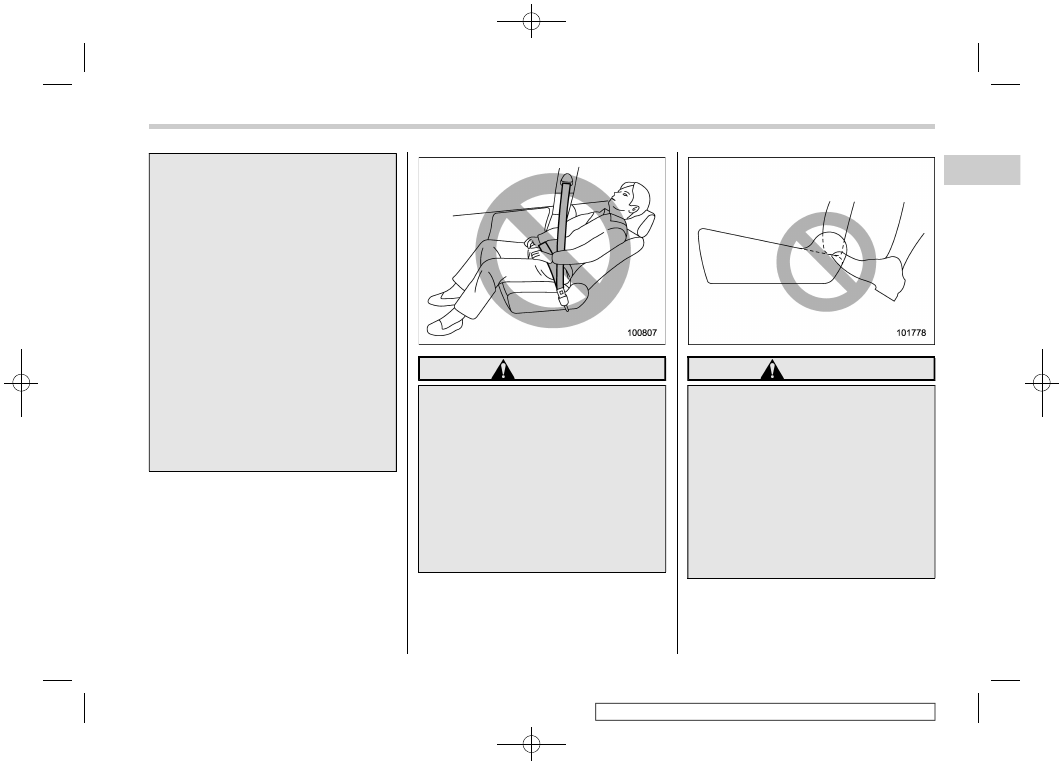

WARNING

To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright position while the
vehicle is in motion. Also, do not
place objects such as cushions
between the passenger and the seat-
back. If you do so, the risk of sliding
under the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious internal injury or death.

WARNING

Do not let rear passengers rest their
feet between the front seatback and
seat cushion. Doing so may lead to
improper operation of the following
systems and could result in serious
injury.

.

Occupant detection system

.

SRS side airbag

.

SRS seat cushion airbag

.

Front seat heater (if equipped)

.

Power seat (if equipped)

– CONTINUED –

Seat, seatbelt and SRS airbags/Front seats

1-3

1

(36,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

Manual seat (if equipped)

!

Forward and backward adjustment

1. Sit in the seat to adjust.
2. Pull the lever upward, slide the seat to
the desired position, and then release the
lever.
3. Try to move the seat back and forth to
make sure that it is securely locked into
place.

!

Reclining the seatback

1. Pull up the reclining lever, adjust the
seatback to the desired position, and then
release the lever.
2. Make sure the seatback is securely
locked into place.

The seatback placed in a reclined position
can spring back upward with force when
pulling up the lever. While operating the
lever to return the seatback, hold the
seatback lightly so that it may be raised
back gradually.

!

Seat cushion height adjustment
(driver’s seat)

1)

Push the lever down to lower the seat.

2)

Pull the lever up to raise the seat.

You can adjust the height of the seat by
moving the seat cushion adjustment lever
up or down.

Seat, seatbelt and SRS airbags/Front seats

1-4

(37,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

&

Power seat (if equipped)

!

Driver’s seat

1)

Seat position forward/backward con-
trol switch
To adjust the seat forward or backward,
move the control switch forward or

backward. During forward/backward ad-
justment of the seat, you cannot adjust
the seat cushion angle or seat cushion
height.

2)

Seat cushion angle control switch
To adjust the seat cushion angle, pull up
or push down the front end of the control
switch.

3)

Seat height control switch
To adjust the seat height, pull up or push
down the rear end of the control switch.

4)

Seatback angle (reclining) control
switch
To adjust the angle of the seatback, move
the control switch.

5)

Lumbar support control switch
To increase lower back support, push the
front side of the switch. To decrease
lower back support, push the rear side of
the switch.

!

Front passenger’s seat (if equipped)

1)

Seat position forward/backward con-
trol switch
To adjust the seat forward or backward,
move the control switch forward or
backward.

2)

Seatback angle (reclining) control
switch
To adjust the angle of the seatback, move
the control switch.

– CONTINUED –

Seat, seatbelt and SRS airbags/Front seats

1-5

1

Content .. 1 2 3 ..
