Screwdriver and wheel nut
wrench

1)

Screwdriver

2)

Wheel nut wrench

The screwdriver, wheel nut wrench, etc.
are stored in your vehicle.
The tools can also be stored in the tool
bucket.

&

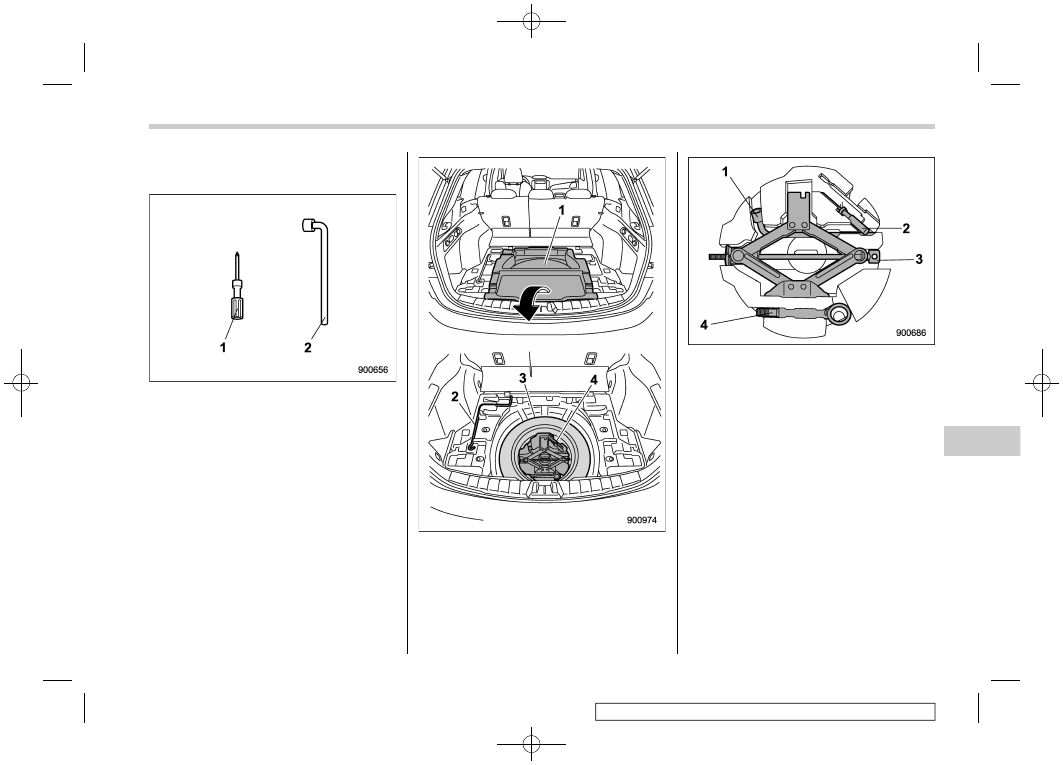

Under the rear floor

The jack, jack handle and towing hook are
stored as shown in the following illustra-
tions.

1)

Under-floor storage compartment (if
equipped)

2)

Jack handle

3)

Spare tire

4)

Tool bucket

1)

Wheel nut wrench

2)

Screwdriver

3)

Jack

4)

Towing hook (eye bolt)

NOTE

.

For how to use the jack, refer to “Flat

tires” FP415.
.

The following items may be different

depending on the model.

– The shape of the storage com-
partment
– The locations of some mainte-
nance tools

Maintenance tools

413

9

In
case

of
emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(416,1)

9-3. Temporary spare tire

WARNING

.

Never tow a trailer when the

temporary spare tire is used.
The temporary spare tire is not
designed to sustain the towing
load. Use of the temporary spare
tire when towing can result in
failure of the spare tire and/or
less stability of the vehicle and
may lead to an accident.

.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the tire pressure
monitoring system (TPMS) is un-
able to monitor all four road
wheels. Contact your SUBARU
dealer as soon as possible for
tire and sensor replacement and/
or system resetting.

CAUTION

Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechan-
ical damage to the drivetrain of your
vehicle.

The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Re-
move the temporary spare tire and re-
install the conventional tire as soon as
possible because the spare tire is de-
signed only for temporary use.

Check the inflation pressure of the tem-
porary spare tire periodically to keep the
tire ready for use. For the correct tire
pressure, refer to “Temporary spare tires”
FP493.

When using the temporary spare tire, note
the following.
.

Drive with caution when the temporary

spare tire is installed. Avoid hard accel-
eration and braking, or fast cornering, as
control of the vehicle may be lost.
.

Do not exceed 50 mph (80 km/h).

.

Do not put a tire chain on the temporary

spare tire. Because of the smaller tire size,
a tire chain will not fit properly.
.

Do not use two or more temporary

spare tires at the same time.
.

Do not drive over obstacles. This tire

has a smaller diameter, so road clearance
is reduced.

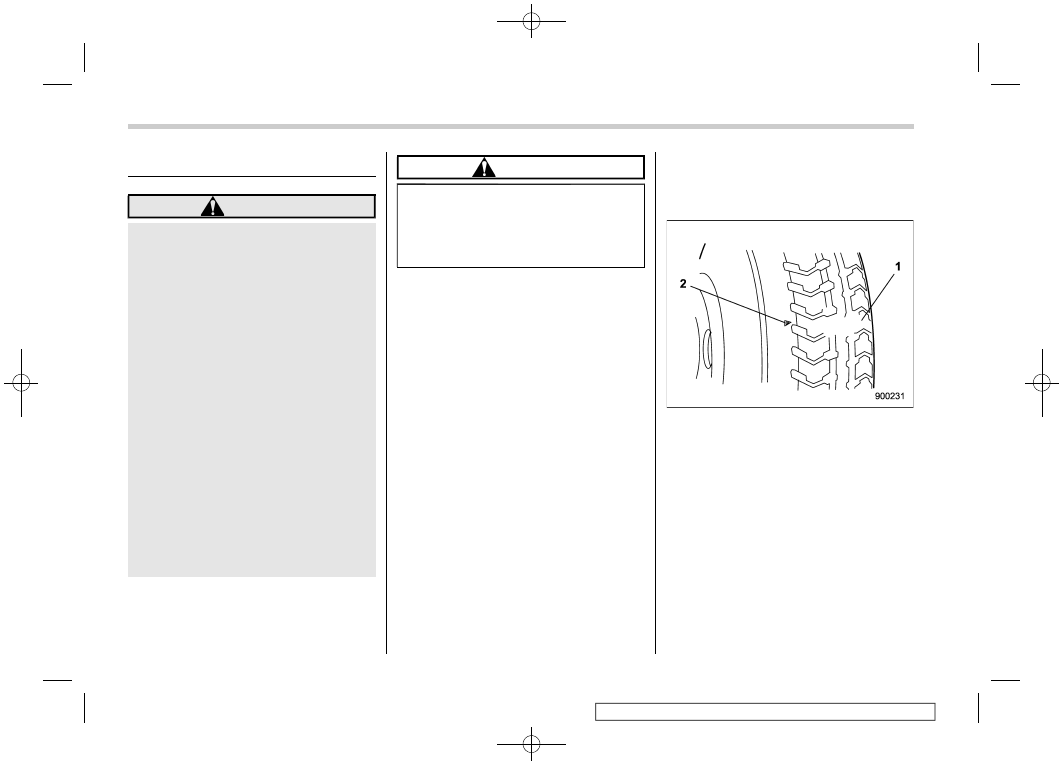

1)

Tread wear indicator bar

2)

Indicator location mark

.

When the wear indicator appears on

the tread, replace the tire.
.

The temporary spare tire must be used

only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.

Temporary spare tire

414

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(417,1)

9-4. Flat tires

If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.

&

Changing a flat tire

WARNING

.

Use only the jack provided with

your vehicle. The jack supplied
with the vehicle is designed only
for changing a tire. Never get
under the vehicle while support-
ing the vehicle with this jack.

.

Do not jack up the vehicle on an

incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in a
severe accident.

.

Always turn off the engine before

raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a severe acci-
dent.

1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Apply the parking brake securely and
shift the select lever to the “P” (Park)
position.
3. Turn on the hazard warning flasher and
unload all occupants and luggage from the

vehicle.

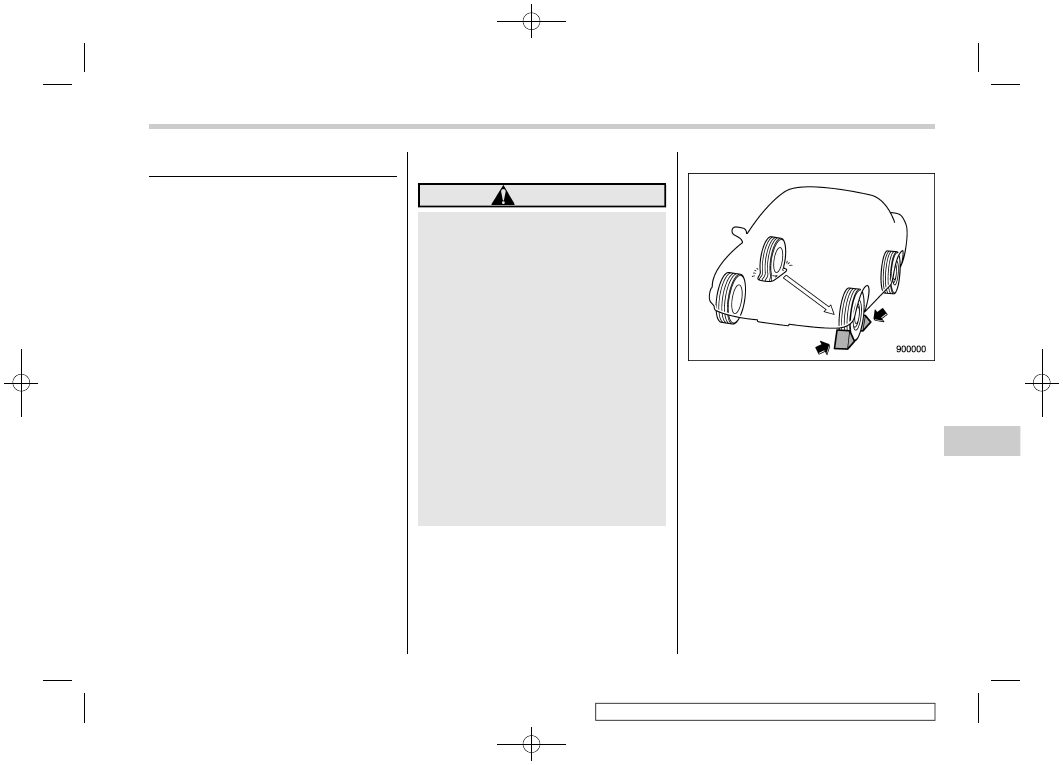

4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire.
5. Take out the jack, jack handle and
wheel nut wrench.
The tools and spare tire are stored under
the floor of the cargo area. Refer to
“Maintenance tools” FP412.

NOTE

Make sure that the jack is well lubri-
cated before using it.

– CONTINUED –

Flat tires

415

9

In
case

of
emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(418,1)

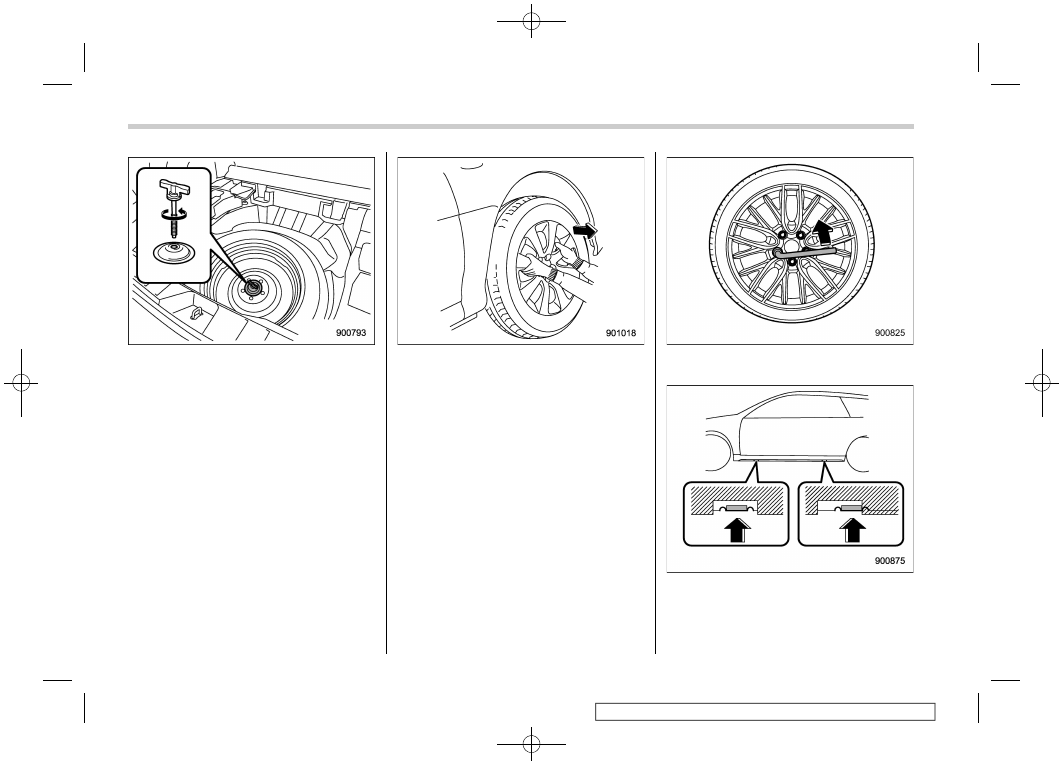

6. Take out the tool bucket and turn the
attaching bolt counterclockwise, then take
the spare tire out.

NOTE

If the spare tire provided in your vehicle
is a temporary spare tire, carefully read
“Temporary spare tire”
FP414 and
strictly follow the instructions.

7. If your vehicle has wheel covers, after
your hands are protected by gloves, grasp
the wheel cover spokes and pull toward
you to remove the wheel cover.

8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

Jack-up points

9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.

Flat tires

416

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(419,1)

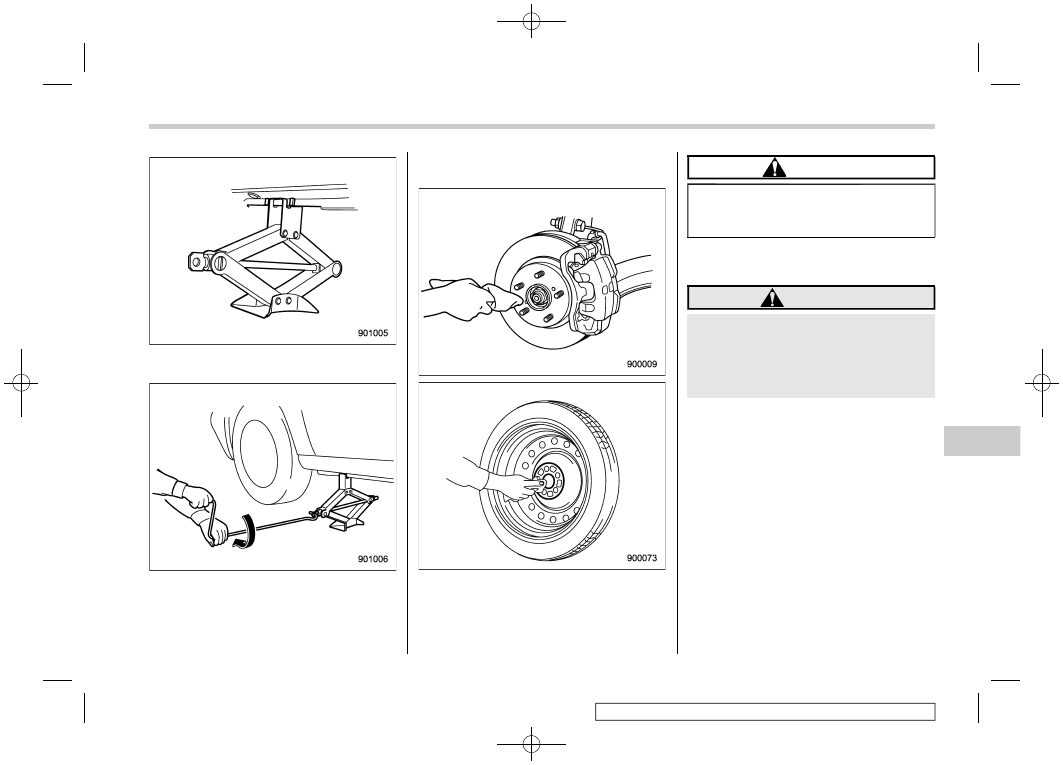

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

10. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.

11. Remove the wheel nuts and the flat
tire.

12. Before putting the spare tire on, clean
the mounting surface of the wheel and hub
with a cloth.

CAUTION

If the threaded part was damaged,
we recommend that you immedi-
ately contact your SUBARU dealer.

13. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the wheel
studs or nuts when the spare tire is
installed. This could cause the nuts
to become loose and lead to an
accident.

14. Turn the jack handle counterclockwise
to lower the vehicle.

– CONTINUED –

Flat tires

417

9

In
case

of
emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(420,1)

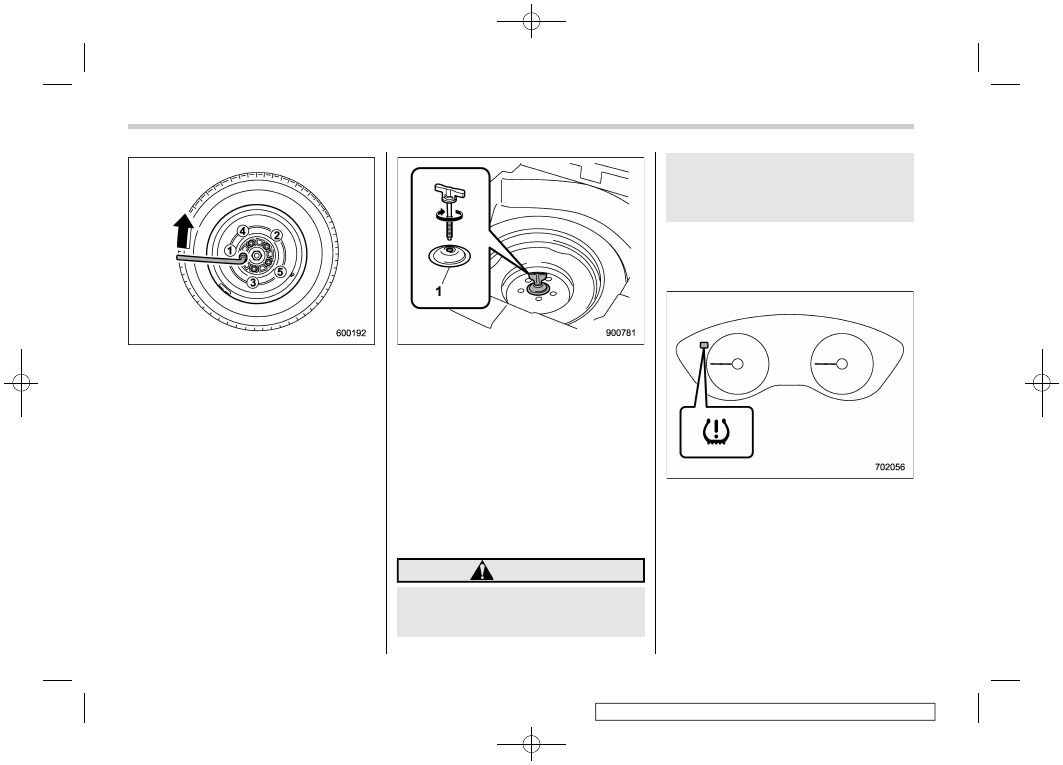

15. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in the
illustration.
For the wheel nut tightening torque, refer
to “Tires” FP493. Never use your foot on
the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut
torque checked at the nearest automotive
service facility.

1)

Support holder

16. Store the flat tire in the spare tire
compartment. Install with the support
holder facing upward and secure the flat
tire by firmly tightening the attaching bolt.

NOTE

If you cannot fix the flat tire firmly, try
turning the support holder upside
down.

17. Store the jack, jack handle and wheel
nut wrench in their storage locations.

WARNING

Never place a tire or tire changing
tools in the passenger compartment
after changing wheels. In a sudden

stop or collision, loose equipment
could strike occupants and cause
injury. Store the tire and all tools in
the proper place.

&

Tire pressure monitoring
system (TPMS) (U.S.-spec.
models)

The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused running over

Flat tires

418

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(421,1)

a sharp object).

WARNING

.

If the low tire pressure warning

light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.

(1) Keep driving straight ahead

while gradually reducing
speed.

(2) Slowly pull off the road to a

safe place. Otherwise an acci-
dent involving serious vehicle
damage and serious personal
injury could occur.

(3) Check the pressure for all four

tires and adjust the pressure
to the COLD tire pressure
shown on the vehicle placard
on the door pillar on the
driver’s side.

If this light still illuminates while

driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as
possible.

.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or sys-
tem resetting.

.

When a tire is repaired with liquid

sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid sea-
lant is used, contact your nearest
SUBARU dealer or other qualified
service shop as soon as possi-
ble. Make sure to replace the tire
pressure warning valve and
transmitter when replacing the
tire. You may reuse the wheel if
there is no damage to it and if the
sealant residue is properly
cleaned off.

If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.

9-5. Jump starting

WARNING

.

Battery fluid is SULFURIC ACID.

Do not let it come in contact with
the eyes, skin, clothing or the
vehicle.

If battery fluid gets on you, thor-
oughly flush the exposed area
with water immediately. Get med-
ical help if the fluid has entered
your eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and obtain immediate medical
help.

Keep everyone including chil-
dren away from the battery.

.

The gas generated by a battery

explodes if a flame or spark is
brought near it. Do not smoke or
light a match while jump starting.

.

Never attempt jump starting if the

discharged battery is frozen. It
could cause the battery to burst
or explode.

.

Whenever working on or around a

battery, always wear suitable eye

– CONTINUED –

Jump starting

419

9

In
case

of
emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(422,1)

protectors, and remove metal
objects such as rings, bands or
other metal jewelry.

.

Be sure the jumper cables and

clamps on them do not have
loose or missing insulation.

Do not jump start unless cables
in suitable condition are avail-
able.

.

A running engine can be danger-

ous. Keep your fingers, hands,
clothing, hair and tools away
from the cooling fan, belts and
any other moving engine parts.
Removing rings, watches and
ties is advisable.

.

Jump starting is dangerous if it

done incorrectly. If you are un-
sure about the proper procedure
for jump starting, consult a com-
petent mechanic.

When your vehicle does not start due to a
run down (discharged) battery, the vehicle
may be jump started by connecting your
battery to another battery (called the
booster battery) with jumper cables.

&

How to jump start

1. Make sure the booster battery is 12
volts and the negative terminal is
grounded.
2. If the booster battery is in another
vehicle, do not let the two vehicles touch.
3. Turn off all unnecessary lights and
accessories.
4. Connect the jumper cables exactly in
the sequence illustrated.

Jump starting

420

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  48  49  50  51   ..
