switch is pushed and held, we
recommend that you have your
vehicle inspected at a SUBARU
dealer as soon as possible.

The Auto Start Stop warning light will
illuminate in yellow if you open the engine
hood when the engine has been tempora-
rily stopped by the Auto Start Stop system.
In this case, to ensure safety, the engine
will not be automatically restarted, even if
you release the brake pedal. Use normal
operation to restart the engine.

!

Auto Start Stop OFF indicator light
(yellow)

This light will illuminate in yellow when the
Auto Start Stop OFF switch is pressed to
prevent the Auto Start Stop system from
operating. It will turn off when the Auto
Start Stop OFF switch is pressed once
more to enable operation of the Auto Start
Stop system.

&

Auto Start Stop indica-
tor light (green)

This indicator light illuminates when the
engine has been temporarily stopped by
the Auto Start Stop system. It will turn off
when the engine is restarted.

&

Auto Start Stop No
Activity Detected indi-
cator light

When a vehicle is stopped, the indicator
light illuminates when the operating con-
dition of idling stop are not meet. The light
will turn off when the vehicle starts driving.
Refer to “Non-operational conditions”
FP340.

&

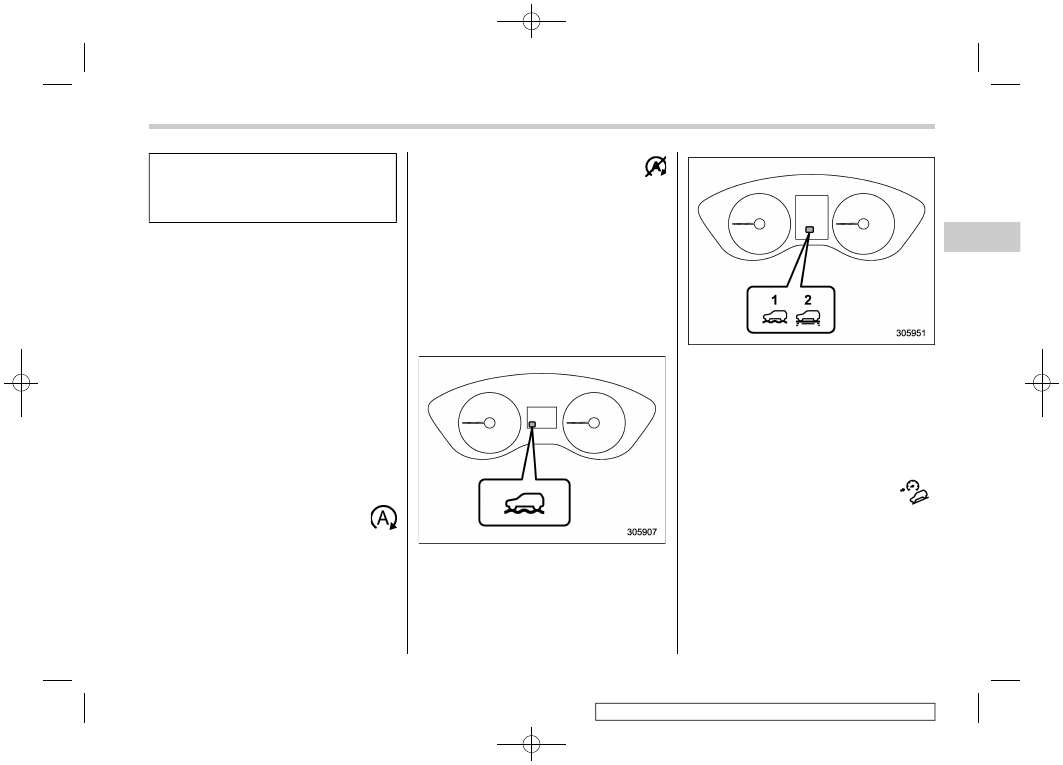

X-MODE indicator light (if
equipped)

X-MODE indicator (type A)

X-MODE indicator (type B)
1)

X-MODE indicator or D.SNOW/MUD
mode indicator

2)

SNOW/DIRT mode indicator

This indicator appears while the X-MODE
is activated. It will disappear when the X-
MODE is deactivated. Refer to “To acti-
vate/deactivate the X-MODE” FP327.

&

Hill descent control in-
dicator light (if
equipped)

This indicator appears while the hill des-
cent control function is in standby. It will
flash while the hill descent control function
is operating. It will disappear when the hill
descent control function is not available.
Refer to “Hill descent control function”
FP329.

– CONTINUED –

Warning and indicator

187

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(190,1)

&

BSD/RCTA warning
light (if equipped)

This warning indicator appears when the
BSD/RCTA is malfunctioning. In this case
the BSD/RCTA warning indicator will be
shown on the combination meter display
(color LCD). When this indicator appears,
have your vehicle inspected by your
SUBARU dealer as soon as possible.

&

BSD/RCTA OFF indica-
tor light (if equipped)

The indicator appears when the BSD/
RCTA OFF switch is pressed to deactivate
the BSD/RCTA or when the BSD/RCTA is
suspended temporarily. In this case the
BSD/RCTA OFF indicator will be shown on
the combination meter display (color
LCD). For details, refer to “BSD/RCTA”
FP351.

&

RAB warning light (if
equipped)

This indicator illuminates if the Reverse
Automatic Braking System malfunctions.
Refer to “Reverse Automatic Braking
System” FP360.

&

RAB OFF indicator light
(if equipped)

This indicator illuminates when the Re-
verse Automatic Braking System is turned
OFF, or when the Reverse Automatic
Braking System is suspended temporarily.
Refer to “Reverse Automatic Braking
System” FP360.

&

Driver Monitoring Sys-
tem operation indicator
light (green)/Driver
Monitoring System
warning light (yellow) (if
equipped)

!

Driver Monitoring System operation
indicator light (green)

This indicator illuminates when the Driver
Monitoring System is activated. Refer to
“Driver Monitoring System operation in-
dicator light (green)” FP377.

!

Driver Monitoring System warning
light (yellow)

This warning illuminates if the Driver
Monitoring System malfunctions. Have
your vehicle inspected at a SUBARU
dealer as soon as possible.

&

Driver Monitoring Sys-
tem OFF indicator light
(if equipped)

This indicator illuminates when the Driver
Monitoring System OFF switch is pressed
to deactivate the Driver Monitoring Sys-
tem. Refer to the “Driver Monitoring
System OFF indicator light” FP377.

&

Driver Monitoring Sys-
tem temporary stop in-
dicator light (if
equipped)

This indicator illuminates when the Driver
Monitoring System is temporarily stopped.
Refer to “Driver Monitoring System tem-
porary stop indicator light” FP377.

NOTE

The Driver Monitoring System stops
temporarily in the following circum-
stances.
.

The temperature of the Driver Mon-

itoring System unit is high.

Warning and indicator

188

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(191,1)

&

Icy road surface warn-
ing light (if equipped)

When the outside temperature is 378F
(38C) or less, the icy road surface warning
will illuminate to inform the driver that the
road surface may be frozen.

NOTE

.

The outside temperature indicator

shows the temperature in the area
around the sensor. Therefore, the tem-
perature indication may differ from the
actual outside air temperature.
.

The icy road surface warning screen

should be treated only as a guide. Be
sure to check the condition of the road
surface before driving.
.

Once the icy road surface warning

screen appears, it will not disappear
unless the outside temperature has
increased to 41
8F (58C) or higher.

3-7. Combination meter dis-
play (color LCD) (if equipped)

WARNING

Always pay adequate attention to
safe driving when operating the
combination meter display (color
LCD) while the vehicle is in motion.
When operation of the combination
meter display (color LCD) interferes
with your ability to concentrate on
driving, stop the vehicle before
performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from the
road and could result in an accident.

Various information will be shown on the
combination meter display (color LCD).
Also, a warning message will appear on
the display if a malfunction is detected. In
addition, several settings for the displayed
content can be performed.

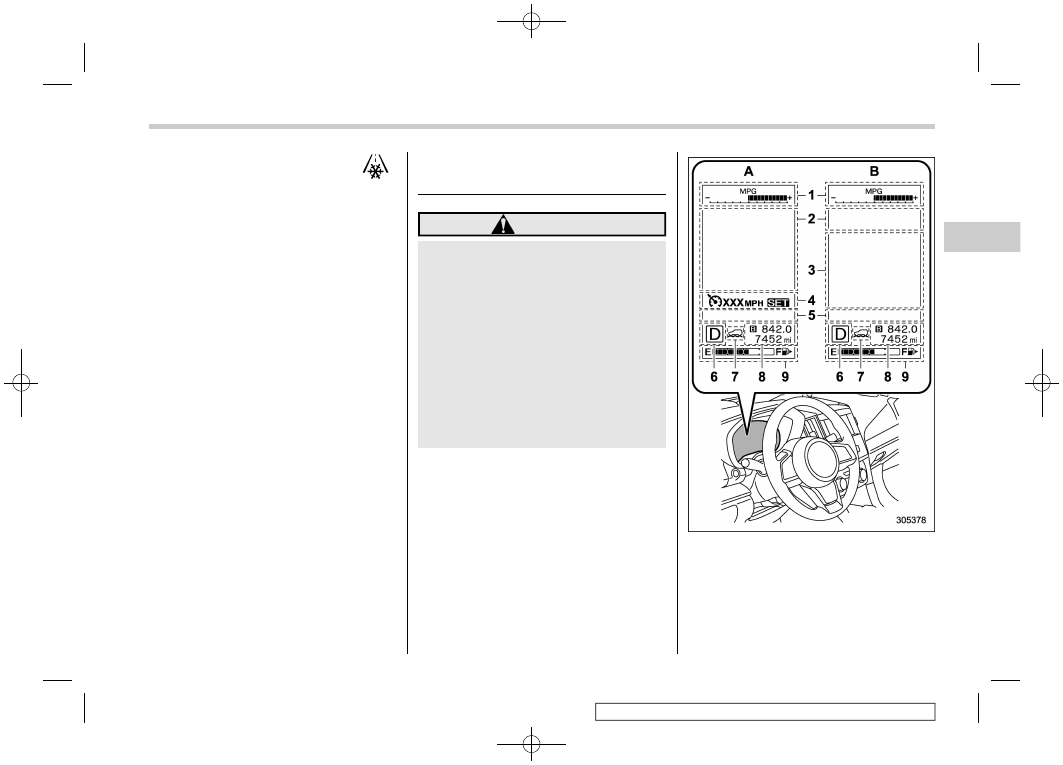

Combination meter display (color LCD)
1)

ECO gauge (refer to “ECO gauge”
FP162.)

2)

Warning screen (refer to “Warning
screen” FP191.)/Basic
screen (refer to
“Basic screens” FP193.)

3)

EyeSight screen

4)

Cruise control information display

– CONTINUED –

Combination meter display (color LCD)

189

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(192,1)

5)

Telltale screen (refer to “Telltale screen”
FP191.)

6)

Select lever/gear position indicator (refer
to “Select lever/gear position indicator”
FP184.)

7)

X-MODE indicator (if equipped) (refer to
“X-MODE indicator light” FP187.) SI-
DRIVE indicator (refer to “SI-DRIVE
indicator light” FP184.)

8)

Odometer (refer to “Odometer” FP161.)/
double trip meter (refer to “Double trip
meter” FP161.)

9)

Fuel gauge (refer to “Fuel gauge”
FP162.)

A:

Deactivating the Eyesight system or
models without EyeSight system

B:

Activating the Eyesight system

&

Basic operation

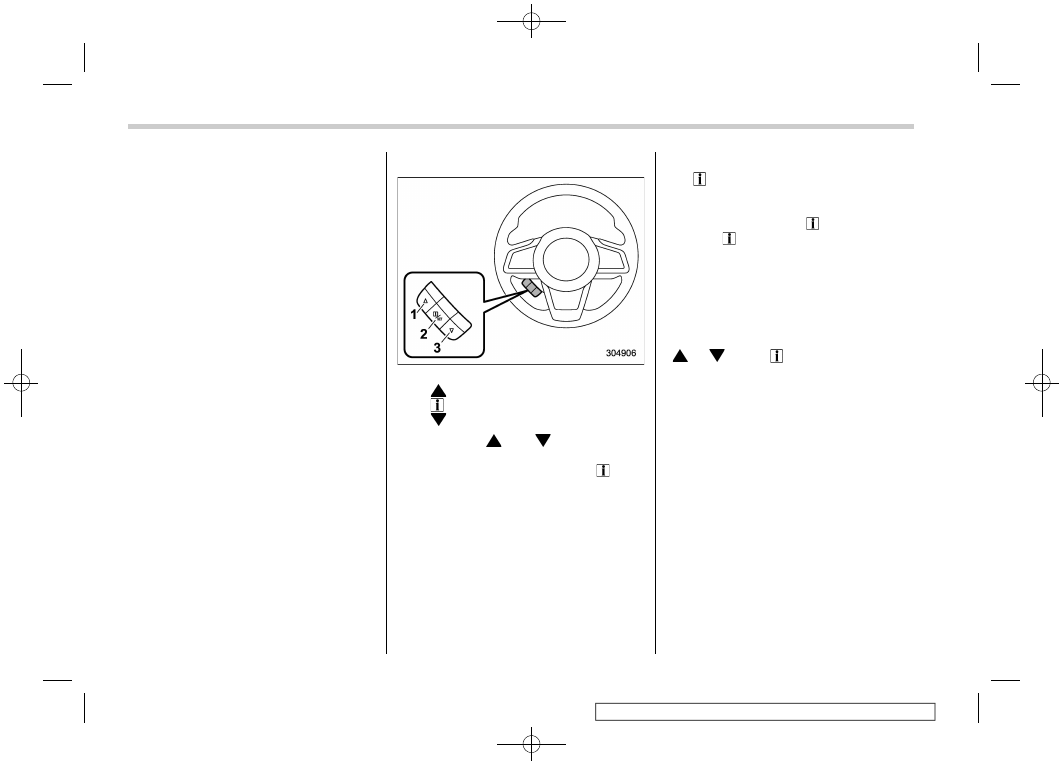

Control switch
1)

(Up)

2)

/SET (enter)

3)

(Down)

By operating “

” or “

” of the control

switch, the screens and selection items
can be switched. When the “

/SET”

switch is pulled toward you, the item can
be selected and set.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the

original screen after a few seconds. While
the “

” information reminder is shown on

the display, it may be possible to display
the warning screen again. To recall the
message marked with “

” on the display,

pull the “

/SET” switch on the steering

wheel toward you.

NOTE

When the multi-function display (color
LCD) is set to the setting screen, the
combination meter display (color LCD)
cannot be controlled pressing on the

”, “

” and “

/SET” on the control

switch.

&

Welcome screen (opening
animation) and Good-bye
(ending animation) screen

When the driver’s door is opened and
closed after unlocking the door, the wel-
come screen (opening animation) will
appear on the combination meter display
(color LCD) for approximately 20 seconds.
When the ignition switch is turned to the
“LOCK”/“OFF” position, the combination
meter display (color LCD) gradually turns
off by showing Good-bye screen (ending
animation).

Combination meter display (color LCD)

190

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(193,1)

NOTE

.

The welcome screen and the good-

bye screen may differ in the actual
words and appearance.
.

The basic screen will be shown

when the ignition switch is turned to
the “ON” position while the welcome
screen is displayed.
.

Once the welcome screen appears, it

takes a certain period of time to display
it again.
.

If the ignition switch is operated

after unlocking the driver’s door, the
welcome screen will not appear even
when the driver’s door is opened and
closed.
.

The welcome screen will disappear

when you lock the driver’s door by
using the remote keyless entry system
(all models) or the keyless access
function (if equipped) while the wel-
come screen is displayed.
.

The welcome screen including the

multi-function display (color LCD) and
the audio/navigation unit can be set to
on or off.
.

The welcome screen can be set to on

or off. For details, refer to “Welcome
Screen”
FP195.
.

The Good-bye screen can be set to

on or off. For details, refer to “Good-bye
Screen”
FP195.

&

Warning screen

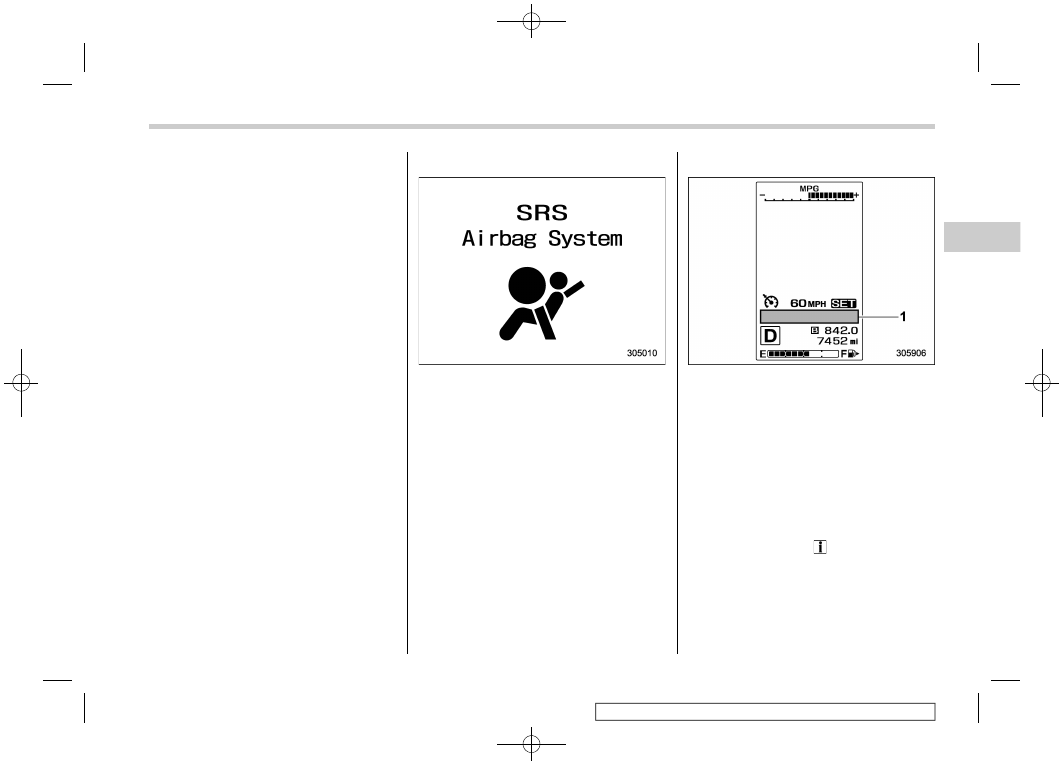

Example of warning

If there is a warning message or a
maintenance notification, it will appear on
this screen. Take the appropriate actions
based on the messages indicated.

&

Telltale screen

1)

Telltale screen

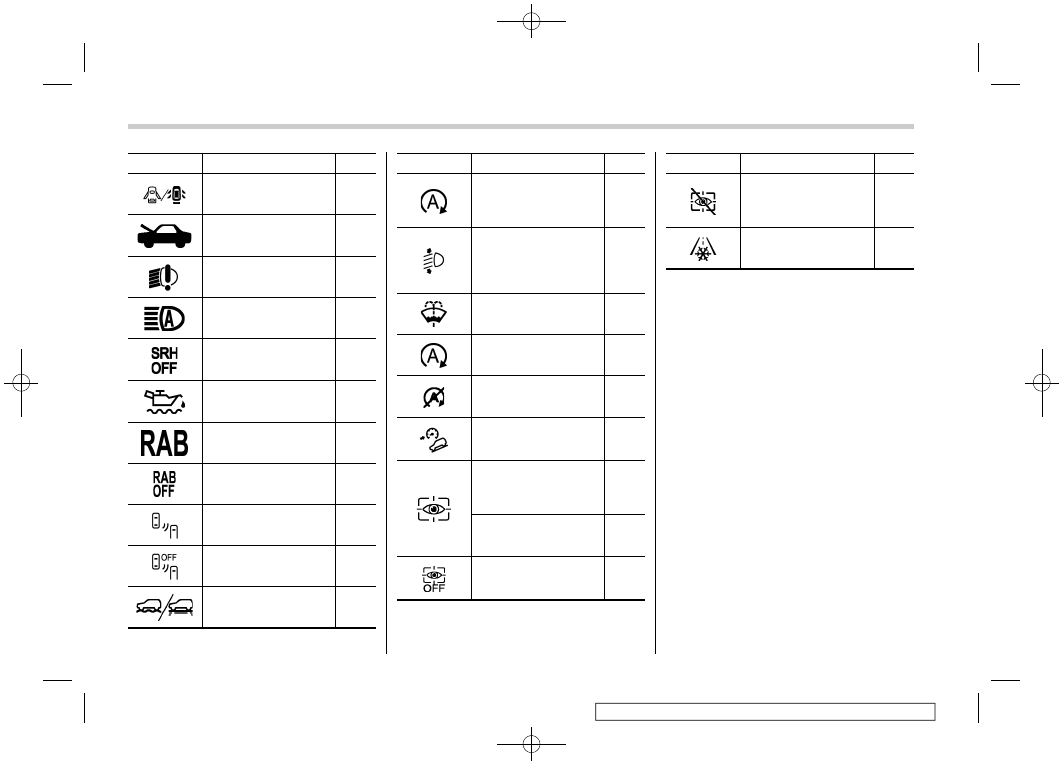

When the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen.

NOTE

When there is warning information to
display, it will be displayed in five
warning indicators, starting on the left
in ascending order of severity. If there
are six or more warning informations
displayed, pull the “

/SET” switch and

check the item.

– CONTINUED –

Combination meter display (color LCD)

191

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(194,1)

Mark

Name

Page

Door open indicator
light

175

Engine hood open
warning light

175

LED headlight warning
light (if equipped)

186

High beam assist indi-
cator light (if equipped)

185

Steering Responsive
Headlight warning light
(if equipped)

186

Engine low oil level
warning light

170

RAB warning light (if
equipped)

188

RAB OFF indicator light
(if equipped)

188

BSD/RCTA warning
light (if equipped)

188

BSD/RCTA OFF indi-
cator light (if equipped)

188

X-MODE indicator light
(if equipped)

187

Mark

Name

Page

Auto Start Stop warning
light/Auto Start Stop
OFF indicator light (yel-
low)

186

Automatic headlight
beam leveler system
malfunction warning
light (models with LED
headlights)

186

Windshield washer fluid
warning light

170

Auto Start Stop indica-
tor light (green)

187

Auto Start Stop No Ac-
tivity Detected indicator
light

187

Hill descent control in-
dicator light (if
equipped)

187

Driver Monitoring Sys-
tem operation indicator
light (green) (if
equipped)

188

Driver Monitoring Sys-
tem warning light (yel-
low) (if equipped)

188

Driver Monitoring Sys-
tem OFF indicator light
(if equipped)

188

Mark

Name

Page

Driver Monitoring Sys-
tem temporary stop in-
dicator light (if
equipped)

188

Icy road surface warn-
ing light

189

Combination meter display (color LCD)

192

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(195,1)

&

Basic screens

By operating the “

” or “

” switch on the

steering wheel, you can change the screen
that is always displayed.

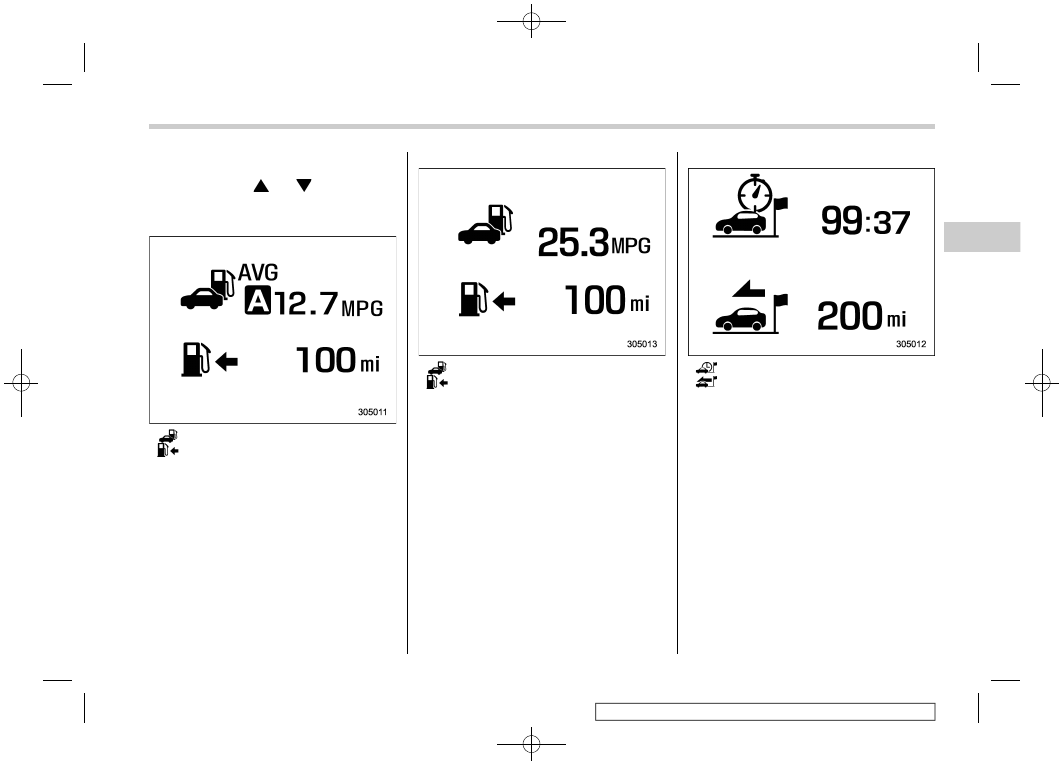

Average fuel consumption screen:

: Average fuel consumption
: Driving range on remaining fuel

This screen displays the average rate of
fuel consumption since the trip meter was
last reset.

NOTE

The driving range on the remaining fuel
is only a guide. The indicated value may
differ from the actual driving range on
the remaining fuel, so you must im-
mediately fill the tank when the low fuel
warning light illuminates.

Current fuel consumption screen:

: Current fuel consumption
: Driving range on remaining fuel

NOTE

The driving range on the remaining fuel
is only a guide. The indicated value may
differ from the actual driving range on
the remaining fuel, so you must im-
mediately fill the tank when the low fuel
warning light illuminates.

Driving information screen:

: Journey time
: Journey distance

This screen displays the journey time (the
time that has elapsed since the ignition
switch was turned to the “ON” position)
and journey distance (the distance that
has been driven since the ignition switch
was turned to the “ON” position).

– CONTINUED –

Combination meter display (color LCD)

193

3

Instruments

and

controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(196,1)

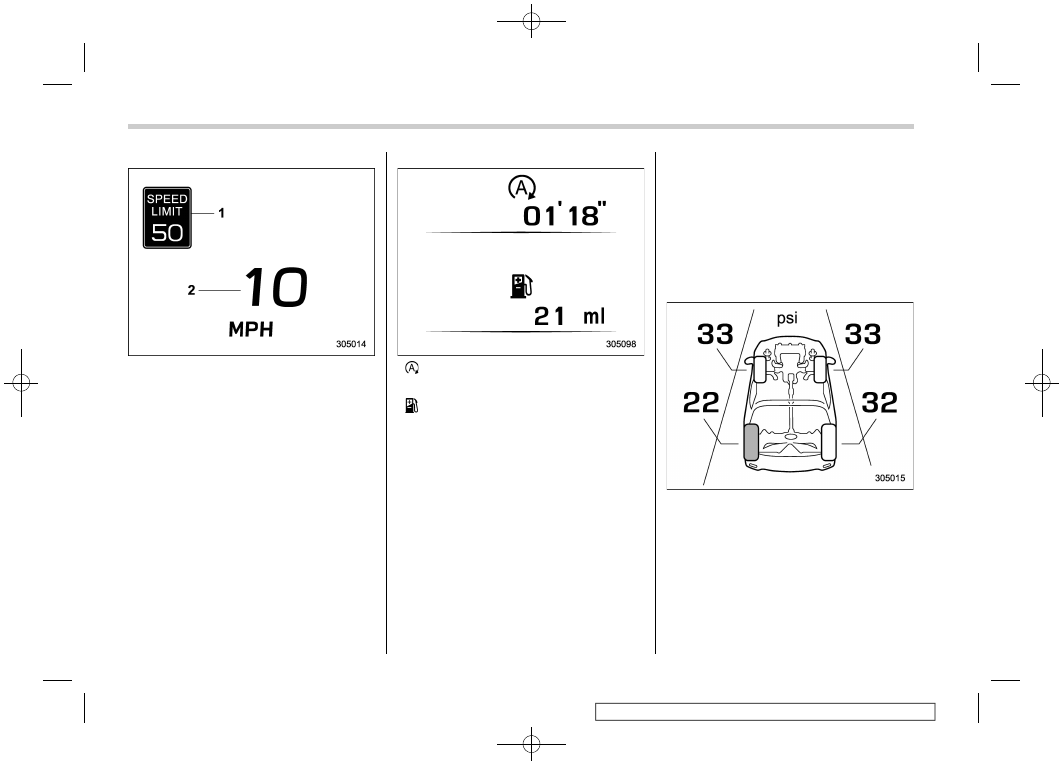

Digital speed screen:

1)

Speed limit indicator (if equipped)

2)

Vehicle speed

This screen displays the current vehicle
speed.

Auto Start Stop screen:

: The total amount of time that the engine

was stopped by means of the Auto Start
Stop system

: The total amount of fuel saved due to the

engine being stopped by the Auto Start
Stop system

The indicated values are calculated from
the most recent reset of the currently
displayed trip meter to the current time.
The indication ranges are as follows.
.

Total amount of time: from 00’00” to

9999h59’59”

.

Total amount of fuel saved: from 0 ml to

9999.999 L

NOTE

.

When the trip meter is reset, the

corresponding accumulated time and
the amount of fuel saving are also reset.
.

The time spent with the engine

stopped by means of the Auto Start
Stop system is also added to the
journey time.

TPMS screen (U.S.-spec. models):

This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.

NOTE

The tire pressure values are displayed
several minutes after driving.

Combination meter display (color LCD)

194

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  21  22  23  24   ..
