Subaru Legacy IV (2008 year). Manual - part 999

AB-9

Airbag Connector

AIRBAG SYSTEM

3. DRIVER’S AIRBAG (BETWEEN AIRBAG
MAIN HARNESS AND ROLL CONNECTOR)
AND SIDE AIRBAG

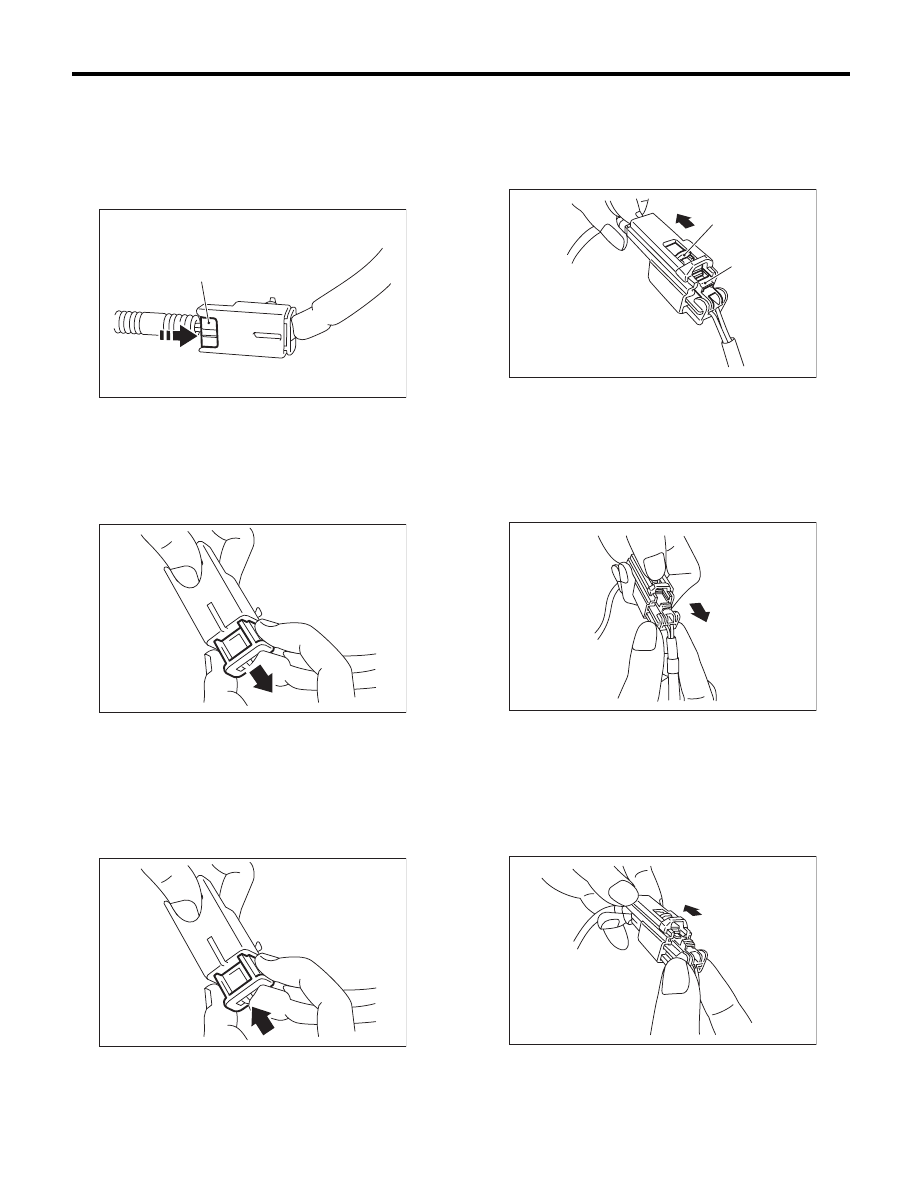

1) How to disconnect:

(1) Push the slide lock (A) in the direction of ar-
row.

(2) With the slide lock pushed, disconnect the
connector.

CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.

2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.

CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.

4. SIDE AIRBAG

1) How to disconnect:

(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of arrow.

(3) With the slide lock moved, release the lock
arm (return to original position) and disconnect
the connector.

CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.

2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.

CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it lightly to make sure that it is
locked.

AB-00722

(A)

AB-00022

AB-00023

AB-00017

(A)

(B)

AB-00018

AB-00019

AB-10

Airbag Connector

AIRBAG SYSTEM

5. FRONT SUB SENSOR, SIDE AIRBAG
SENSOR, CURTAIN AIRBAG SENSOR AND
SATELLITE SAFING SENSOR

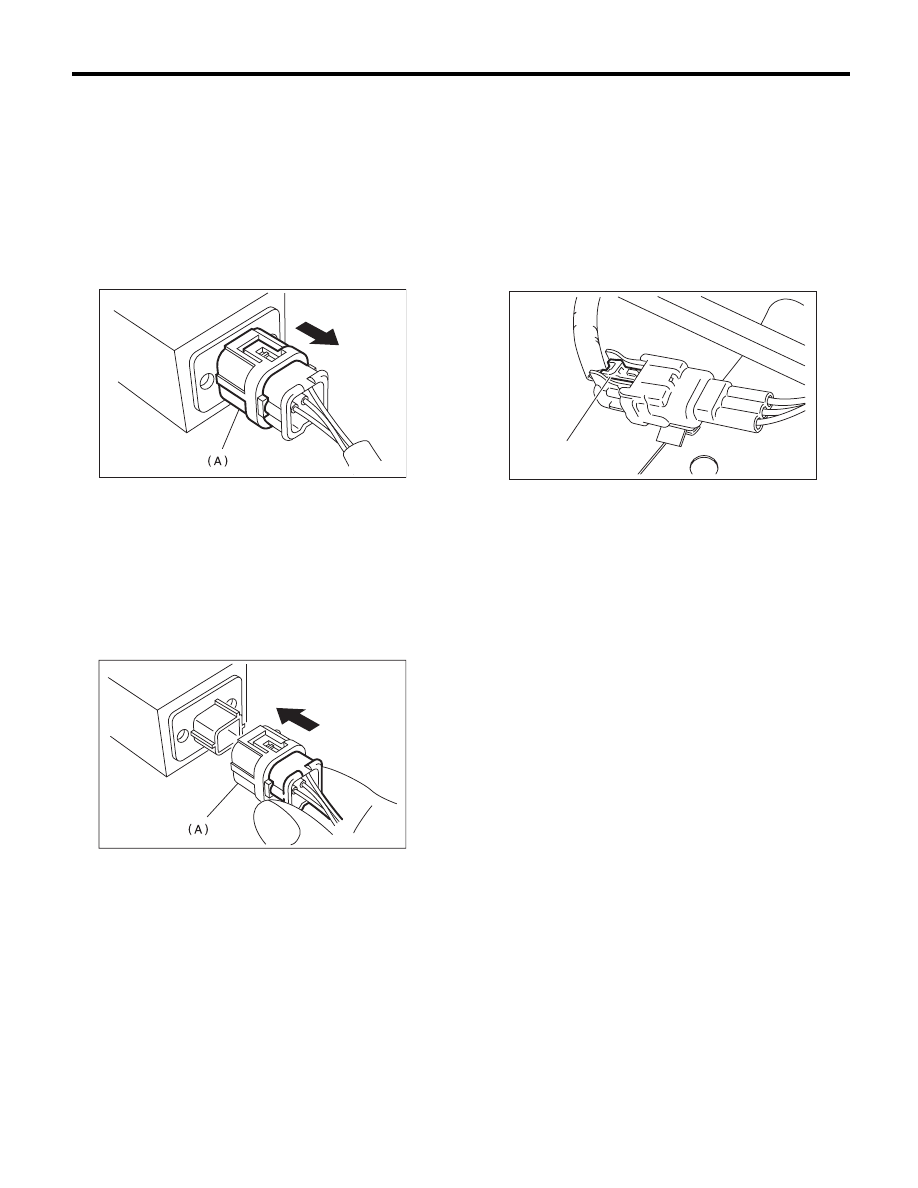

1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.

CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.

2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.

CAUTION:
• Do not touch the outer side section or else
the outer side (A) will move back.
• Be sure to insert the connector in until it is
locked. Then pull it lightly to make sure that it is
locked.

6. PASSENGER DETECTION SYSTEM
(BETWEEN AIRBAG REAR HARNESS AND
SEAT HARNESS) AND BELT TENSION
SENSOR

1) How to disconnect:
Push lock arm (A), then disconnect the connector.

CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.

2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.

CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it lightly to make sure that it is
locked.

AB-00024

AB-00025

AB-01325

(A)

AB-11

Inspection Locations After a Collision

AIRBAG SYSTEM

3. Inspection Locations After a

Collision

A: REPLACEMENT

Replace the following parts when the airbag is de-
ployed.

1. FRONT COLLISION

1) Driver’s airbag module
2) Passenger’s airbag module
3) Driver’s seat belt (Pretensioner)
4) Passenger’s seat belt (Pretensioner)
5) Airbag control module
6) Front sub sensor (L/R)
7) Roll connector
8) Instrument panel (for integrating with passen-
ger’s airbag module)
9) Passenger’s side seat cushion pad and frame
assembly

2. SIDE COLLISION

1) Airbag control module
2) Satellite safing sensor
3) Side airbag module (operating side seat back-
rest)
4) Side airbag sensor (operating side)
5) Curtain airbag module (operating side)
6) Curtain airbag sensor (operating side)
7) Satellite safing sensor mounting bracket and
cover

3. INSPECTION OF OTHER PARTS

Check for the following parts, and replace the dam-
aged parts with new parts.
1) Steering wheel and steering shaft
Check the steering shaft for mounting conditions
and deflection of front and rear, upward and down-
ward directions, and deflection of front and rear di-
rection with tilt lever released. (After a collision,
absorbing part of steering shaft may have been op-
erated.)
2) Check the direct type connector of drivers airbag
module, curtain airbag module and pretensioner,
etc. for damage, and also check each harness for
pinch and connector damage. Replace the harness
as a unit if damage is found.
3) Check the seat cushion frame, backrest, slide
rail and headrest for deformation, distortion, crack,
and installing condition and play.
4) For the passenger’s seat, replace the seat cush-
ion pad and frame assembly with a new part if the
seat cushion pad and frame assembly is deformed
or cracked.

5) If there are tears or loosening in the passenger
side seat cushion cover, it may interfere with the
proper operation of the occupant detection system.
Replace with a new cushion cover.
6) Be sure to perform the system calibration for the
occupant detection system after removing or re-
placing the passenger seat cushion cover. Failure
to do so may cause improper operation of the occu-
pant detection system. <Ref. to OD(diag)-15, SYS-
TEM CALIBRATION (REZEROING),
OPERATION, Subaru Select Monitor.>
7) Use the Subaru Select Monitor to check whether
the passenger’s seat belt buckle switch is operating
normally.

B: INSPECTION

If the vehicle is involved in a collision, even if it is a
slight collision, be sure to check the following sys-
tems.

1. DRIVER’S AIRBAG MODULE

1) Check for the following, and replace the dam-
aged parts with new parts.
• Airbag module is cracked or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• The module surface is fouled with grease, oil,
water or cleaning solvent.
2) When installing a new driver’s airbag module,
check for the following, and replace the damaged
parts with new parts.
• The steering wheel is in the way, making it diffi-
cult to install the airbag module.
• The clearance between the driver’s airbag mod-
ule and steering wheel is not constant.
• When steering wheel deformation in axial and
vertical directions exceed limits.

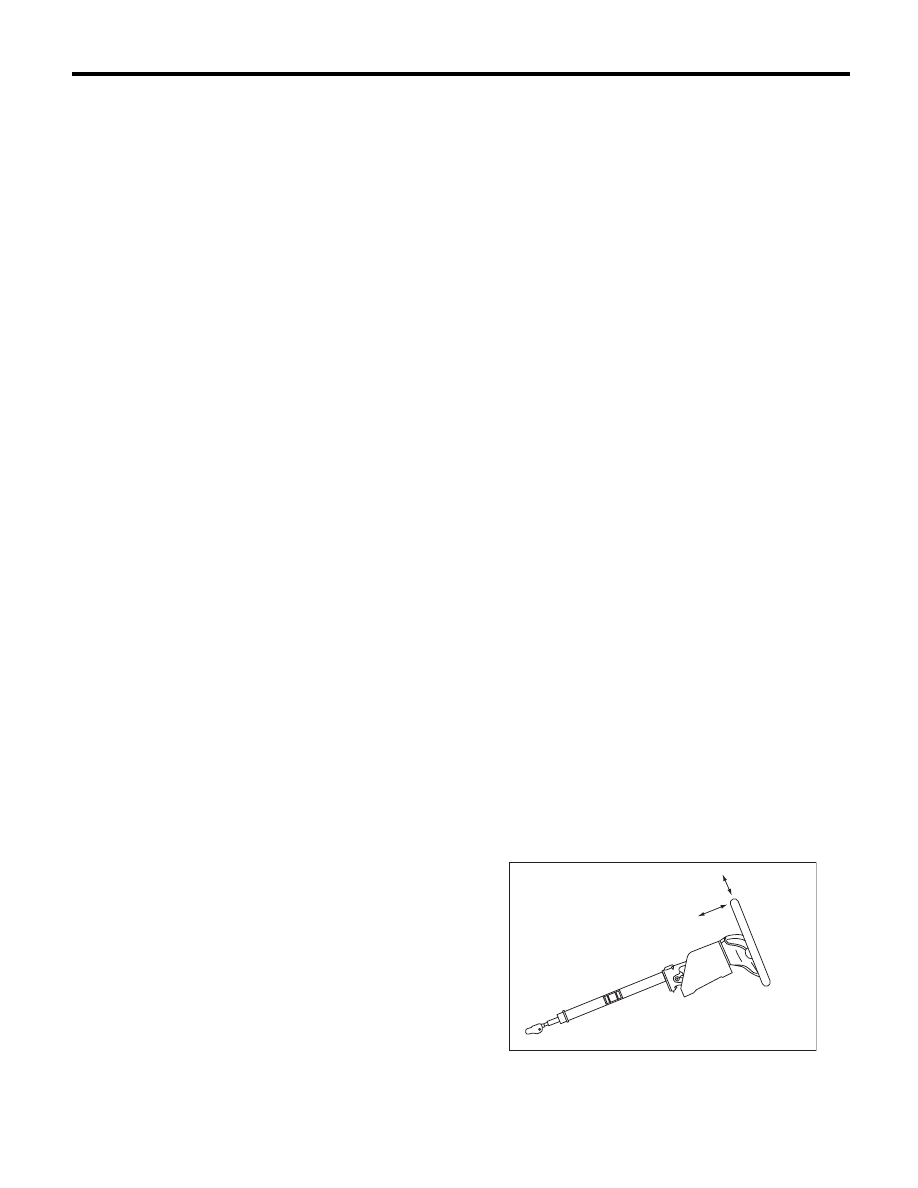

Specification:

Axial deflection A

Less than 6 mm (0.24 in)

Vertical deflection L

Less than 15 mm (0.59 in)

AB-00028

L

A

AB-12

Inspection Locations After a Collision

AIRBAG SYSTEM

2. PASSENGER’S AIRBAG MODULE

Check for the following, and replace the damaged
parts with new parts.
• Airbag module and instrument panel are cracked
or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• Mounting bracket is cracked or deformed.

3. SIDE AIRBAG MODULE

Check for the following, and replace the damaged
parts with new parts.
• Front seat, airbag module and mounting bracket
are damaged or deformed.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.

4. CURTAIN AIRBAG MODULE

Check for the following, and replace the damaged
parts with new parts.
• Airbag cover is scratched or torn.
• Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
• Mounting bracket and securing clip are cracked
or deformed.

5. AIRBAG CONTROL MODULE

Check for the following, and replace the damaged
parts with new parts.
• Control module is cracked or deformed.
• Mounting bracket is cracked or deformed.
• Connector is scratched, cracked or deformed.
• Airbag is deployed.
• Side airbag is deployed.
• Curtain airbag is deployed.

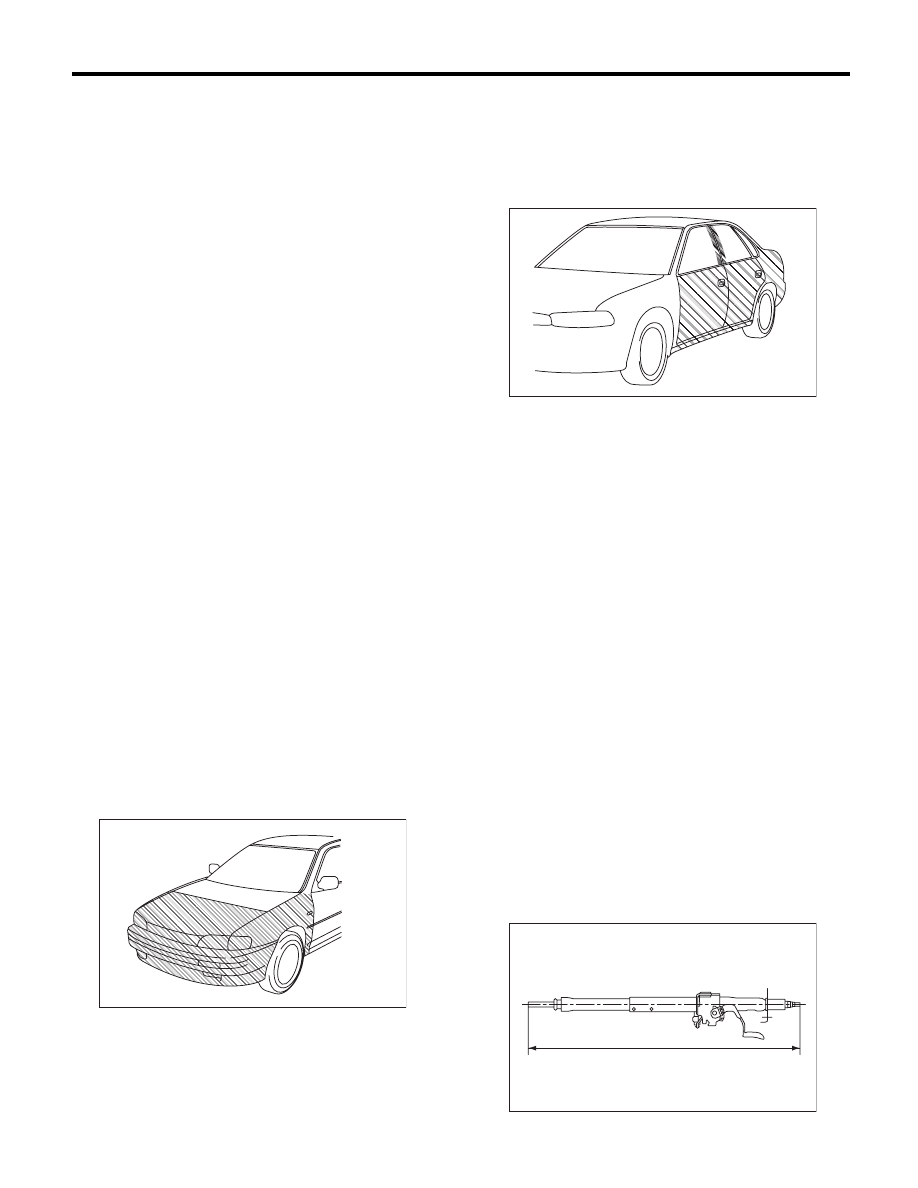

6. FRONT SUB SENSOR

If the section of vehicle as shown in the figure is
damaged, check the following items and replace
the damaged parts with new parts.

• Front sub sensor is cracked or deformed.
• Connector is scratched, cracked or deformed.
• Airbag is deployed.

7. SATELLITE SAFING SENSOR, SIDE
AIRBAG SENSOR AND CURTAIN AIRBAG
SENSOR

If the section of vehicle as shown in the figure is
damaged, check the following items and replace
the damaged parts with new parts.

• Satellite safing sensor, side airbag sensor and
curtain airbag sensor are cracked or deformed.
• Mounting bracket is cracked or deformed.
• Satellite safing sensor is cracked or deformed.
• Connector is scratched, cracked or deformed.
• Side airbag or curtain airbag is deployed. (oper-
ating side)

8. ROLL CONNECTOR

Check for the following, and replace the damaged
parts with new parts.
Combination switch or steering roll connector is
cracked or deformed.

9. STEERING SHAFT

Check for the following, and replace the damaged
parts with new parts.
Overall length of steering column should be within
specification.

Specification:

Overall length L

Tilt and telescopic column (measure while min-
imized)

Except for OUTBACK model

818.6

+1.5

–1.5

 mm (32.23

+0.059

–0.059

 in)

OUTBACK model

810.4

+1.5

–1.5

 mm (31.89

+0.059

–0.059

 in)

AB-00029

AB-01869

AB-00728

L
