General Description

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

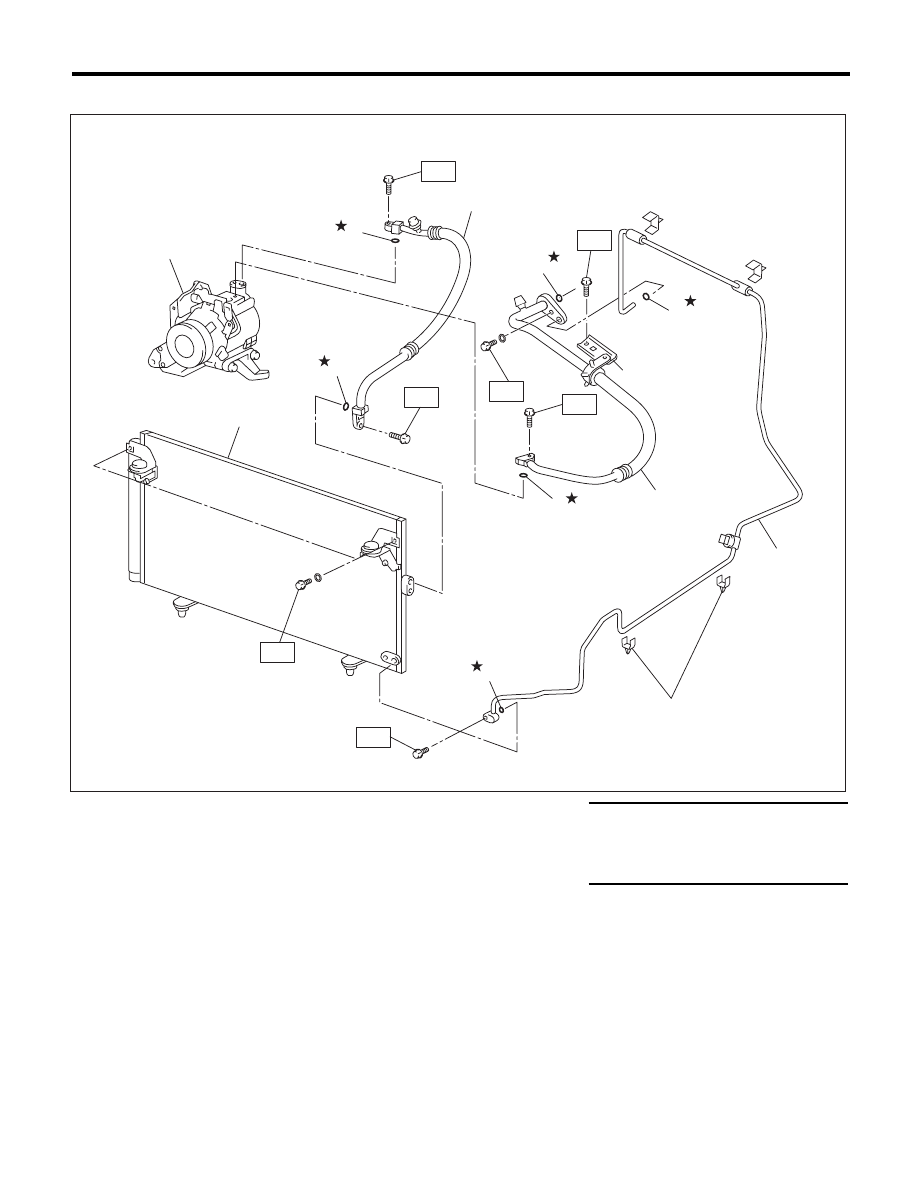

4. AIR CONDITIONING UNIT

(1)

Condenser

(5)

Compressor

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Hose (High-pressure)

(6)

O-ring

T1: 7.5 (0.76, 5.5)

(3)

Hose (Low-pressure)

(7)

Clamp

T2: 10 (1.0, 7.4)

(4)

Bracket

(8)

Pipe

T3: 5 (0.5, 3.7)

AC-01432

T2

(7)

(8)

(5)

(6)

(2)

T2

T3

T3

T1

(6)

(6)

(6)

(6)

(1)

T1

(4)

(6)

(3)

T1

AC-12

General Description

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

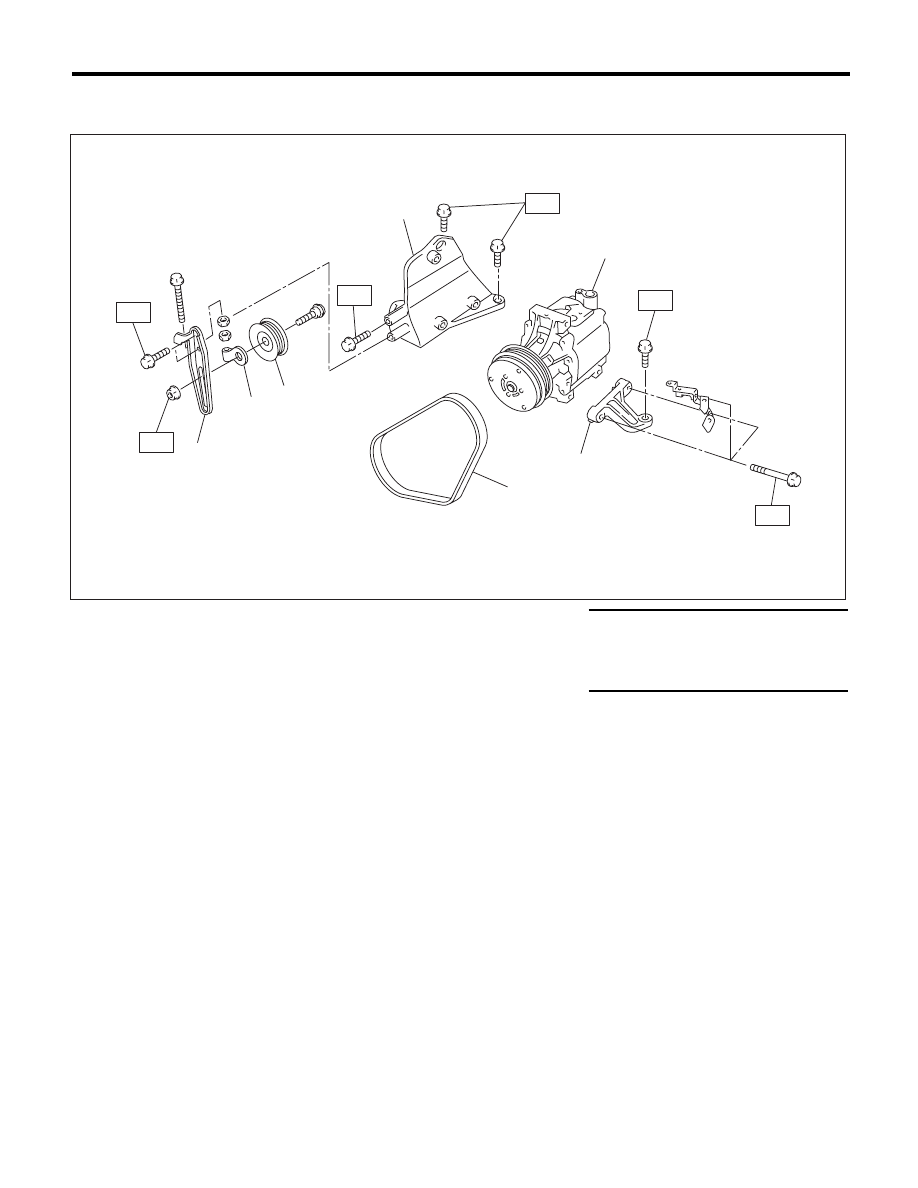

5. COMPRESSOR

• H4 model

(1)

Idler pulley bracket

(5)

Compressor

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Idler pulley adjuster

(6)

Compressor lower bracket

T1: 23.0 (2.35, 17.0)

(3)

Idler pulley

(7)

V-belt

T2: 28.9 (2.95, 21.3)

(4)

Compressor upper bracket





T3: 36 (3.7, 26.6)

AC-00760

(4)

(1)

(2)

(3)

(7)

(6)

(5)

T2

T3

T3

T1

T1

T3

AC-13

General Description

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

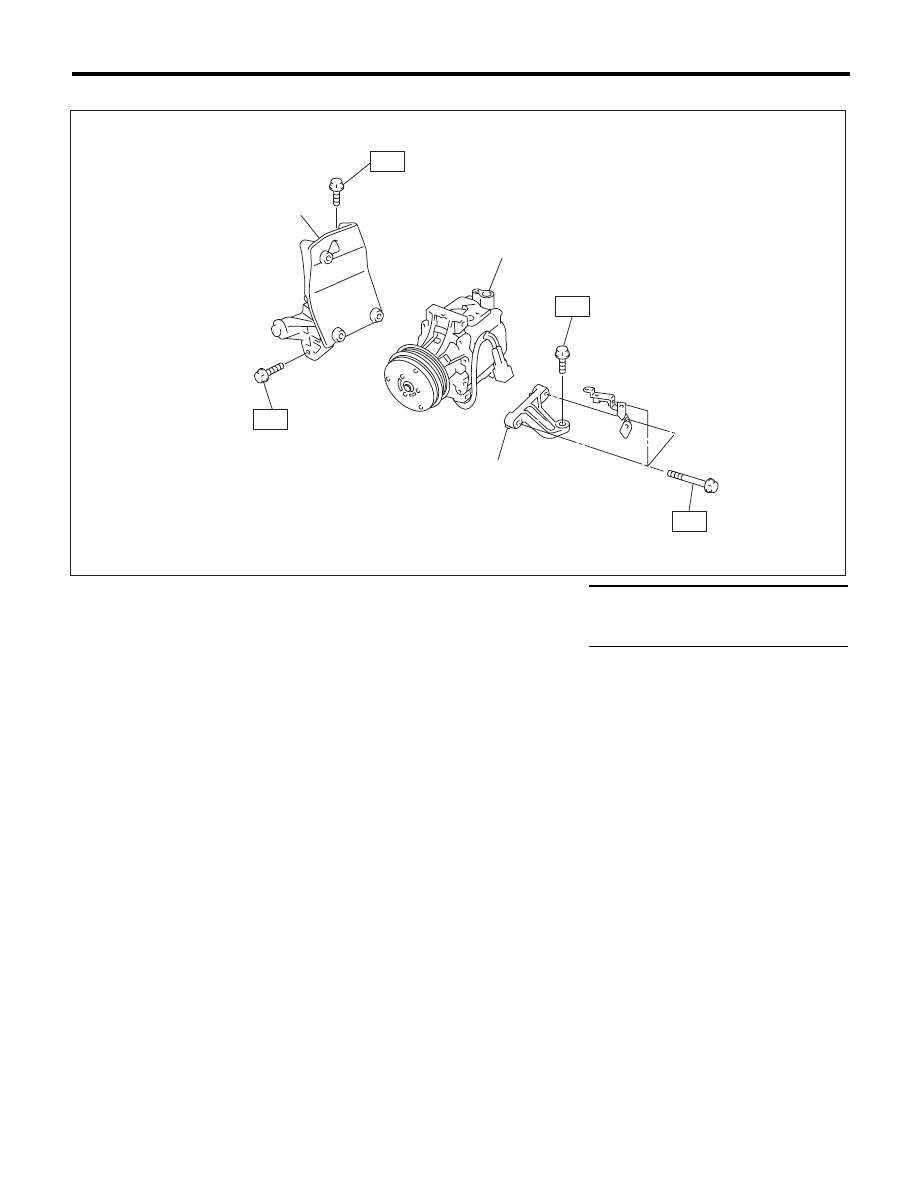

• H6 model

(1)

Compressor upper bracket





Tightening torque:N·m (kgf-m, ft-lb)

(2)

Compressor



T1: 28.9 (2.95, 21.3)

(3)

Compressor lower bracket





T2: 36 (3.7, 26.6)

AC-00912

(1)

(2)

(3)

T1

T2

T2

T2

AC-14

General Description

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

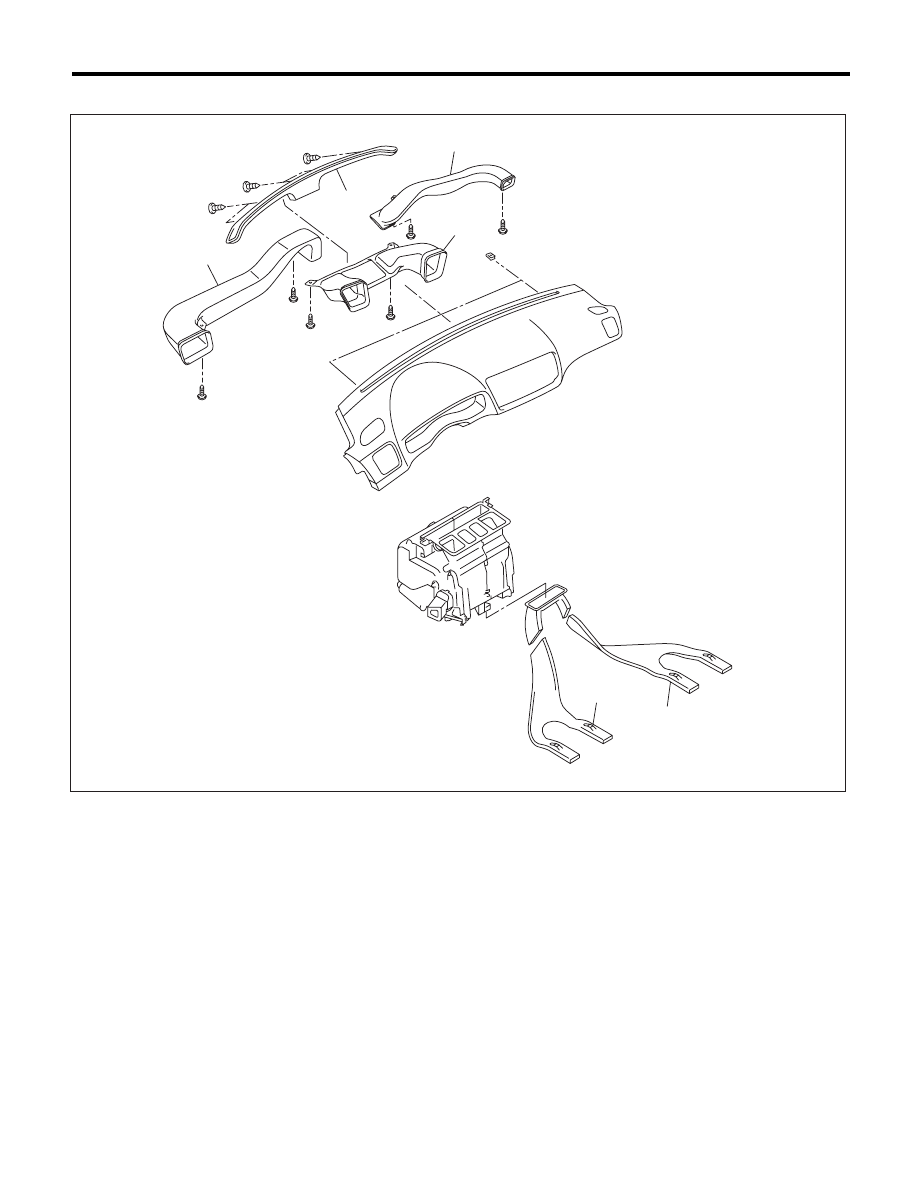

6. HEATER DUCT

(1)

Front defroster nozzle

(3)

Side ventilation duct (RH)

(5)

Rear heater duct (LH)

(2)

Side ventilation duct (LH)

(4)

Center ventilation duct

(6)

Rear heater duct (RH)

AC-00913

(4)

(5)

(6)

(2)

(3)

(1)
