VEHICLE DYNAMICS CONTROL (VDC)

1. General Description

A: SPECIFICATION

Item

Specification or identification

ABS wheel speed sensor

ABS wheel speed sensor gap
(for reference)

Front

0.77 — 1.43 mm (0.030 — 0.056 in)

Rear

0.64 — 1.56 mm (0.025 — 0.061 in)

Identifications of harness
(marks, color)

Front

RH

K1 (White)

LH

K2 (Yellow)

Rear

RH

K5 (White)

LH

K6 (Yellow)

VDCCM&H/U Identification

AT: 2.5GT SED, OBK 2.5XT, OBK 3.0R

T3

AT: 3.0R (18 inch tire)

T7

AT: OBK 2.5i, 2.5i SED, 3.0R (17 inch tire)

TA

MT: 2.5GT-B, OBK 2.5XT

T4

MT: OBK 2.5i, 2.5i SED

TB

VDC-3

General Description

VEHICLE DYNAMICS CONTROL (VDC)

B: COMPONENT

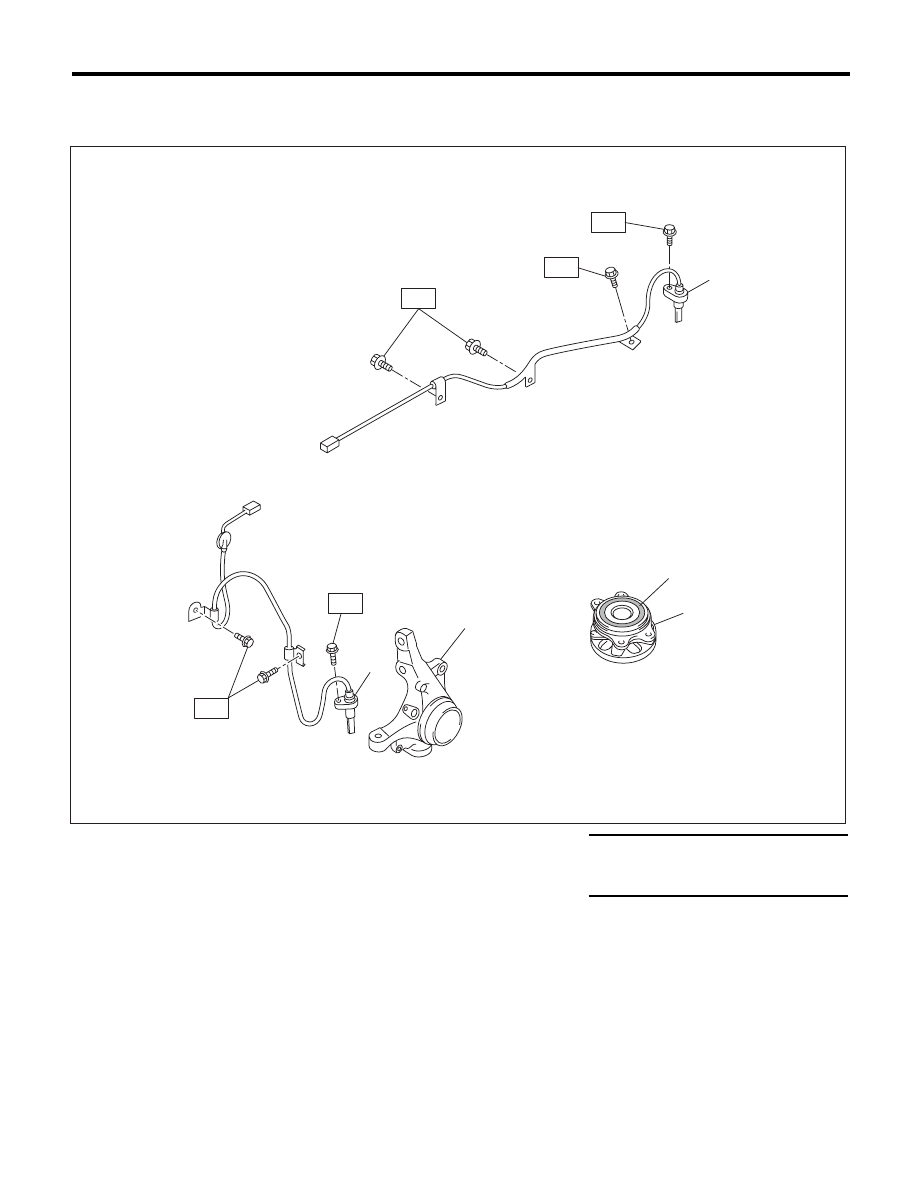

1. ABS WHEEL SPEED SENSOR

(1)

Front ABS wheel speed sensor

(4)

Hub unit bearing

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Front housing

(5)

Magnetic encoder

T1: 7.5 (0.76, 5.5)

(3)

Rear ABS wheel speed sensor





T2: 33 (3.4, 24)

VDC00194

T1

T2

T1

(3)

(2)

(1)

T2

(4)

(5)

T2

VDC-4

General Description

VEHICLE DYNAMICS CONTROL (VDC)

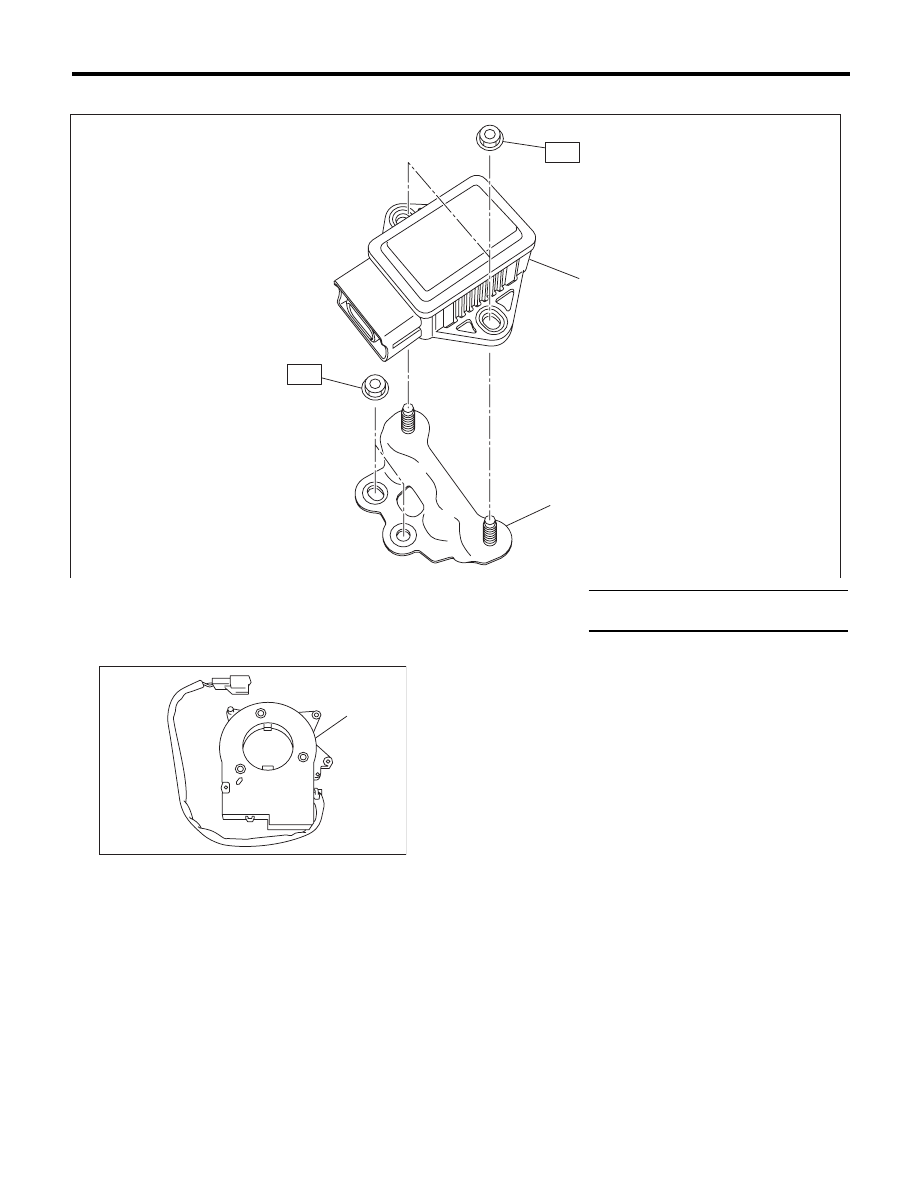

2. YAW RATE & LATERAL G SENSOR

3. STEERING ANGLE SENSOR

(1)

Yaw rate & lateral G sensor

(2)

Bracket

Tightening torque:N·m (kgf-m, ft-lb)









T: 7.5 (0.76, 5.5)

VDC00447

(1)

(2)

T

T

(1) Steering angle sensor

VDC00196

(1)

VDC-5

General Description

VEHICLE DYNAMICS CONTROL (VDC)

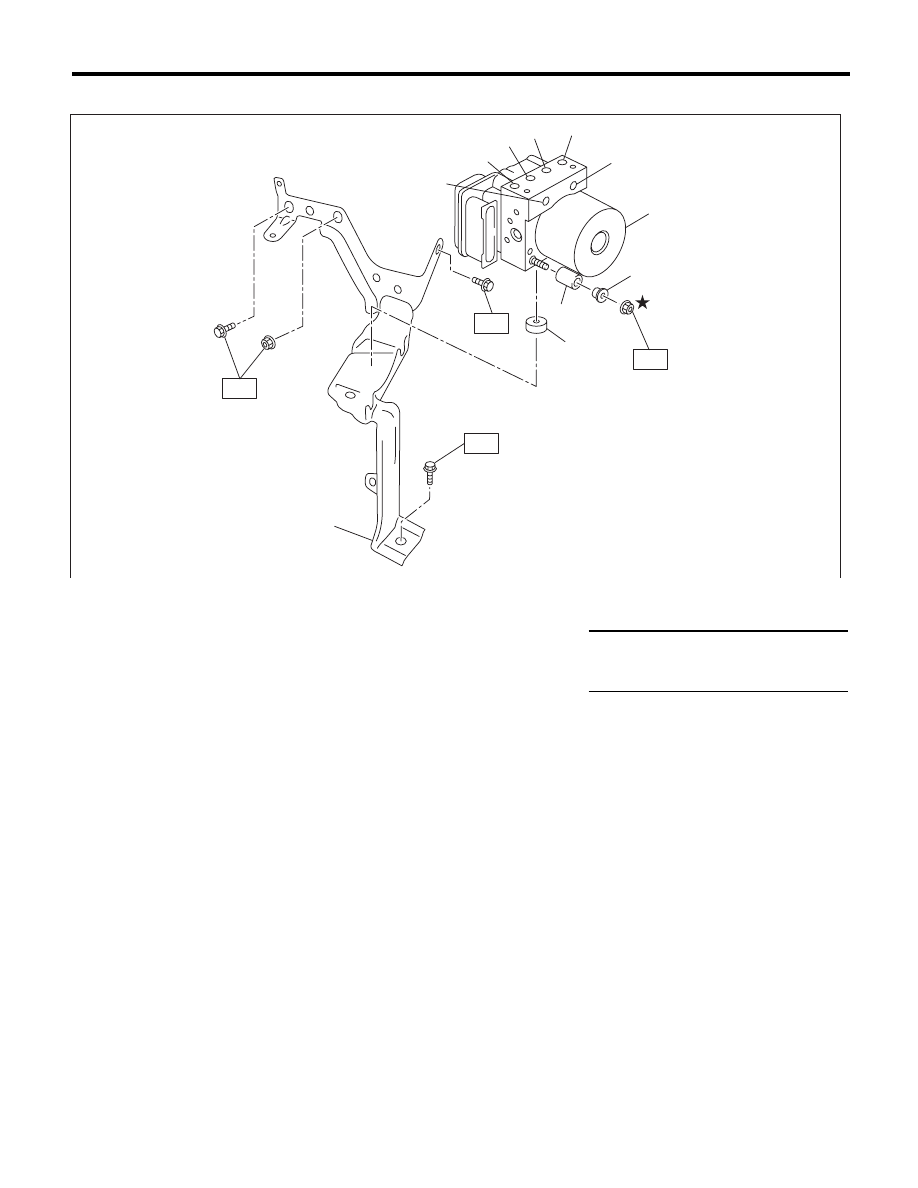

4. VDC CONTROL MODULE & HYDRAULIC CONTROL UNIT (VDCCM&H/U)

(1)

VDC control module & hydraulic
control unit (VDCCM&H/U)

(6)

Primary inlet

(11)

Bracket

(7)

Secondary inlet

(2)

Front RH outlet

(8)

Damper

Tightening torque:N·m (kgf-m, ft-lb)

(3)

Rear LH outlet

(9)

Spacer

T1: 7.5 (0.76, 5.5)

(4)

Rear RH outlet

(10)

Damper

T2: 33 (3.4, 24)

(5)

Front LH outlet

VDC00480

(1)

(8)

(7)

(6)

(5)

(4)

(3)

(10)

(2)

T1

T2

(11)

(9)

T2

T2
