DS-17

Front Hub Unit Bearing

DRIVE SHAFT SYSTEM

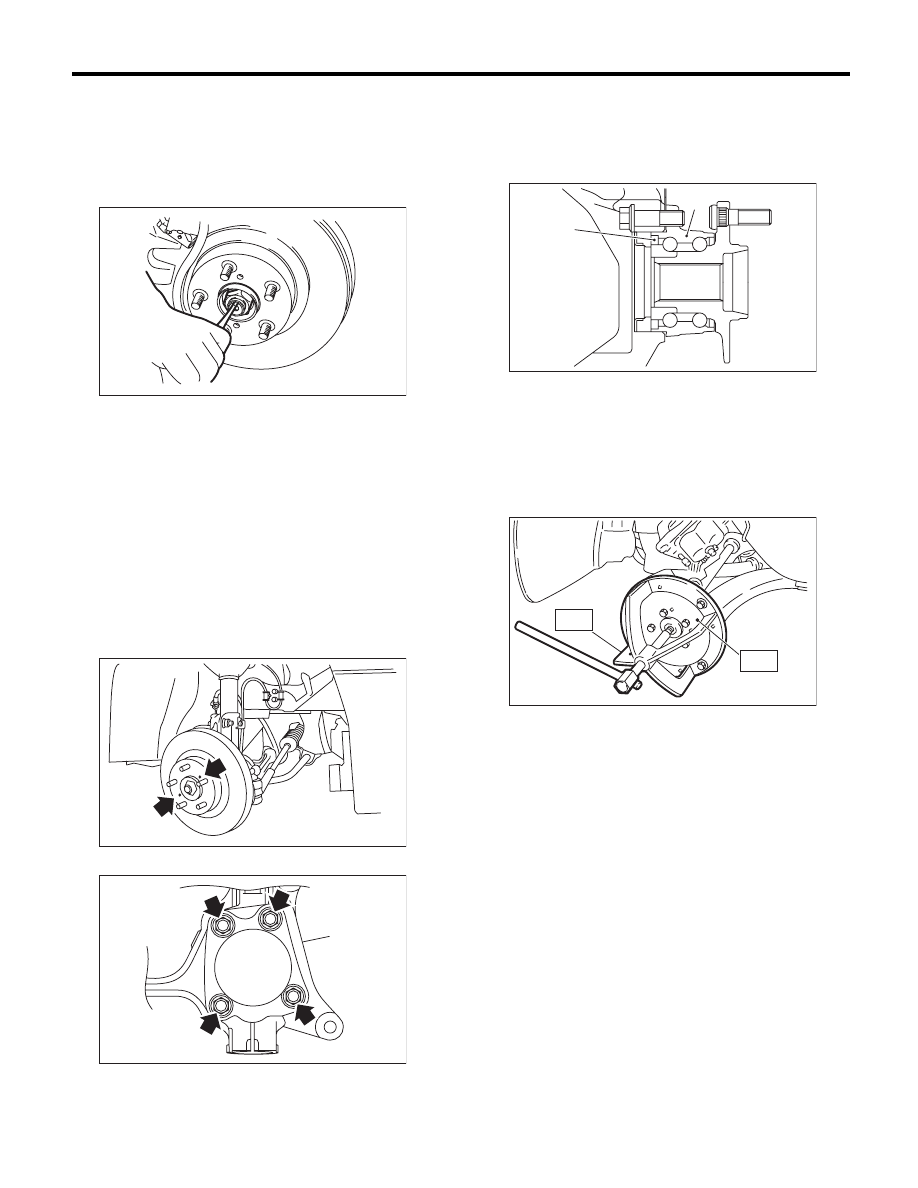

4. Front Hub Unit Bearing

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Lift up the vehicle, and remove the front wheels.
3) Lift the crimped section of axle nut.

4) Remove the axle nut using a socket wrench
while depressing the brake pedal.

CAUTION:
Remove the wheel before loosening the axle
nut. Failure to follow this rule may damage the
wheel bearings.
5) Remove the disc brake caliper from the housing,
and suspend it from strut using a wire.
6) Remove the disc rotor from the hub.

NOTE:
If it is difficult to remove the disc rotor from the hub,
drive the 8 mm bolt into the threaded end of rotor,
and then remove the rotor.

7) Remove the four bolts from the housing.

CAUTION:
• Do not get closer the tool which charged
magnetism to magnetic encoder.
• Be careful not to damage the magnetic en-
coder.

8) Remove the front hub unit bearing. If it is hard to
remove, use the ST.
ST1

926470000

AXLE SHAFT PULLER

ST2

28099PA110 AXLE SHAFT PULLER PLATE

(A) Housing

DS-00038

DS-00041

DS-00231

(A)

(1) Magnetic encoder

(2) Front hub unit bearing

(2)

DS-00250

(1)

DS-00145

ST2

ST1

DS-18

Front Hub Unit Bearing

DRIVE SHAFT SYSTEM

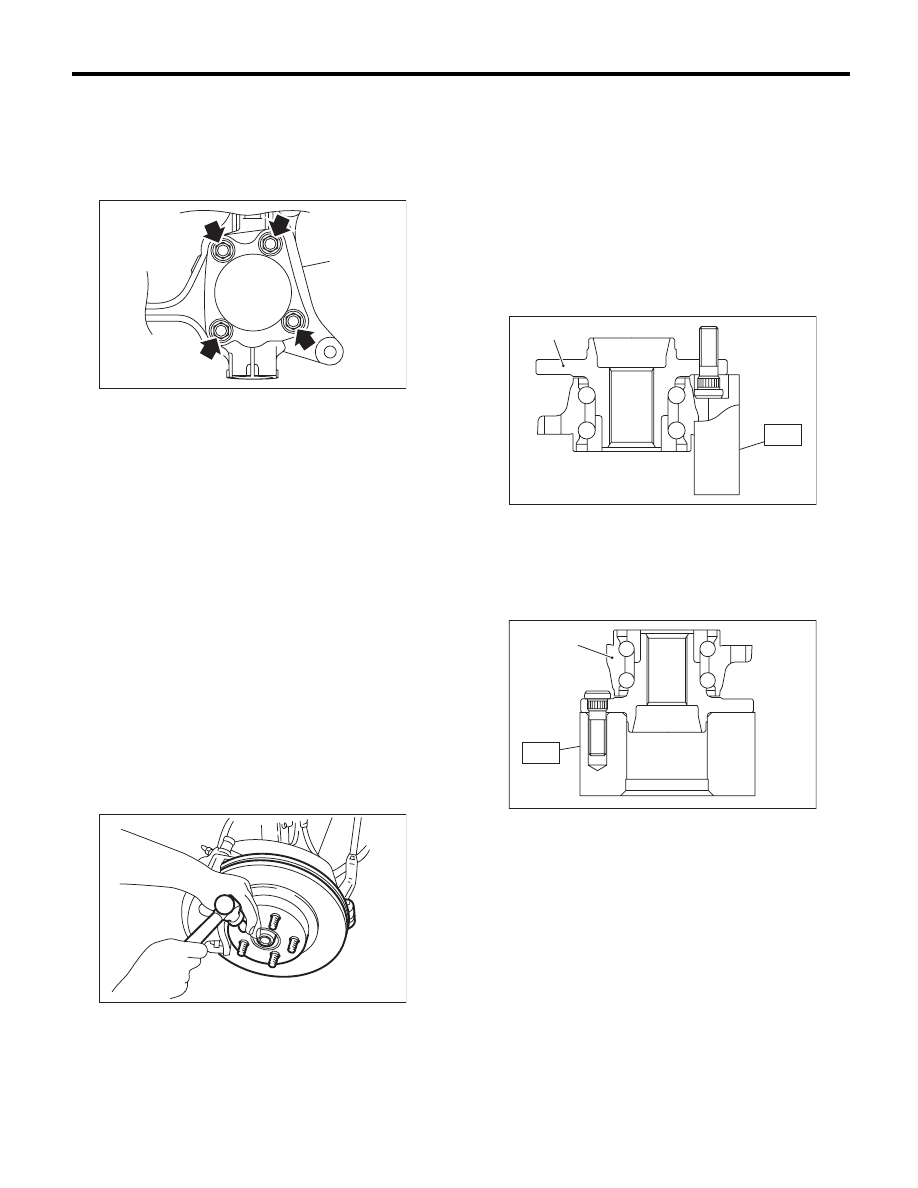

B: INSTALLATION

1) Place the disc cover between housing and front
hub unit, and tighten the four bolts.

Tightening torque:

65 N·m (6.6 kgf-m, 47.9 ft-lb)

2) Install the front drive shaft. <Ref. to DS-22, IN-
STALLATION, Front Drive Shaft.>
3) Tighten the axle nut temporarily.
4) Install the disc rotor to hub.
5) Install the disc brake caliper on the housing.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

6) While depressing the brake pedal, tighten a new
axle nut to the specified torque and lock it securely.

Tightening torque:

220 N·m (22.4 kgf-m, 162 ft-lb)

CAUTION:
• Install the wheel after installation of axle nut.
Failure to follow this rule may damage the
wheel bearing.
• Be sure to tighten the axle nut to specified
torque. Do not overtighten it as this may dam-
age the wheel bearing.
7) After tightening the axle nut, lock it securely.

8) Install the wheel and tighten the wheel nuts to
specified torque.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

C: DISASSEMBLY

Using the ST and a hydraulic press, push out the
hub bolts.
ST

28399AG000 HUB STAND

CAUTION:
• Be careful not to hammer the hub bolts. This
may deform the hub.
• Do not reuse the hub bolt.

NOTE:
Since the hub unit bearing can not be disassem-
bled, only hub bolts can be removed.

D: ASSEMBLY

1) Attach the hub to the ST securely.
ST

927080000

HUB STAND

2) Using a press, press the new hub bolts until their
seating surfaces contact the hub.

NOTE:
Use the 12 mm (0.47 in) dia. holes in the HUB
STAND to prevent bolts from tilting.

E: INSPECTION

Refer to “Front Axle” for inspection procedures.
<Ref. to DS-16, INSPECTION, Front Axle.>

CAUTION:
If there is any fault in the bearing, replace hub
unit bearing.

(A) Housing

DS-00231

(A)

DS-00048

(1) Front hub unit bearing

(1) Front hub unit bearing

ST

DS-00252

(1)

DS-00253

ST

(1)

DS-19

Rear Hub Unit Bearing

DRIVE SHAFT SYSTEM

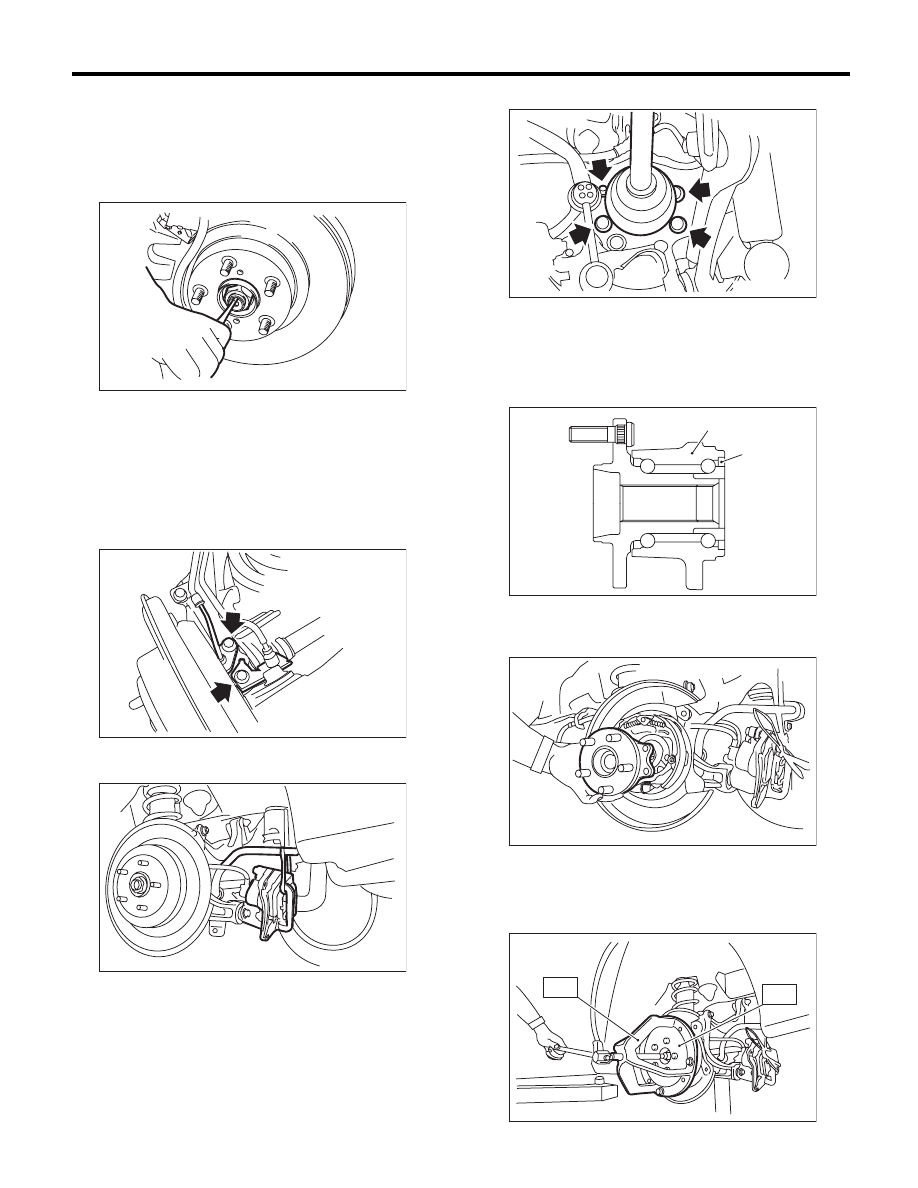

5. Rear Hub Unit Bearing

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Lift up the vehicle, then remove the rear wheels.
3) Lift the crimped section of axle nut.

4) While applying the parking brake, remove the
axle nut using a socket wrench.

CAUTION:
Remove the wheel before loosening the axle
nut. Failure to follow this rule may damage the
wheel bearings.
5) Release the parking brake.
6) Remove the rear ABS wheel speed sensor.

7) Remove the disc brake caliper from back plate,
and suspend it from the stabilizer using a wire.

8) Remove the disc rotor from the hub.

NOTE:
• Mark the mating surface of hub and disc rotor be-
fore removing the disc rotor to avoid confusing
when installing.
• If it is difficult to remove the disc rotor from the
hub, drive the 8 mm bolt into the threaded end of ro-
tor, and then remove the rotor.

9) Remove the four bolts from rear arm.

10) Remove the hub unit bearing.

CAUTION:
• Be careful not to damage the magnetic encoder.
• Do not get closer the tool which charged
magnetism to magnetic encoder.

NOTE:
If it is hard to remove, use the ST.
ST1

926470000

AXLE SHAFT PULLER

ST2

28099PA110 AXLE SHAFT PULLER PLATE

DS-00038

DS-00147

DS-00148

(1) Magnetic encoder

(2) Rear hub unit bearing

DS-00149

DS-00251

(2)

(1)

DS-00150

DS-00122

ST2

ST1

DS-20

Rear Hub Unit Bearing

DRIVE SHAFT SYSTEM

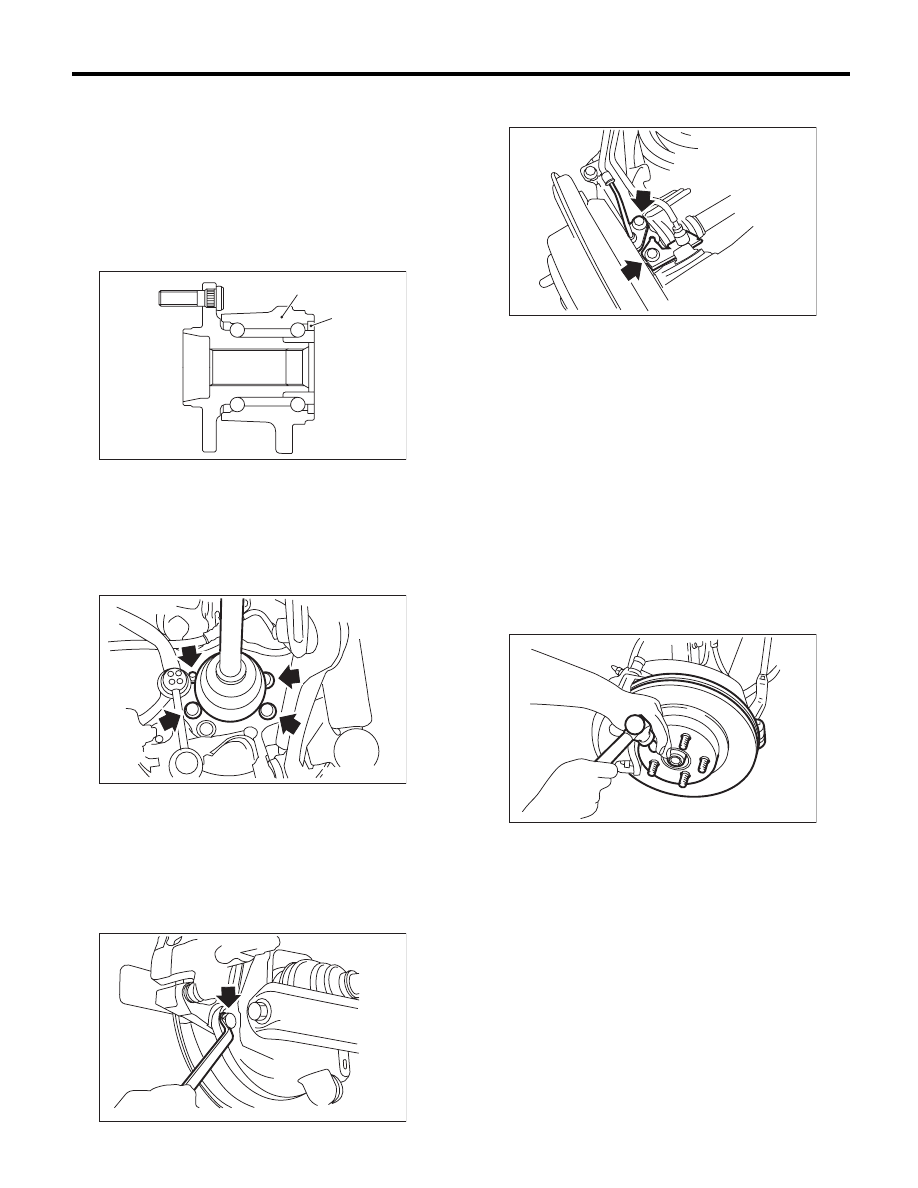

B: INSTALLATION

1) Aligning the hub unit bearing to the mounting
hole of the back plate, install the hub unit assembly
and back plate. Tighten the axle nut temporarily.

CAUTION:
• Be careful not to damage the magnetic en-
coder.
• Do not get closer the tool which charged
magnetism to magnetic encoder.

2) Tighten the four bolts.

Tightening torque:

65 N·m (6.6 kgf-m, 47.9 ft-lb)

3) Remove the axle nut.
4) Draw the rear drive shaft into specified position.
5) Tighten the new axle nut temporarily.
6) Install the disc rotor to hub.
7) Install the disc brake caliper on the back plate.

Tightening torque:

66 N·m (6.7 kgf-m, 48.7 ft-lb)

8) Install the rear ABS wheel speed sensor and
brake cable bracket.

9) Adjust the parking brake lever stroke by turning
the adjuster. <Ref. to PB-4, ADJUSTMENT, Park-
ing Brake Lever.>
10) While applying the parking brake and depress-
ing the brake pedal, tighten a new axle nut to the
specified torque and lock it securely.

Tightening torque:

240 N·m (24.5 kgf-m, 177 ft-lb)

CAUTION:
• Install the wheel after installation of axle nut.
Failure to follow this rule may damage the
wheel bearing.
• Be sure to tighten the axle nut to specified
torque. Do not overtighten it as this may dam-
age the wheel bearing.
11) After tightening the axle nut, lock it securely.

12) Install the wheel and tighten the wheel nuts to
specified torque.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

(1) Magnetic encoder

(2) Rear hub unit bearing

DS-00251

(2)

(1)

DS-00149

DS-00152

DS-00147

DS-00048
