4AT(diag)-85

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

11

CHECK POOR CONTACT.

Is there poor contact in FWD
switch circuit?

Repair the poor
contact.

Replace the TCM.
<Ref. to 4AT-61,
Transmission Con-
trol Module
(TCM).>

Step

Check

Yes

No

4AT(diag)-86

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

B: CHECK SPORT SHIFT SWITCH

DIAGNOSIS:
Input signal circuit of SPORT/manual mode switch is open or shorted.
TROUBLE SYMPTOM:
Does not shift on manual mode.

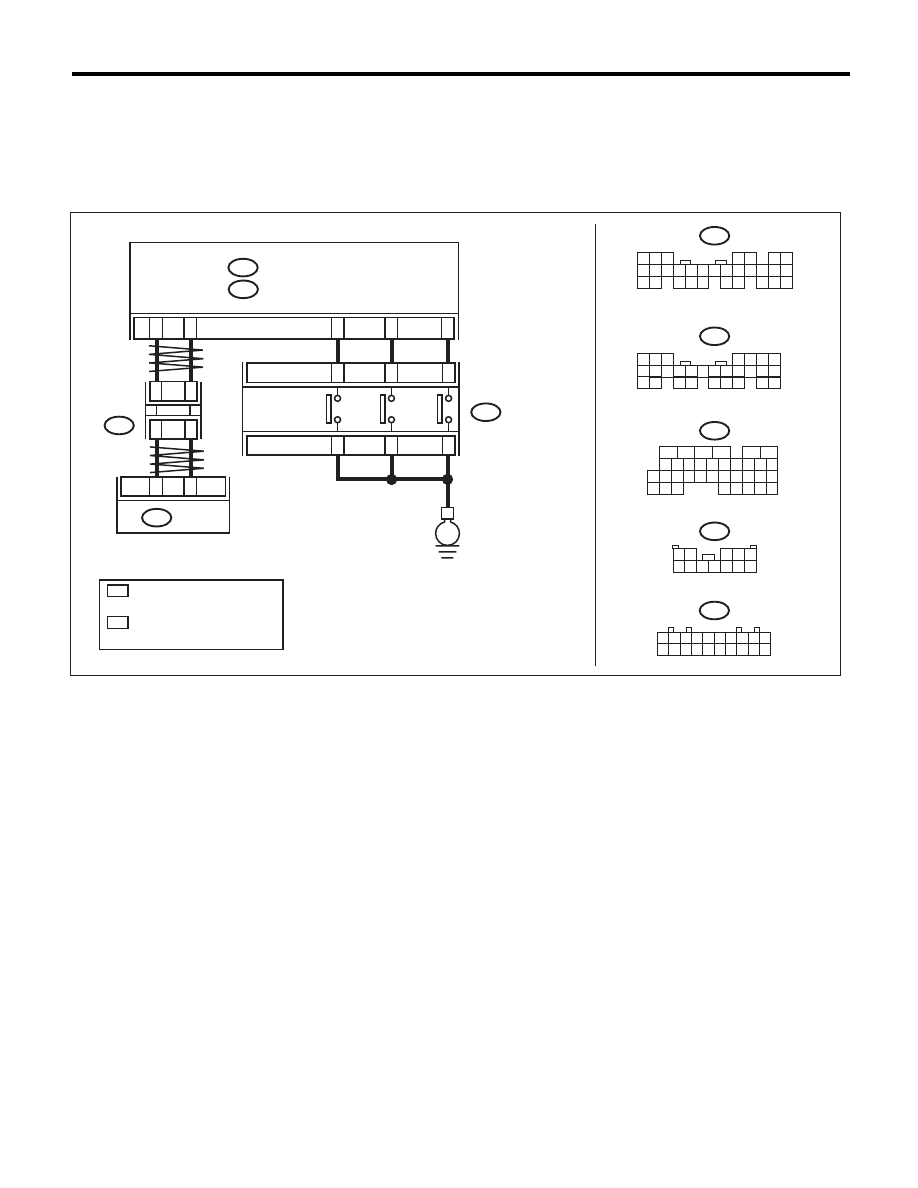

WIRING DIAGRAM:

AT-04343

1

*

1

*

2

*

1

*

2

*

2

*

B281

C:

B280

B:

B20

B30

C25

C15

18

17

B116

TCM

B54

10

11

6

7

B280

B281

8

7

6

5

4

3

2

1

22

23

21

20

19

16

15

14

13

12

11

10

9

17

30

18

29

28

27

26

25

24

8

7

6

5

4

3

2

1

22 23

21

20

19

16

15

14

13

12

11

10

9

17 18

28

27

26

25

24

B116

E

B:

C:

B365

B365

B54

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

8

9

C26

UP

DO

WN

1 2

3 4 5

6 7 8 9 10 11 12

9

8

7

6

5

4

3

2

1

10

11 12 13 14 15 16 17 18 19 20

BODY INTEGRATED UNIT

AT SELECT LEVER

JOINT

CONNECTOR

SPORT/
MANUAL
MODE SWITCH

: TERMINAL No. OPTIONAL
  ARRANGEMENT
  AMONG 1, 2, 3, 11, 12  AND 13
: TERMINAL No. OPTIONAL
  ARRANGEMENT
  AMONG 8, 9, 10, 18, 19  AND 20

4AT(diag)-87

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK SPORT SHIFT SWITCH.
1) Move the AT select lever to SPORT mode.
2) Shift and hold the AT select lever to up side.
3) Read the “Up Switch” data of the TCM using
the Subaru Select Monitor. <Ref. to 4AT(diag)-
17, READ CURRENT DATA, OPERATION,
Subaru Select Monitor.>

Is ON displayed?

Go to step 2.

Go to step 3.

2

CHECK SPORT SHIFT SWITCH.
1) Shift and hold the AT select lever to down
side.
2) Read the “Down Switch” data of TCM using
Subaru Select Monitor.

Is ON displayed?

Go to the proce-
dure “CHECK
SPORT SHIFT
INDICATOR”.
<Ref. to 4AT(diag)-
90, CHECK
SPORT SHIFT
INDICATOR, Diag-
nostic Procedure
without Diagnostic
Trouble Code
(DTC).>

Go to step 12.

3

CHECK BODY INTEGRATED UNIT.
1) Turn the ignition switch to ON.
2) Shift and hold the AT select lever to up side.
3) Read the “TIP UP SW input” data of body
integrated unit using Subaru Select Monitor.
<Ref. to LAN(diag)-12, OPERATION, Subaru
Select Monitor.>

Is ON displayed?

Go to step 4.

Go to step 5.

4

CHECK BODY INTEGRATED UNIT.
Check DTC of body integrated unit. <Ref. to
LAN(diag)-12, OPERATION, Subaru Select
Monitor.>

Is DTC of CAN communication
displayed?

Perform the diag-
nosis according to
DTC.

Inspect the TCM.

5

CHECK GROUND CIRCUIT OF SPORT/MAN-
UAL MODE SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from SPORT/
manual mode switch.
3) Measure the resistance of harness between
SPORT/manual mode switch connector and
chassis ground.

Connector & terminal

(B116) No. 6 — Chassis ground:

Is the resistance less than 1

:? Go to step 6.

Repair the open
circuit of harness
between SPORT/
manual mode
switch and chassis
ground.

6

CHECK SPORT/MANUAL MODE SWITCH.
Measure the resistance between SPORT/man-
ual mode switch terminals.

Connector & terminal

(B116) No. 6 — No. 7:

Is the resistance 1 M

: or

more?

Go to step 7.

Replace the guide
plate assembly.

7

CHECK SPORT/MANUAL MODE SWITCH.
1) Shift and hold the AT select lever to up side.
2) Measure the resistance between SPORT/
manual mode switch terminals.

Connector & terminal

(B116) No. 6 — No. 7:

Is the resistance less than 1

:? Go to step 8.

Replace the guide
plate assembly.

4AT(diag)-88

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

8

CHECK HARNESS CONNECTOR BETWEEN
BODY INTEGRATED UNIT AND SPORT/
MANUAL MODE SWITCH.
1) Disconnect the connector from body inte-
grated unit.
2) Measure the resistance of harness between
body integrated unit connector and SPORT/
manual mode switch connector.

Connector & terminal

(B116) No. 7 — (B281) No. 15:

Is the resistance less than 1

:? Go to step 9.

Repair the open
circuit of harness
between the
SPORT/manual
mode switch con-
nector and body
integrated unit con-
nector, or poor
contact of connec-
tor.

9

CHECK HARNESS CONNECTOR BETWEEN
BODY INTEGRATED UNIT AND SPORT/
MANUAL MODE SWITCH.
Measure the resistance of harness between
SPORT/manual mode switch connector and
chassis ground.

Connector & terminal

(B116) No. 7 — Chassis ground:

Is the resistance 1 M

: or

more?

Go to step 10.

Repair the short
circuit of harness
between SPORT/
manual mode
switch connector
and body inte-
grated unit connec-
tor.

10

CHECK INPUT SIGNAL TO BODY INTE-
GRATED UNIT.
1) Connect all connectors.
2) Turn the ignition switch to ON (engine OFF).
3) Check the signal voltage for body integrated
unit.

Connector & terminal

(B281) No. 15 (+) — Chassis ground (–):

Is the voltage 1.5 — 8 V?

Go to step 11.

Replace the body
integrated unit.

11

CHECK INPUT SIGNAL TO BODY INTE-
GRATED UNIT.
1) Shift and hold the AT select lever to shift up
side.
2) Check the signal voltage for body integrated
unit.

Connector & terminal

(B281) No. 15 (+) — Chassis ground (–):

Is the voltage less than 1 V?

Go to step 21.

Replace the body
integrated unit.

12

CHECK BODY INTEGRATED UNIT.
1) Turn the ignition switch to ON.
2) Shift and hold the AT select lever to down
side.
3) Read the “TIP DOWN SW input” data of
body integrated unit using Subaru Select Moni-
tor. <Ref. to LAN(diag)-12, OPERATION, Sub-
aru Select Monitor.>

Is ON displayed?

Go to step 13.

Go to step 14.

13

CHECK BODY INTEGRATED UNIT.
Check DTC of body integrated unit.

Is DTC of CAN communication
displayed?

Perform the diag-
nosis according to
DTC.

Inspect the TCM.

14

CHECK GROUND CIRCUIT OF SPORT/MAN-
UAL MODE SWITCH.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from SPORT/
manual mode switch.
3) Measure the resistance of harness between
SPORT/manual mode switch connector and
chassis ground.

Connector & terminal

(B116) No. 10 (+) — Chassis ground:

Is the resistance less than 1

:? Go to step 15.

Repair the open
circuit of harness
between SPORT/
manual mode
switch and chassis
ground.

15

CHECK SPORT/MANUAL MODE SWITCH.
Measure the resistance between SPORT/man-
ual mode switch terminals.

Connector & terminal

(B116) No. 10 — No. 11:

Is the resistance 1 M

: or

more?

Go to step 16.

Replace the guide
plate assembly.

Step

Check

Yes

No
