CS-7

General Description

CONTROL SYSTEMS

(1)

Gear shift knob

(16)

Bushing

(30)

Rod

(2)

Front cover ASSY

(17)

Spring pin

(31)

Reverse check lever

(3)

Clamp

(18)

Bushing

(32)

Band clip

(4)

Boot and insulator ASSY

(19)

Boot

(33)

Boss

(5)

Plate ASSY

(20)

Stay

(34)

O-ring

(6)

Slider

(21)

Cushion rubber

(35)

O-ring

(7)

Spring pin

(22)

Bushing

(36)

Screw

(8)

Spring

(23)

Reverse check cable

(37)

Spring seat

(9)

Holder

(24)

Washer



(10)

Seat cushion

(25)

Snap pin

Tightening torque:N·m (kgf-m, ft-lb)

(11)

Lever

(26)

Bracket

T1: 1.3 (0.1, 1.0)

(12)

Bushing

(27)

Cable plate

T2: 12 (1.2, 8.9)

(13)

Spacer

(28)

Joint

T3: 18 (1.8, 13.3)

(14)

Lock wire

(29)

Spring pin

T4: 32 (3.3, 23.6)

(15)

Snap ring





CS-8

General Description

CONTROL SYSTEMS

C: PREPARATION TOOL

1. SPECIAL TOOL

D: CAUTION

• Wear appropriate work clothing, including a cap,
protective goggles and protective shoes when per-
forming any work.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Use SUBARU genuine fluid, grease etc. or
equivalent. Do not mix fluid, grease, etc. of different
grades or manufacturers.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Apply grease onto sliding or revolving surfaces
before installation.
• Before installing O-rings or snap rings, apply suf-
ficient amount of fluid to avoid damage and defor-
mation.
• Before securing a part in a vise, place cushioning
material such as wood blocks, aluminum plate or
cloth between the part and the vise.
• Before disconnecting electrical connectors, be
sure to disconnect the negative terminal from bat-
tery.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

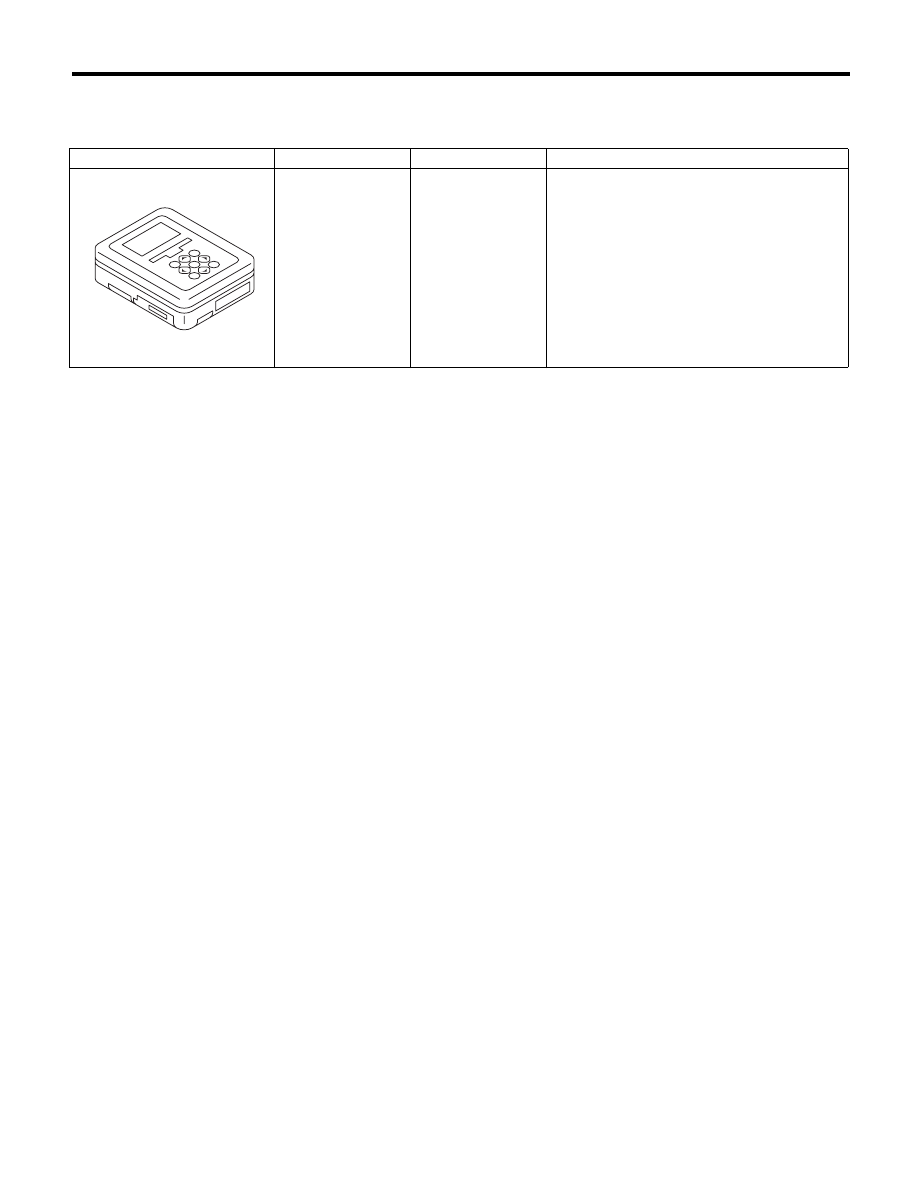

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

ST1B022XU0

CS-9

AT Shift Lock Control System

CONTROL SYSTEMS

2. AT Shift Lock Control System

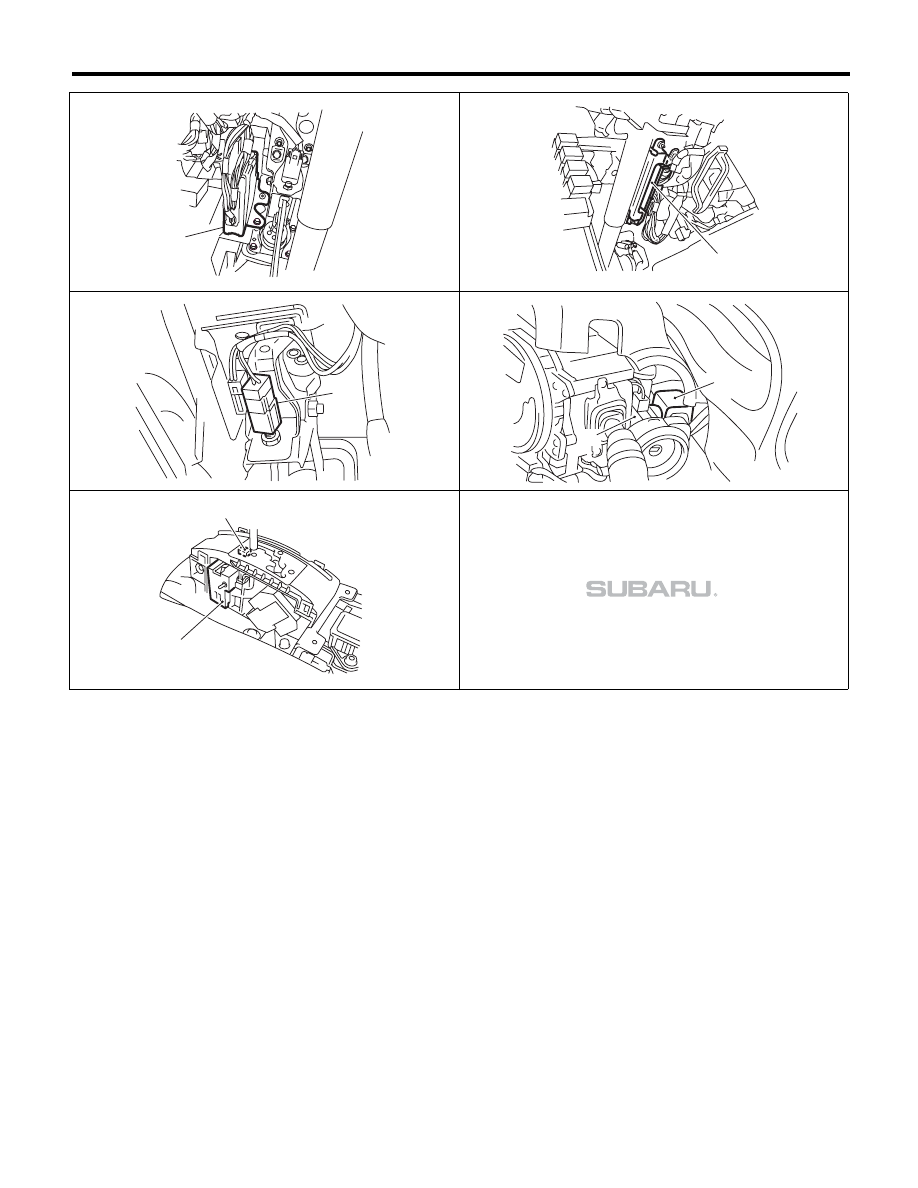

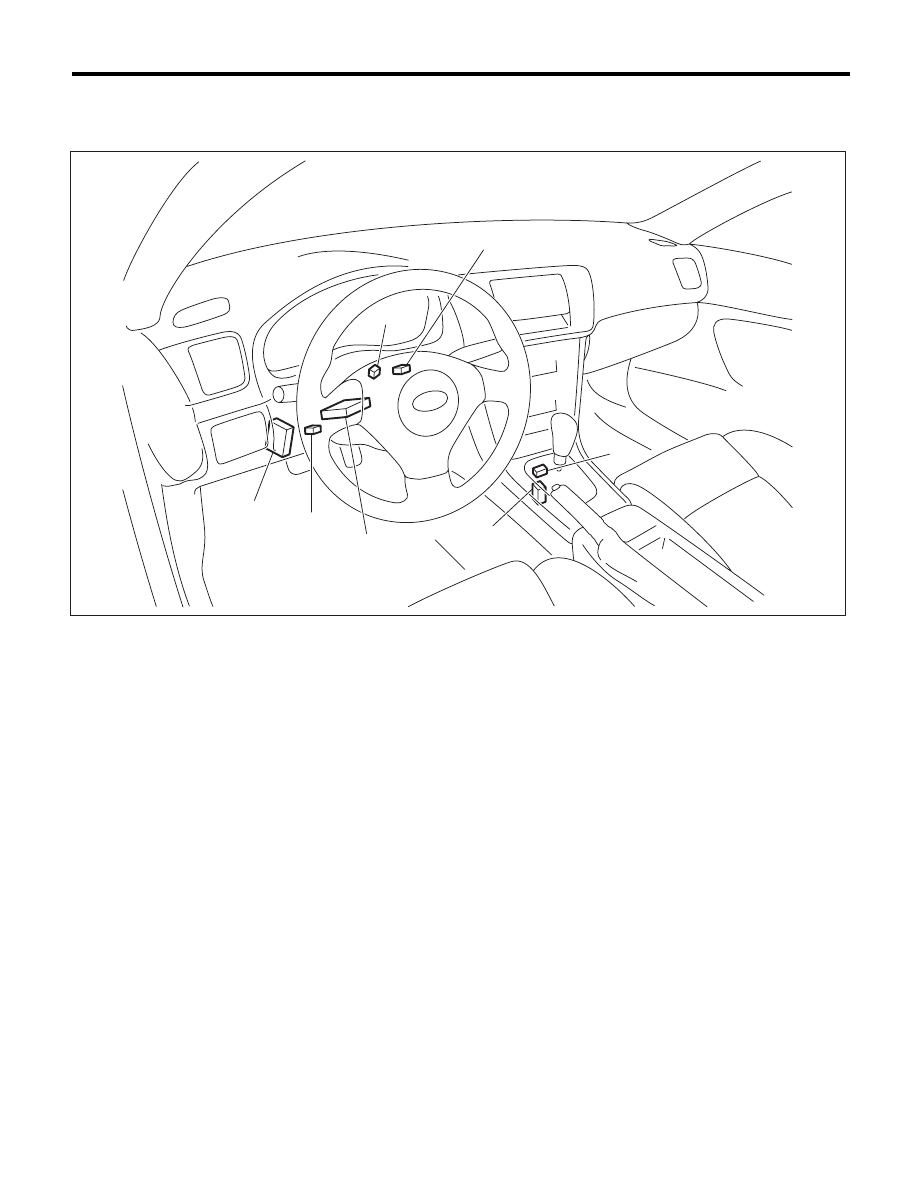

A: LOCATION

(1)

TCM (“P” range)

(4)

Key cylinder (with built-in key
warning switch)

(6)

“P” range switch

(2)

Body integrated unit

(7)

Key lock solenoid

(3)

Stop light switch

(5)

Shift lock solenoid ASSY





CS-00513

(1)

(3)

(2)

(5)

(6)

(7)

(4)

CS-10

AT Shift Lock Control System

CONTROL SYSTEMS

CS-00835

(1)

CS-00743

(2)

(3)

CS-00270

CS-00359

(7)

(4)

CS-00543

(6)

(5)
