GD(H6DO)-168

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

Judge as NG when the following conditions are established.

Time Needed for Diagnosis: 24 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the following conditions are established.

Time Needed for Diagnosis: 3400 ms

Judgement Value

Malfunction criteria

Threshold value

Opening variation after continuity is set
to OFF

< 2 °

Judgement Value

Malfunction criteria

Threshold value

Opening variation after continuity is set
to OFF

t 2 °

GD(H6DO)-169

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DH:DTC P1400 FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT

LOW

1. OUTLINE OF DIAGNOSIS

Detect the open/short circuit of pressure control solenoid valve.
Judge as NG when ECM output level is different from actual terminal level.

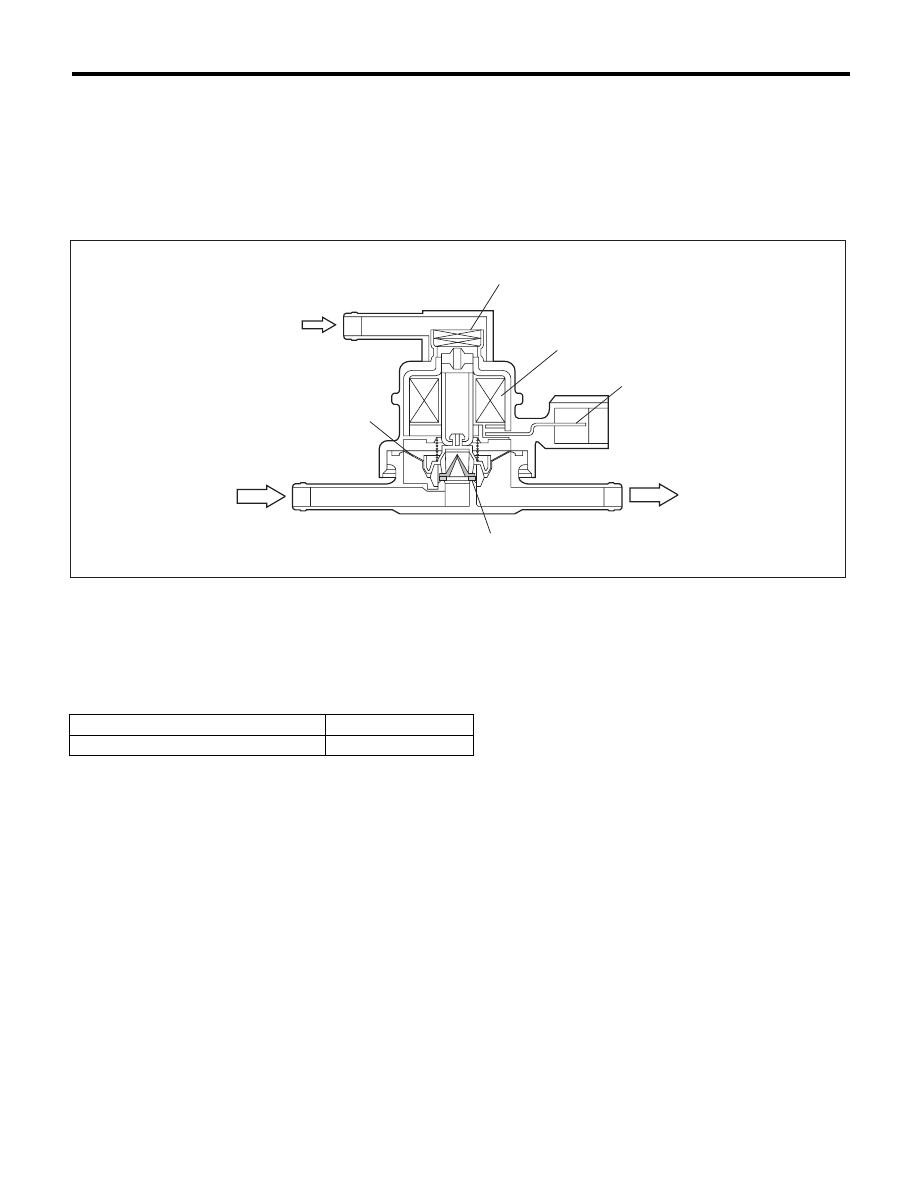

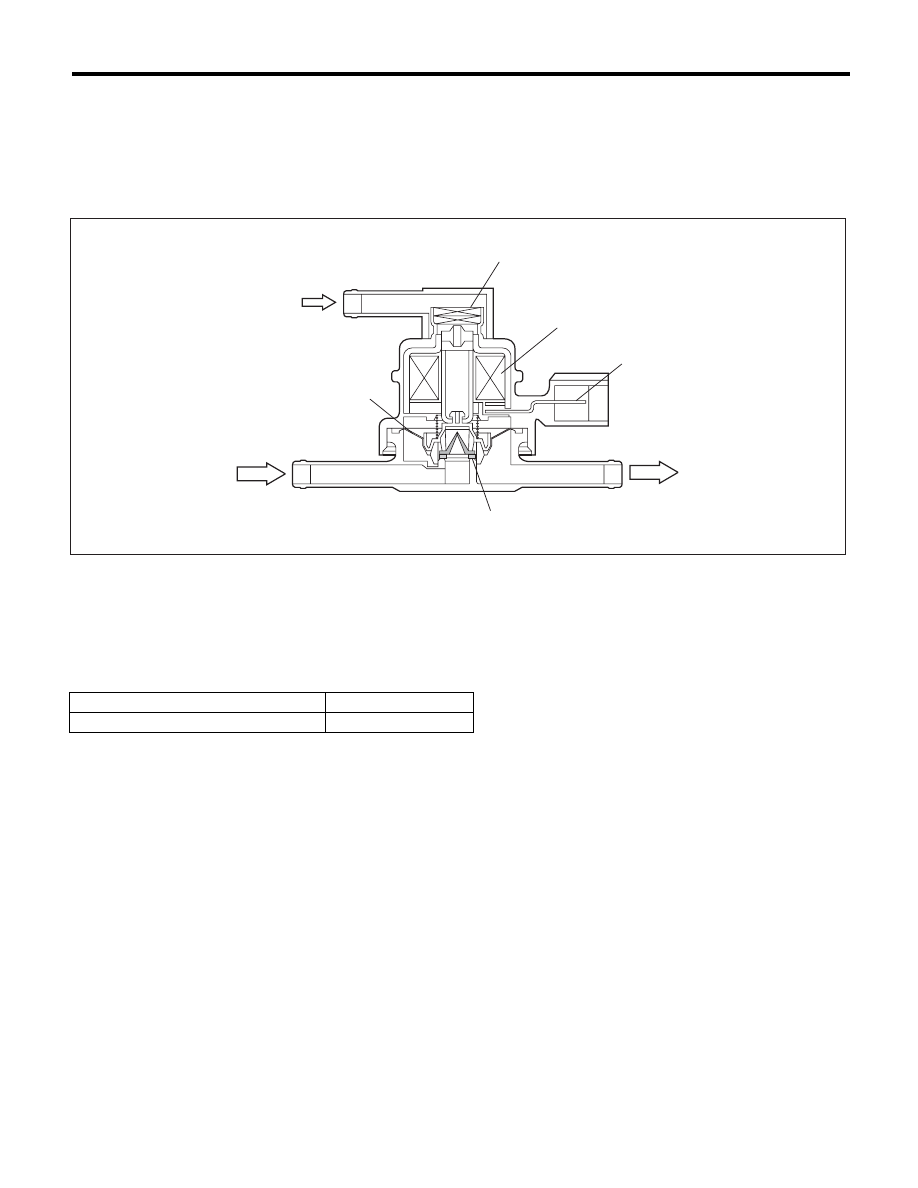

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis after starting the engine.

(A)

Barometric pressure

(B)

Shut-off valve

(C)

To fuel tank

(1)

Filter

(3)

Connector terminal

(5)

Valve

(2)

Coil

(4)

Diaphragm

Secondary Parameters

Enable Conditions

None



EN-01759

(1)

(2)

(3)

(4)

(5)

(A)

(B)

(C)

GD(H6DO)-170

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 2500 ms
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

Judgement Value

Malfunction criteria

Threshold value

Battery voltage

t 10.9 V

Elapsed time after starting the engine

t 1 second

Terminal output voltage when ECM out-
puts OFF signal

Low

Judgement Value

Malfunction criteria

Threshold value

Battery voltage

t 10.9 V

Elapsed time after starting the engine

t 1 second

Terminal output voltage when ECM out-
puts OFF signal

High

GD(H6DO)-171

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DI: DTC P1420 FUEL TANK PRESSURE CONTROL SOL. VALVE CIRCUIT HIGH

1. OUTLINE OF DIAGNOSIS

Detect the open/short circuit of pressure control solenoid valve.
Judge as NG when ECM output level is different from actual terminal level.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis after starting the engine.

(A)

Barometric pressure

(B)

Shut-off valve

(C)

To fuel tank

(1)

Filter

(3)

Connector terminal

(5)

Valve

(2)

Coil

(4)

Diaphragm

Secondary Parameters

Enable Conditions

None



EN-01759

(1)

(2)

(3)

(4)

(5)

(A)

(B)

(C)
