GD(H6DO)-32
Diagnostic Trouble Code (DTC) Detecting Criteria

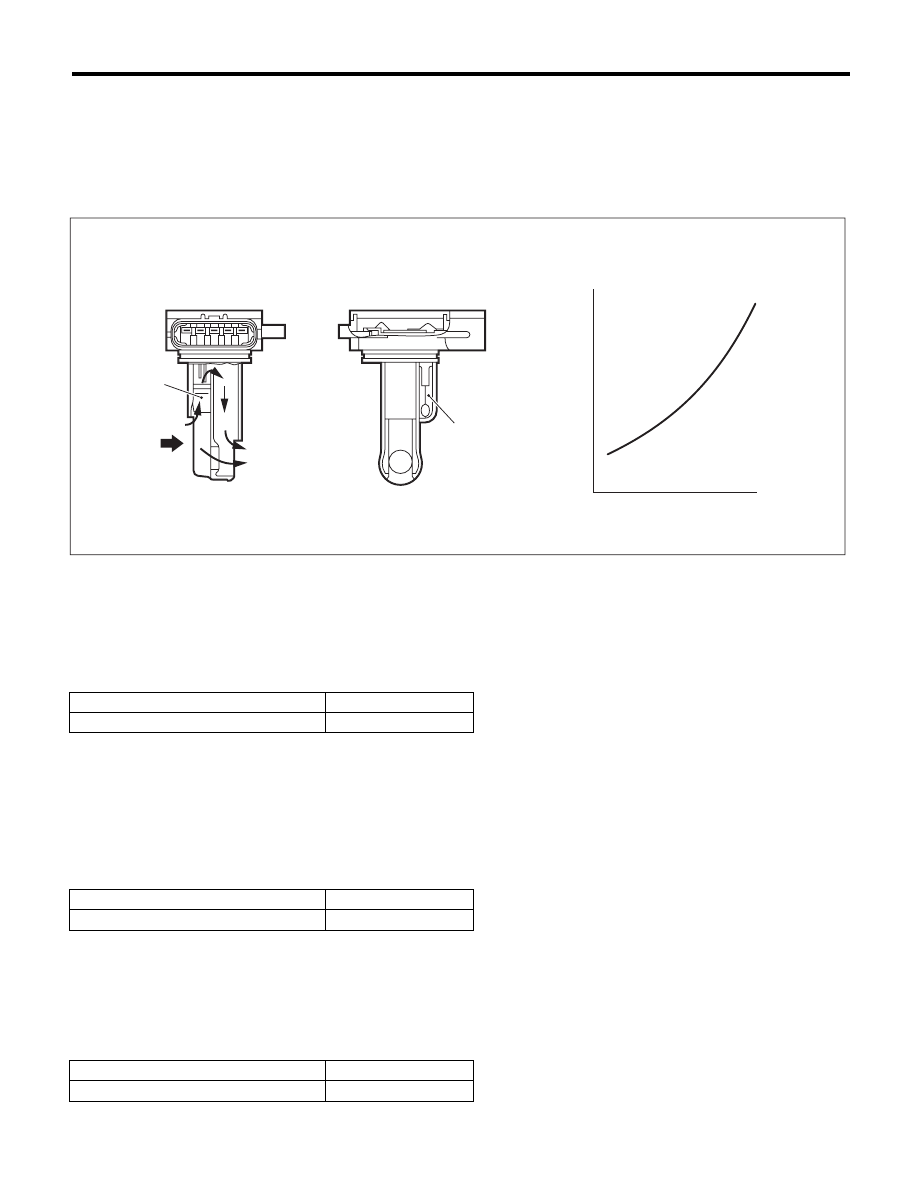

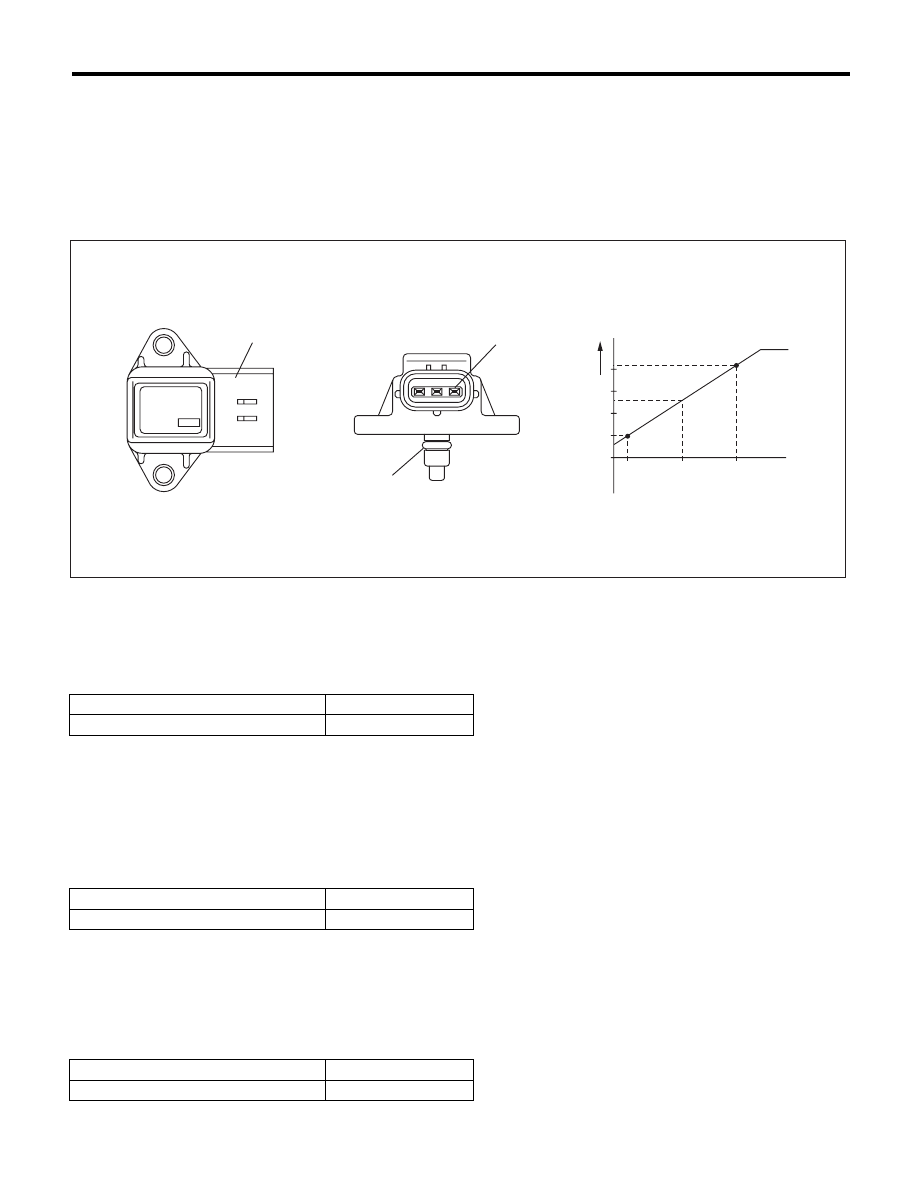

GENERAL DESCRIPTION
5. DIAGNOSTIC METHOD
• Abnormality Judgement
Judge as NG when Low side or High side becomes NG.
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.
Time Needed for Diagnosis:
Low: 5000 ms
High: 10000 ms
Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cy-
cles.
• Normality Judgement
Judge as OK and clear the NG when both Low side and High side become OK.
Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.
Time Needed for Diagnosis:
Low: Less than 1 second
High: Less than 1 second
Judgement Value
Malfunction criteria
Threshold value
Low
Output voltage
< 1.79 V
Engine speed
t 2000 rpm
Throttle opening angle
t 15 °
Intake manifold pressure
t 73.3 kPa (550 mmHg, 21.7 inHg)
High (1)
Output voltage
t 1.83 V
Engine speed
500 rpm — 850 rpm
Throttle opening angle
< 3.5 °
Intake manifold pressure
t 46.7 kPa (350 mmHg, 13.8 inHg)
High (2)
Output voltage
t 1.73 V
Engine speed
500 rpm — 850 rpm
Throttle opening angle
< 3.5 °
Intake manifold pressure
t 46.7 kPa (350 mmHg, 13.8 inHg)
Fuel system diagnosis
Rich side malfunction
Judgement Value
Malfunction criteria
Threshold value
Low
Output voltage
t 1.79 V
Engine speed
t 2000 rpm
Throttle opening angle
t 15 °
Intake manifold pressure
t 73.3 kPa (550 mmHg, 21.7 inHg)
High
Output voltage
< 1.83 V
Engine speed
500 rpm — 850 rpm
Throttle opening angle
< 3.5 °
Intake manifold pressure
< 46.7 kPa (350 mmHg, 13.8 inHg)
Fuel system diagnosis
Rich side normal
