EN(H6DO)(diag)-117

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Q: DTC P0068 MAP/MAF - THROTTLE POSITION CORRELATION

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-27, DTC P0068 MAP/MAF - THROTTLE POSITION
CORRELATION, Diagnostic Trouble Code (DTC) Detecting Criteria.>

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

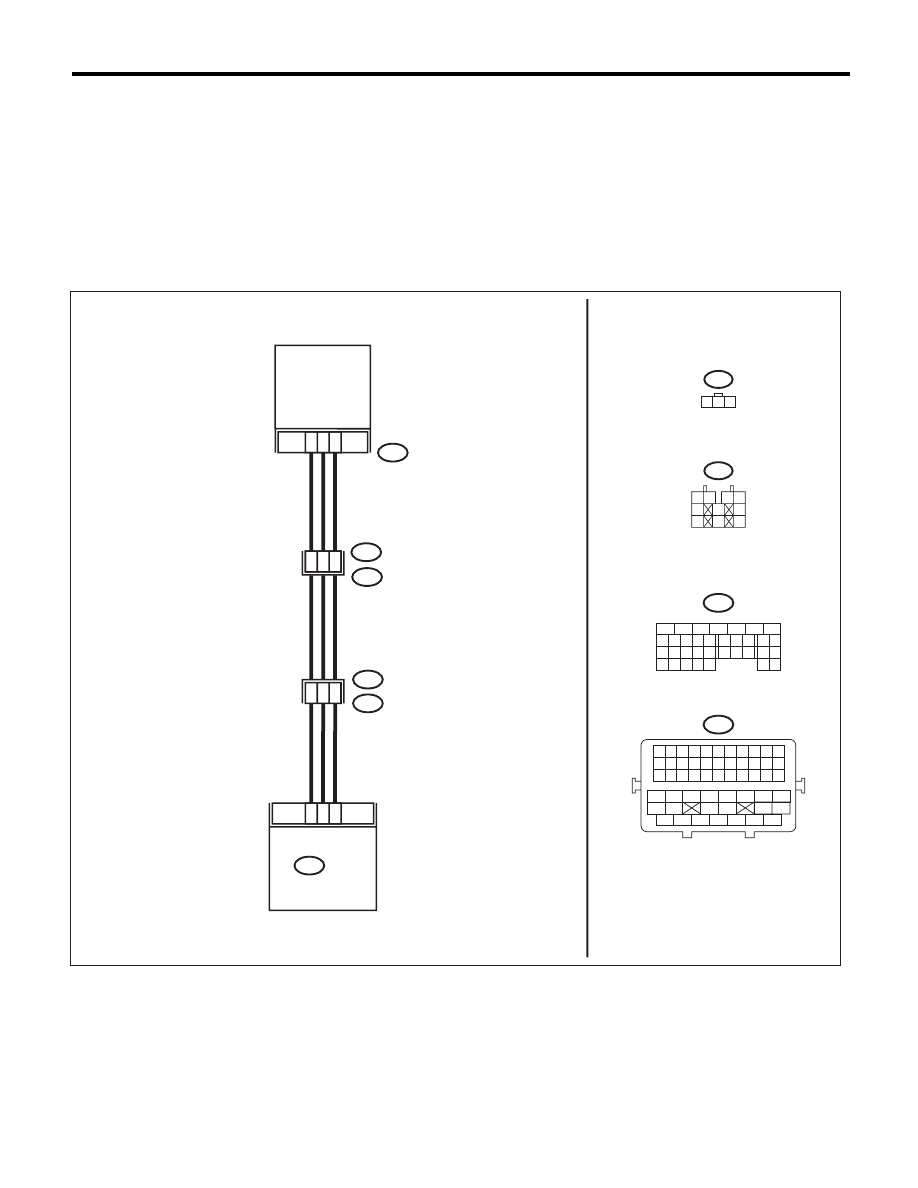

WIRING DIAGRAM:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

1 2 3

MANIFOLD

ABSOLUTE
PRESSURE

SENSOR

1

3

2

5

8

1

29

6

19

19

20

7

ECM

B134

E21

E77

B21

E2

E76

B134

E21

E77

1 2

3 4

5

6

7

8

9

10

EN-06869

B21

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33

34

35

42

43

36

37

38

39

48

49

50

51

52

53

54

40

41

44

45

46

47

EN(H6DO)(diag)-118

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK AIR INTAKE SYSTEM.

Are there holes, loose bolts or
disconnection of hose on air
intake system?

Repair the air
intake system.

Go to step 2.

2

CHECK MANIFOLD ABSOLUTE PRESSURE
SENSOR.
1) Start the engine and warm up engine until
coolant temperature is higher than 75°C
(167°F).
2) Place the select lever in “P” range or “N”
range.
3) Turn the A/C switch to OFF.
4) Turn all the accessory switches to OFF.
5) Read the data of intake manifold pressure
sensor signal using Subaru Select Monitor or
general scan tool.

NOTE:
• SUBARU SELECT MONITOR
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H6DO)(diag)-34, Subaru Select Moni-
tor.>
• General Scan Tool
For detailed operation procedures, refer to the
“General Scan Tool Instruction Manual”.

Is the measured value 73.3 —
106.6 kPa (550 — 800 mmHg,
21.65 — 31.50 inHg) when the
ignition is turned ON, and 20.0 —
46.7 kPa (150 — 350 mmHg,
5.91 — 13.78 inHg) during
idling?

Go to step 3.

Replace the mani-
fold absolute pres-
sure sensor. <Ref.
to FU(H6DO)-25,
Manifold Absolute
Pressure Sensor.>

3

CHECK THROTTLE OPENING ANGLE.
Read the data of throttle position signal using
Subaru Select Monitor or general scan tool.

NOTE:
• SUBARU SELECT MONITOR
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H6DO)(diag)-34, Subaru Select Moni-
tor.>
• General Scan Tool
For detailed operation procedures, refer to the
“General Scan Tool Instruction Manual”.

Is the measured value less than
5% when throttle is fully
closed?

Go to step 4.

Replace the elec-
tronic throttle con-
trol. <Ref. to
FU(H6DO)-13,
Throttle Body.>

4

CHECK THROTTLE OPENING ANGLE.

Is the measured value 85% or
more when throttle is fully
open?

Replace the mani-
fold absolute pres-
sure sensor. <Ref.
to FU(H6DO)-25,
Manifold Absolute
Pressure Sensor.>

Replace the elec-
tronic throttle con-
trol. <Ref. to
FU(H6DO)-13,
Throttle Body.>

EN(H6DO)(diag)-119

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

R: DTC P0076 INTAKE VALVE CONTROL SOLENOID CIRCUIT LOW (BANK 1)

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-29, DTC P0076 INTAKE VALVE CONTROL SOLENOID
CIRCUIT LOW (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Improper idling

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

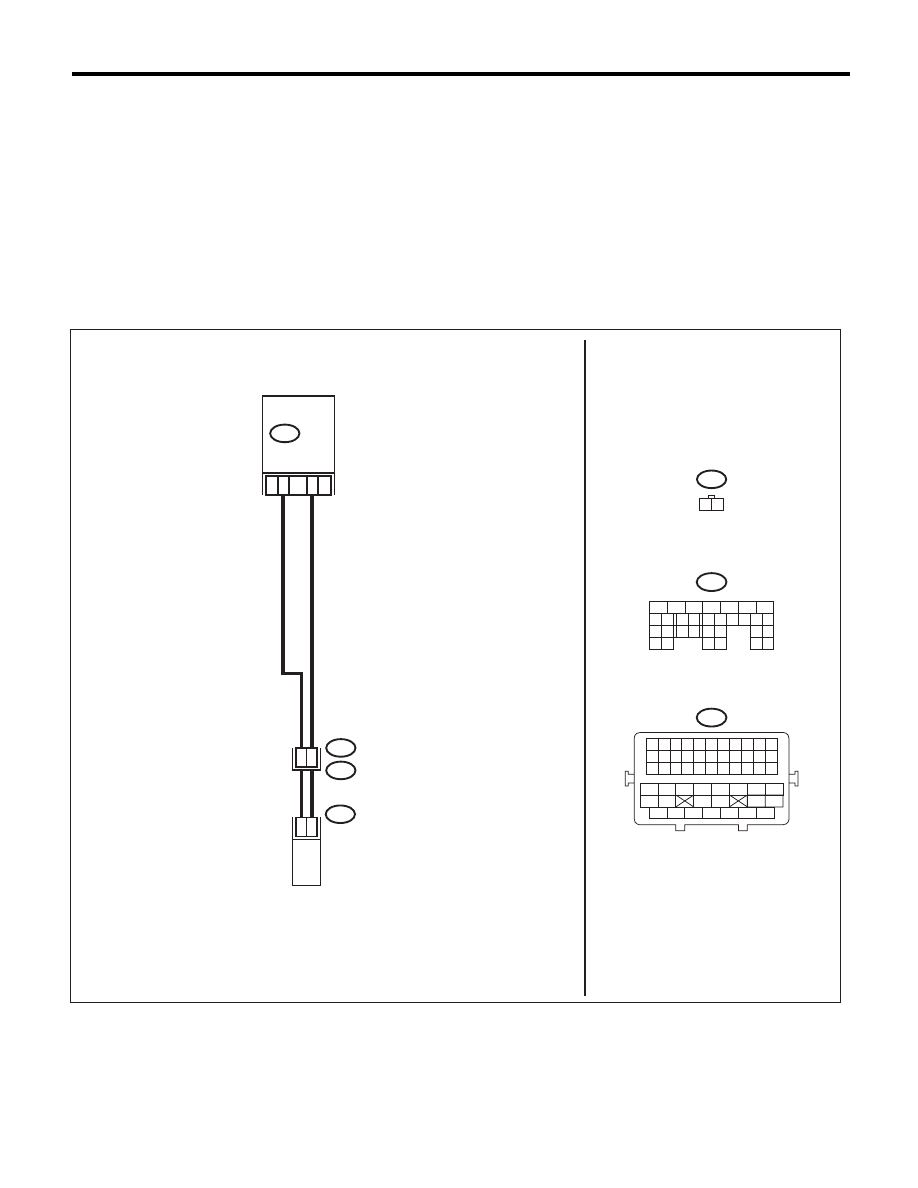

WIRING DIAGRAM:

EN-06870

B21

E2

B137

E69

24

2

1

26

25

E69

1 2

25

ECM

OIL SWITCHING

SOLENOID VALVE RH

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B21

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33

34

35

42

43

36

37

38

39

48

49

50

51

52

53

54

40

41

44

45

46

47

EN(H6DO)(diag)-120

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from the ECM
and oil switching solenoid valve.
3) Measure the resistance of harness between
ECM and oil switching solenoid valve.

Connector & terminal

(B137) No. 25 — (E69) No. 1:
(B137) No. 24 — (E69) No. 2:

Is the resistance less than 1

:? Go to step 2.

Repair the harness
and connector.

NOTE:
In this case, repair
the following item:
• Open circuit of
harness between
ECM and oil
switching solenoid
valve connector
• Poor contact of
coupling connector

2

CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
Measure the resistance between ECM and
chassis ground.

Connector & terminal

(B137) No. 25 — Chassis ground:
(B137) No. 24 — Chassis ground:

Is the resistance 1 M

: or

more?

Go to step 3.

Repair the ground
short circuit of har-
ness between
ECM and oil
switching solenoid
valve connector.

3

CHECK OIL SWITCHING SOLENOID VALVE.
Measure the resistance between oil switching
solenoid valve terminals.

Terminals

No. 1 — No. 2:

Is the resistance between 6 —
12

:?

Repair the poor
contact of ECM
and oil switching
solenoid valve con-
nector.

Replace the oil
switching solenoid
valve. <Ref. to
ME(H6DO)-80, Oil
Switching Solenoid
Valve.>
